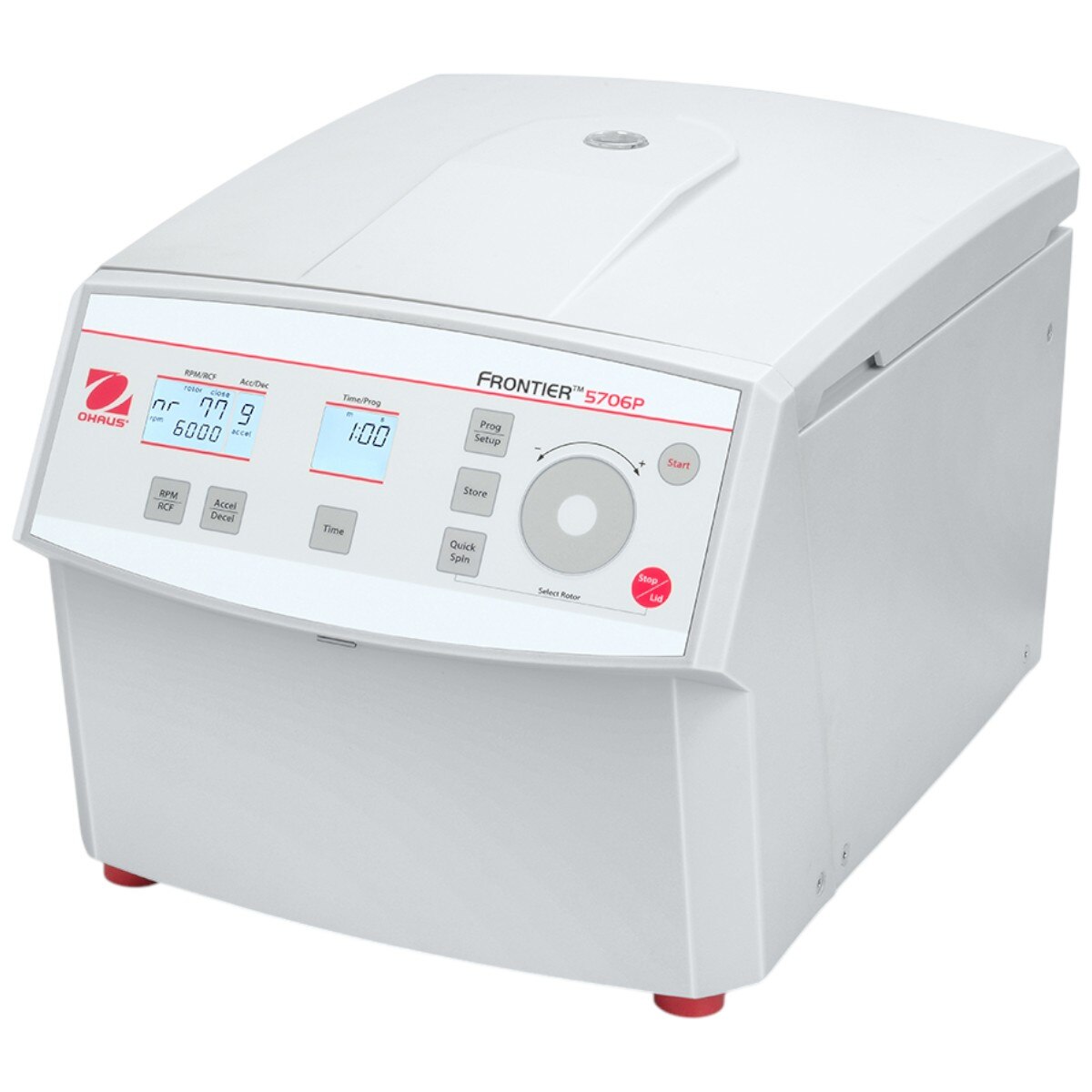

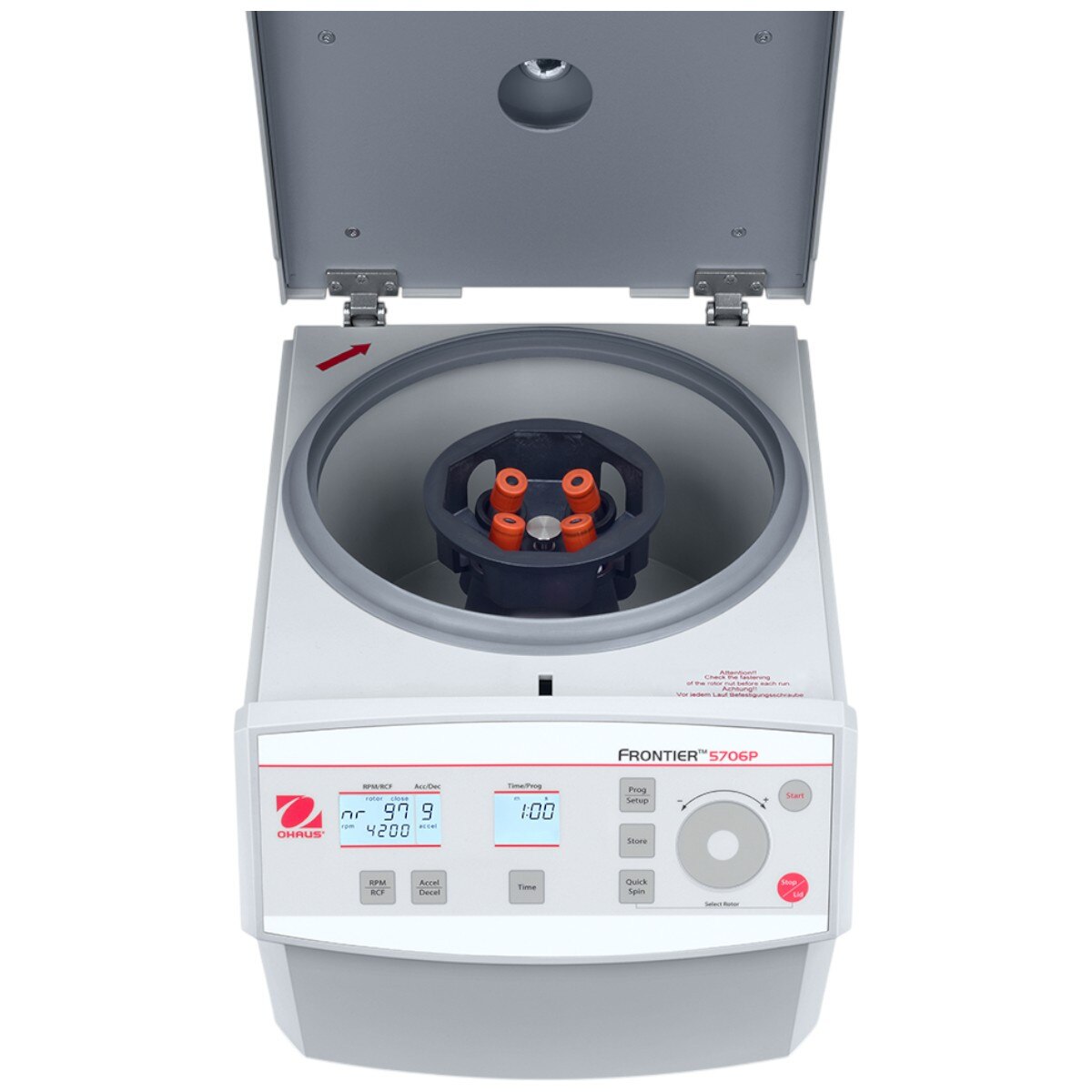

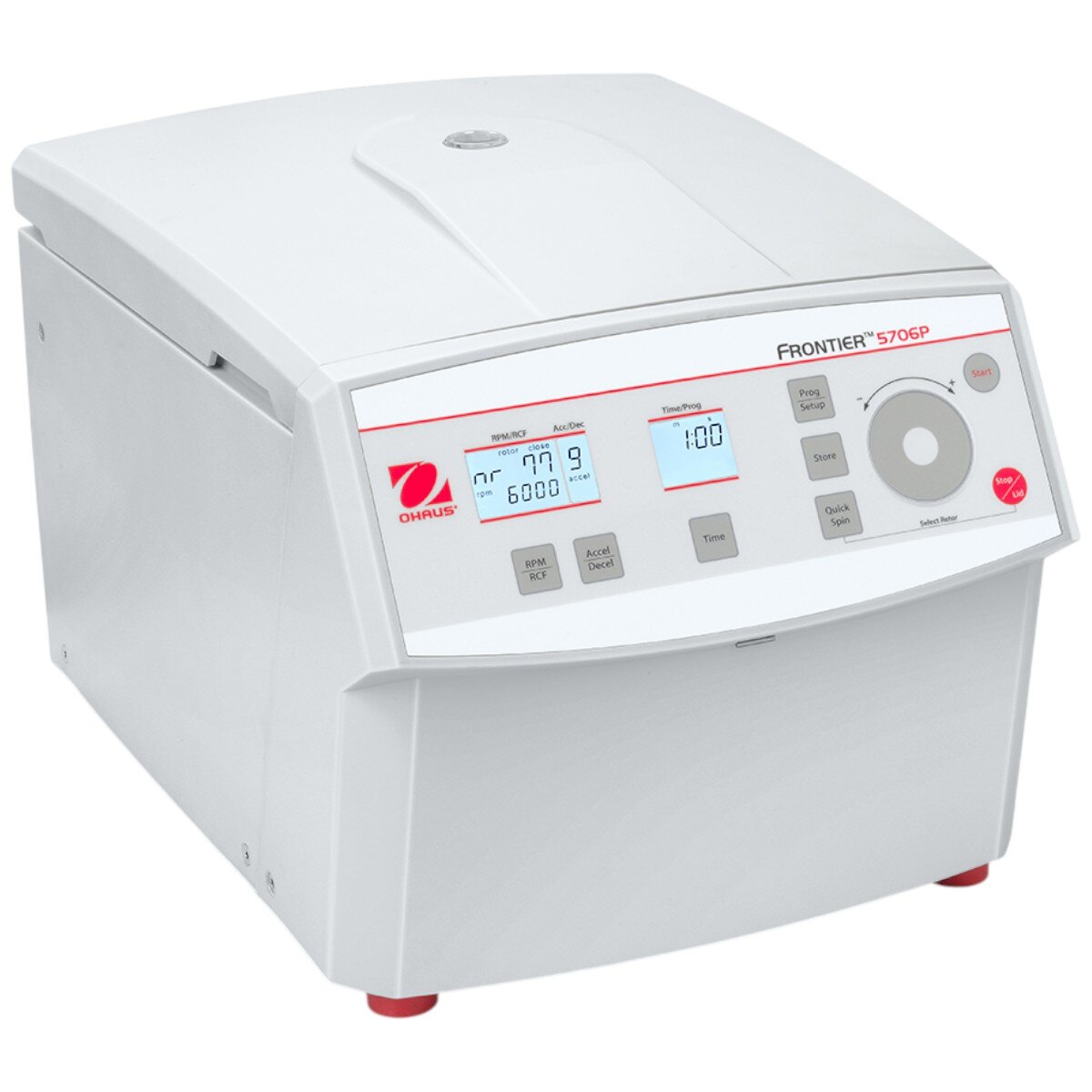

Ohaus Frontier™ 5000 Series Multi Centrifuge, 100–240V (FC5706P+R97)
Images are for representation only. Actual product may differ in size, color or options.
Ohaus Frontier™ 5000 Series Multi Centrifuge, 100–240V (FC5706P+R97)
Compact and versatile centrifuge designed for low-speed general-purpose applications. This configuration includes the 31013397 Swing-Out Rotor (4 × 10 mL), ideal for processing small-volume blood and urine tubes in clinical and research settings.
Specifications
- Model Number: FC5706P+R97
- Item Number: 31060780
- Speed Range: 200 – 6,000 rpm
- Max RCF: 4,427 × g
- Included Rotor: 31013397 – Swing-Out Rotor, 4 × 10 mL
- Rotor Recognition: Manual
- Program Memories: 99
- Acceleration/Deceleration: 10 gears each
- Display: LCD, backlit, 2-line
- Dimensions: 21.3 × 14.3 × 14.6 in (540 × 365 × 370 mm)
- Net Weight: 31.3 lb (14.2 kg)
- Noise Level: ≤ 56 ± 2 dB(A)
- Power Supply: AC 100–240V (included)
- Power Consumption: 70 W
- Working Environment: 41°F – 95°F (5°C – 35°C), 80% RH, non-condensing
Features
- Includes swing-out rotor for 4 × 10 mL tubes
- Brushless motor with quiet operation
- Quickspin mode and continuous run options
- Mechanical lid lock and imbalance detection
- One-touch toggling between RPM and RCF
- LED status indicators: run, standby, complete
Applications

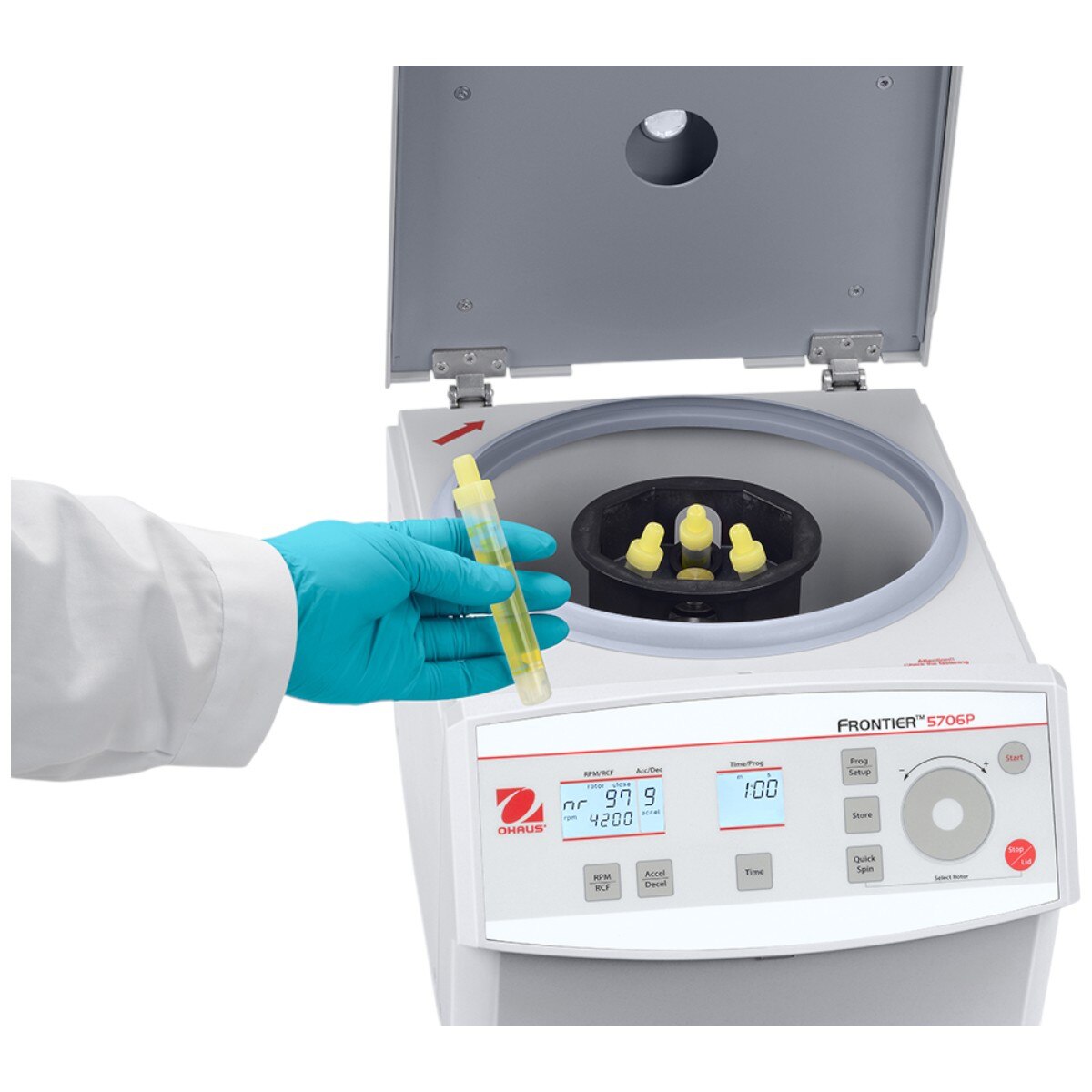

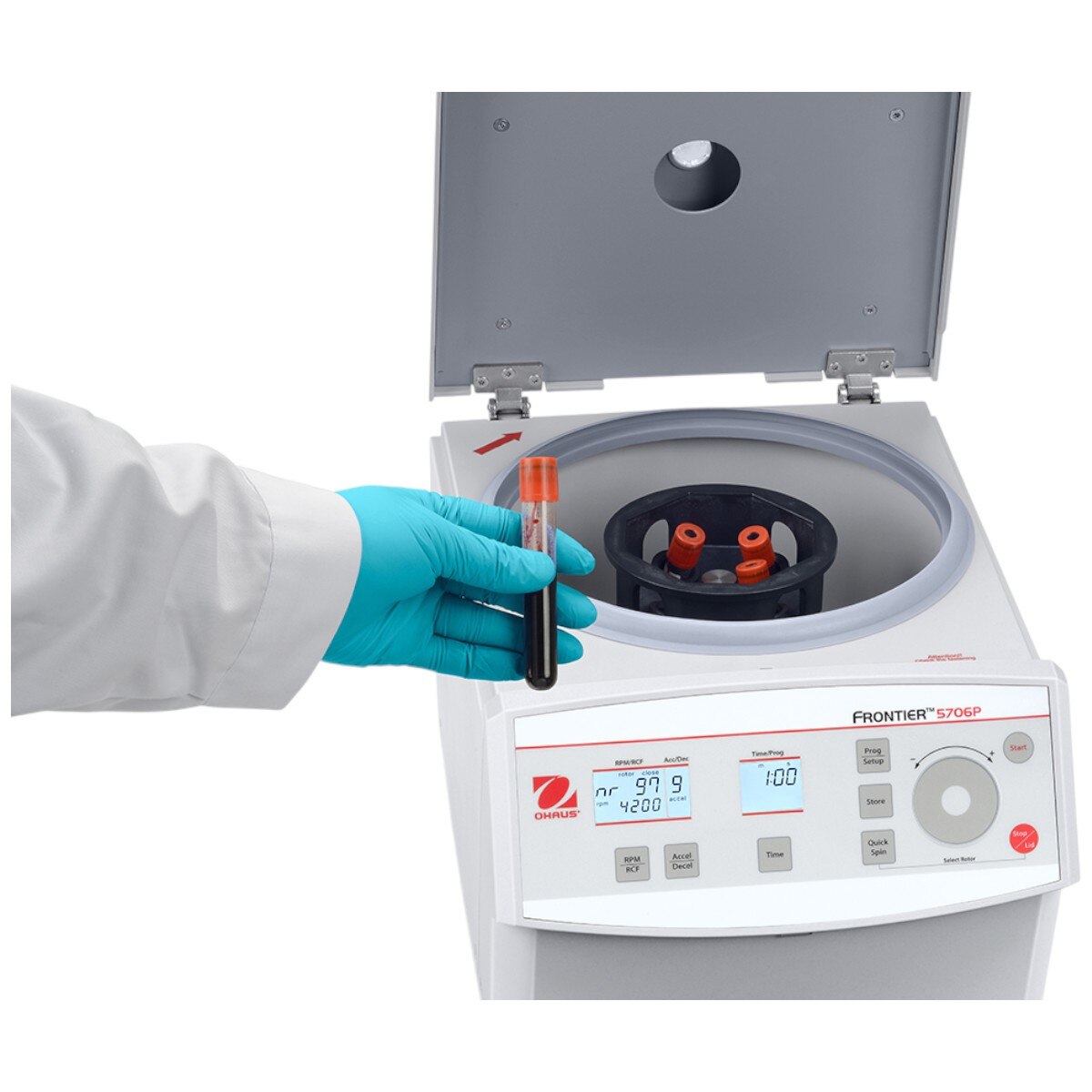

- Blood and urine tube processing
- General-purpose sample separation
- Clinical and research centrifugation
- Educational lab demonstrations
| Product Type: | Centrifuge |
| Brand: | Ohaus |
| Product Line: | Frontier 5000 |
| Class: | Multi |
| Capacity: | 6 x 50 ml tubes |
| Speed: | 200 to 6,000 rpm / 4,427 RCF |
| Motor: | Brushless Quiet Motor |
| Power Supply: | 100 to 240 VAC, 50-60Hz |
| Timing Capacity: | Continuous |
| Max. Controlled Time Settings: | 99 |
| Display: | LCD, backlit |
| Net Weight: | 31.3 lb (14.2 kg) |
| Overall Dimensions: | 18.3 × 10.7 × 12.7 in (427 × 271 × 370 mm) |
| Includes: | 31013397 Swing-Out Rotor (4 × 10 mL) |
| Working Environment: | 41°F – 95°F (5°C – 35°C), 80% RH, non-condensing |
