Ohaus Frontier™ 5000 Series Multi Centrifuge, 100–230V (FC5707+R09)
Images are for representation only. Actual product may differ in size, color or options.

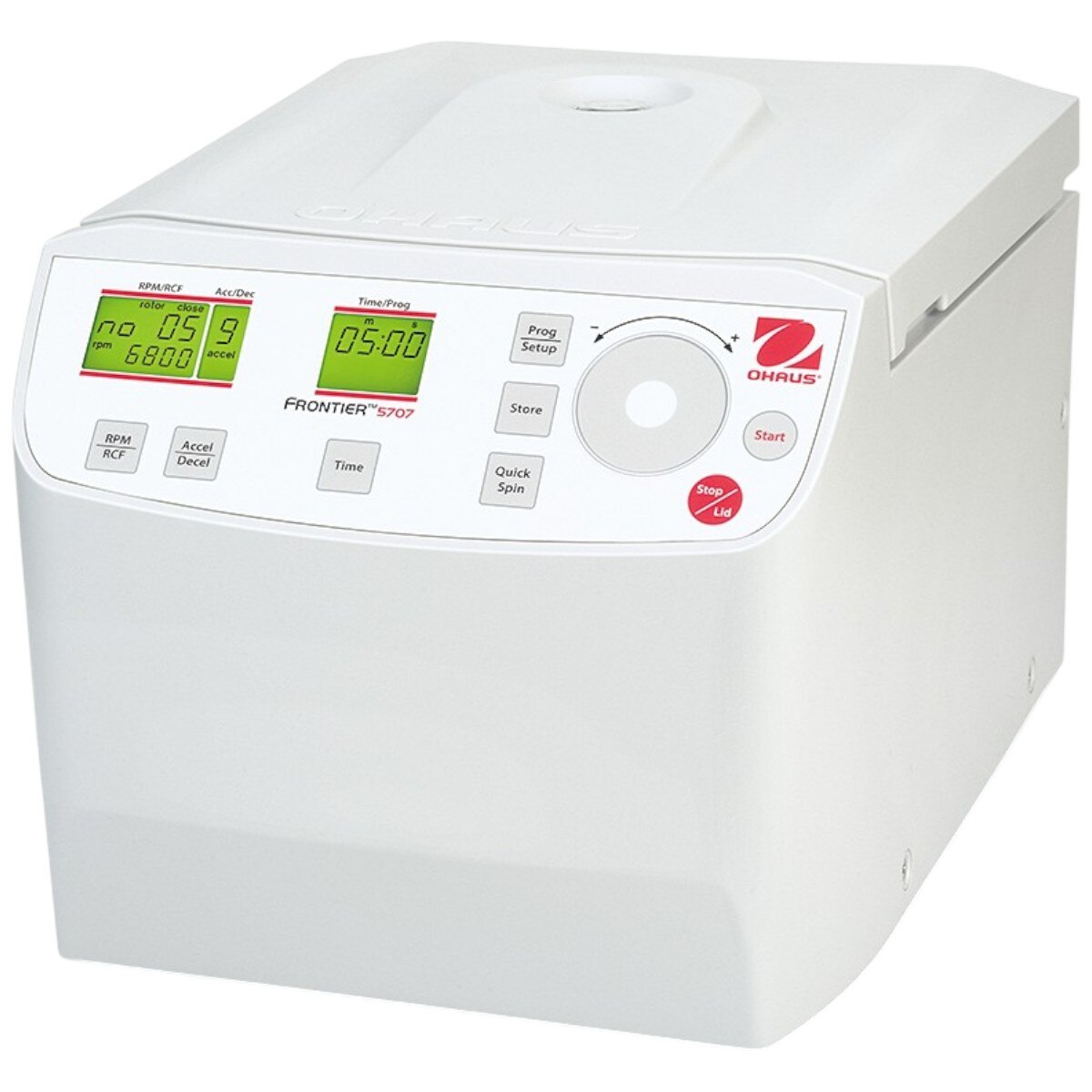

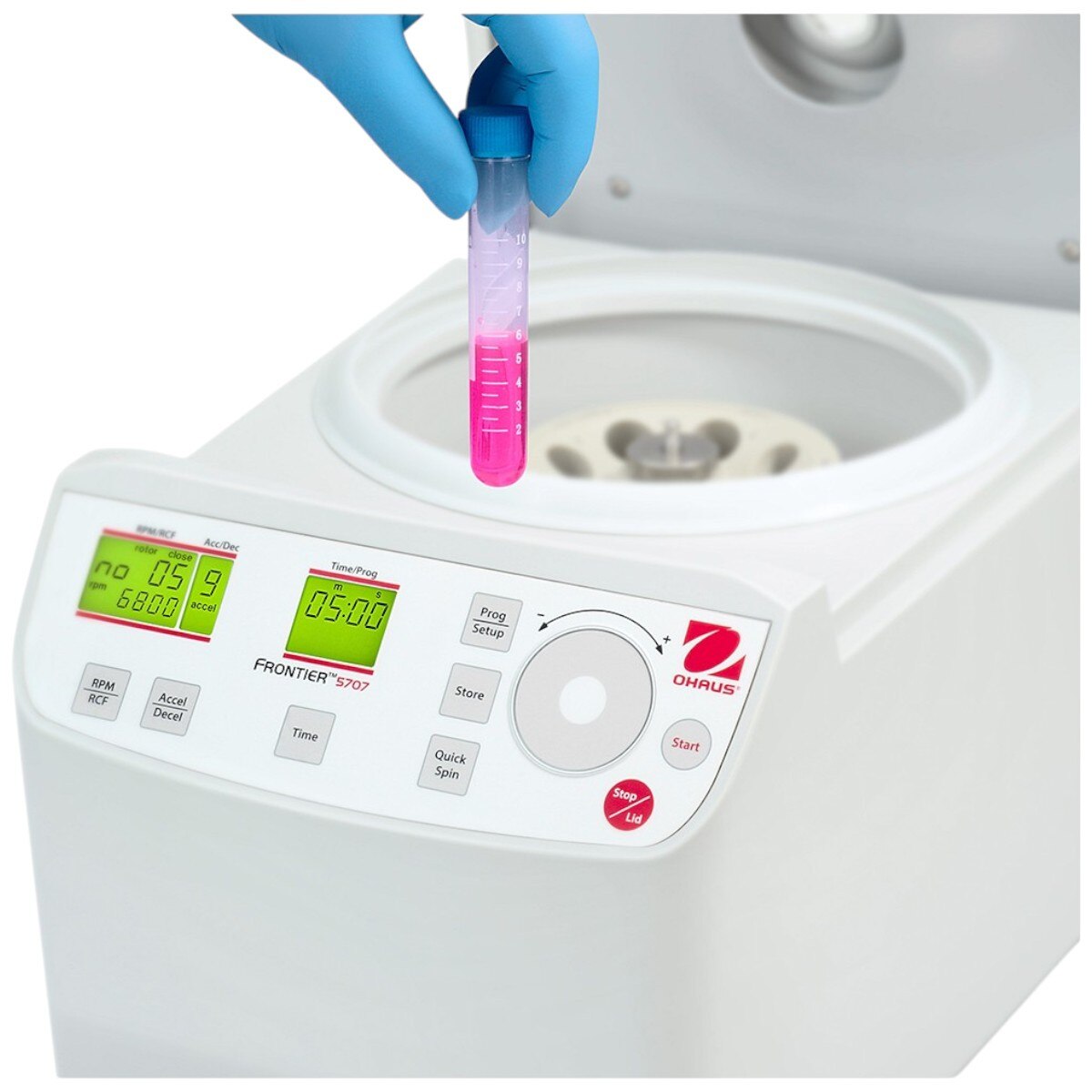

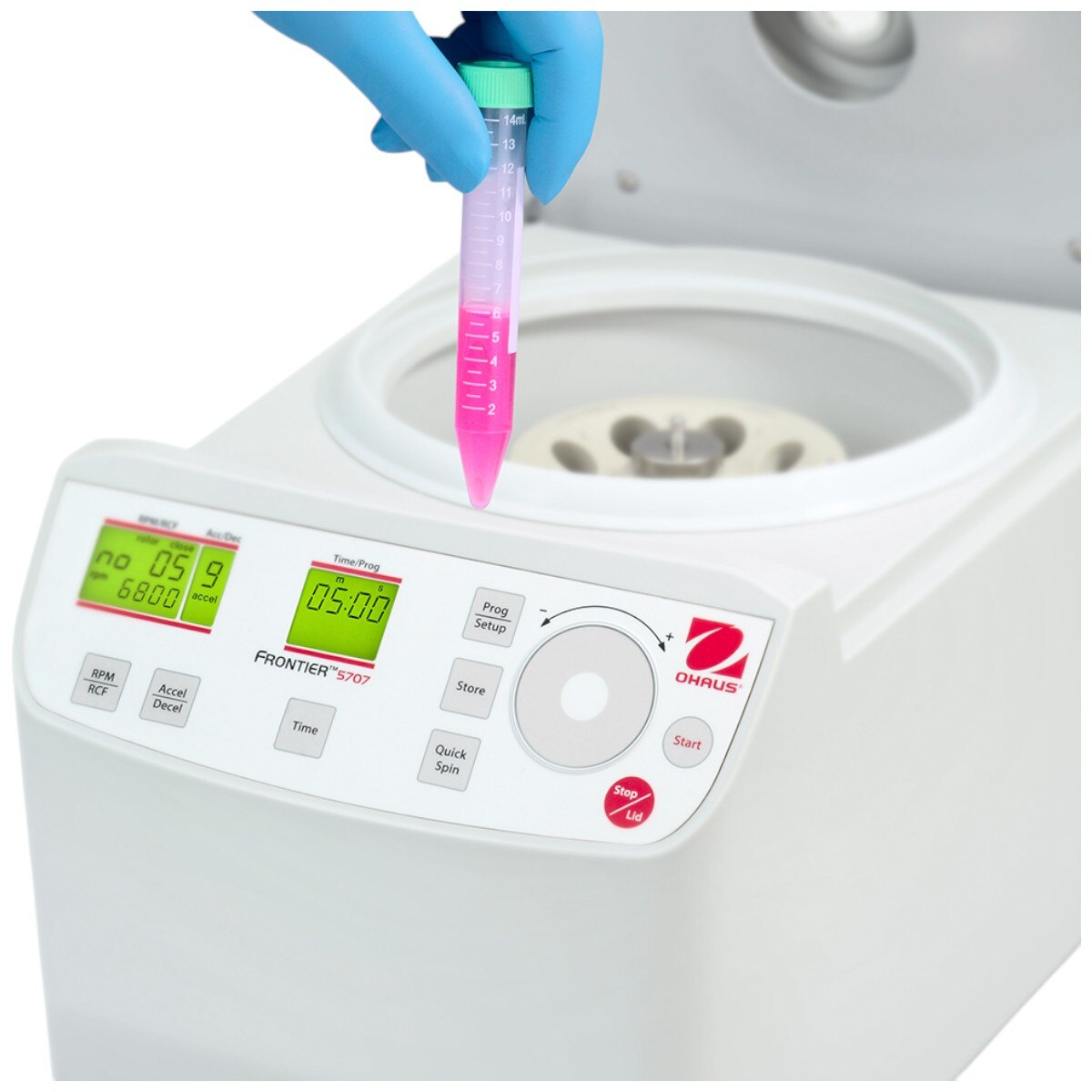

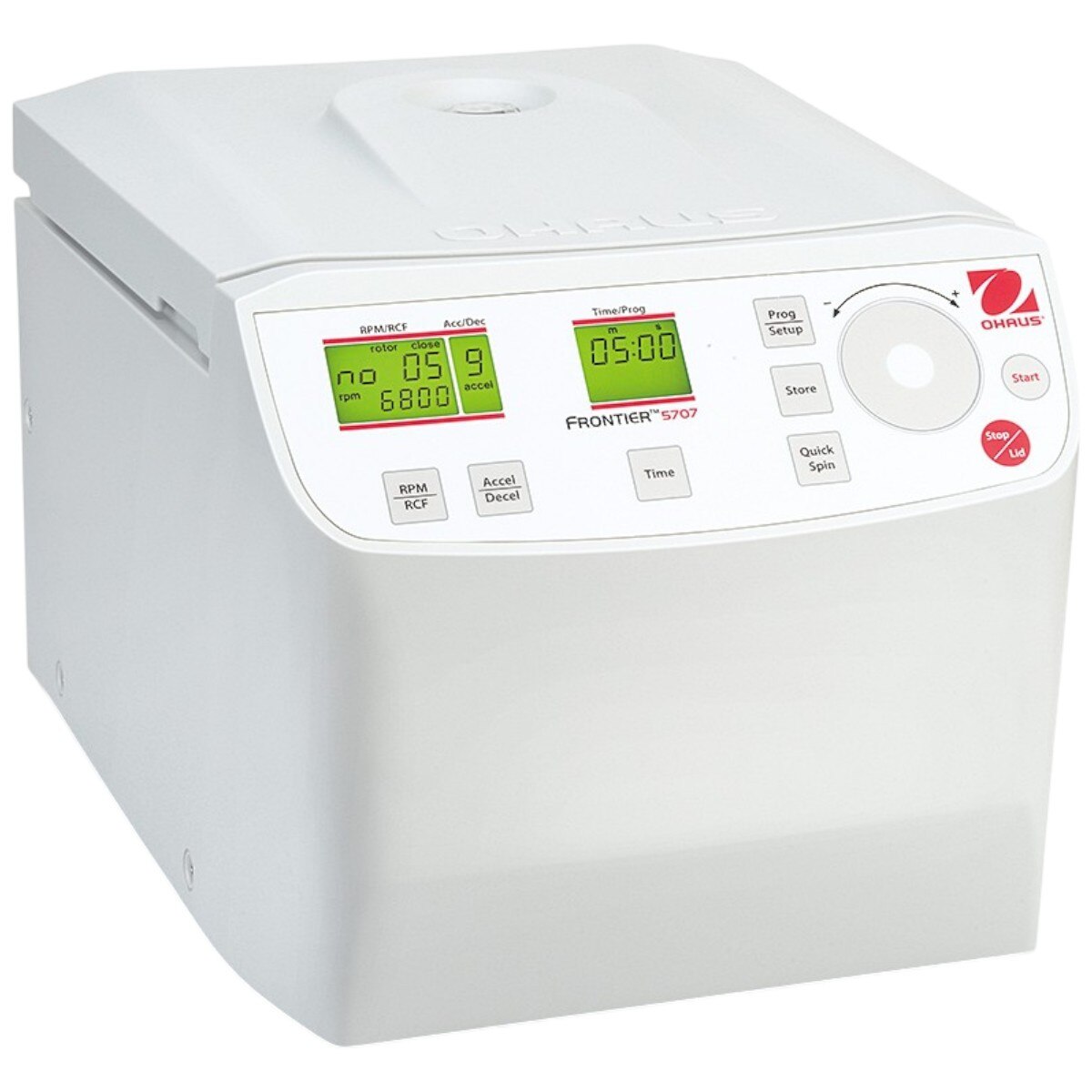

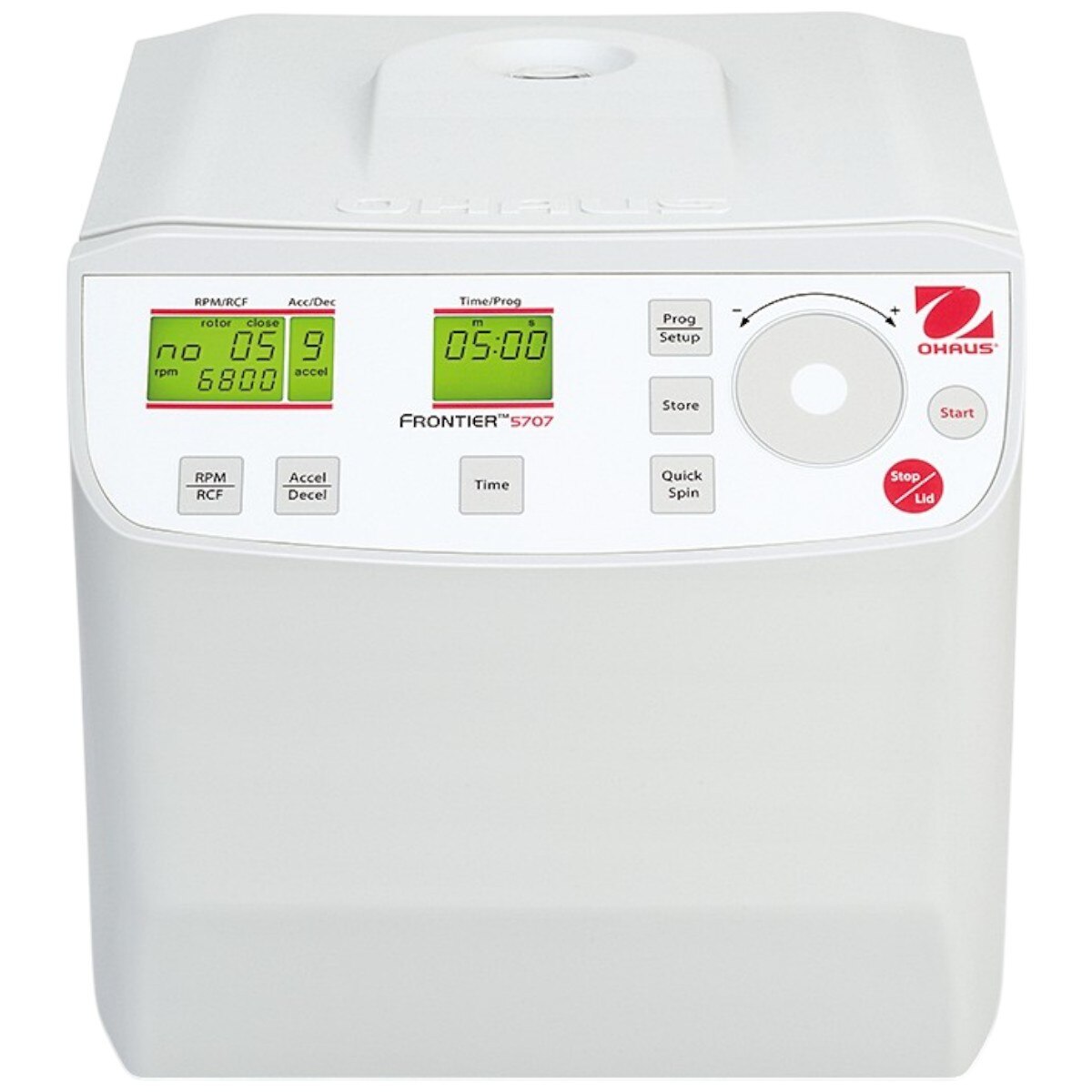

Ohaus Frontier™ 5000 Series Multi Centrifuge, 100–230V (FC5707+R09)
Compact and reliable centrifuge designed for low-speed general-purpose applications. This configuration includes the 83041009 Angle Rotor (4 × 50 mL or 4 × 15 mL RB/FA), suitable for round and conical bottom tubes, including common blood tubes.
Specifications
- Model Number: FC5707+R09
- Item Number: 83041073
- Speed Range: 200 – 6,800 rpm
- Max RCF: 4,445 × g
- Included Rotor: 83041009 – Angle Rotor, 4 × 50 mL or 4 × 15 mL RB/FA
- Rotor Recognition: Manual
- Program Memories: 99
- Acceleration/Deceleration: 10 gears each
- Display: LCD, backlit, 2-line
- Dimensions: 14 × 9.4 × 10.9 in (356 × 236 × 277 mm)
- Net Weight: 22.1 lb (10 kg)
- Noise Level: ≤ 60 ± 2 dB(A)
- Power Supply: AC 100–230V (included)
- Power Consumption: 50 W
- Working Environment: 41°F – 95°F (5°C – 35°C), 80% RH, non-condensing
Features
- Includes angle rotor for 4 × 50 mL or 4 × 15 mL tubes
- Compact footprint saves bench space
- Brushless motor for quiet operation
- Quickspin mode and continuous run options
- Mechanical lid lock and imbalance detection
- Touch-wheel control with splash-proof interface
Applications
- Blood and urine tube processing
- General-purpose sample separation
- Clinical and research centrifugation
- Educational lab demonstrations
| Product Type: | Centrifuge |
| Brand: | Ohaus |
| Product Line: | Frontier 5000 |
| Class: | Multi |
| Capacity: | 8 x 15 mL Round bottom tubes or 4 x 15 mL Conical bottom tubes |
| Speed: | 200 rpm – 6800 rpm; 4445 RCF |
| Motor: | Brushless quiet motor |
| Power Supply: | 100 to 240 VAC, 50-60Hz |
| Timing Capacity: | Quick Spin, 10 sec to 99 hr 59 min 59 sec, or continuous |
| Display: | LCD, backlit |
| Net Weight: | 22.1 lb (10 kg) |
| Overall Dimensions: | 14 × 9.4 × 10.9 in (356 × 236 × 277 mm) |
| Includes: | 83041009 Angle Rotor (4 × 50 mL or 4 × 15 mL RB/FA) |
