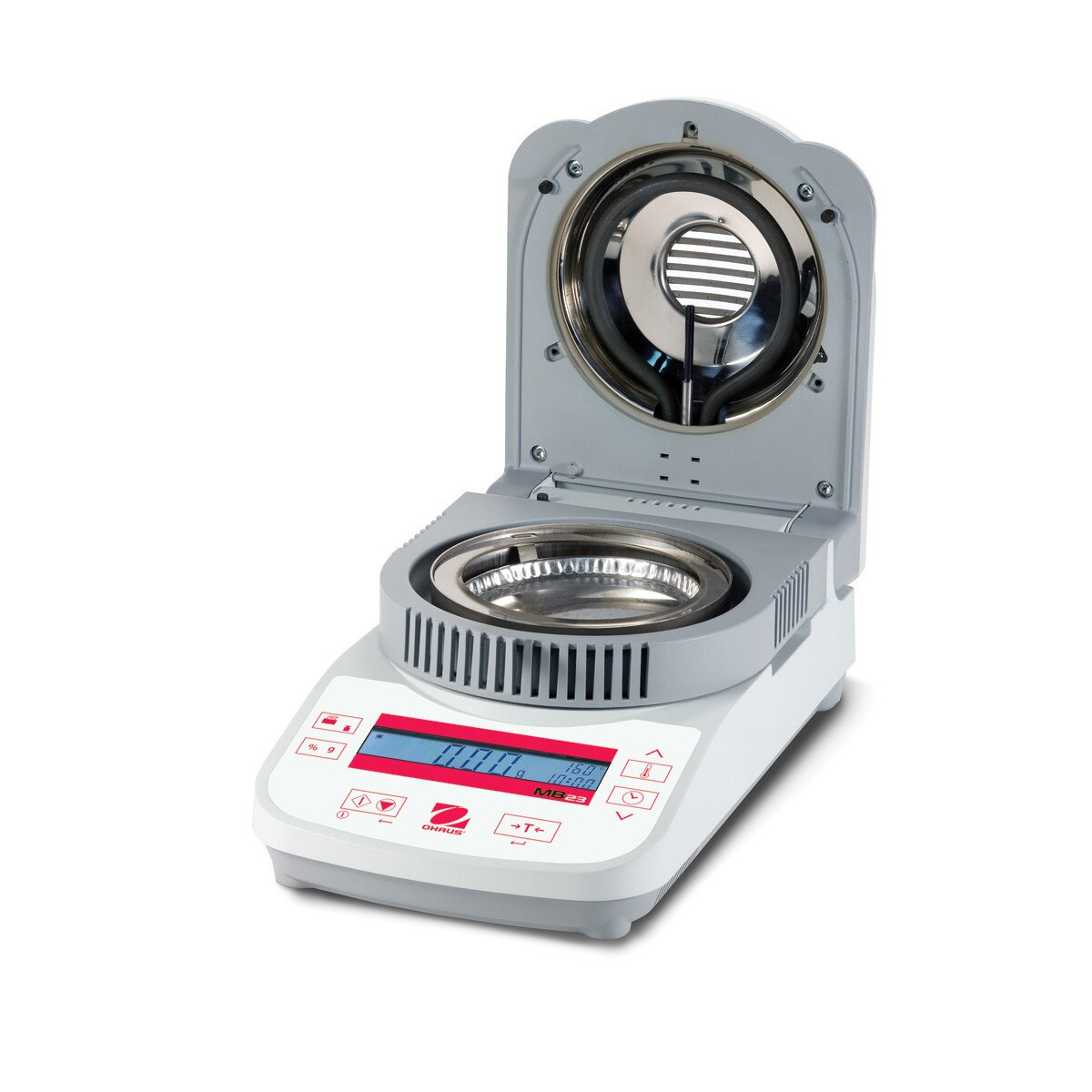

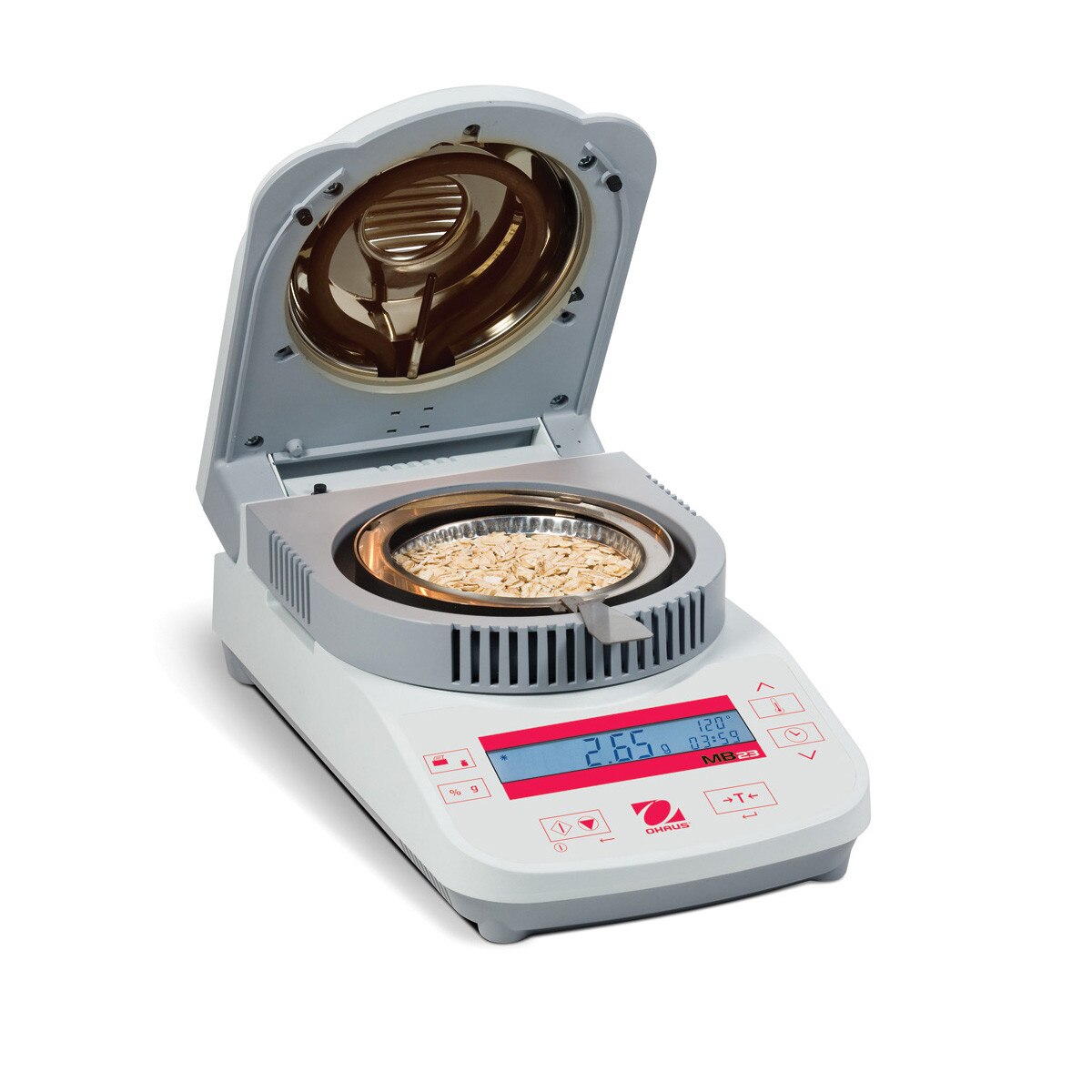

Ohaus MB23 Moisture Analyzer
Images are for representation only. Actual product may differ in size, color or options.
Ohaus MB23 Moisture Analyzer
The MB23 provides precise moisture content determination at an unbeatable value. With a large backlit LCD display, standard RS232 port, 110g capacity with a readability of 0.01g/0.1% and an non-glass infrared heating element, the MB23 offers moisture analysis for any budget.
Applications
Percent Moisture Determination, Percent Solid Determination, Weighing
Display
Backlit liquid crystal display (LCD)
Operation
Power cord (included)
Communication
RS232 (included)
Construction
Infrared heat source, ABS housing, metal pan support, metal pan handler, in-use cover
Design Features
3 shut off criteria (manual, timed or auto), 1 standard heating profile, 50° to 160° C heating range (5° C increments)
The MB23 provides precise moisture content determination at an unbeatable value. With a large backlit LCD display, standard RS232 port, 110g capacity with a readability of 0.01g/0.1% and an non-glass infrared heating element, the MB23 offers moisture analysis for any budget.
Applications
Percent Moisture Determination, Percent Solid Determination, Weighing
Display
Backlit liquid crystal display (LCD)
Operation
Power cord (included)
Communication
RS232 (included)
Construction
Infrared heat source, ABS housing, metal pan support, metal pan handler, in-use cover
Design Features
3 shut off criteria (manual, timed or auto), 1 standard heating profile, 50° to 160° C heating range (5° C increments)
| Product Type: | Analyzer |
| Brand: | Ohaus |
| Class: | Moisture |
| Range: | 0 % - 100 % |
| Capacity: | 110 g |
| Temperature Range: | 50°C to 160°C |
| Temperature Resolution: | 5°C |
| Readability: | 0.1% / 0.01g |
| Repeatability (S.D.): | 0.3% (3 g sample), 0.2% (10 g sample) |
| Pan Size: | 3.5 in (90 mm) |
| Housing: | ABS |
| Power Supply: | 100 to 240 VAC, 50-60Hz |
| Timing Capacity: | 1 - 99 minutes, 30-second increments to 60 minutes |
| Display: | LCD, backlit |
| Interface: | Bi-directional RS-232 |
| Units of Measure: | % moisture or % solids or weight (g), temperature, time |
| Heating Type: | Infrared (no glass) |
| Sample Size: | 3g to 20g typical, 0.5g min. |
| Overall Dimensions: | 6.69 x 5.15 x 11.02 in (17 x 13 x 28 cm) |
| Includes: | sample pans, in-use cover, user-guide, power cord |
| Notes: | 3 shut off criteria (manual, timed or auto) |
| Applications: | Percent Moisture Determination Percent Solid Determination Weighing |
