PFS-API-PVC-V-1
Images are for representation only. Actual product may differ in size, color or options.

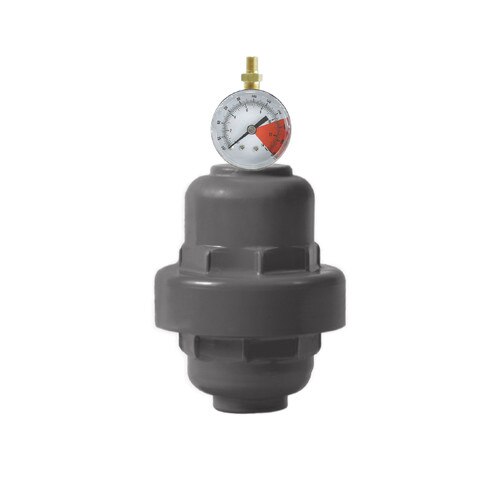

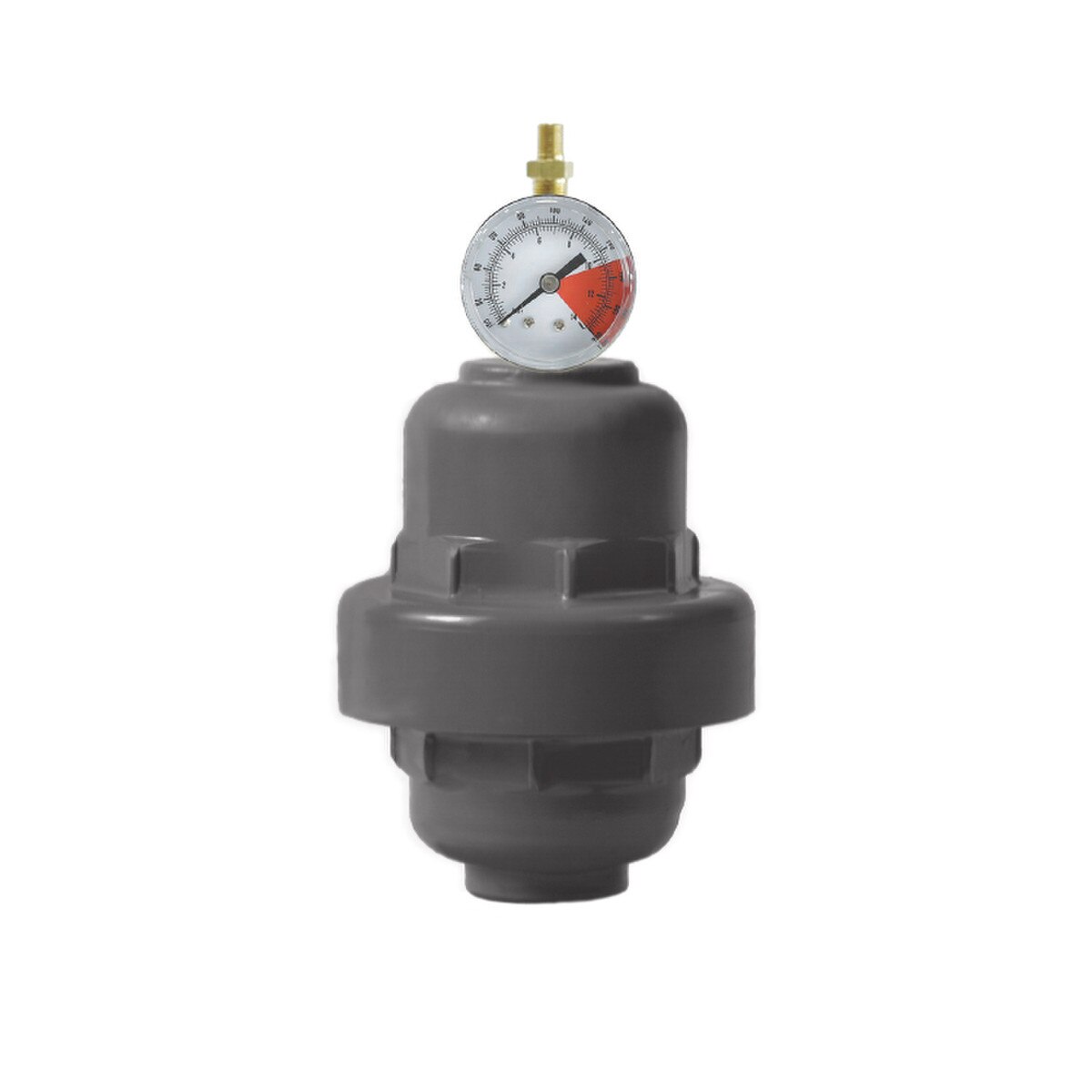

Accu-Pulse Pulsation Dampener (10 Cubic Inches, PVC, Viton, 150 PSI, 1/2" NPT)
Accu-Pulse Pulsation Dampeners are normally installed downstream of the pump to reduce the pulsating flows common for positive displacement pumps.
Benefits of a Pulsation Dampener:
- Increase system efficiency and pump life.
- Decrease maintenance and costs.
- Protect pipes, meters, valves, and instrumentation from pulsation and vibration.
- Ensure meter accuracy, longevity, and repeatability.
- Reduce pressure fluctuations and diaphragm wear.
- Prevent foaming and splashing.
Accu-Pulse - Pulsation Dampeners | |
Model Number | API-PVC-V-1 |
Material of Construction - Wetted | PVC |
Material of Construction - Non-Wetted | PVC |
Internal Volume | 10 Cubic Inches (0.16 L) |
Inlet Size | 1/2" |
Inlet Type | Threaded - NPT - Female - ANSI/ASME |
Bladder/Bellows Material | Viton |
Maximum Pressure | 150 PSIG @ 21°C (70°F) |
Air Control | Chargeable - Complete With Fill Valve & Gauge |
| Product Type: | Pulsation Dampener |
| Brand: | Primary Fluid Systems |
| Product Line: | Accu-Pulse |
| Capacity: | 10 cubic inches |
| Housing: | PVC |
| Max Pressure (PSI): | 150 psi (10.4 bar) @ 70 °F (21 °C) |
| Connections: | 1/2" NPT(F) |
| Bellows Material: | Viton |
| Notes: | Chargeable - Complete With Fill Valve & Gauge |
