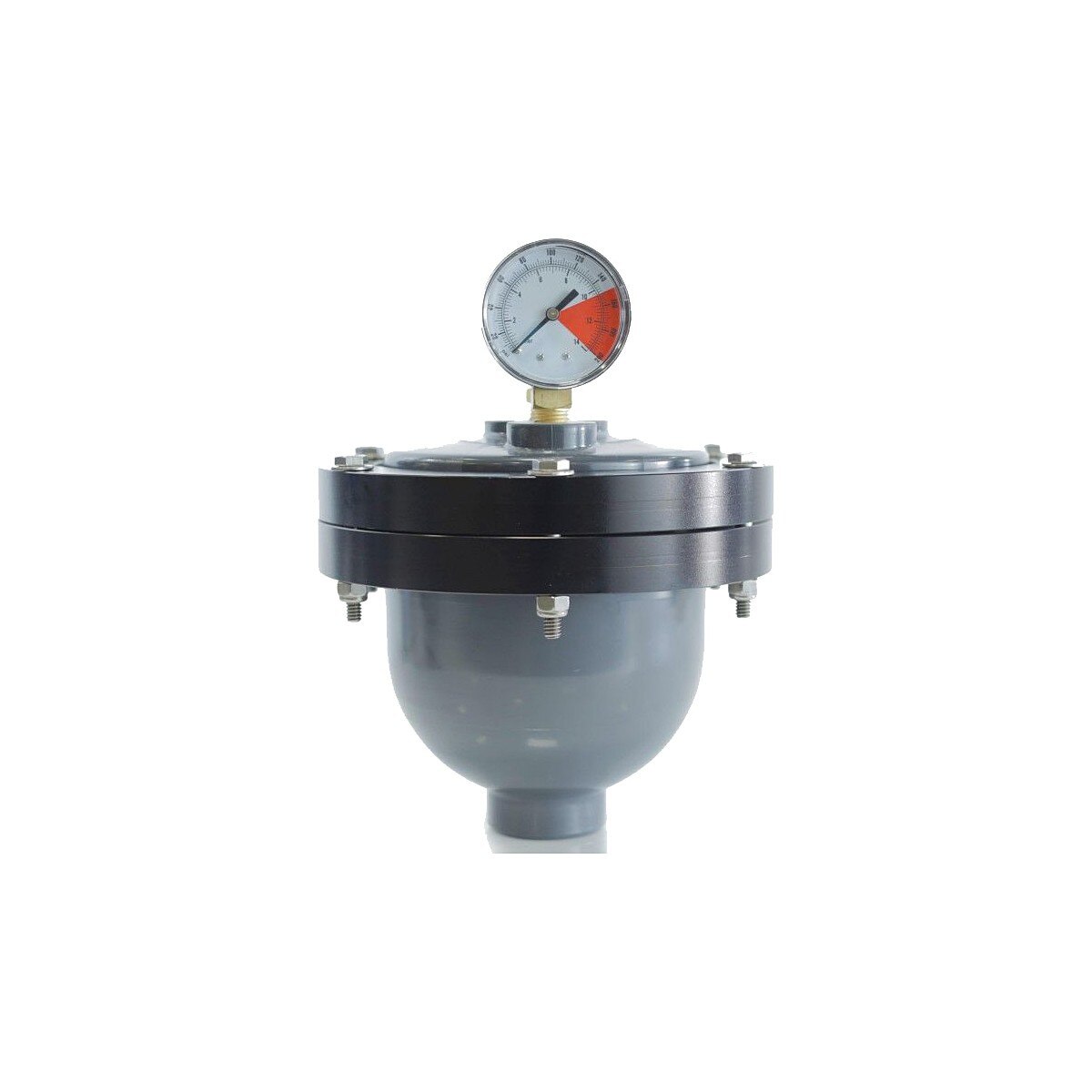

Accu-Pulse Pulsation Dampener (36 Cubic Inches, PVC, Viton, 150 PSI, 3/4" Flanged)
Accu-Pulse Pulsation Dampeners are normally installed downstream of the pump to reduce the pulsating flows common for positive displacement pumps.
Benefits of a Pulsation Dampener:
- Increase system efficiency and pump life.
- Decrease maintenance and costs.
- Protect pipes, meters, valves, and instrumentation from pulsation and vibration.
- Ensure meter accuracy, longevity, and repeatability.
- Reduce pressure fluctuations and diaphragm wear.
- Prevent foaming and splashing.
Accu-Pulse - Pulsation Dampeners | |
Model Number | APIIF-PVC-V-2-F |
Material of Construction - Wetted | PVC |
Material of Construction - Non-Wetted | PVC |
Internal Volume | 36 Cubic Inches (0.59 L) |
Inlet Size | 3/4" |
Inlet Type | Flanged - Class 150 FF - ANSI/ASME Standard B16.5 |
Bladder/Bellows Material | Viton |
Maximum Pressure | 150 PSIG @ 21°C (70°F) |
Air Control | Chargeable - Complete With Fill Valve & Gauge |
| Product Type: | Pulsation Dampener |
| Brand: | Primary Fluid Systems |
| Product Line: | Accu-Pulse |
| Capacity: | 36 cubic inches |
| Housing: | PVC |
| Max Pressure (PSI): | 150 psi (10.4 bar) @ 70 °F (21 °C) |
| Connections: | 3/4" Flanged |
| Bellows Material: | Viton |
| Notes: | Chargeable - Complete With Fill Valve & Gauge |
