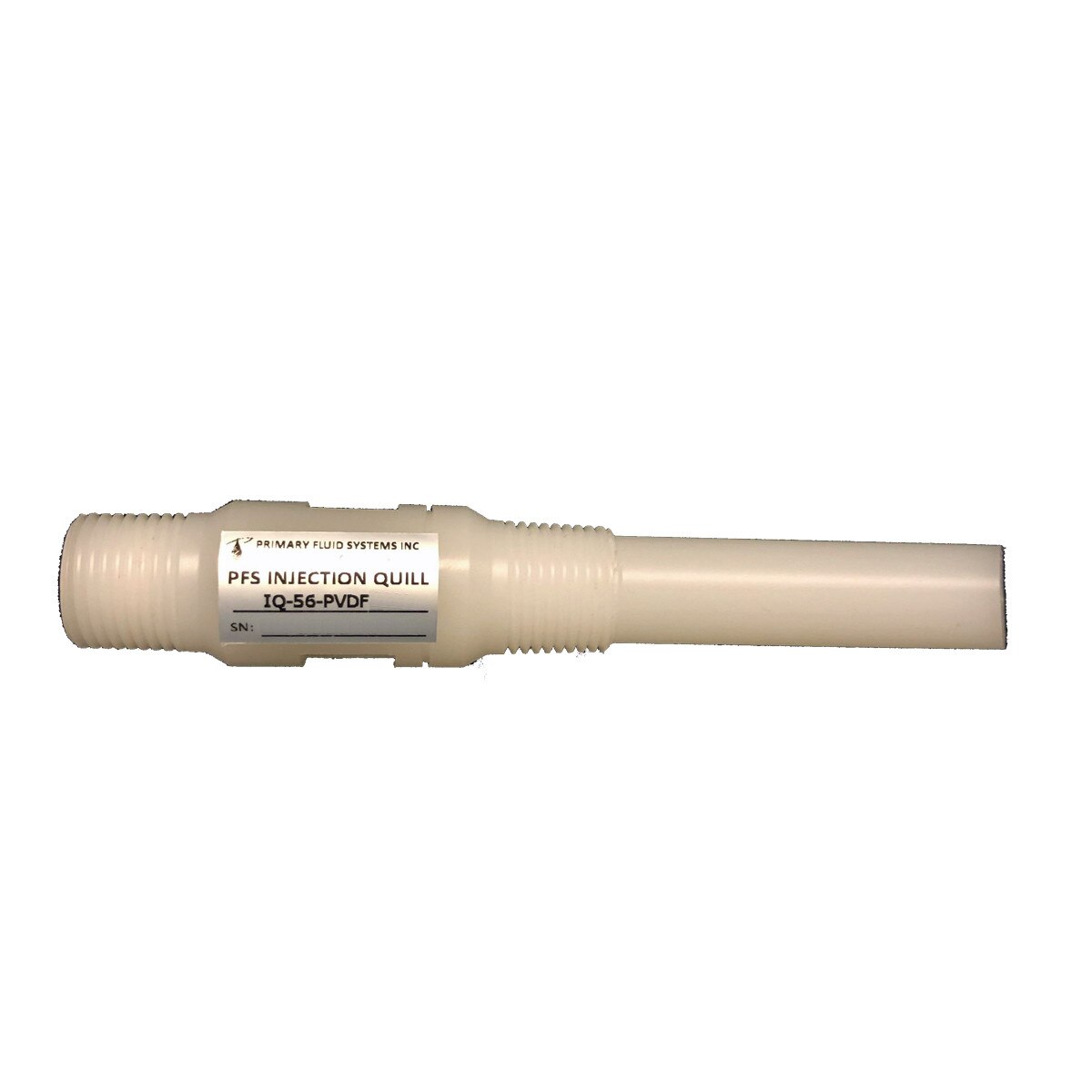

PVDF Injection Quill / Back Check Valve (each)
Images are for representation only. Actual product may differ in size, color or options.
PVDF Injection Quill / Back Check Valve (each)
PFS Injection Quills have been developed to allow chemical injection into the center stream of the flow. This ensures the dispersion of chemicals in a more uniform manner, providing for a more homogenous mix in the pipeline.
| Certified - NSF/ANSI 61 Drinking Water System Components Through CSA | |
| Model Number | IQ-56-PVDF-H-K |
| Material of Construction – Injection Quill | PVDF |
| Insertion Length | 2 – 5/8” (67 mm) |
| Overall Length | 6" (152 mm) |
| Discharge Orifice | 1/8" (3.17 mm) |
| Chemical Connection - Size | 1/2" |
| Chemical Connection - Type | Threaded - NPT - Male - ANSI/ASME |
| Non-Resilient Check Seat | PVDF |
| Check Ball | PVDF |
| Check Spring | Hastelloy C 276 |
| Maximum Pressure | 150 PSIG @ 70°F (21°C) |
| Maximum Temperature | 260°F (125°C) (PVDF) |
| Process Connection - Size | 1/2" |
| Process Connection - Type | Threaded - NPT - Male - ANSI/ASME |
| Product Type: | Injection Quill |
| Brand: | Primary Fluid Systems |
| Product Line: | PFS Injection Quills |
| Length: | 6 inches |
| Max Pressure (PSI): | 150 |
| Valve Balls: | Hastelloy C |
| Connections: | 1/2 inch NPT |
| Body: | PVDF |
