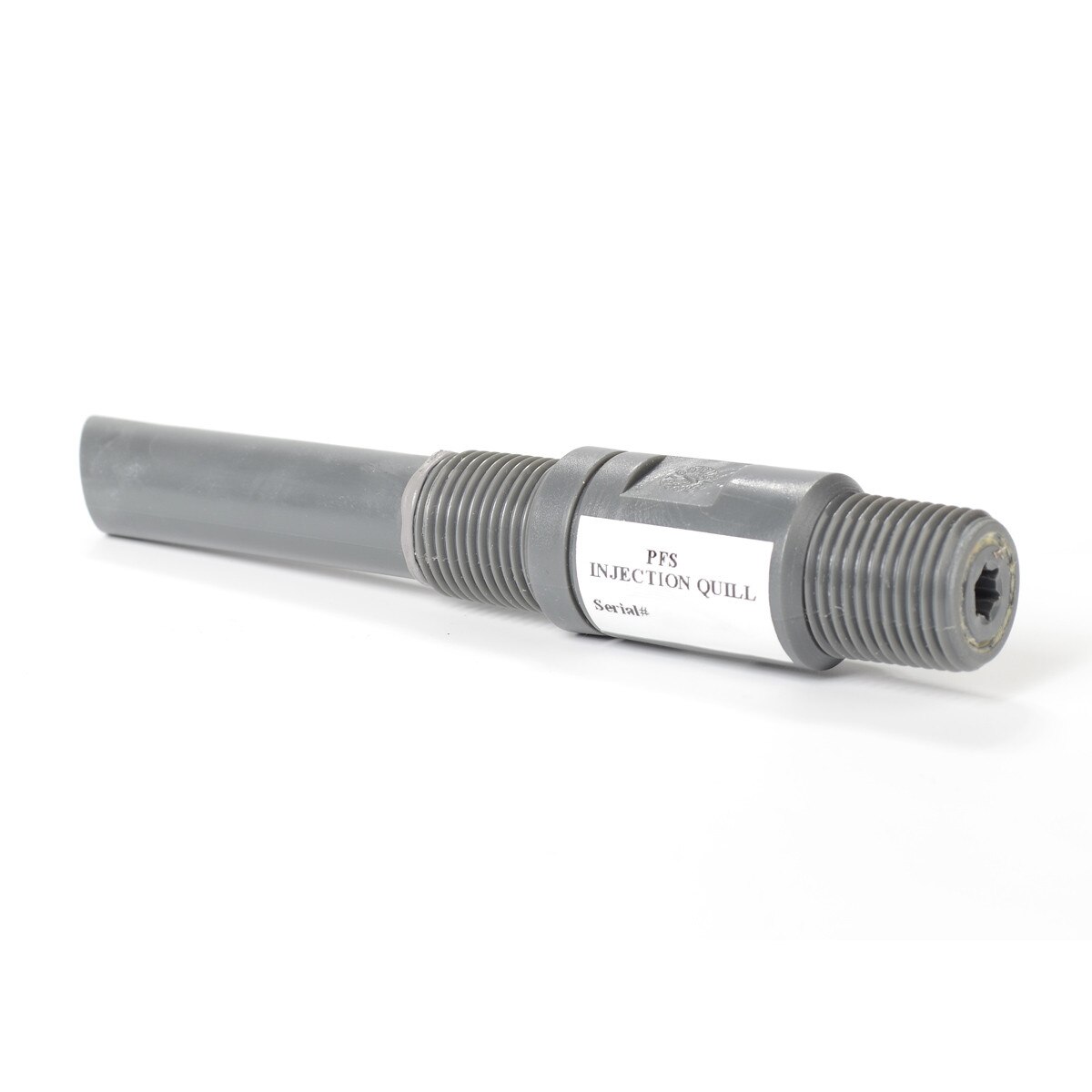

PVC Injection Quill / Back Check Valve (each)
Images are for representation only. Actual product may differ in size, color or options.
PVC Injection Quill / Back Check Valve (each)
PFS Injection Quills have been developed to allow chemical injection into the center stream of the flow. This ensures the dispersion of chemicals in a more uniform manner, providing for a more homogenous mix in the pipeline.
| Certified - NSF/ANSI 61 Drinking Water System Components Through CSA | |
| Model Number | IQ-CCS-56-PVC |
| Material of Construction – Injection Quill | PVC |
| Insertion Length | 7.25" |
| Overall Length | 10.625" |
| Discharge Orifice | 1/8" (3.17 mm) |
| Chemical Connection - Size | 1/2" |
| Chemical Connection - Type | Threaded - NPT - Male - ANSI/ASME |
| Non-Resilient Check Seat | PVC |
| Check Ball | Ceramic |
| Check Spring | 316L S/S |
| Maximum Pressure | 150 PSIG @ 70°F (21°C) |
| Maximum Temperature | 140°F (60°C) (PVC) |
| Process Connection - Size | 1/2" |
| Process Connection - Type | Threaded - NPT - Male - ANSI/ASME |
| Product Type: | Injection Quill |
| Brand: | Primary Fluid Systems |
| Product Line: | PFS Injection Quills |
| Length: | 10.625 inches |
| Max Pressure (PSI): | 150 |
| Valve Balls: | Ceramic |
| Connections: | 1/2 Inch NTP |
| Body: | PVC |
