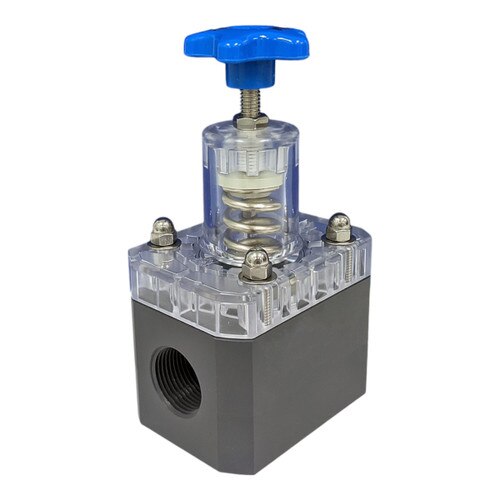

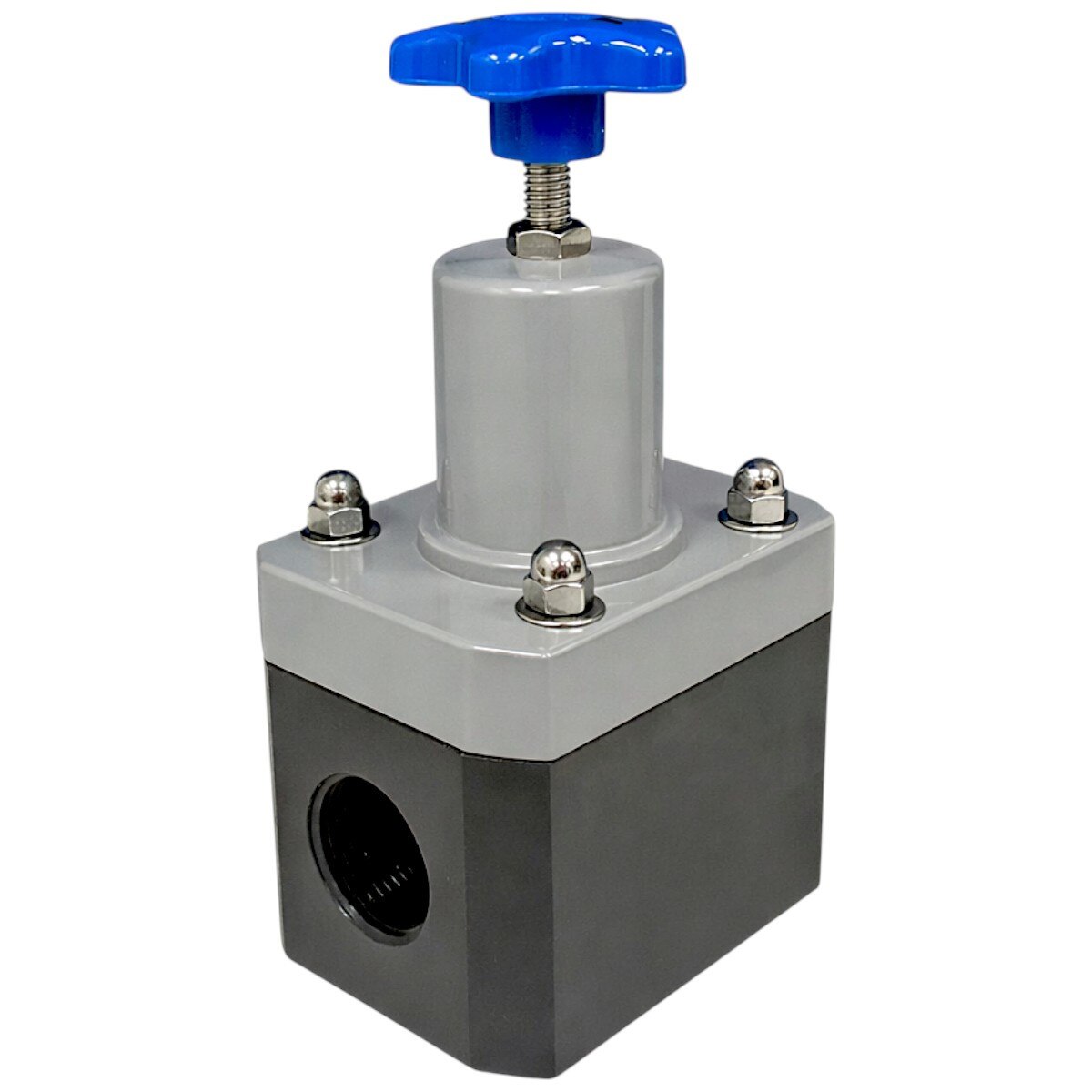

Top Valve Back Pressure Valve (15 to 150 PSIG, PVC, 1" NPT)
Top Valve Back Pressure Valve (15 to 150 PSIG, PVC, 1" NPT)
The Top Valve line of diaphragm style Back Pressure valves was designed to ensure accurate pumping and protect your pipeline.
Top Valve - Standard | |
Certified - NSF/ANSI 61 Drinking Water System Components Through CSA | |
Model Number | TVBP10-PVC |
Material of Construction – Valve Body | PVC |
Material of Construction – Valve Top | CPVC Corzan |
Valve Type | Back Pressure Valve |
Connection Size (Inlet & Outlet) | 1" |
Connection Type (Inlet & Outlet) | Threaded - NPT - Female - ANSI/ASME |
Diaphragm | PTFE Laminated EPDM Backed |
Maximum Pressure | 150 PSIG @ 21°C (70°F) |
Maximum Temperature | 140°F (60°C) |
Adjustable Pressure Range | 15 - 150 PSIG (1 - 10 BARG) |
Factory Set Pressure (*Indicate On Order) | 50 psig (3.4 barg) |
Gauge Port | Not Equipped - Available Option |
| Product Type: | Back Pressure Valve |
| Brand: | Primary Fluid Systems |
| Product Line: | Top Valve |
| Material: | PVC |
| Temperature Range: | 140°F (60°C) Maximum |
| Housing: | PVC Body; CPVC Corzan Top |
| Max Pressure (PSI): | 150 psi (10.4 bar) @ 70 °F (21 °C) |
| Diaphragm: | PTFE Laminated EPDM Backed |
| Connections: | 1" NPT(F) |
