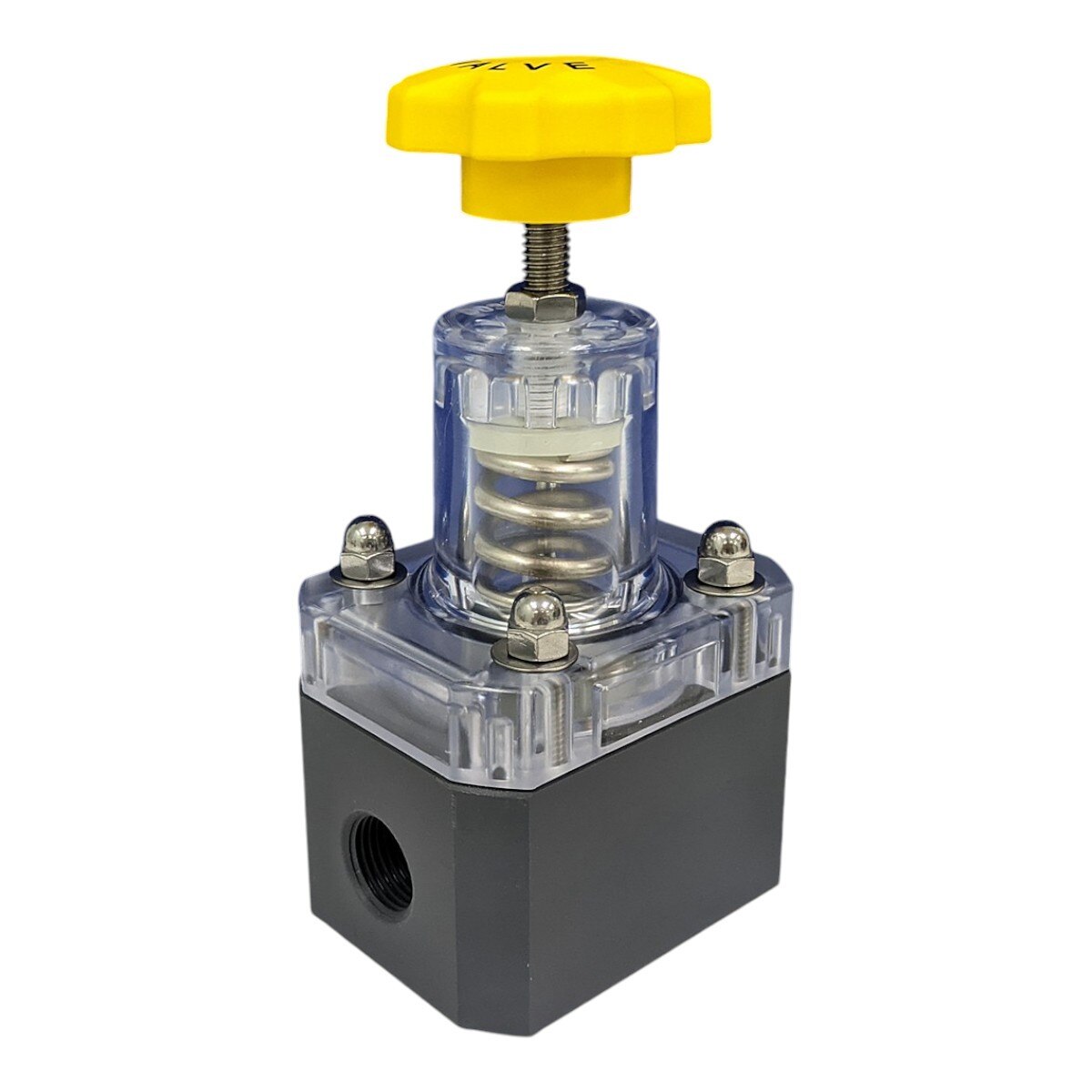

Top Valve Pressure Relief Valve (15 to 150 PSIG, PVC, 1/2" NPT)
Top Valve Pressure Relief Valve (15 to 150 PSIG, PVC, 1/2" NPT)
The Top Valve line of diaphragm style Back Pressure valves was designed to ensure accurate pumping and protect your pipeline.
Top Valve - Standard |
|
Certified - NSF/ANSI 61 Drinking Water System Components Through CSA | |
Model Number | TVP2-50-PVC |
Material of Construction – Valve Body | PVC |
Material of Construction – Valve Top | Polycarbonate |
Valve Type | 2-Port Pressure Relief Valve |
Connection Size (Inlet & Outlet) | 1/2" |
Connection Type (Inlet & Outlet) | Threaded - NPT - Female - ANSI/ASME |
Diaphragm | PTFE Laminated EPDM Backed |
Maximum Pressure | 150 PSIG @ 21°C (70°F) |
Maximum Temperature | 140°F (60°C) |
Adjustable Pressure Range | 15 - 150 PSIG (1 - 10 BARG) |
Factory Set Pressure (*Indicate On Order) | 50 psig (3.4 barg) |
Gauge Port | Not Equipped - Available Option |
| Product Type: | Pressure Relief Valve |
| Brand: | Primary Fluid Systems |
| Product Line: | Top Valve |
| Material: | PVC |
| Temperature Range: | 140°F (60°C) Maximum |
| Housing: | PVC Body; Polycarbonate Top |
| Max Pressure (PSI): | 150 psi (10.4 bar) @ 70 °F (21 °C) |
| Diaphragm: | PTFE Laminated EPDM Backed |
| Connections: | 1/2" NPT(F) |
