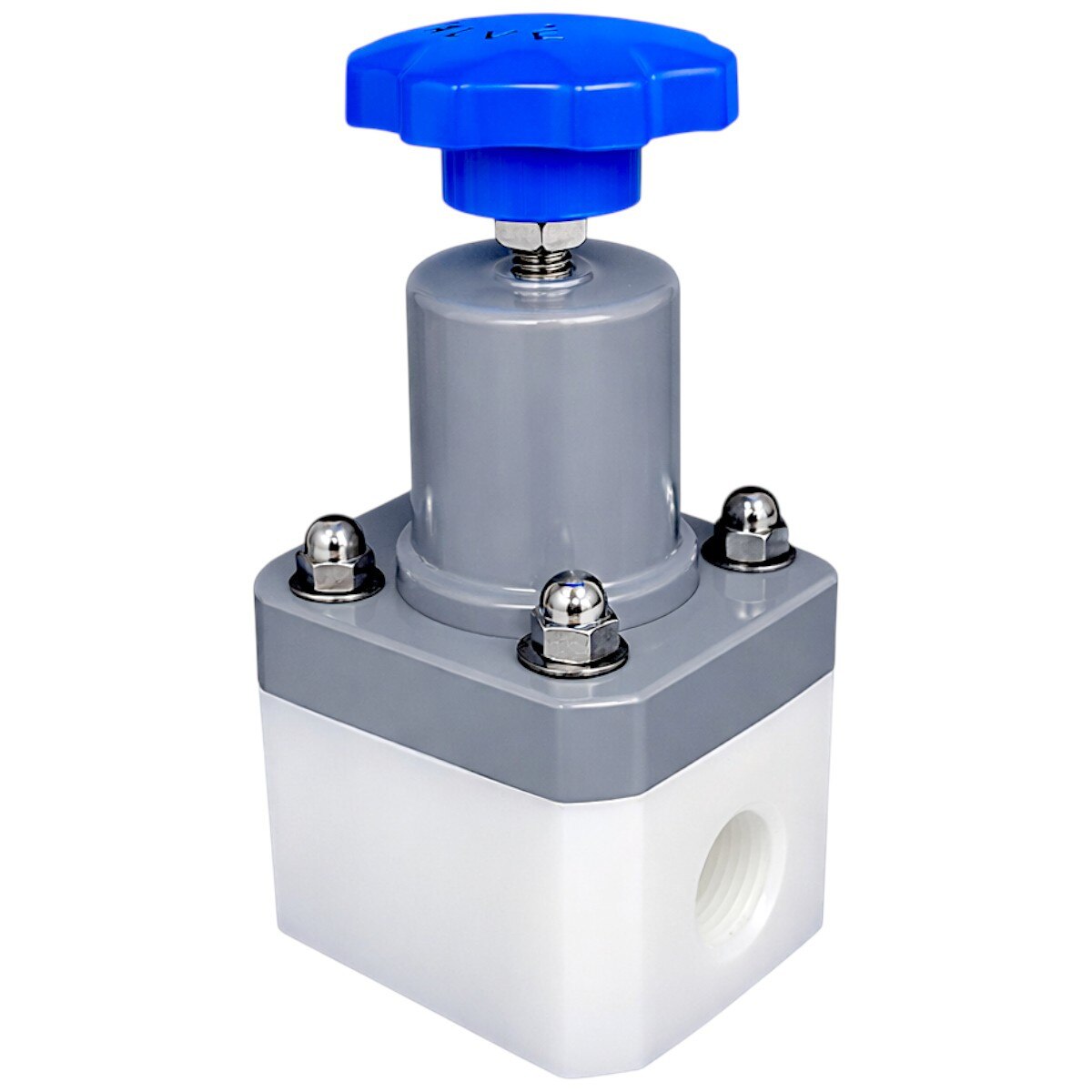

Top Valve Pressure Relief Valve (15 to 150 PSIG, PVDF, 1" NPT)
Images are for representation only. Actual product may differ in size, color or options.
Top Valve Pressure Relief Valve (15 to 150 PSIG, PVDF, 1" NPT)
The Top Valve line of diaphragm style Pressure Relief valves was designed to ensure accurate pumping and protect your pipeline.
| Top Valve - Standard | |
| Certified - NSF/ANSI 61 Drinking Water System Components Through CSA | |
| Model Number | TVPR10-PVDF-V |
| Material of Construction – Valve Body | PVDF |
| CPVC Corzan | |
| Valve Type | 3-Port Pressure Relief Valve |
| Connection Size (Inlet & Outlet) | 1" |
| Connection Type (Inlet & Outlet) | Threaded - NPT - Female - ANSI/ASME |
| 1" | |
| Connection Type (Relief Port) | Threaded - NPT - Female - ANSI/ASME |
| Diaphragm | Viton |
| Maximum Pressure | 150 PSIG @ 21°C (70°F) |
| Maximum Temperature | 180°F (82°C) |
| Adjustable Pressure Range | 15 - 150 PSIG (1 - 10 BARG) |
| Factory Set Pressure (*Indicate On Order) | 50 psig (3.4 barg) |
| Gauge Port | Not Equipped - Available Option |
| Product Type: | Pressure Relief Valve |
| Brand: | Primary Fluid Systems |
| Product Line: | Top Valve |
| Material: | PVDF |
| Temperature Range: | 180°F (82°C) Maximum |
| Housing: | PVDF Body; CPVC Corzan Top |
| Max Pressure (PSI): | 150 psi (10.4 bar) @ 70 °F (21 °C) |
| Diaphragm: | Viton |
| Connections: | 1" NPT(F) |
