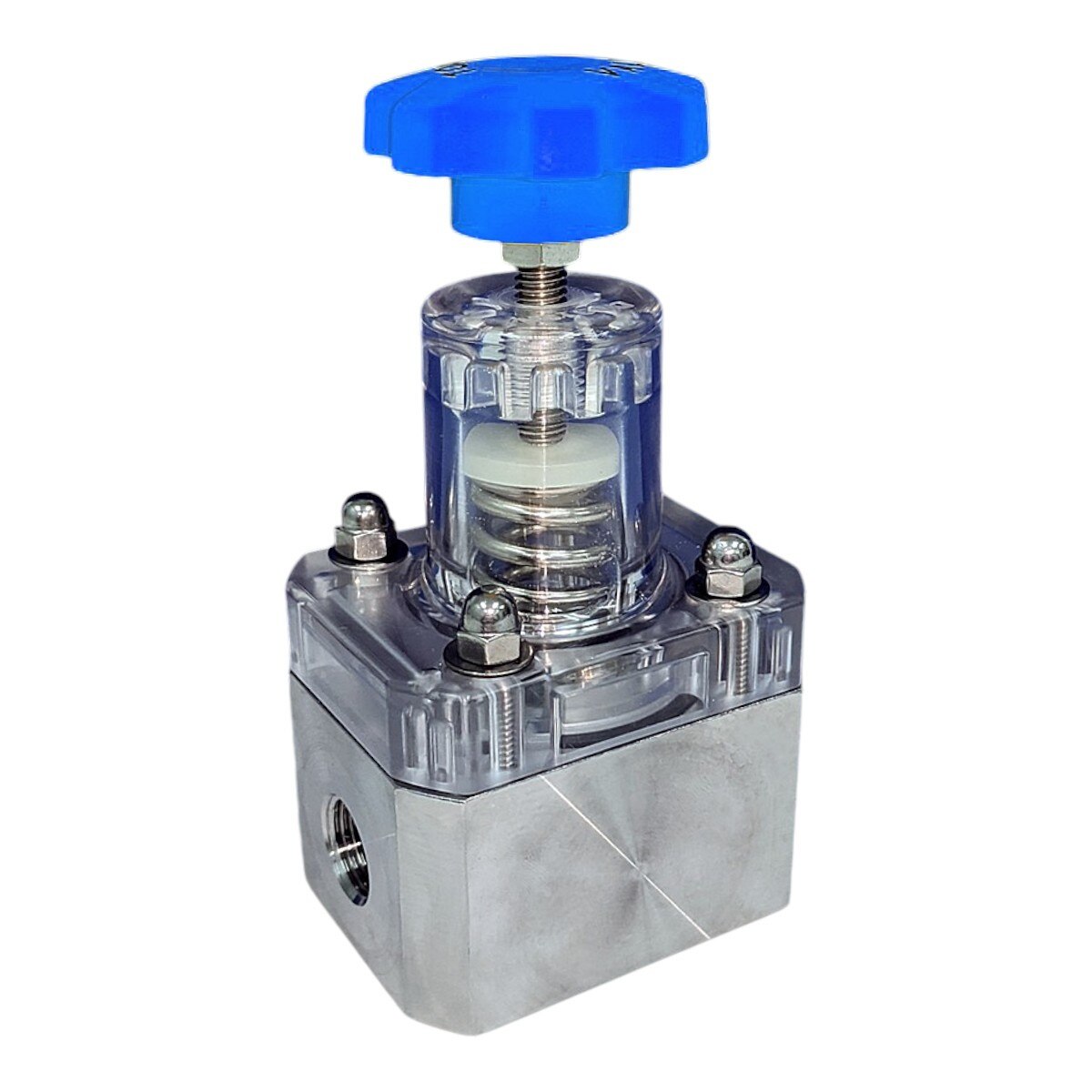

Top Valve Pressure Relief Valve (15 to 150 PSIG, 316SS, 1" NPT)
Images are for representation only. Actual product may differ in size, color or options.
Top Valve Pressure Relief Valve (15 to 150 PSIG, 316SS, 1" NPT)
The Top Valve line of diaphragm style Pressure Relief valves was designed to ensure accurate pumping and protect your pipeline.
| Top Valve - Standard | |
| Certified - NSF/ANSI 61 Drinking Water System Components Through CSA | |
| Model Number | TVPR10-SS-G |
| 316L S/S | |
| Material of Construction – Valve Top | Polycarbonate |
| Valve Type | 3-Port Pressure Relief Valve |
| Connection Size (Inlet & Outlet) | 1" |
| Threaded - NPT - Female - ANSI/ASME | |
| Connection Size (Relief Port) | 1" |
| Connection Type (Relief Port) | Threaded - NPT - Female - ANSI/ASME |
| Diaphragm | PTFE laminated EPDM backed |
| Maximum Pressure | 150 PSIG @ 21°C (70°F) |
| Maximum Temperature | 180°F (82°C) |
| Adjustable Pressure Range | 15 - 150 PSIG (1 - 10 BARG) |
| Factory Set Pressure (*Indicate On Order) | 50 psig (3.4 barg) |
| Gauge Port | Not Equipped - Available Option |
| Product Type: | Pressure Relief Valve |
| Brand: | Primary Fluid Systems |
| Product Line: | Top Valve |
| Material: | 316 Stainless Steel |
| Temperature Range: | 180°F (82°C) Maximum |
| Housing: | 316SS Body; Polycarbonate Top |
| Max Pressure (PSI): | 150 psi (10.4 bar) @ 70 °F (21 °C) |
| Diaphragm: | PTFE Laminated EPDM Backed |
| Connections: | 1" NPT(F) |
