PFS-TVPR50-PVC-E

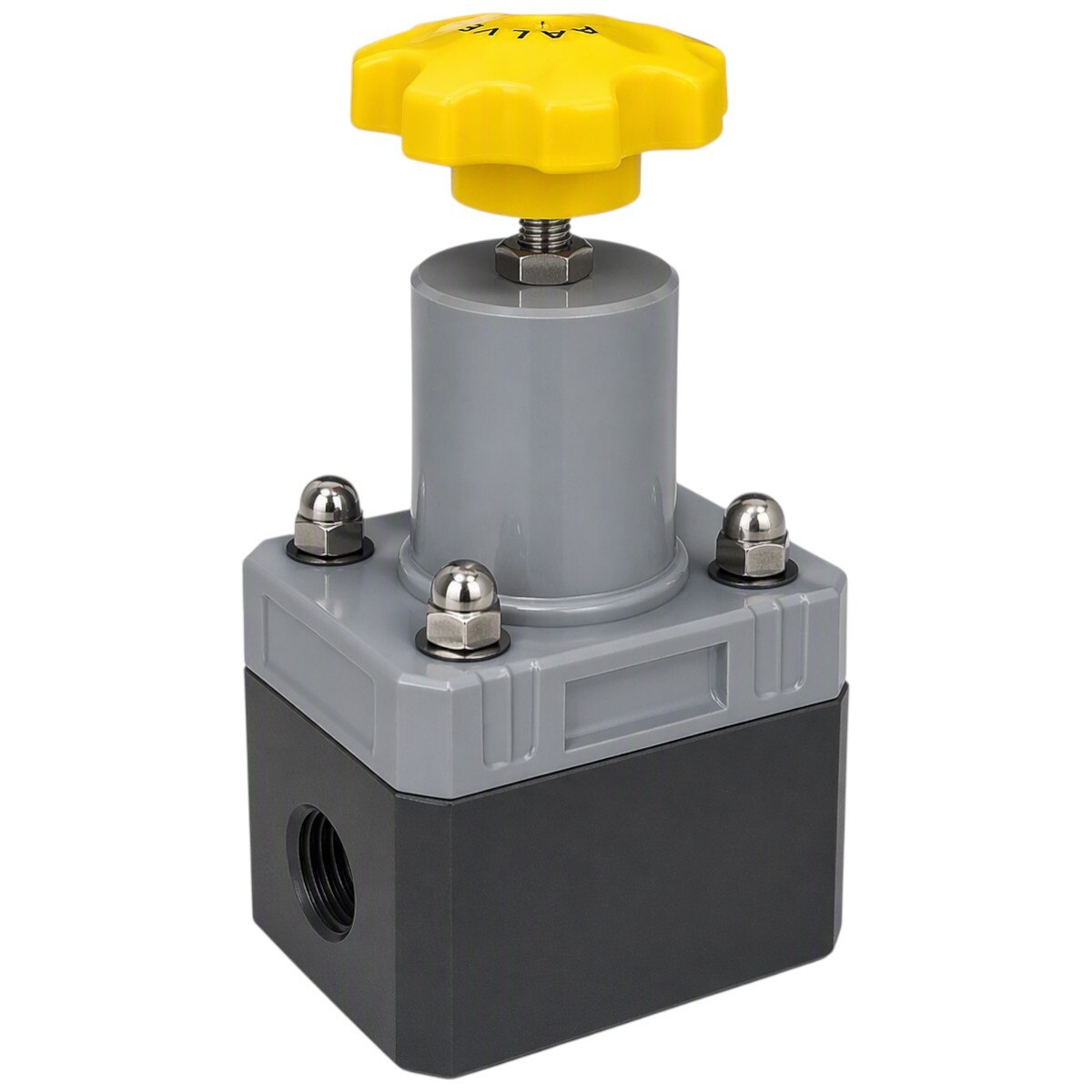

Images are for representation only. Actual product may differ in size, color or options.

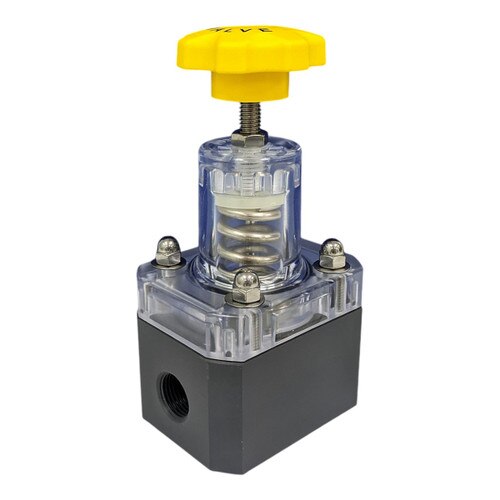

Top Valve Pressure Relief Valve (15 to 150 PSIG, PVC, 1/2" NPT)
The Top Valve line of diaphragm style Pressure Relief valves was designed to ensure accurate pumping and protect your pipeline.
| Top Valve - Standard | |
| Certified - NSF/ANSI 61 Drinking Water System Components Through CSA | |
| Model Number | TVPR50-PVC-E |
| Material of Construction – Valve Body | PVC |
| Material of Construction – Valve Top | Polycarbonate |
| Valve Type | 3-Port Pressure Relief Valve |
| Connection Size (Inlet & Outlet) | 1/2" |
| Connection Type (Inlet & Outlet) | Threaded - NPT - Female - ANSI/ASME |
| Connection Size (Relief Port) | 1/2" |
| Connection Type (Relief Port) | Threaded - NPT - Female - ANSI/ASME |
| Diaphragm | EPDM |
| Maximum Pressure | 150 PSIG @ 21°C (70°F) |
| Maximum Temperature | 140°F (60°C) |
| Adjustable Pressure Range | 15 - 150 PSIG (1 - 10 BARG) |
| Factory Set Pressure (*Indicate On Order) | 50 psig (3.4 barg) |
| Gauge Port | Not Equipped - Available Option |
| Product Type: | Pressure Relief Valve |
| Brand: | Primary Fluid Systems |
| Product Line: | Top Valve |
| Material: | PVC |
| Temperature Range: | 140°F (60°C) Maximum |
| Housing: | PVC Body; Polycarbonate Top |
| Max Pressure (PSI): | 150 psi (10.4 bar) @ 70 °F (21 °C) |
| Diaphragm: | EPDM |
| Connections: | 1/2" NPT(F) |
