PUL-12-048-00
Images are for representation only. Actual product may differ in size, color or options.

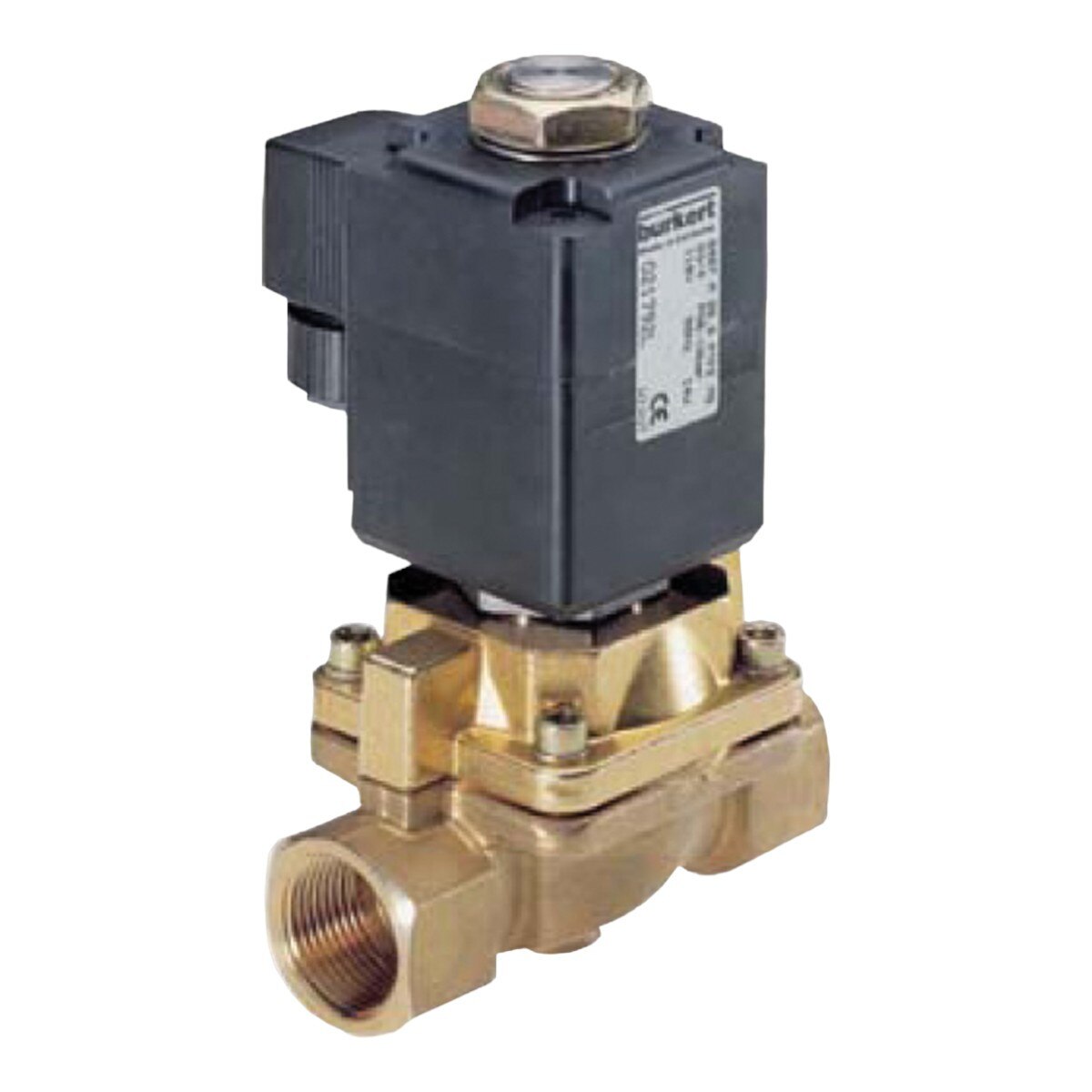

High Temperature Solenoid Valve
2-Way solenoid valves have one inlet and one outlet, and are used to permit and shut off fluid flow.
Normally Closed (N/C) Operation
In a normally closed valve, fluid is shut off when the coil is de-energized and flows through the valve when the coil is energized.
2-Way solenoid valves have one inlet and one outlet, and are used to permit and shut off fluid flow.
Normally Closed (N/C) Operation
In a normally closed valve, fluid is shut off when the coil is de-energized and flows through the valve when the coil is energized.
| Product Type: | Solenoid Valve |
| Brand: | Pulsafeeder |
| Product Line: | Cooling Tower Applications |
| Material: | Bronze Brass-body, Stainless Steel Pilot & Valve, PTFE |
| Max Pressure (PSI): | 100 @ 356F |
| Connections: | 1/2 in. NPT |
| Power Supply: | 115 VAC 50/60 Hz, Hardwired |
| Overall Dimensions: | H 7 in. x W 3-1/2 in. |
| Notes: | 0-100 PSI pressure differencial |
