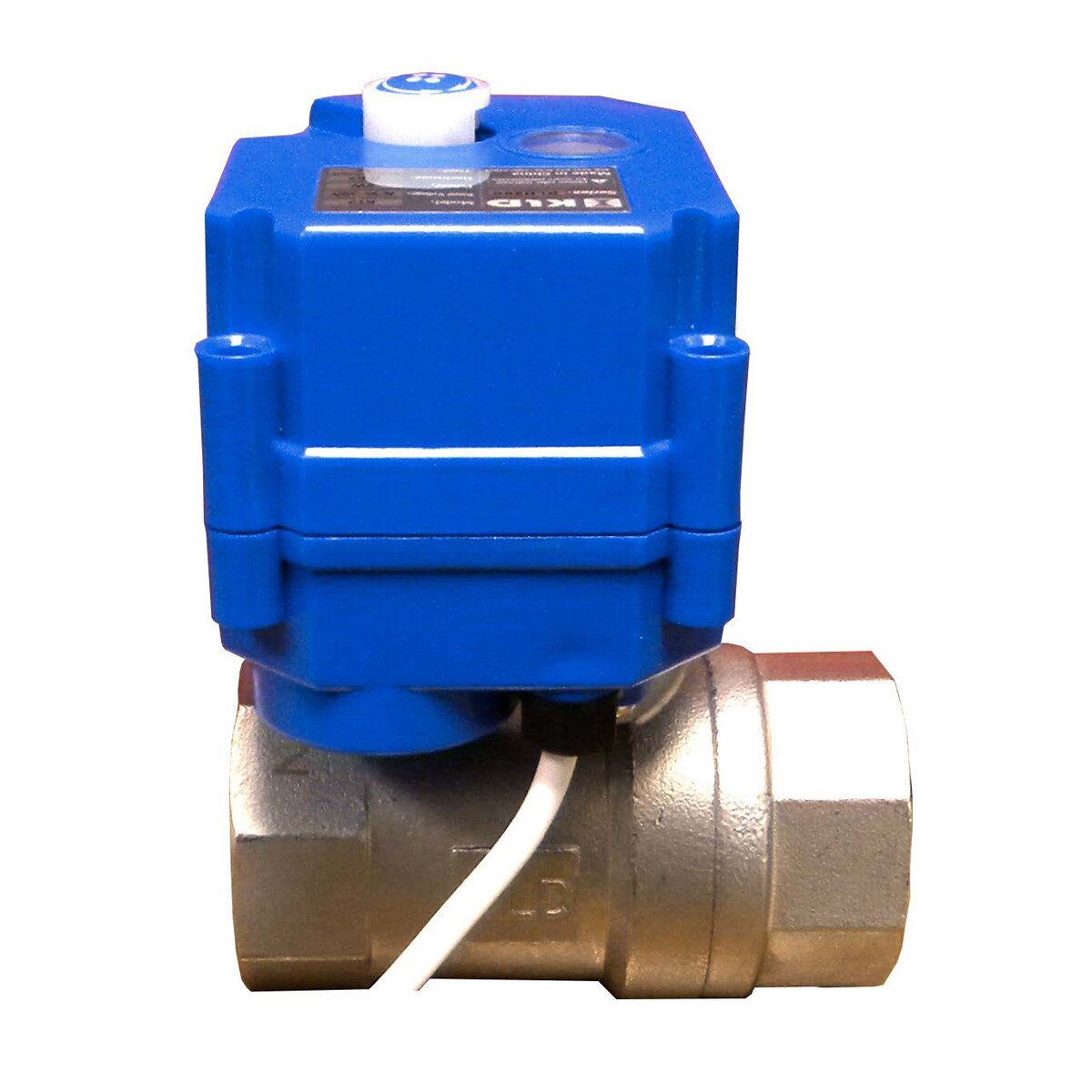

3/4 inch NPT Motorized Capacitor Return Ball Valve with Power Cable (each)
Images are for representation only. Actual product may differ in size, color or options.
3/4 inch NPT Motorized Capacitor Return Ball Valve with Power Cable (each)
The Capacitor Return Motorized Ball Valve is a ball valve that uses an electric actuator to open or close its mechanism. This type of valve is suited to remote automatic flow control applications such as a cooling tower, industrial water treatment, smart home water treatment system, and many other applications. The motorized ball valve is an economical alternative to a solenoid valve for water treatment professionals looking for a valve that last longer and is more reliable.
Features:
The Capacitor Return Motorized Ball Valve is a ball valve that uses an electric actuator to open or close its mechanism. This type of valve is suited to remote automatic flow control applications such as a cooling tower, industrial water treatment, smart home water treatment system, and many other applications. The motorized ball valve is an economical alternative to a solenoid valve for water treatment professionals looking for a valve that last longer and is more reliable.
Features:
- Long service life (70,000 – 100,000 cycles)
- Manual override
- Fast response cut-offs
- Signal feedback
- Compact and light weight
| Product Type: | Ball Valve |
| Brand: | Pulsafeeder |
| Class: | Motorized |
| Material: | 304 Stainless Steel |
| Housing: | ABS |
| Valve Balls: | 304 SS |
| Connections: | 3/4 inch NPT |
| Power Supply: | 115/230 VAC, 50/60 Hz, 1 Phase |
| IP Rating: | IP67 |
| Cycle Time: | 5 - 7 Seconds |
| Max. Torque: | 2 nm |
| Max. Power: | 5 W |
| Current: | 25 ± 5 mA |
| Applications: | Cooling Towers Purification Systems Smart Home Water Systems UF Water Systems Wastewater Treatment Water Filters & Filtration Systems |
