PUL-12-072-57
Images are for representation only. Actual product may differ in size, color or options.

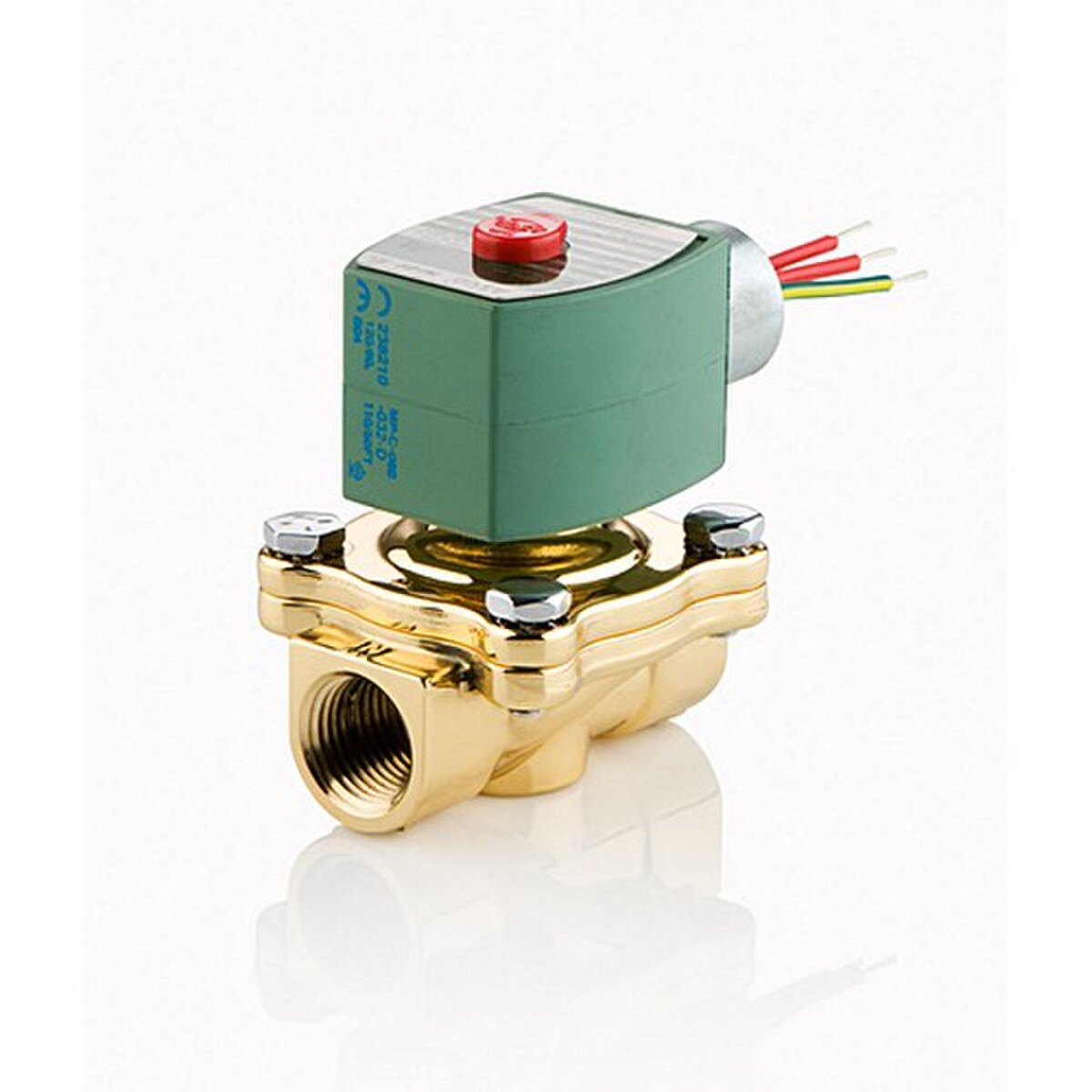

Standard Solenoid Valve
ASCO's 2-Way solenoid valves have one inlet and one outlet, and are used to permit and shut off fluid flow.
Normally Closed (N/C) Operation
In a normally closed valve, fluid is shut off when the coil is de-energized and flows through the valve when the coil is energized.
ASCO's 2-Way solenoid valves have one inlet and one outlet, and are used to permit and shut off fluid flow.
Normally Closed (N/C) Operation
In a normally closed valve, fluid is shut off when the coil is de-energized and flows through the valve when the coil is energized.
| Product Type: | Solenoid Valve |
| Brand: | Pulsafeeder |
| Product Line: | Cooling Tower Applications |
| Material: | Brass body |
| Max Pressure (PSI): | 150 (MOPD) @ 180°F |
| Connections: | 1 1/2 in. NPT |
| Power Supply: | 115 VAC 50/60 Hz, Hardwired |
| Notes: | 0 -150 PSI pressure differencial |
