Corrosion Coupon Rack – Dual Station PVC, ASTM-Compatible Side-Stream Monitor for Water Systems

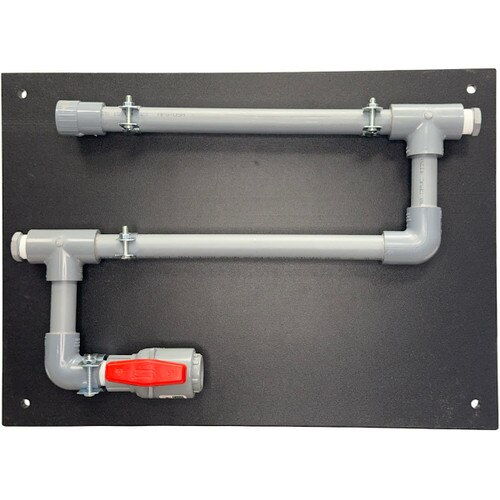

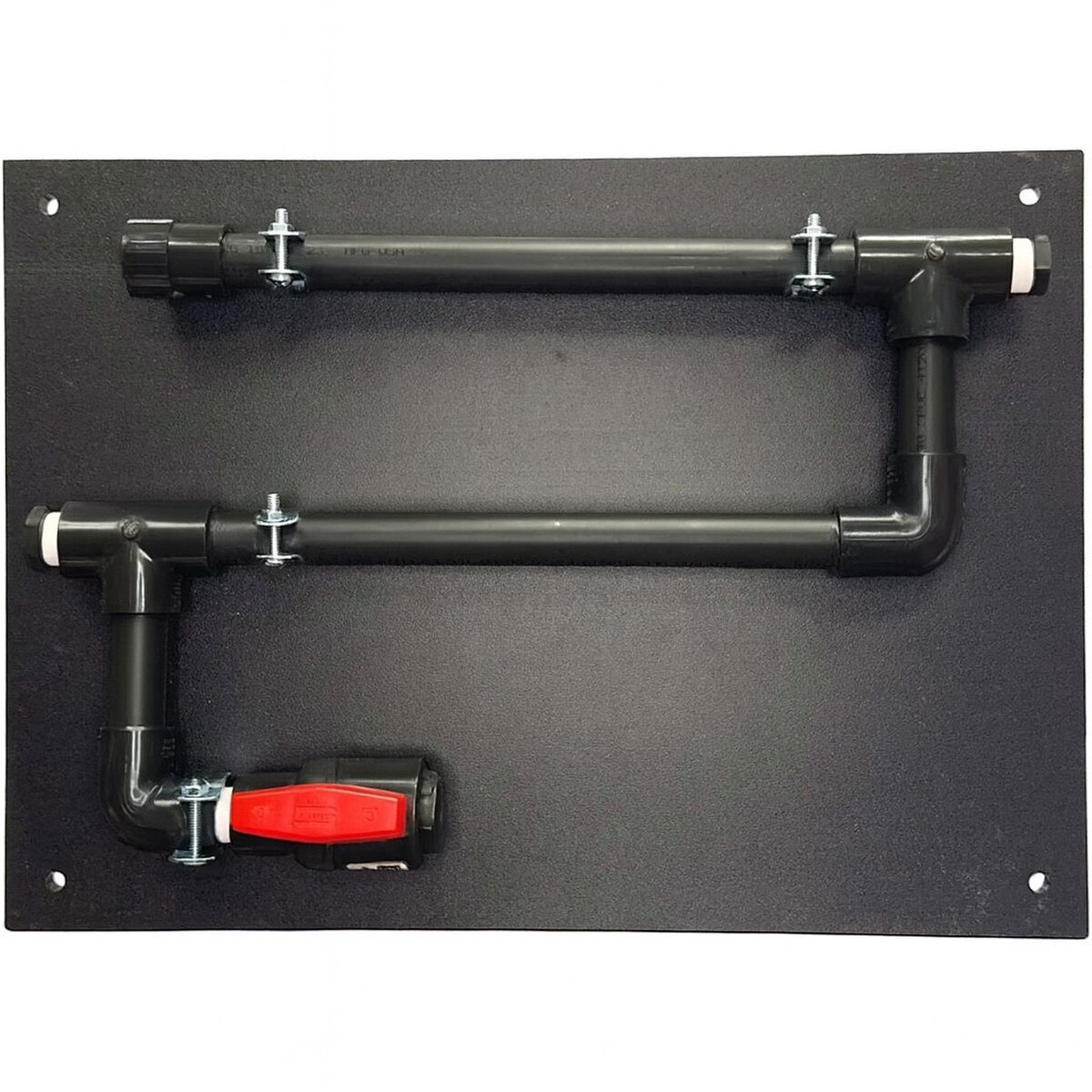

Images are for representation only. Actual product may differ in size, color or options.
Corrosion Coupon Rack – Dual Station PVC, ASTM-Compatible Side-Stream Monitor for Water Systems
The CCR20 is a dual-station corrosion monitoring rack designed for side-stream sampling in industrial water systems. Constructed with Schedule 80 PVC piping and mounted on a 0.50″ HDPE panel, it supports ASTM-standard coupons for accurate corrosion-rate analysis in moderate-temperature environments.
Specifications
- Stations: 2
- Mounting: 0.50″ HDPE panel
- Piping: 3/4″ Schedule 80 PVC
- Max Pressure: 150 psi (10.3 bar)
- Max Temperature: 140 °F (60 °C)
Features
- Threaded coupon holders with vertical witness slots
- Wall-mountable design for easy installation
- Accepts all ASTM corrosion coupons
Applications
- Cooling tower systems
- Boiler water monitoring
- Closed-loop cooling diagnostics
| Product Type: | Corrosion Coupon Rack |
| Brand: | Pulsafeeder |
| Material: | PVC |
| Color: | Gray |
| Max Pressure (PSI): | 150 psi (10.4 bar), 140 °F (60 °C) |
| Connections: | 3/4 in. (19 mm) PVC piping Schedule 80 |
| Mount Type: | 1/2 inch HDPE Panel |
| Sections: | 2 Station |
| Overall Dimensions: | Panel Size: 16 in. H x 22 in. W (406 x 559 mm) |
| Notes: | System does not include coupons |
