Dual-Station Black Iron Corrosion Coupon Rack with Sample Port and Outlet Valve

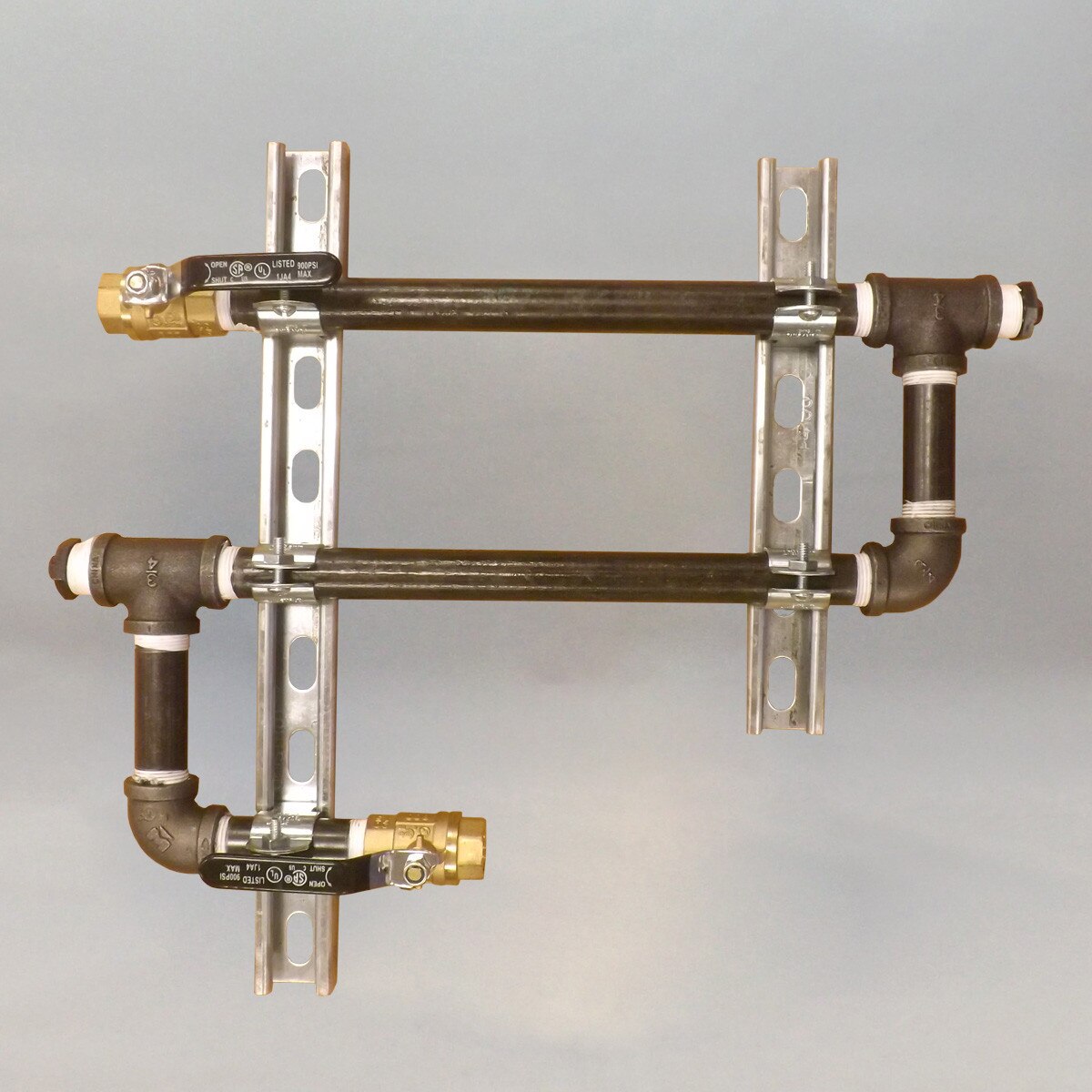

The CCR20DXSX7 is a dual-station corrosion monitoring rack built for hot water applications. It features Schedule 40 black iron piping mounted on a Unistrut frame, with both a sample port and a PVC outlet ball valve for enhanced functionality. Designed to meet ASTM standards, this rack allows for side-stream monitoring using corrosion coupons in high-pressure environments.
Specifications
- Model: CCR20DXSX7
- Stations: 2
- Mounting: Unistrut frame
- Piping: 3/4″ Schedule 40 black iron
- Outlet Valve: PVC ball valve
- Sample Port: Integrated for fluid sampling
- Standards: ASTM-compliant design
Features
- Black iron construction for durability in hot water systems
- Sample port for convenient water analysis
- PVC outlet ball valve for system isolation
- Wall-mountable Unistrut frame for secure installation
- Hydrostatically tested for reliability
Applications
- Hot water corrosion monitoring
- Boiler water diagnostics
- Closed-loop and once-through cooling systems
| Product Type: | Corrosion Coupon Rack |
| Brand: | Pulsafeeder |
| Material: | Iron |
| Color: | Black |
| Max Pressure (PSI): | 250 psi (17.3 bar), 212 °F (100 °C) |
| Connections: | 3/4 in. (19 mm) black iron piping Schedule 40 |
| Mount Type: | Unistrut |
| Sections: | 2 Station |
| Overall Dimensions: | Unistrut Mounted: 16 in. H x 22 in. W (406 x 559 mm) |
| Includes: | Outlet ball valve, Steel coupon holder. |
| Notes: | System does not include coupons |
