Dual-Station PVC Corrosion Coupon Rack with Quick-Release Holders and Flow Meter for ASTM Monitoring

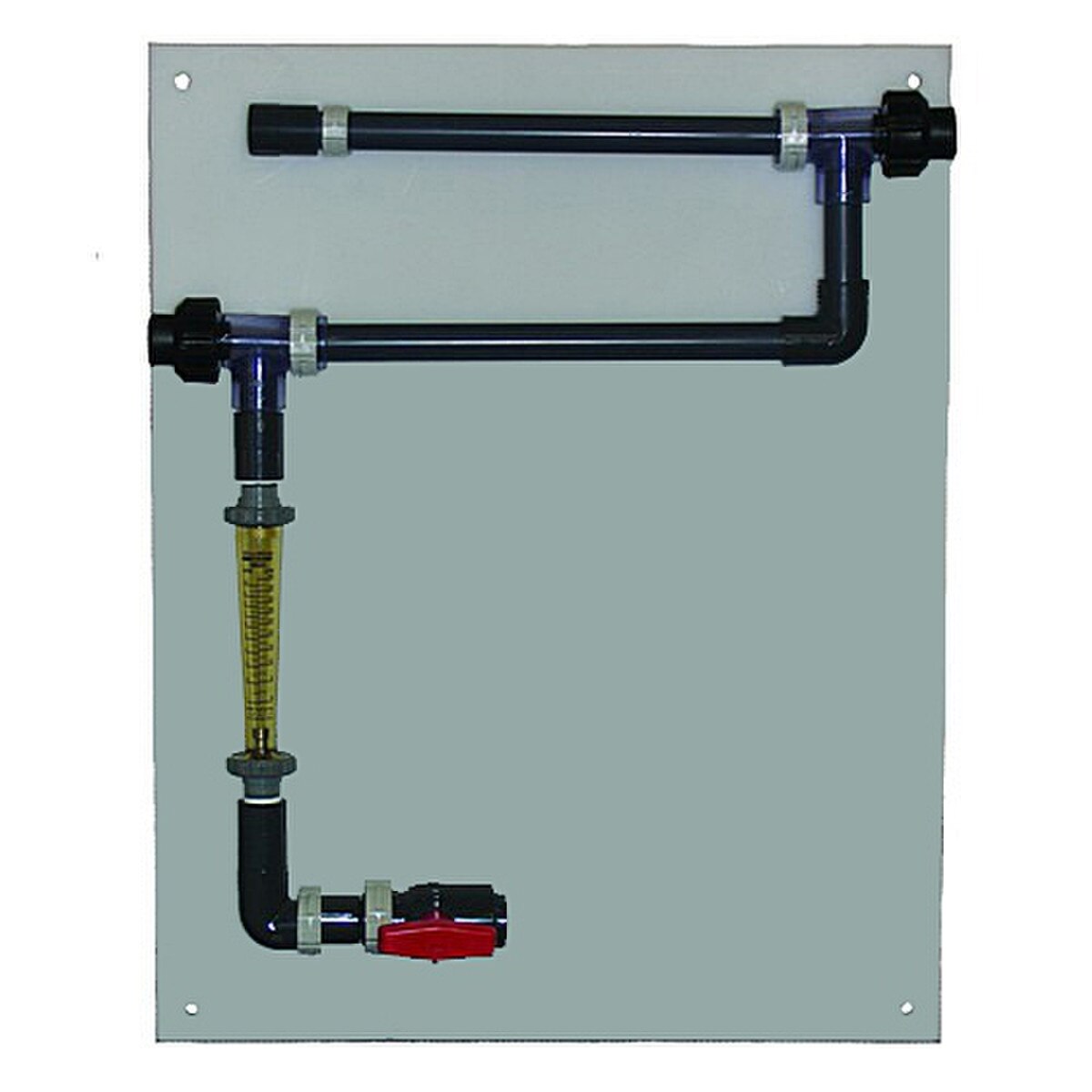

The CCR20X1X4 is a dual-station corrosion monitoring rack designed for side-stream sampling in industrial water systems. Built with Schedule 80 PVC piping and mounted on an HDPE panel, it features quick-release coupon holders and a 3/4″ water flow meter rated to 130 °F. This configuration supports ASTM-standard coupons and is ideal for cooling and boiler water diagnostics.
Specifications
- Model: CCR20X1X4
- Stations: 2
- Mounting: HDPE panel
- Piping: 3/4″ Schedule 80 PVC
- Coupon Holders: Quick-release style
- Flow Meter: 3/4″ water flow meter, max 100 psi @ 130 °F
- Standards: Built to ASTM specifications
Features
- Quick-release coupon holders with vertical witness tabs
- Integrated flow meter for real-time monitoring
- Wall-mountable HDPE panel for easy installation
- Compatible with ASTM corrosion coupons
- Hydrostatically tested for enhanced reliability
Applications
- Cooling tower corrosion monitoring
- Boiler water diagnostics
- Closed-loop and once-through cooling systems
| Product Type: | Corrosion Coupon Rack |
| Brand: | Pulsafeeder |
| Material: | PVC |
| Color: | Gray |
| Max Pressure (PSI): | 100 psi (10.4 bar) @ 130 °F (54 °C) |
| Connections: | 3/4 in. (19 mm) PVC piping Schedule 80 |
| Sections: | 2 Station |
| Overall Dimensions: | Panel Size: 16 in. H x 22 in. W (406 x 559 mm) |
| Includes: | Quick release coupon holders, 3/4 in. hot/cold water flow meter |
| Notes: | System does not include coupons |
