Dual-Station PVC Corrosion Coupon Rack with Quick-Release Holders and 1″ Flow Meter for ASTM Monitoring
Images are for representation only. Actual product may differ in size, color or options.
Dual-Station PVC Corrosion Coupon Rack with Quick-Release Holders and 1″ Flow Meter for ASTM Monitoring

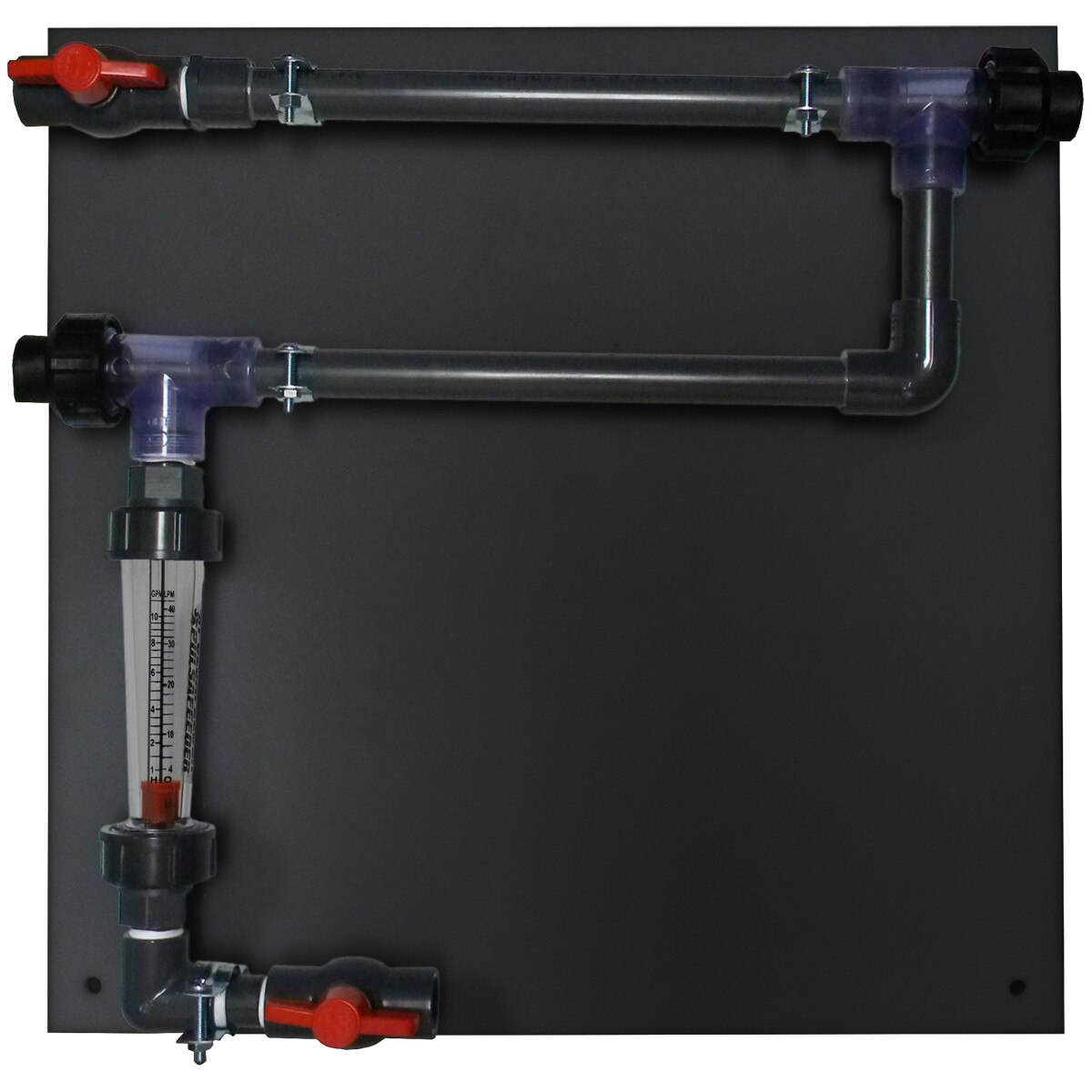

The CCR2AX1X6X7 is a dual-station corroion monitoring rack designed for side-stream sampling in industrial water systems. Constructed with 1″ Schedule 80 PVC piping and mounted on an HDPE panel, it includes quick-release coupon holders and a 1″ water flow meter rated to 130 °F. This configuration supports ASTM-standard coupons and is ideal for cooling and boiler water diagnostics.
Specifications
- Model: CCR2AX1X6X7
- Stations: 2
- Mounting: HDPE panel
- Piping: 1″ Schedule 80 PVC
- Coupon Holders: Quick-release style
- Flow Meter: 1″ water flow meter, max 100 psi @ 130 °F
- Outlet Valve: PVC ball valve
- Standards: Built to ASTM specifications
Features
- Quick-release coupon holders with vertical witness tabs
- 1″ flow meter for real-time monitoring in high-volume systems
- PVC outlet ball valve for system isolation
- Wall-mountable HDPE panel for streamlined installation
- Hydrostatically tested for enhanced reliability
- Compatible with ASTM corrosion coupons
Applications
- Cooling tower corrosion monitoring
- Boiler water diagnostics
- Closed-loop and once-through cooling systems
| Product Type: | Corrosion Coupon Rack |
| Brand: | Pulsafeeder |
| Material: | PVC |
| Color: | Gray |
| Max Pressure (PSI): | 100 psi (10.4 bar) @ 110 °F (43 °C) |
| Connections: | 1 in. (25 mm) PVC piping Schedule 80 |
| Mount Type: | 1/2 inch HDPE Panel |
| Sections: | 2 Station |
| Overall Dimensions: | Panel Size:: 16 in. H x 22 in. W (406 x 559 mm) |
| Includes: | Quick release coupon holders, 1 in. cold water flow meter, Outlet ball valve. |
| Notes: | System does not include coupons |
