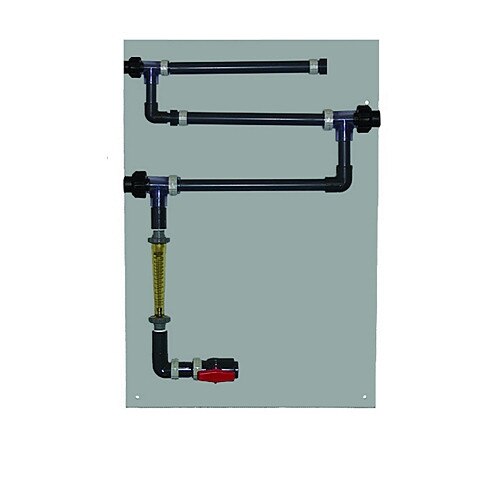

3 Station Corrosion Coupon Rack (3/4" PVC Piping) with option: X1X4X7X8DX9Z4
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder 3 Station Corrosion Coupon Rack (3/4" PVC Piping) Built to ASTM Specifications
Pulsafeeder's Corrosion Coupon Rack Systems are designed to provide reliable, convenient side stream monitoring using ASTM standard coupons and are hydrostatically tested for maximum system performance exceeding industry standards. Available for cool or hot water systems, these simple and reliable coupon test stations are typically installed on the side stream of re-circulating systems to allow for controlled testing of ASTM standard coupons samples. Samples are periodically removed and examined by a laboratory in order to calculate corrosion rates and other effects such as pitting and deposition.
Features
Standard Coupon Rack Systems Include: PVC coupon holder, nylon screw and nut, PVC inlet ball valve, Schedule 80 PVC piping mounted on 1/4 inch Poly. System does not include coupons - order coupons separately.
This Model Includes the following Options/Modifications:
Pulsafeeder's Corrosion Coupon Rack Systems are designed to provide reliable, convenient side stream monitoring using ASTM standard coupons and are hydrostatically tested for maximum system performance exceeding industry standards. Available for cool or hot water systems, these simple and reliable coupon test stations are typically installed on the side stream of re-circulating systems to allow for controlled testing of ASTM standard coupons samples. Samples are periodically removed and examined by a laboratory in order to calculate corrosion rates and other effects such as pitting and deposition.
Features
- Schedule 80 PVC piping assembly and components for standard applications
- Designed to ASTM specifications
- Wall mountable for easy installation
- Accepts ASTM test coupons
- Mounted on 1/4 inch Poly panel
Standard Coupon Rack Systems Include: PVC coupon holder, nylon screw and nut, PVC inlet ball valve, Schedule 80 PVC piping mounted on 1/4 inch Poly. System does not include coupons - order coupons separately.
This Model Includes the following Options/Modifications:
- Quick release coupon holders
- 3/4 inch hot/cold water flow meter
- Outlet ball valve
- 3/4 inch Polypropylene bowl strainer 30 mesh
- Clear PVC pipe sections
- Sample/Dain port
| Product Type: | Corrosion Coupon Rack |
| Brand: | Pulsafeeder |
| Material: | PVC |
| Color: | Gray |
| Max Pressure (PSI): | 150 psi (10.4 bar) @ 70 °F (21 °C) |
| Connections: | 3/4 in. (19 mm) PVC piping Schedule 80 |
| Sections: | 3 Station |
| Overall Dimensions: | Panel Size: 20 in. H x 22 in. W (508 x 559 mm) |
| Includes: | Quick release coupon holders, 3/4 in. hot/cold water flow meter, Outlet ball valve, 3/4 in. Polypropylene bowl strainer 30 mesh, Clear PVC pipe sections, Sample/Dain port. |
| Notes: | System does not include coupons |
