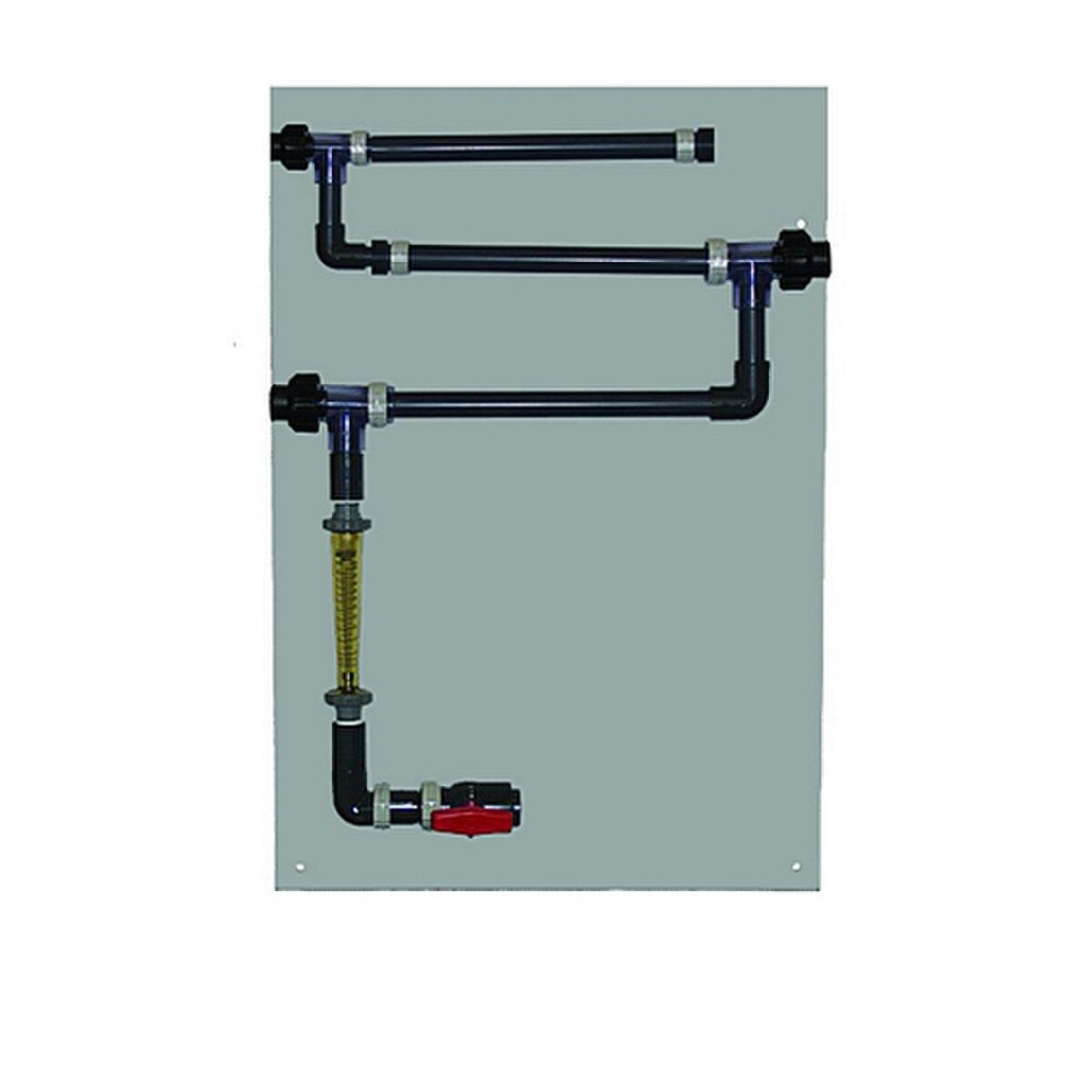

3 Station Corrosion Coupon Rack (3/4" PVC Piping) with option: X1X4X7X9Z4
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder 3 Station Corrosion Coupon Rack (3/4" PVC Piping) Built to ASTM Specifications
Pulsafeeder's Corrosion Coupon Rack Systems are designed to provide reliable, convenient sidestream monitoring using ASTM standard coupons and are hydrostatically tested for maximum system performance exceeding industry standards. Available for cool or hot water systems, these simple and reliable coupon test stations are typically installed on the sidestream of re-circulating systems to allow for controlled testing of ASTM standard coupon samples. Samples are periodically removed and examined by a laboratory in order to calculate corrosion rates and other effects such as pitting and deposition.
Features
Standard Coupon Rack Systems Include:
This Model Includes the following Options/Modifications:
Pulsafeeder's Corrosion Coupon Rack Systems are designed to provide reliable, convenient sidestream monitoring using ASTM standard coupons and are hydrostatically tested for maximum system performance exceeding industry standards. Available for cool or hot water systems, these simple and reliable coupon test stations are typically installed on the sidestream of re-circulating systems to allow for controlled testing of ASTM standard coupon samples. Samples are periodically removed and examined by a laboratory in order to calculate corrosion rates and other effects such as pitting and deposition.
Features
- Schedule 80 PVC piping assembly and components for standard applications
- Designed to ASTM specifications
- Wall mountable for easy installation
- Accepts ASTM test coupons
- Mounted on polyethylene panel
Standard Coupon Rack Systems Include:
- 3/4 inch piping
- PVC coupon holder with nylon screw and nut
- PVC inlet ball valve
- Schedule 80 PVC piping mounted
- 1/2 inch HDPE panel
This Model Includes the following Options/Modifications:
- X1 = Quick-release coupon holders
- X4 = 3/4" hot/cold water flow meter, Max. 100 psi (7 bar) @ 130ºF (54ºC).
- X7 = PVC outlet ball valve
- X9 = Clear PVC pipe sections
- Z4 = Sample/Dain port
| Product Type: | Corrosion Coupon Rack |
| Brand: | Pulsafeeder |
| Material: | PVC |
| Color: | Gray |
| Max Pressure (PSI): | 100 psi (10.4 bar) @ 110 °F (43 °C) |
| Connections: | 3/4 in. (19 mm) PVC piping Schedule 80 |
| Sections: | 3 Station |
| Overall Dimensions: | Panel Size: 20 in. H x 22 in. W (508 x 559 mm) |
| Notes: | System does not include coupons |
