Four-Station PVC Corrosion Coupon Rack for ASTM Monitoring
Images are for representation only. Actual product may differ in size, color or options.
Four-Station PVC Corrosion Coupon Rack for ASTM Monitoring

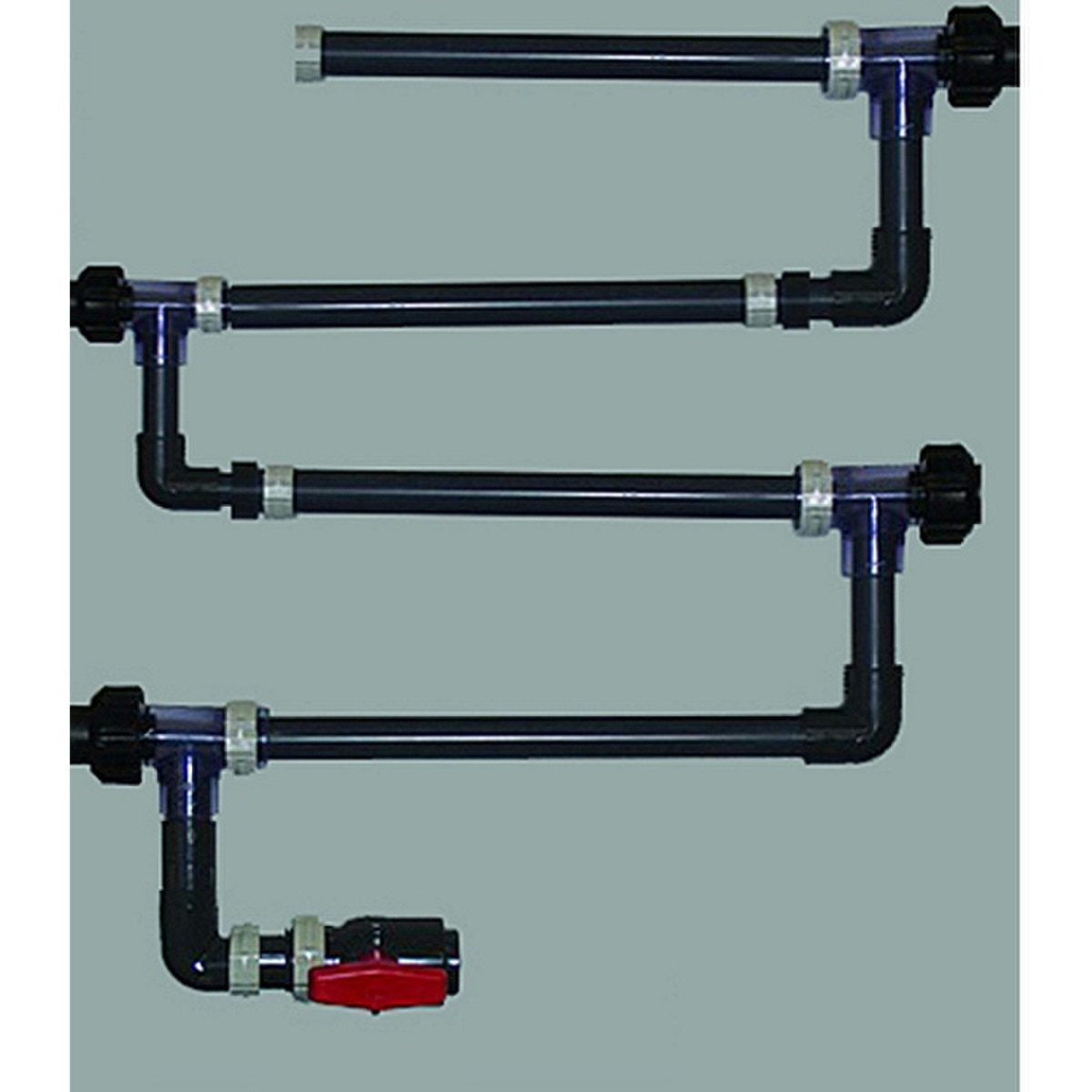

The CCR40 is a four-station corrosion monitoring rack designed for side-stream sampling in industrial water systems. Constructed with Schedule 80 PVC piping and mounted on an HDPE panel, this rack supports ASTM-standard coupons and is ideal for cooling and boiler water diagnostics. Its expanded station count allows for broader corrosion analysis across multiple conditions or treatment zones.
Specifications
- Model: CCR40
- Stations: 4
- Mounting: HDPE panel
- Piping: 3/4″ Schedule 80 PVC
- Standards: Built to ASTM specifications
Features
- Four monitoring stations for expanded sampling
- Durable Schedule 80 PVC construction for standard applications
- Wall-mountable HDPE panel for streamlined installation
- Hydrostatically tested for enhanced reliability
- Compatible with ASTM corrosion coupons
Applications
- Cooling tower corrosion monitoring
- Boiler water diagnostics
- Closed-loop and once-through cooling systems
| Product Type: | Corrosion Coupon Rack |
| Brand: | Pulsafeeder |
| Material: | PVC |
| Color: | Gray |
| Max Pressure (PSI): | 150 psi (10.4 bar), 140 °F (60 °C) |
| Connections: | 3/4 in. (19 mm) PVC piping Schedule 80 |
| Mount Type: | 1/4 inch Poly Panel |
| Sections: | 4 Station |
| Overall Dimensions: | Panel Size: 28 in. H x 22 in. W (711 x 559 mm) |
| Notes: | System does not include coupons |
