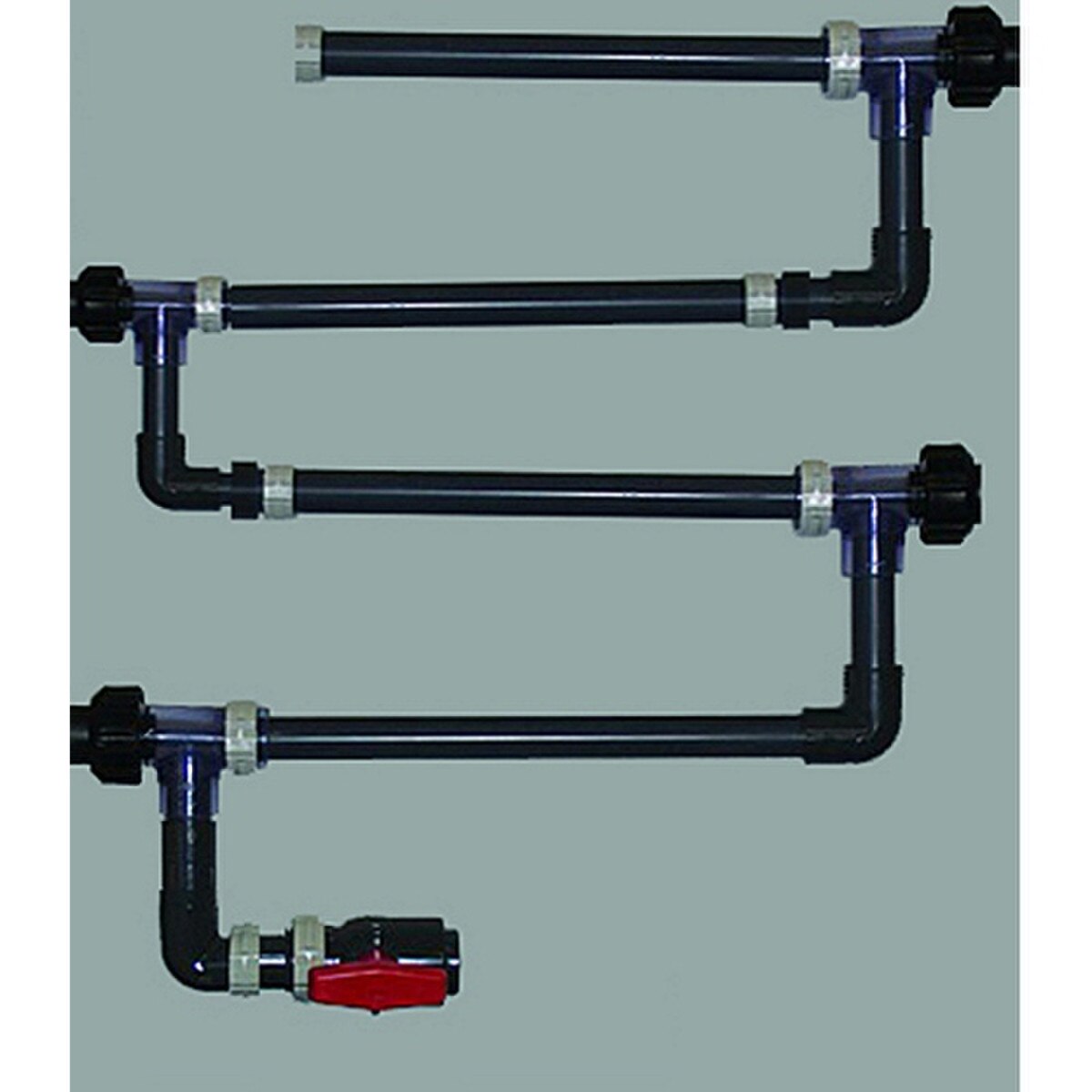

4 Station Corrosion Coupon Rack (3/4" Black Iron Piping) with option: XSX7
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder 4 Station Corrosion Coupon Rack (3/4" Black Iron Piping) Built to ASTM Specifications
Pulsafeeder's Corrosion Coupon Rack Systems are designed to provide reliable, convenient side stream monitoring using ASTM standard coupons and are hydrostatically tested for maximum system performance exceeding industry standards. Available for cool or hot water systems, these simple and reliable coupon test stations are typically installed on the side stream of re-circulating systems to allow for controlled testing of ASTM standard coupons samples. Samples are periodically removed and examined by a laboratory in order to calculate corrosion rates and other effects such as pitting and deposition.
Features
Standard Coupon Rack Systems Include: CPVC coupon holder, nylon screw and nut, PVC inlet ball valve, schedule 40 black iron piping with unistrut mounting. System does not include coupons - order coupons separately.
This Model Includes the following Options/Modifications:
Pulsafeeder's Corrosion Coupon Rack Systems are designed to provide reliable, convenient side stream monitoring using ASTM standard coupons and are hydrostatically tested for maximum system performance exceeding industry standards. Available for cool or hot water systems, these simple and reliable coupon test stations are typically installed on the side stream of re-circulating systems to allow for controlled testing of ASTM standard coupons samples. Samples are periodically removed and examined by a laboratory in order to calculate corrosion rates and other effects such as pitting and deposition.
Features
- Schedule 40 black iron piping assembly and components for hot water applications
- Designed to ASTM specifications
- Wall mountable for easy installation
- Accepts ASTM test coupons
- Supplied on unistrut for easy installation
Standard Coupon Rack Systems Include: CPVC coupon holder, nylon screw and nut, PVC inlet ball valve, schedule 40 black iron piping with unistrut mounting. System does not include coupons - order coupons separately.
This Model Includes the following Options/Modifications:
- Outlet ball valve
- Steel coupon holder
| Product Type: | Corrosion Coupon Rack |
| Brand: | Pulsafeeder |
| Material: | Iron |
| Color: | Black |
| Max Pressure (PSI): | 250 psi (17.3 bar), 212 °F (100 °C) |
| Connections: | 3/4 in. (19 mm) black iron piping Schedule 40 |
| Sections: | 4 Station |
| Overall Dimensions: | Unistrut Mounted: 28 in. H x 22 in. W (711 x 559 mm) |
| Includes: | Outlet ball valve, Steel coupon holder. |
| Notes: | System does not include coupons |
