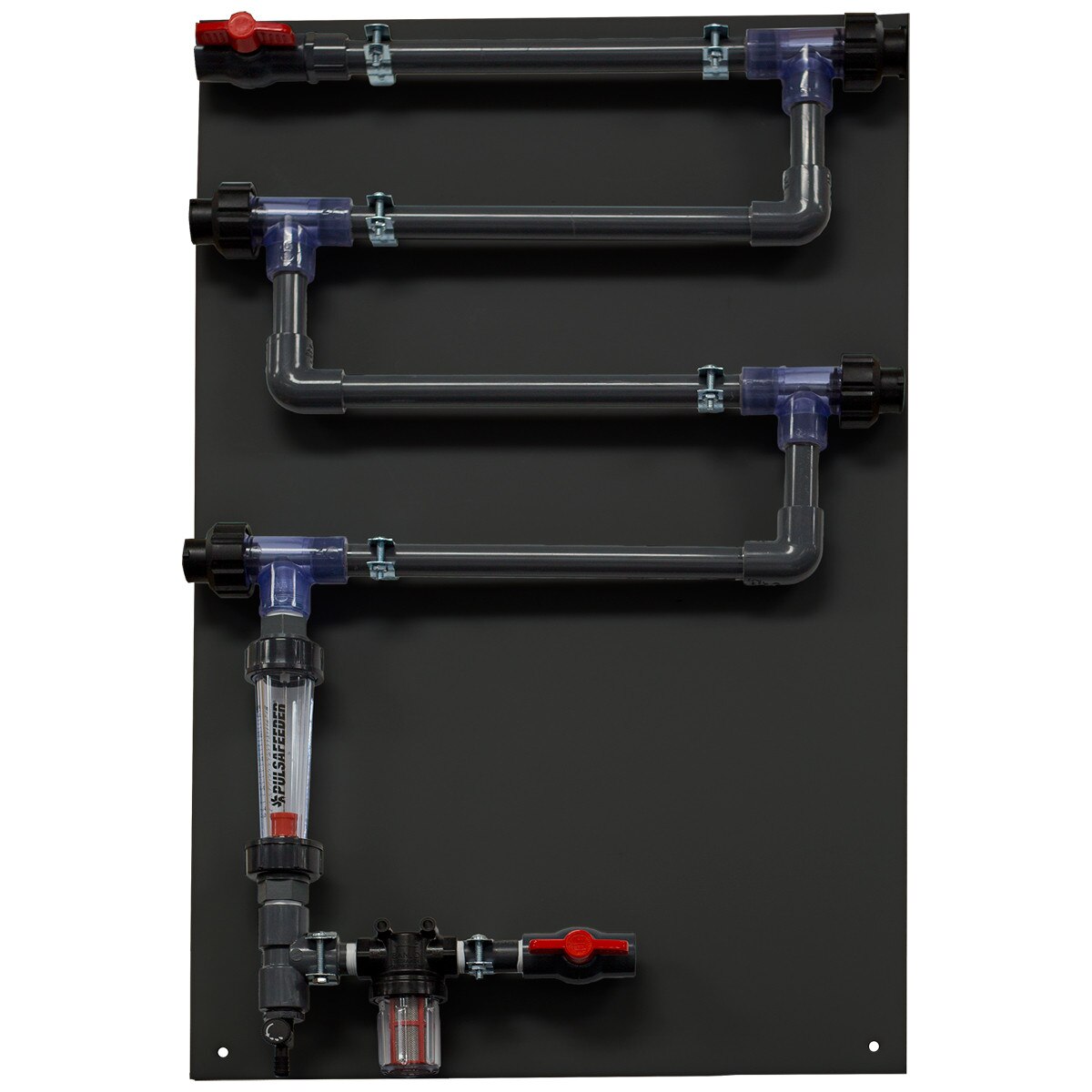

Four-Station Clear PVC Corrosion Coupon Rack with Quick-Release Holders, Flow Meter, Outlet Valve, Bowl Strainer, and Sample Port

The CCR40X1X4X7X8DX9Z4 is a four-station corrosion monitoring rack designed for advanced side-stream sampling in industrial water systems. Constructed with clear Schedule 80 PVC piping and mounted on an HDPE panel, it includes quick-release coupon holders, a 3/4″ water flow meter rated to 130 °F, a PVC outlet ball valve, a polypropylene bowl strainer, and a sample port. This configuration supports ASTM-standard coupons and provides visual flow inspection for enhanced diagnostics.

Specifications

• Model: CCR40X1X4X7X8DX9Z4
• Stations: 4
• Mounting: HDPE panel
• Piping: 3/4″ Clear Schedule 80 PVC
• Coupon Holders: Quick-release style
• Flow Meter: 3/4″ water flow meter, max 100 psi @ 130 °F
• Outlet Valve: PVC ball valve
• Strainer: 3/4″ polypropylene bowl strainer, 30 mesh
• Sample Port: Integrated for fluid collection
• Standards: Built to ASTM specifications

Features

• Quick-release coupon holders with vertical witness tabs
• Clear PVC piping allows visual inspection of flow conditions
• Integrated flow meter for real-time monitoring
• PVC outlet ball valve for system isolation
• Bowl strainer protects downstream components from debris
• Sample port enables direct fluid collection for analysis
• Wall-mountable HDPE panel for streamlined installation
• Hydrostatically tested for enhanced reliability
• Compatible with ASTM corrosion coupons

Applications

• Cooling tower corrosion monitoring
• Boiler water diagnostics
• Closed-loop and once-through cooling systems
