Four-Station PVC Corrosion Coupon Rack with Outlet Valve and 5 GPM Flow Control for ASTM Monitoring

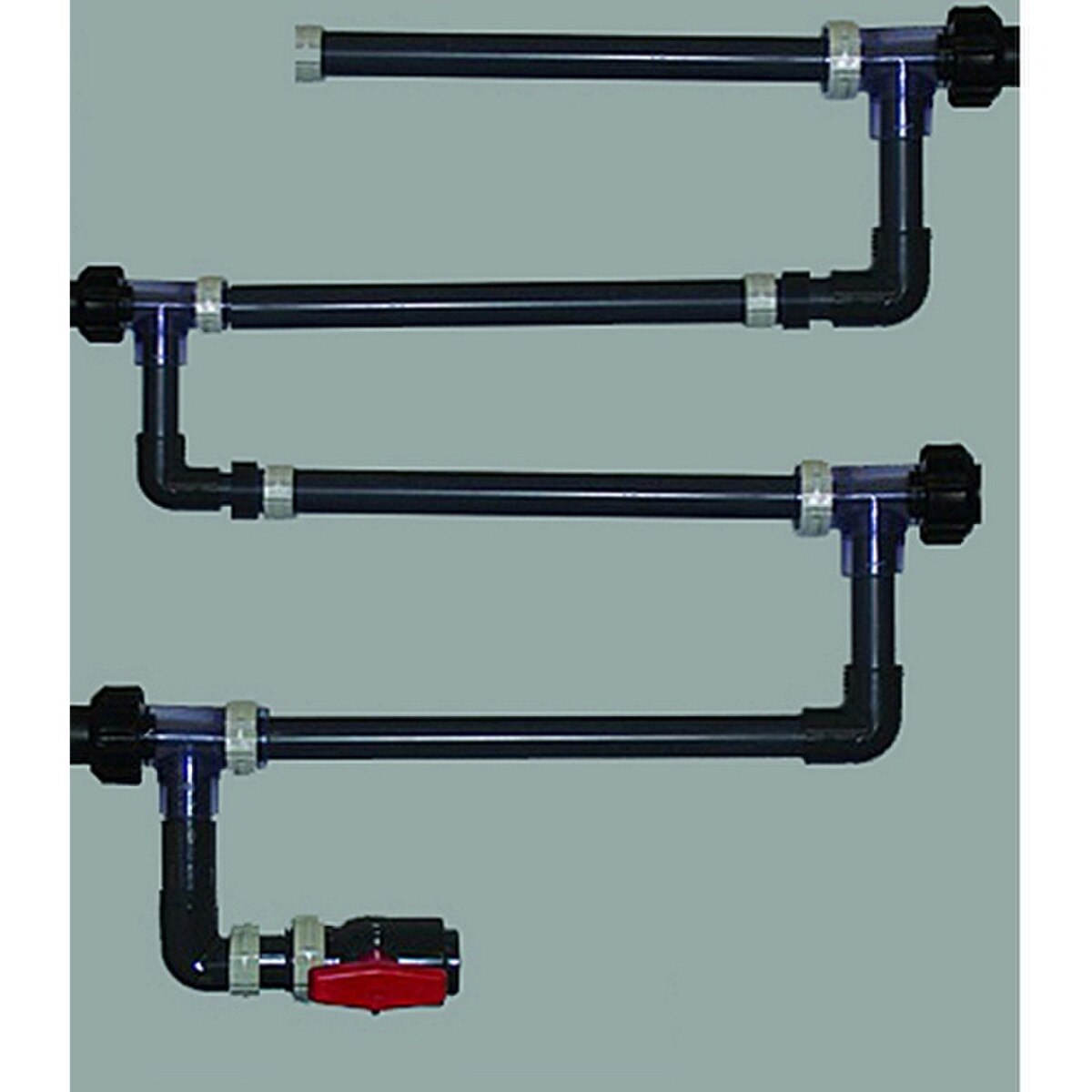

The CCR40X7F5 is a four-station corrosion monitoring rack designed for side-stream sampling in industrial water systems. Constructed with Schedule 80 PVC piping and mounted on an HDPE panel, it includes a PVC outlet ball valve and a 5 GPM flow control valve. This configuration supports ASTM-standard coupons and is ideal for cooling and boiler water diagnostics.
Specifications
- Model: CCR40X7F5
- Stations: 4
- Mounting: HDPE panel
- Piping: 3/4″ Schedule 80 PVC
- Outlet Valve: PVC ball valve
- Flow Control: 5 GPM valve
- Standards: Built to ASTM specifications
Features
- Four monitoring stations for expanded sampling
- PVC outlet ball valve for system isolation
- 5 GPM flow control valve ensures consistent sampling
- Wall-mountable HDPE panel for streamlined installation
- Hydrostatically tested for enhanced reliability
- Compatible with ASTM corrosion coupons
Applications
- Cooling tower corrosion monitoring
- Boiler water diagnostics
- Closed-loop and once-through cooling systems
| Product Type: | Corrosion Coupon Rack |
| Brand: | Pulsafeeder |
| Material: | PVC |
| Color: | Gray |
| Max Pressure (PSI): | 150 psi (10.4 bar), 140 °F (60 °C) |
| Flow Control: | Flow control valve 5 GPM. |
| Connections: | 3/4 in. (19 mm) PVC piping Schedule 80 |
| Mount Type: | 1/4 inch Poly Panel |
| Sections: | 4 Station |
| Overall Dimensions: | Panel Size: 28 in. H x 22 in. W (711 x 559 mm) |
| Includes: | Outlet ball valve, Flow control valve 5 GPM. |
| Notes: | System does not include coupons |
