Four-Station Black Iron Corrosion Coupon Rack for ASTM Monitoring
Images are for representation only. Actual product may differ in size, color or options.
Four-Station Black Iron Corrosion Coupon Rack for ASTM Monitoring

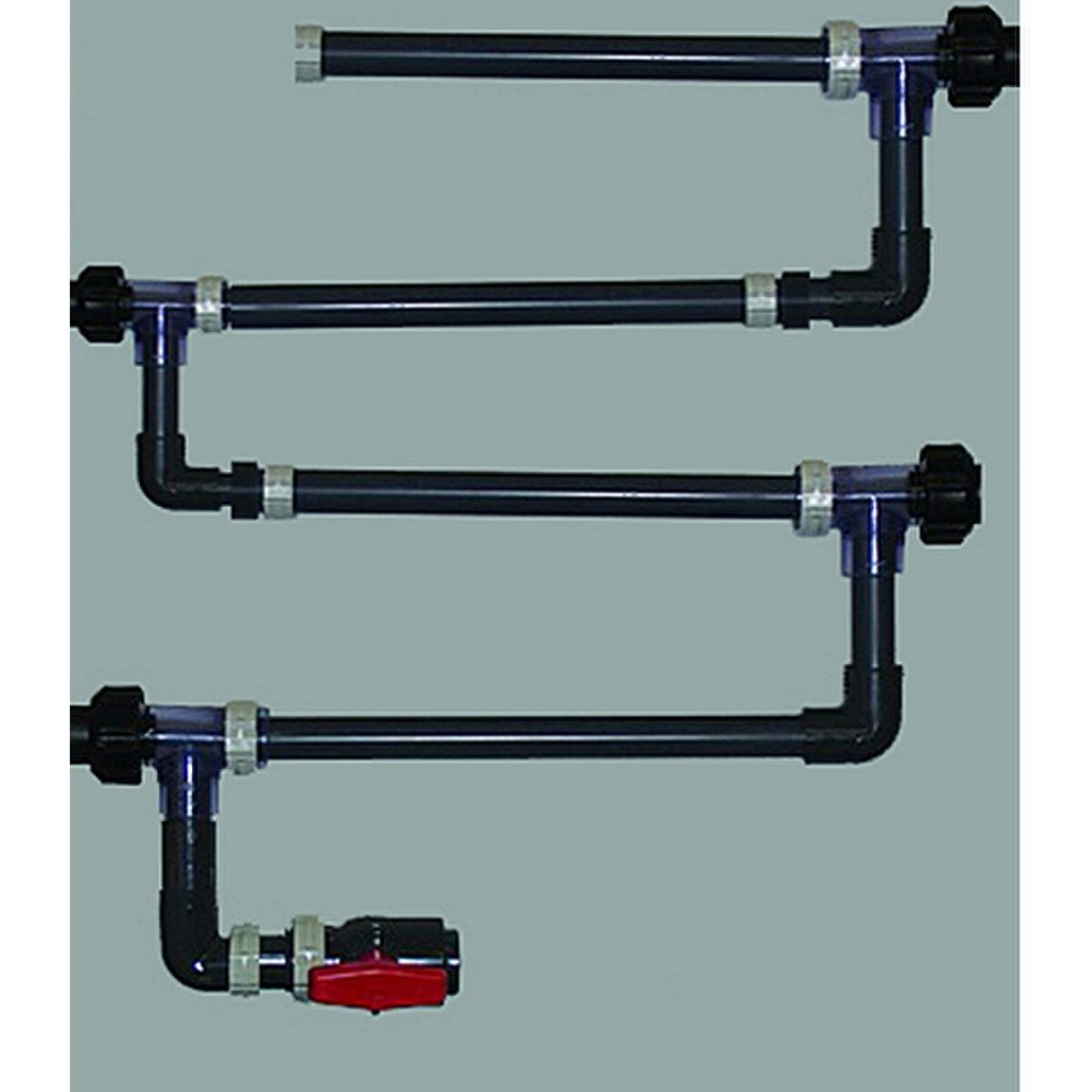

The CCR4D is a four-station corrosion monitoring rack designed for side-stream sampling in industrial water systems. Constructed with Schedule 40 black iron piping and mounted on a Unistrut frame, this rack supports ASTM-standard coupons and is ideal for hot water applications requiring durable, high-pressure components.
Specifications
- Model: CCR4D
- Stations: 4
- Mounting: Unistrut frame
- Piping: 3/4″ Schedule 40 black iron
- Standards: Built to ASTM specifications
Features
- Four monitoring stations for expanded sampling
- Black iron construction for high-temperature and high-pressure environments
- Wall-mountable Unistrut frame for secure installation
- Hydrostatically tested for enhanced reliability
- Compatible with ASTM corrosion coupons
Applications
- Hot water corrosion monitoring
- Boiler water diagnostics
- Closed-loop and once-through cooling systems
| Product Type: | Corrosion Coupon Rack |
| Brand: | Pulsafeeder |
| Material: | Iron |
| Color: | Black |
| Max Pressure (PSI): | 250 psi (17.3 bar), 212 °F (100 °C) |
| Connections: | 3/4 in. (19 mm) black iron piping Schedule 40 |
| Mount Type: | Unistrut |
| Sections: | 4 Station |
| Overall Dimensions: | Unistrut Mounted: 28 in. H x 22 in. W (711 x 559 mm) |
| Notes: | System does not include coupons |
