4 Station Corrosion Coupon Rack (1" 316 Stainless Steel Piping) with option: EX71F5

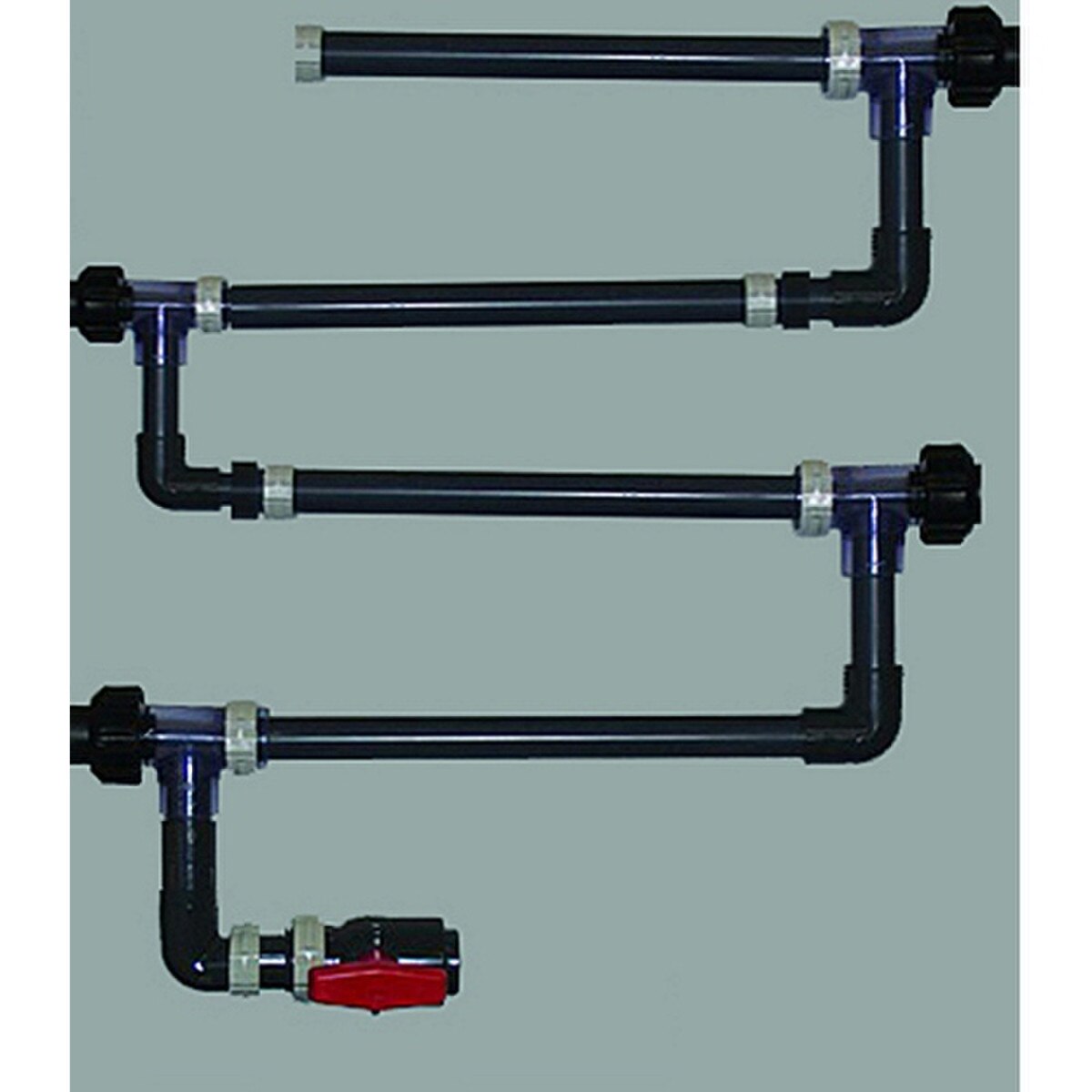

Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder 4 Station Corrosion Coupon Rack (1" 316 Stainless Steel Piping) Built to ASTM Specifications
Pulsafeeder’s Corrosion Coupon Rack Systems are designed to provide reliable, convenient side stream monitoring using ASTM standard coupons and are hydrostatically tested for maximum system performance exceeding industry standards. Available for cool or hot water systems, these simple and reliable coupon test stations are typically installed on the side stream of re-circulating systems to allow for controlled testing of ASTM standard coupons samples. Samples are periodically removed and examined by a laboratory in order to calculate corrosion rates and other effects such as pitting and deposition.
Features
Standard Coupon Rack Systems Include: PVC coupon holder, nylon screw and nut, PVC inlet ball valve, Schedule 80 PVC piping mounted on 1/2 in. HDPE. System does not include coupons - order coupons separately.
This Model Includes the following Options/Modifications:
Pulsafeeder’s Corrosion Coupon Rack Systems are designed to provide reliable, convenient side stream monitoring using ASTM standard coupons and are hydrostatically tested for maximum system performance exceeding industry standards. Available for cool or hot water systems, these simple and reliable coupon test stations are typically installed on the side stream of re-circulating systems to allow for controlled testing of ASTM standard coupons samples. Samples are periodically removed and examined by a laboratory in order to calculate corrosion rates and other effects such as pitting and deposition.
Features
- Schedule 80 PVC piping assembly and components for standard applications
- Designed to ASTM specifications
- Wall mountable for easy installation
- Accepts ASTM test coupons
- Mounted on 1/2 in. HDPE panel
Standard Coupon Rack Systems Include: PVC coupon holder, nylon screw and nut, PVC inlet ball valve, Schedule 80 PVC piping mounted on 1/2 in. HDPE. System does not include coupons - order coupons separately.
This Model Includes the following Options/Modifications:
- 2 Ball Valves
- Flow control valve 5 GPM
| Product Type: | Corrosion Coupon Rack |
| Brand: | Pulsafeeder |
| Material: | 316 Stainless Steel |
| Max Pressure (PSI): | 150 psi (10.4 bar), 140 °F (60 °C) |
| Connections: | 1" 316 Stainless Steel |
| Sections: | 4 station |
| Overall Dimensions: | Panel Size:: 28 in. H x 22 in. W (711 x 559 mm) |
| Includes: | 2 Ball Valves, Flow control valve 5 GPM. |
| Notes: | System does not include coupons |
