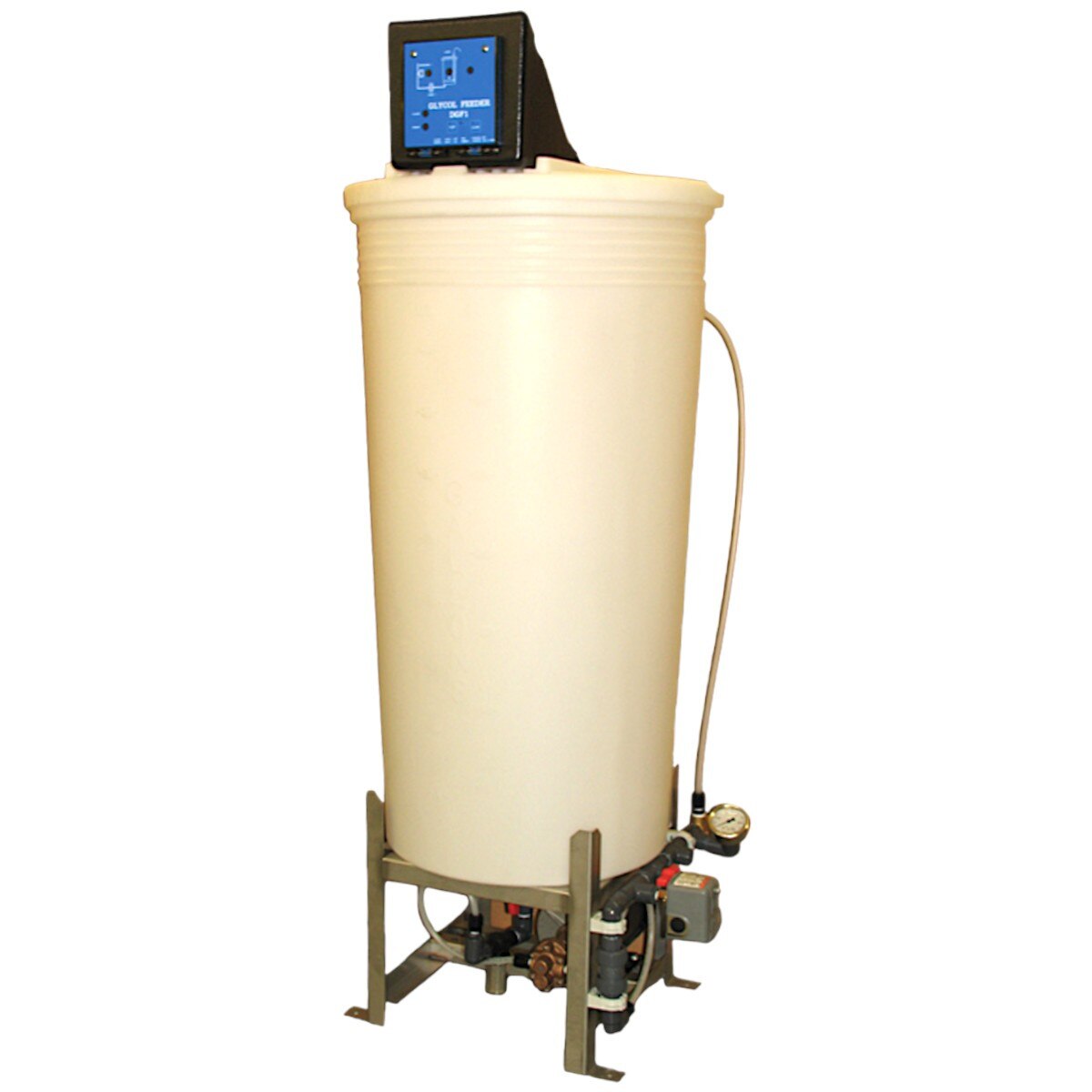

Pulsafeeder Digital Glycol Feeder, Single-Loop, Prewired, 1.5 GPM
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder Digital Glycol Feeder, Single-Loop, Prewired, 1.5 GPM
The Pulsafeeder DGF1BAXACXB is a prewired, fully assembled single-loop Digital Glycol Feeder designed to maintain consistent operating pressure in closed hydronic systems. The system automatically feeds glycol solution from a 55-gallon tank to compensate for system losses, ensuring stable loop performance. A NEMA 4X control enclosure with an 8-bit microcontroller provides precise pump control, LED status indicators, HOA functionality, and a standard pressure switch. This configuration includes no alarm output, making it ideal for installations where external monitoring is not required. The 1.50 GPM gear pump and complete suction and discharge assemblies deliver reliable, long-term operation.
- Model: DGF1BAXACXB
- Configuration: Single closed-loop system
- Electrical: 115 VAC, 60 Hz
- Pump: 1.50 GPM @ 100 psi heavy-duty gear pump
- Control Enclosure: NEMA 4X, prewired
- Alarm Output: None
- Pressure Switch: Standard 30–50 psi (adjustable to 80 psi)
- User Interface: Touch keypad with HOA control and alarm silence
- Indicators: LED status for low level and loss of pressure
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Panel Assembly: Factory assembled (freight shipment required)
Suction Assembly
- PVC tubing and fittings
- PVC ball valve
- Clear poly bowl strainer
Discharge Assembly
- PVC pipe and fittings
- PVC ball valve
- PVC check valve
- Pressure gauge
- Brass relief valve with return-to-tank tubing
Operating Benefits
- Maintains consistent operating pressure in closed-loop systems
- Fully piped and prewired for rapid installation
- NEMA 4X enclosure for harsh environments
| Product Type: | Glycol Feeder |
| Brand: | Pulsafeeder |
| Capacity: | 55 Gallon |
| Housing: | NEMA 4X |
| Max Flow (GPM): | 1.5 |
| Max Pressure (PSI): | 80 |
| Connections: | Prewire |
| Power Supply: | 115 VAC, 60Hz |
| Pressure Switch: | Standard, 30 – 50 psi (adjustable to 80 psi) |
| Alarm: | Non-Audible/No Output |
| Includes: | Pressure gauge, pressure switch, pressure relief valve, gear pump, suction and discharge piping/fittings |
| Notes: | Single Loop |
| Working Environment: | 32°F to 122°F / (0°C to 50°C) |
