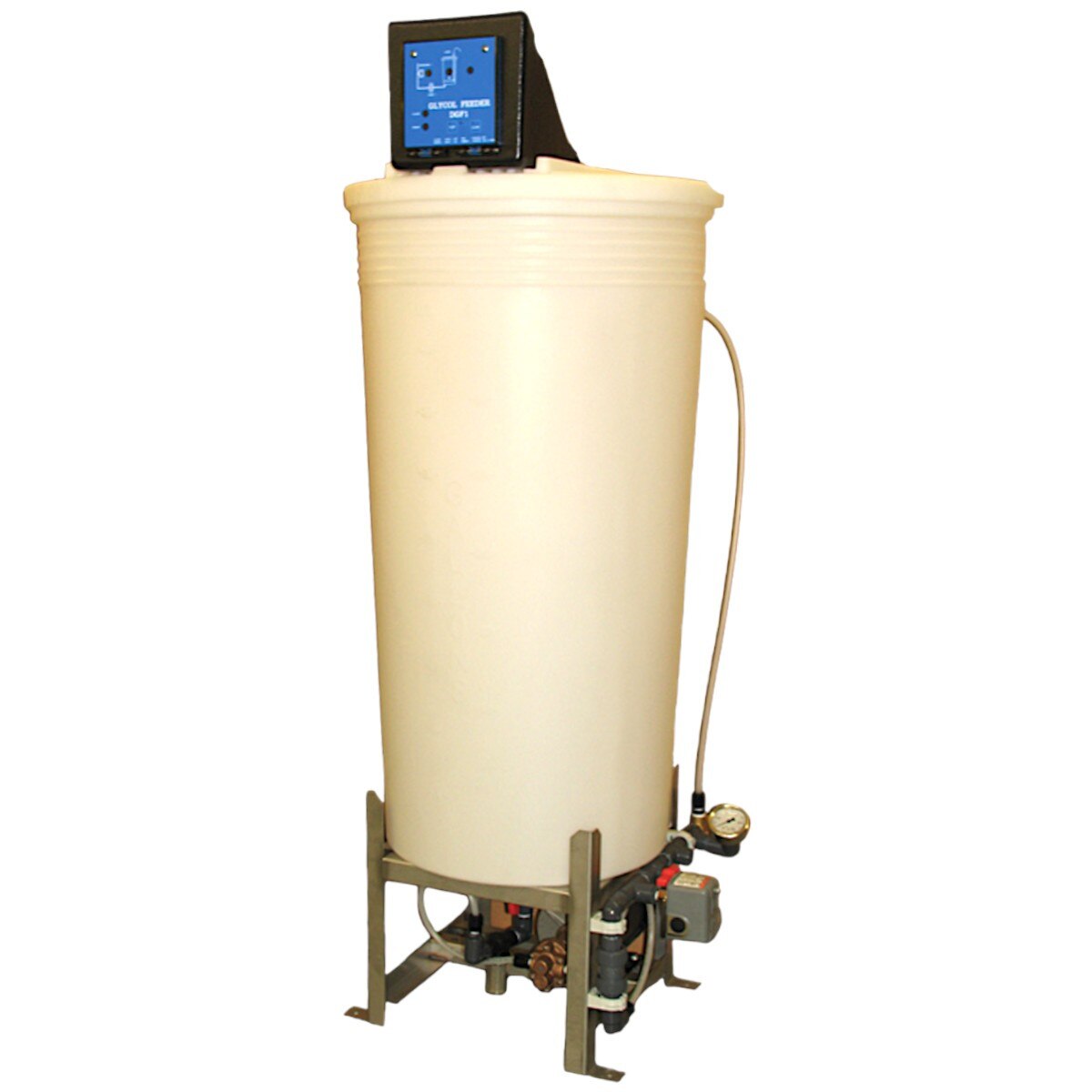

Pulsafeeder Digital Glycol Feeder, Single-Loop, Prewired, 1.5 GPM

The Pulsafeeder DGF1BBABCAB is a prewired, fully assembled single-loop Digital Glycol Feeder designed to maintain consistent operating pressure in closed hydronic systems. The system automatically feeds glycol solution from a 55-gallon tank to compensate for system losses, ensuring stable loop performance. A NEMA 4X control enclosure with an 8-bit microcontroller provides precise pump control, LED status indicators, HOA functionality, an audible alarm, and a single dry-contact output for external notification. The low-pressure switch enables activation at reduced system pressures, making this configuration ideal for low-head or specialty closed-loop applications. The 1.50 GPM gear pump and complete suction and discharge assemblies deliver reliable, long-term operation.

• Model: DGF1BBABCAB
• Configuration: Single closed-loop system
• Electrical: 115 VAC, 60 Hz
• Pump: 1.50 GPM @ 100 psi heavy-duty gear pump
• Control Enclosure: NEMA 4X, prewired
• Alarm Output: Single dry-contact relay
• Audible Alarm: Included
• Pressure Switch: Low-pressure 5–10 psi (adjustable to 35 psi)
• User Interface: Touch keypad with HOA control and alarm silence
• Indicators: LED status for low level and loss of pressure
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Panel Assembly: Factory assembled (freight shipment required)

Suction Assembly

• PVC tubing and fittings
• PVC ball valve
• Clear poly bowl strainer

Discharge Assembly

• PVC pipe and fittings
• PVC ball valve
• PVC check valve
• Pressure gauge
• Brass relief valve with return-to-tank tubing

Operating Benefits

• Maintains consistent operating pressure in closed-loop systems
• Fully piped and prewired for rapid installation
• NEMA 4X enclosure for harsh environments
