Pulsafeeder Digital Glycol Feeder, Dual-Loop, Prewired, 1.5 GPM
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder Digital Glycol Feeder, Dual-Loop, Prewired, 1.5 GPM

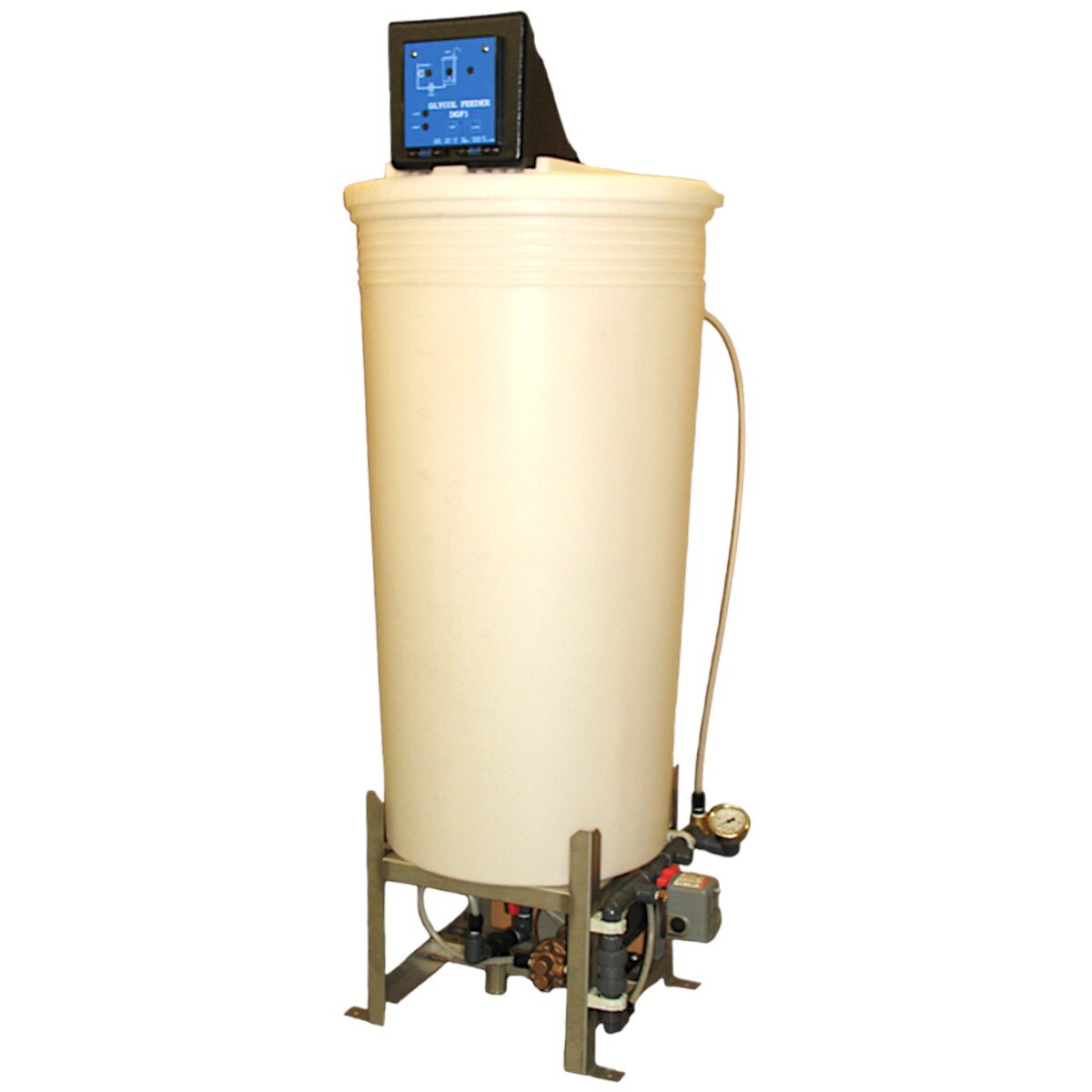

The Pulsafeeder DGF2BABACXB is a fully assembled, prewired dual-loop Digital Glycol Feeder engineered to maintain consistent operating pressure in closed hydronic systems. Designed for reliability in demanding mechanical rooms, the system automatically feeds glycol solution from a 55-gallon tank to compensate for system losses. A NEMA 4X control enclosure with an 8-bit microcontroller provides precise pump control, LED status indicators, HOA functionality, and dual dry-contact alarm outputs for integration with building automation systems. The heavy-duty 1.50 GPM gear pump, standard pressure switch, and complete suction and discharge assemblies ensure dependable long-term operation.
- Model: DGF2BABACXB
- Configuration: Dual closed-loop system
- Electrical: 115 VAC, 60 Hz
- Pump: 1.50 GPM @ 100 psi heavy-duty gear pump
- Control Enclosure: NEMA 4X, prewired
- Alarm Outputs: Dual dry-contact relays
- Pressure Switch: Standard 30–50 psi (adjustable to 80 psi)
- User Interface: Touch keypad with HOA control and alarm silence
- Indicators: LED status for low level and loss of pressure
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Panel Assembly: Factory assembled (freight shipment required)
Suction Assembly
- PVC tubing and fittings
- PVC ball valve
- Clear poly bowl strainer
Discharge Assembly
- PVC pipe and fittings
- PVC ball valve
- PVC check valve
- Pressure gauge
- Brass relief valve with return-to-tank tubing
Operating Benefits
- Maintains consistent operating pressure in closed-loop systems
- Fully piped and prewired for rapid installation
- NEMA 4X enclosure for harsh environments
| Product Type: | Glycol Feeder |
| Brand: | Pulsafeeder |
| Capacity: | 55 Gallon |
| Housing: | NEMA 4X |
| Max Flow (GPM): | 1.5 |
| Max Pressure (PSI): | 80 |
| Connections: | Prewire |
| Power Supply: | 115 VAC, 60Hz |
| Pressure Switch: | Standard, 30 – 50 psi (adjustable to 80 psi) |
| Alarm: | Non-Audible/Dual Dry Contact Output |
| Includes: | Pressure gauge, pressure switch, pressure relief valve, gear pump, suction and discharge piping/fittings |
| Notes: | Dual Loop |
| Working Environment: | 32°F to 122°F / (0°C to 50°C) |
