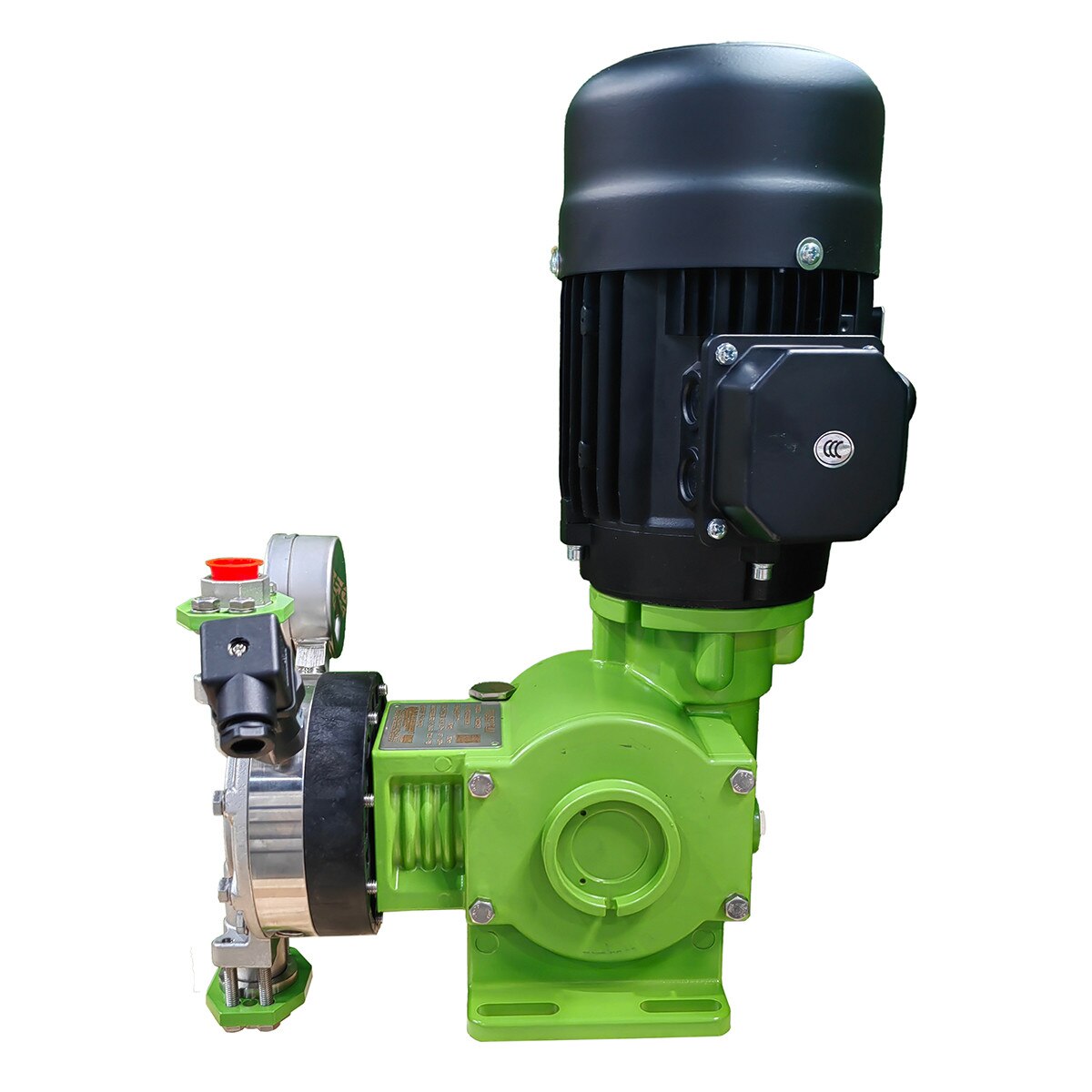

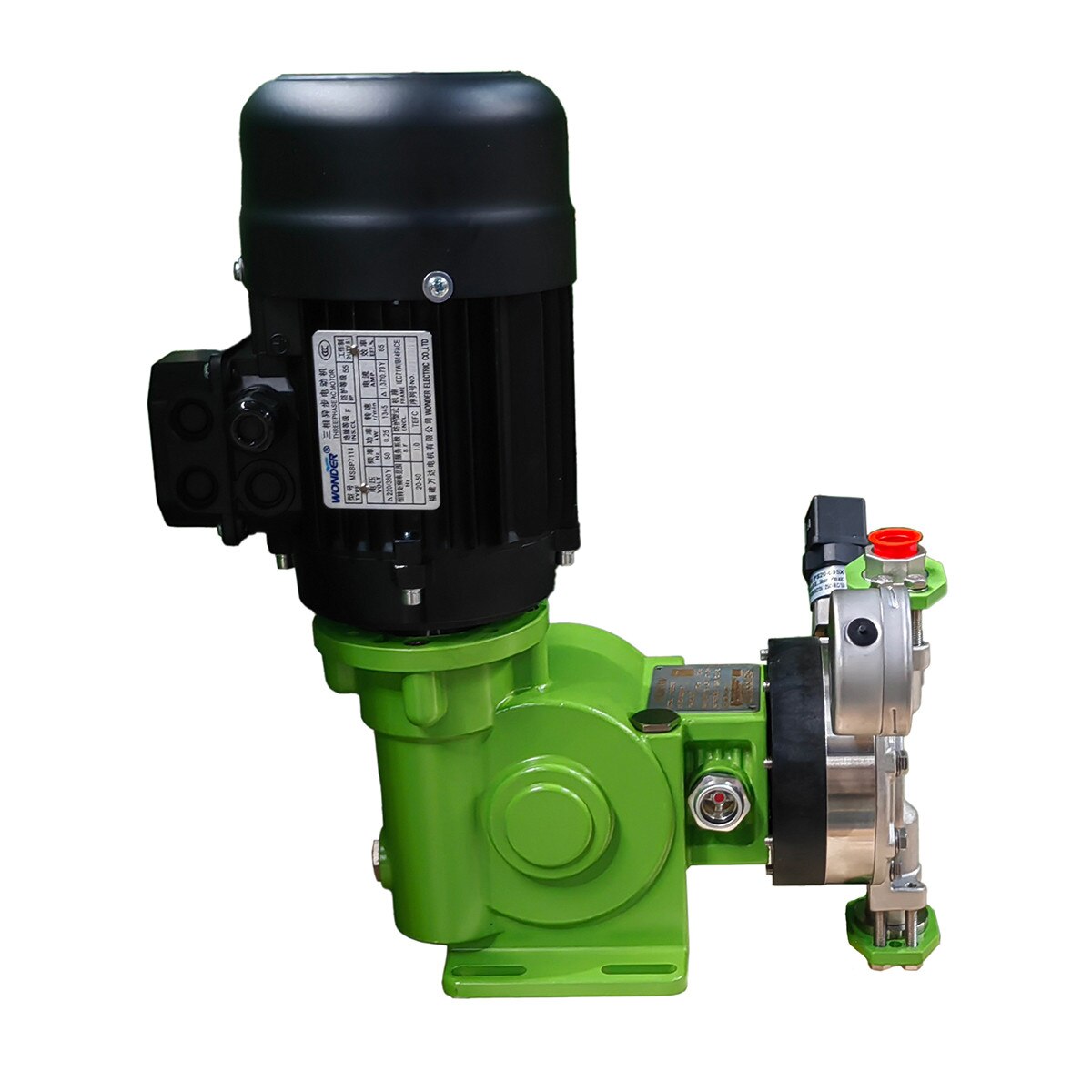

Pulsafeeder GreenLine Metering Pump, 3.2 GPH @ 174 PSI, 230/460 V with VFD, with 316 SS wet end, with leak detection
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder GreenLine Metering Pump, 3.2 GPH @ 174 PSI, 230/460 V with VFD, with 316 SS wet end, with leak detection
The GreenLine-GLM DM1AVAC-L is a rugged, mechanically actuated diaphragm pump delivering precise chemical dosing with low cost of ownership. Powered by a 230/460 V TEFC motor with integrated variable-frequency drive (VFD), it features a 316 SS wet end, 0.5″ FNPT connection, and is rated for 3.2 gph (12 lph) at 174 psi (12 bar). This model includes a double-diaphragm leak-detection system with gauge and switch for enhanced safety. Its compact industrial design, sealed gearbox, and dynamic flow control make it ideal for safety-critical automated dosing in water treatment, chemical processing, and power generation applications.
Specifications
- Max Flow: 3.2 gph (12 lph)
- Max Pressure: 174 psi (12 bar)
- Suction Lift: 10 ft (3 m)
- Process Temperature: 32–113 °F (0–45 °C)
- Ambient Temp Range: 32–113 °F (0–45 °C)
- Accuracy: ± 2 % of set point
- Stroke Adjustment: 0–100 %, 1 % resolution, auto-locking
- Viscosity: up to 1 000 cPs
- Connections: 0.5″ FNPT
Materials of Construction
- Wet end: 316L SS
- Diaphragm: composite PTFE, double-sided PTFE coating
- Check valves: ceramic or stainless steel
- Housing: epoxy-painted aluminum
- Hardware: stainless steel
- Lubrication: oil bath (ease of fill and sight glass provided)
Key Features & Benefits

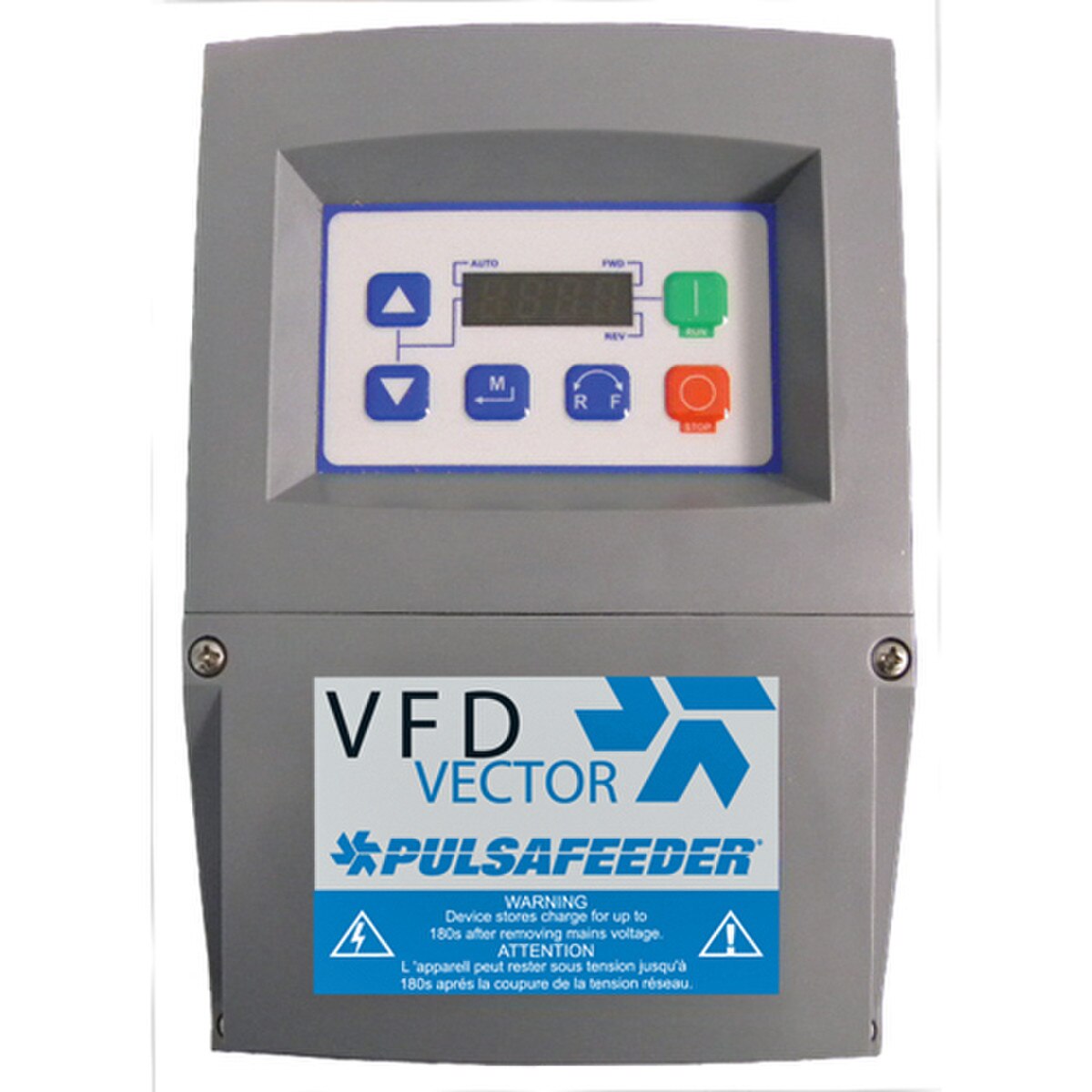

- Integrated VFD for dynamic flow control and automation

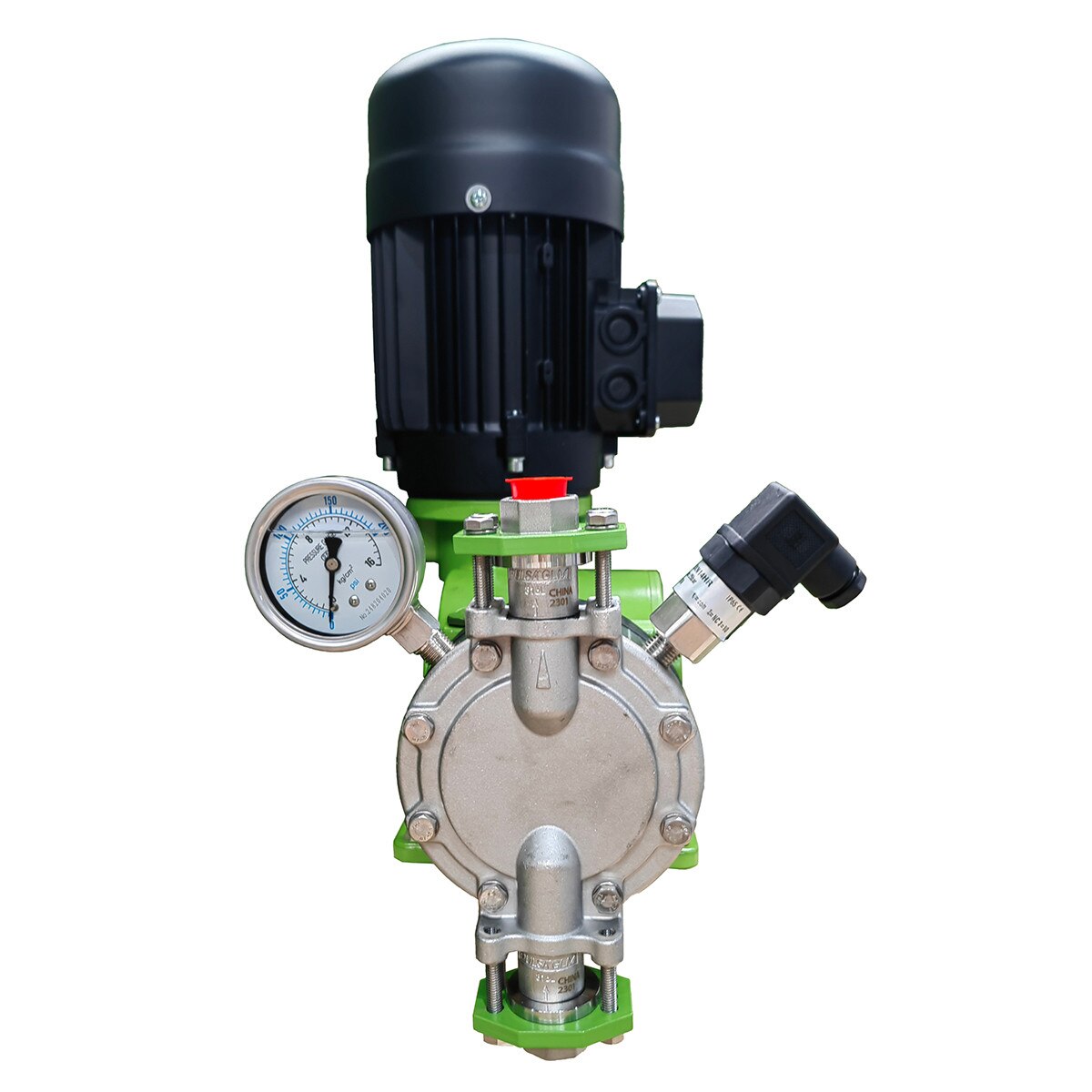

- Double-diaphragm leak detection with gauge and switch
- Robust industrial design for long pump life and low ownership costs
- Auto stroke adjustment lock ensuring drift-free, accurate dosing
- Leak-free wet end with secondary sealing for environmental safety
- Toolless valve and connection options for fast installation and servicing
- Multiple KOPkit® service options to minimize downtime
- Epoxy paint and ETFE coatings for chemical resistance in harsh environments
- Fully sealed, outdoor-duty gearbox protecting internal components
- Oil sight glass and never-seize coupling for quick maintenance checks and motor removal
Markets & Typical Applications
- Water treatment, power generation, petrochemical, mining, pharmaceutical
- Handling acids, caustics, pH control, catalysts, cleaning agents, polymers, bleaches, dyes/inks, solvents
- Food & beverage dosing, wastewater treatment dosing
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | Pulsafeeder |
| Product Line: | GreenLine |
| Housing: | Epoxy Painted Aluminum |
| Max Flow (GPH): | 3.2 |
| Max Flow (GPD): | 76.8 |
| Max Pressure (PSI): | 174 |
| Max Viscosity (CPS): | 1000 |
| Max Strokes per Minute: | 88 |
| Flow Control: | 4-20mA or 0-10VDC signal input controls stroke frequency, Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 100:1 |
| Head/Fittings: | 316 SS / 316 SS |
| Valve Balls: | 316 SS |
| Diaphragm: | Composite PTFE |
| Valve / Seat / O-Ring: | 316 SS / PTFE |
| Motor: | TEFC - NEMA 56C, 1/2 Hp, 230/460 VAC, 50/60 Hz, 3 Phase |
| Connections: | 1/2" FNPT |
| Power Supply: | 115/230 VAC, 50/60 Hz, 1 Phase |
| Operating Modes: | Manual, (VFD 10:1) |
| Warranty: | 2 Year Limited Warranty |
| Net Weight: | 64.5 lbs |
| Packaging: | Each |
| Includes: | Installation, Operation, and Maintenance Instruction Manual |
| Working Environment: | 32 to 113°F (0 to 45°C) |
