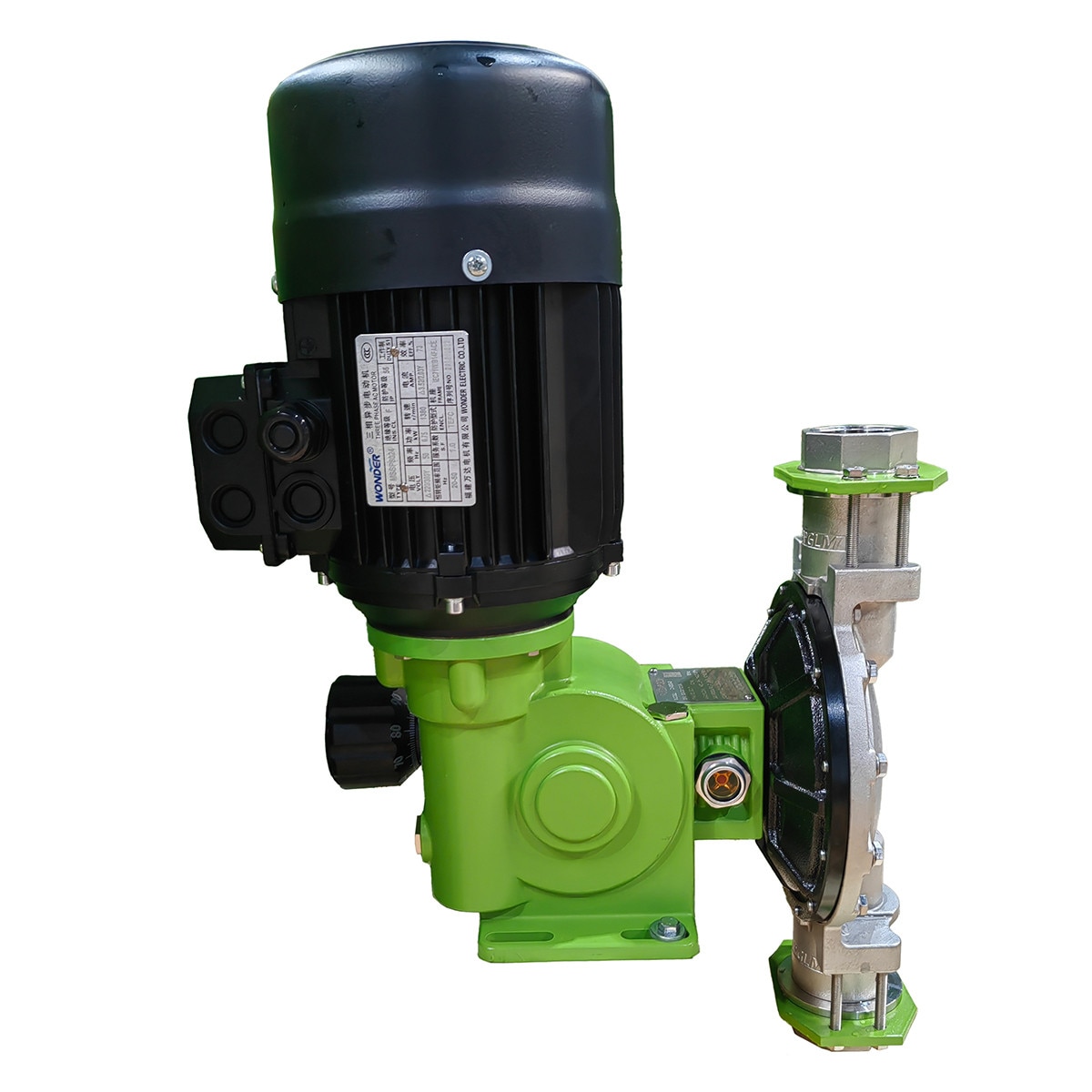

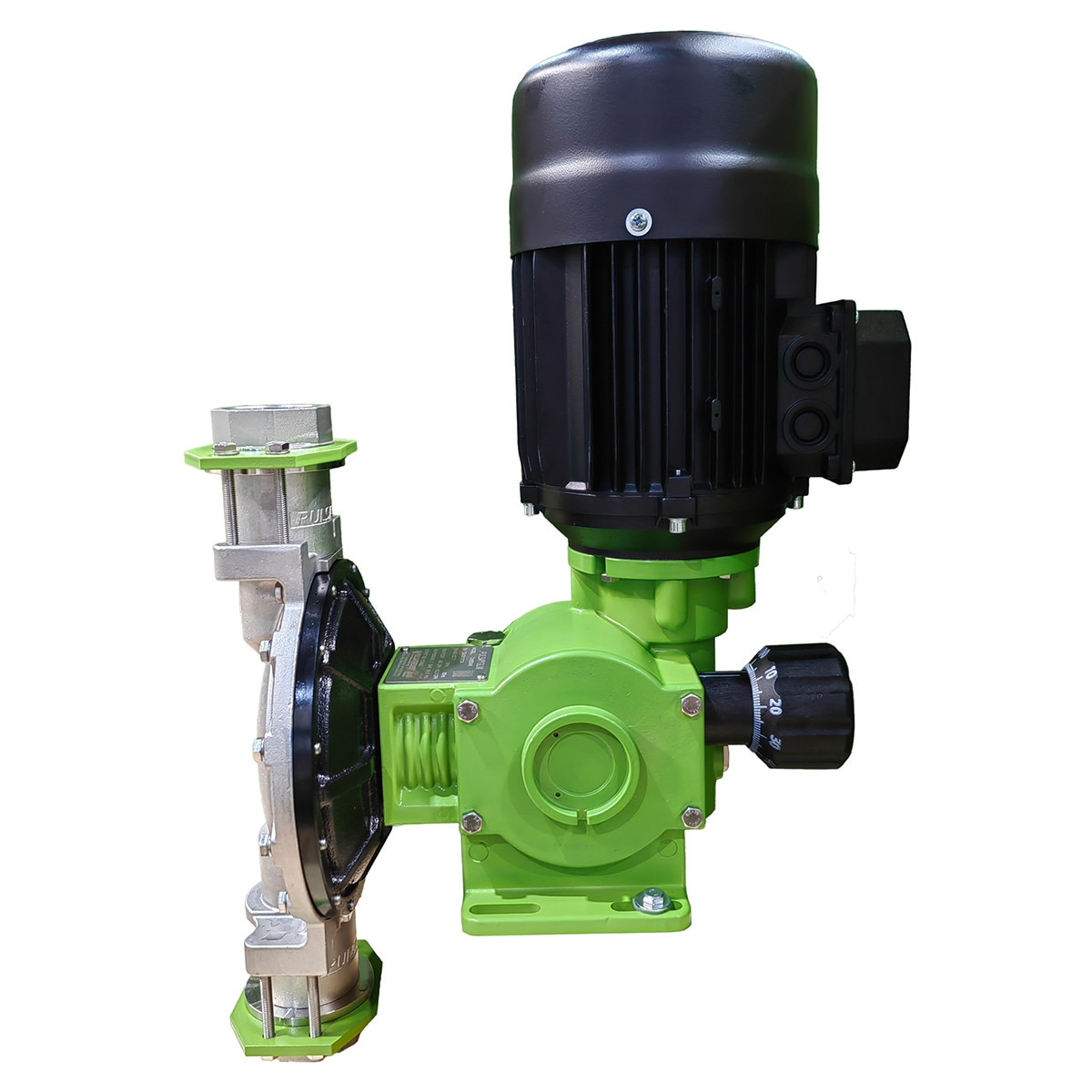

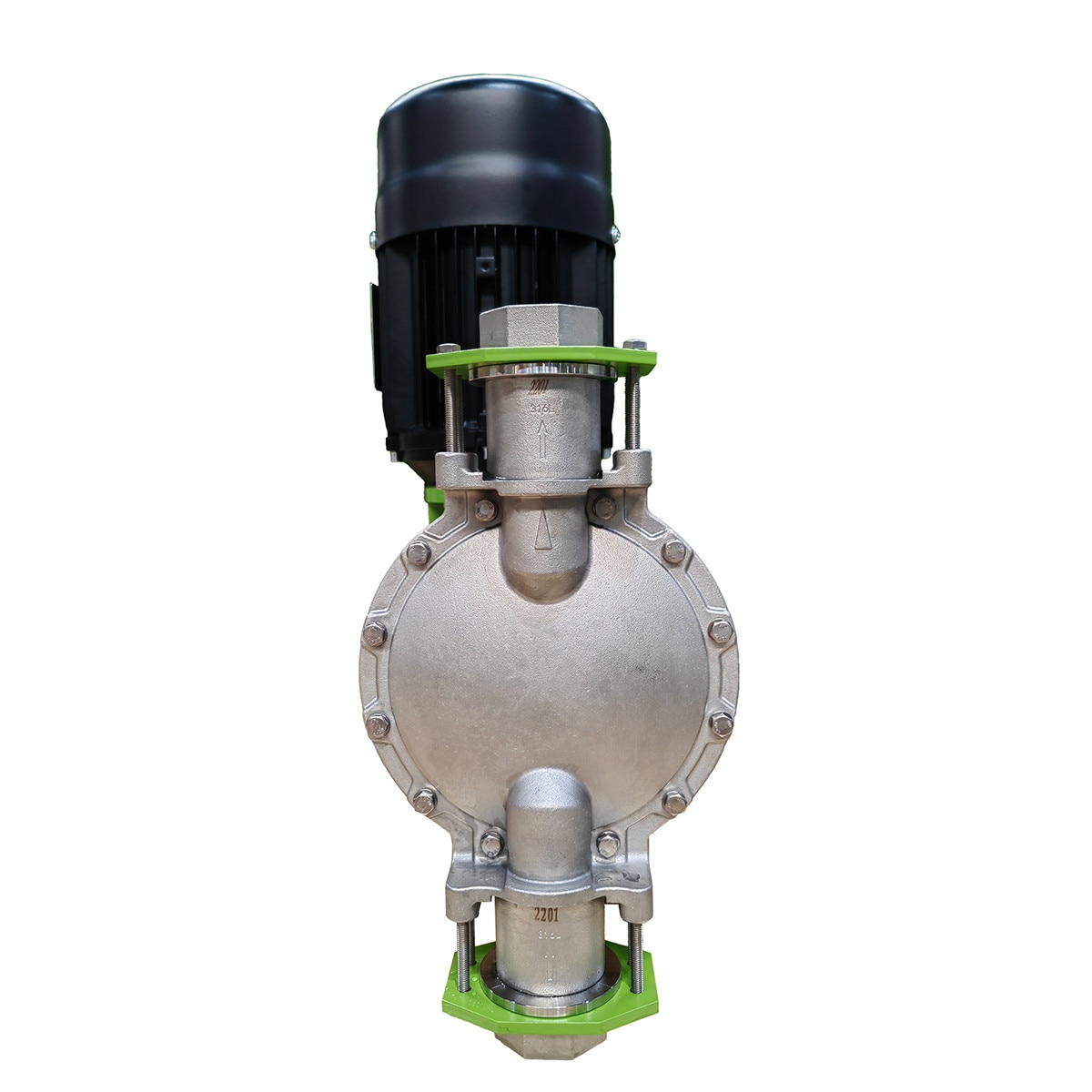

Pulsafeeder GreenLine Metering Pump, 4.8 GPH @ 174 PSI, 230/460 V with VFD, with 316 SS wet end
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder GreenLine Metering Pump, 4.8 GPH @ 174 PSI, 230/460 V with VFD, with PVDF wet end
The GreenLine-GLM DM1CVAC is a mechanically actuated diaphragm pump designed for automated chemical dosing in industrial environments. Powered by a 230/460 V TEFC motor with integrated variable-frequency drive (VFD), it features a PVDF wet end with 0.5″ FNPT connection and delivers up to 4.8 gph (18 lph) at 174 psi (12 bar). Its sealed gearbox, oil bath lubrication, and dynamic stroke control make it ideal for dosing aggressive chemicals in water treatment, chemical processing, and power generation applications.
Specifications
- Max Flow: 4.8 gph (18 lph)
- Max Pressure: 174 psi (12 bar)
- Stroke Rate: 140 strokes/min @ 1750 RPM
- Motor Power: 0.5 HP (0.37 kW)
- Motor Type: TEFC with integrated VFD
- Connection Size: 0.5″ FNPT
- Head Type: Simplex
- Motor Frame: NEMA 56C
- Suction Lift: 10 ft (3 m)
- Process Temperature: 32–113 °F (0–45 °C)
- Ambient Temp Range: 32–113 °F (0–45 °C)
- Accuracy: ± 2 % of set point
- Stroke Adjustment: 0–100 %, 1 % resolution, auto-locking
- Viscosity: up to 1 000 cPs
Materials of Construction
- Liquid End: PVDF
- Diaphragm: PTFE-coated composite
- O-rings: PTFE
- Ball Valves: Ceramic
- Housing: Epoxy-painted aluminum
- Hardware: Stainless steel
- Lubrication: Oil bath with fill port and sight glass
Key Features & Benefits
- Integrated VFD for dynamic flow control and automation
- Chemically resistant PVDF wet end for aggressive fluids
- Auto-locking stroke adjustment for drift-free dosing
- Toolless valve and connection options
- Multiple KOPkit® service options
- Epoxy paint and ETFE coatings for chemical resistance
- Oil sight glass and never-seize coupling for easy maintenance
Markets & Typical Applications
- Water treatment, power generation, petrochemical, mining, pharmaceutical
- Handling acids, caustics, pH control, catalysts, polymers, solvents
- Food & beverage dosing, wastewater treatment dosing
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | Pulsafeeder |
| Product Line: | GreenLine |
| Housing: | Epoxy Painted Aluminum |
| Max Flow (GPH): | 4.8 |
| Max Flow (GPD): | 115.2 |
| Max Pressure (PSI): | 174 |
| Max Viscosity (CPS): | 1000 |
| Max Strokes per Minute: | 140 |
| Flow Control: | 4-20mA or 0-10VDC signal input controls stroke frequency, Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 100:1 |
| Head/Fittings: | 316 SS / 316 SS |
| Valve Balls: | 316 SS |
| Diaphragm: | Composite PTFE |
| Valve / Seat / O-Ring: | 316 SS / PTFE |
| Motor: | TEFC - NEMA 56C, 1/2 Hp, 230/460 VAC, 50/60 Hz, 3 Phase |
| Connections: | 1/2" FNPT |
| Power Supply: | 115/230 VAC, 50/60 Hz, 1 Phase |
| Operating Modes: | Manual, (VFD 10:1) |
| Warranty: | 2 Year Limited Warranty |
| Net Weight: | 54.5 lbs |
| Packaging: | Each |
| Includes: | Installation, Operation, and Maintenance Instruction Manual |
| Working Environment: | 32 to 113°F (0 to 45°C) |
