Pulsafeeder GreenLine Metering Pump, 4.8 GPH @ 174 PSI, 230/460 V with VFD, with PVDF wet end, with leak detection
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder GreenLine Metering Pump, 4.8 GPH @ 174 PSI, 230/460 V with VFD, with PVDF wet end, with leak detection

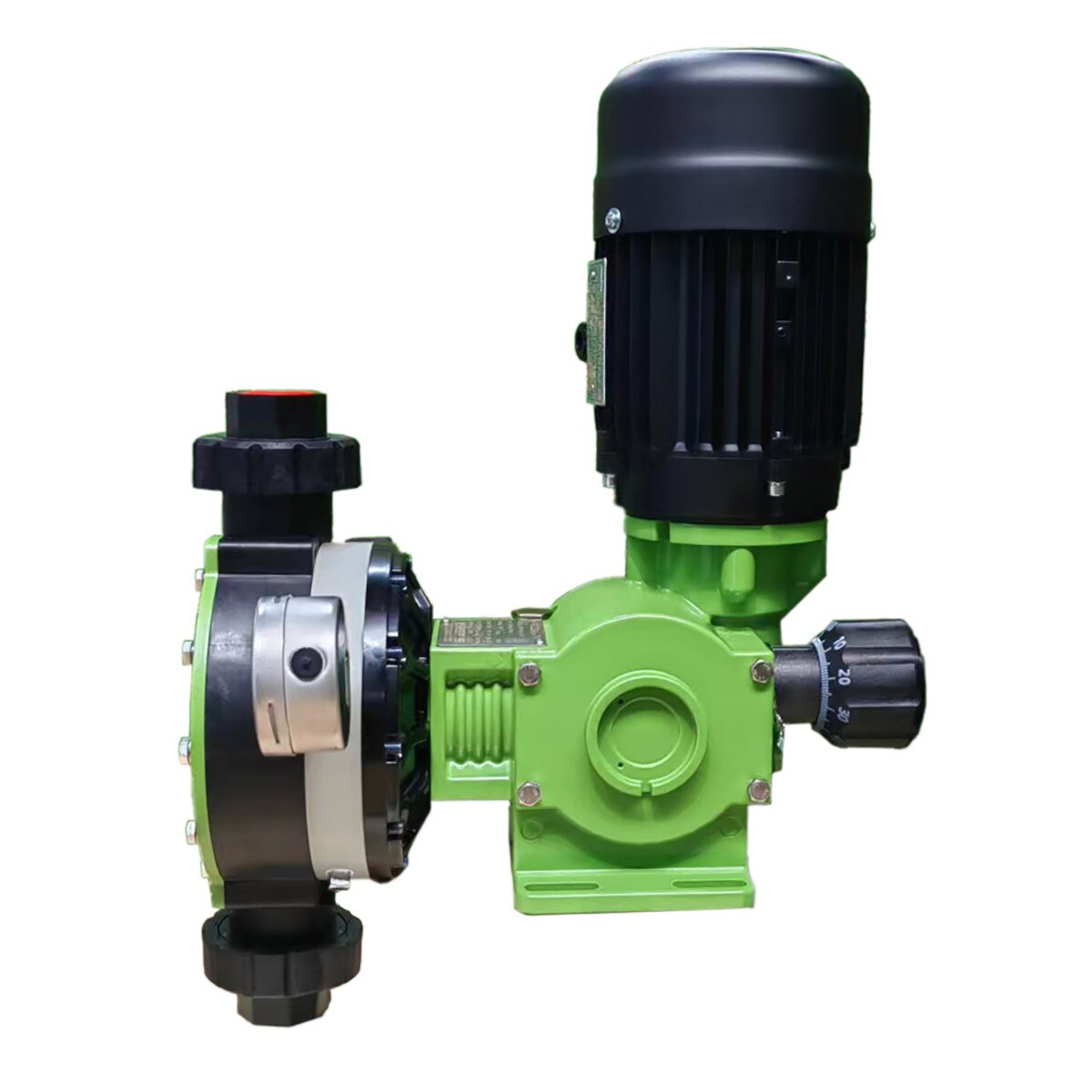

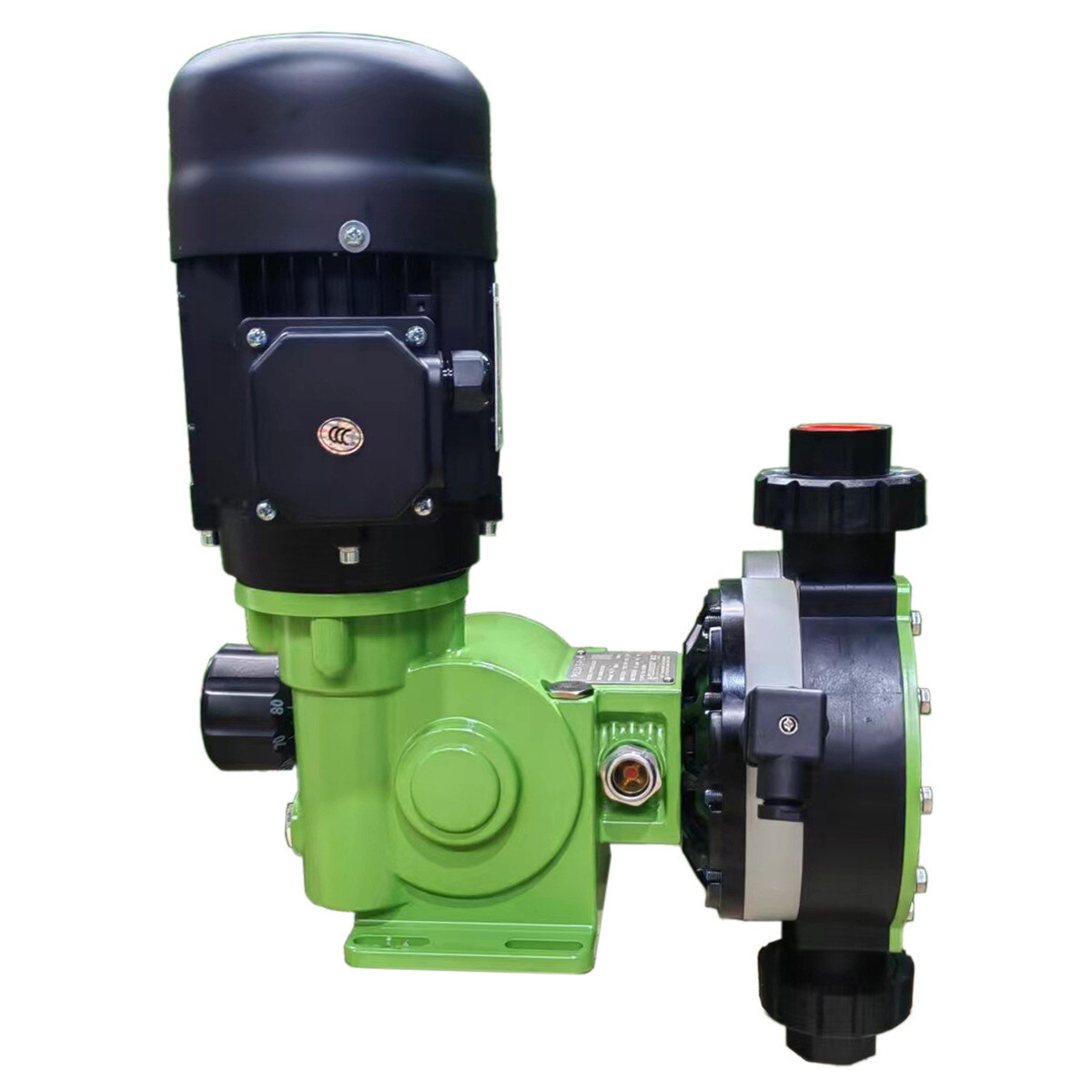

The GreenLine-GLM DM1CVFC-L is a mechanically actuated diaphragm pump designed for automated chemical dosing in safety-critical environments. Powered by a 230/460 V TEFC motor with integrated variable-frequency drive (VFD), it features a PVDF wet end with 0.5″ FNPT connection and delivers up to 4.8 gph (18 lph) at 174 psi (12 bar). This model includes a double-diaphragm leak-detection system with integrated pressure gauge and switch. Ideal for regulated dosing of aggressive chemicals in water treatment, chemical processing, and power generation.
Specifications
- Max Flow: 4.8 gph (18 lph)
- Max Pressure: 174 psi (12 bar)
- Stroke Rate: 140 strokes/min @ 1750 RPM
- Motor Power: 0.5 HP (0.37 kW)
- Motor Type: TEFC with integrated VFD
- Connection Size: 0.5″ FNPT
- Head Type: Simplex
- Motor Frame: NEMA 56C
- Suction Lift: 10 ft (3 m)
- Process Temperature: 32–113 °F (0–45 °C)
- Ambient Temp Range: 32–113 °F (0–45 °C)
- Accuracy: ± 2 % of set point
- Stroke Adjustment: 0–100 %, 1 % resolution, auto-locking
- Viscosity: up to 1 000 cPs
Materials of Construction
- Liquid End: PVDF
- Diaphragm: PTFE-coated composite
- O-rings: PTFE
- Ball Valves: Ceramic
- Housing: Epoxy-painted aluminum
- Hardware: Stainless steel
- Lubrication: Oil bath with fill port and sight glass
Key Features & Benefits

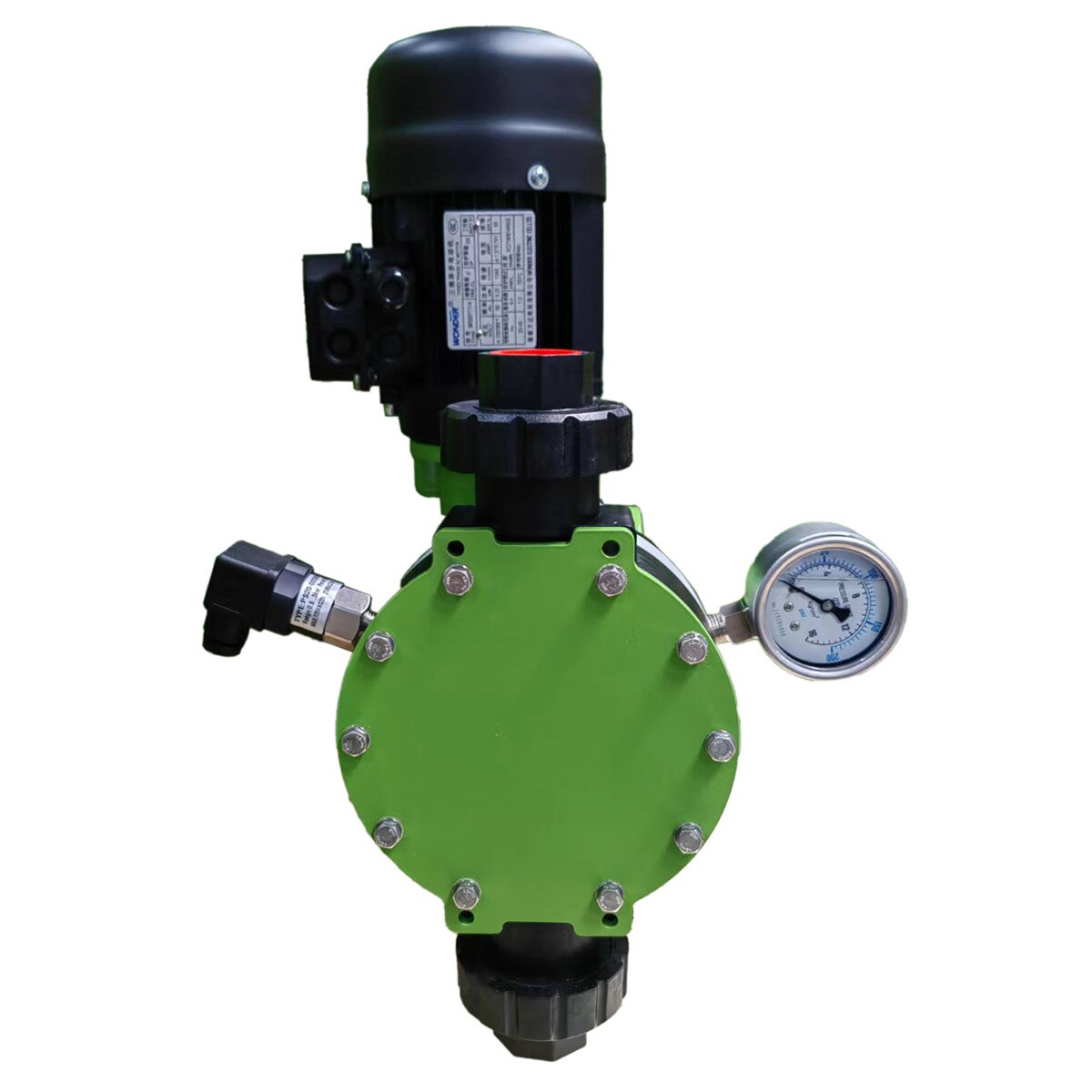

- Double-diaphragm leak detection with pressure gauge and switch

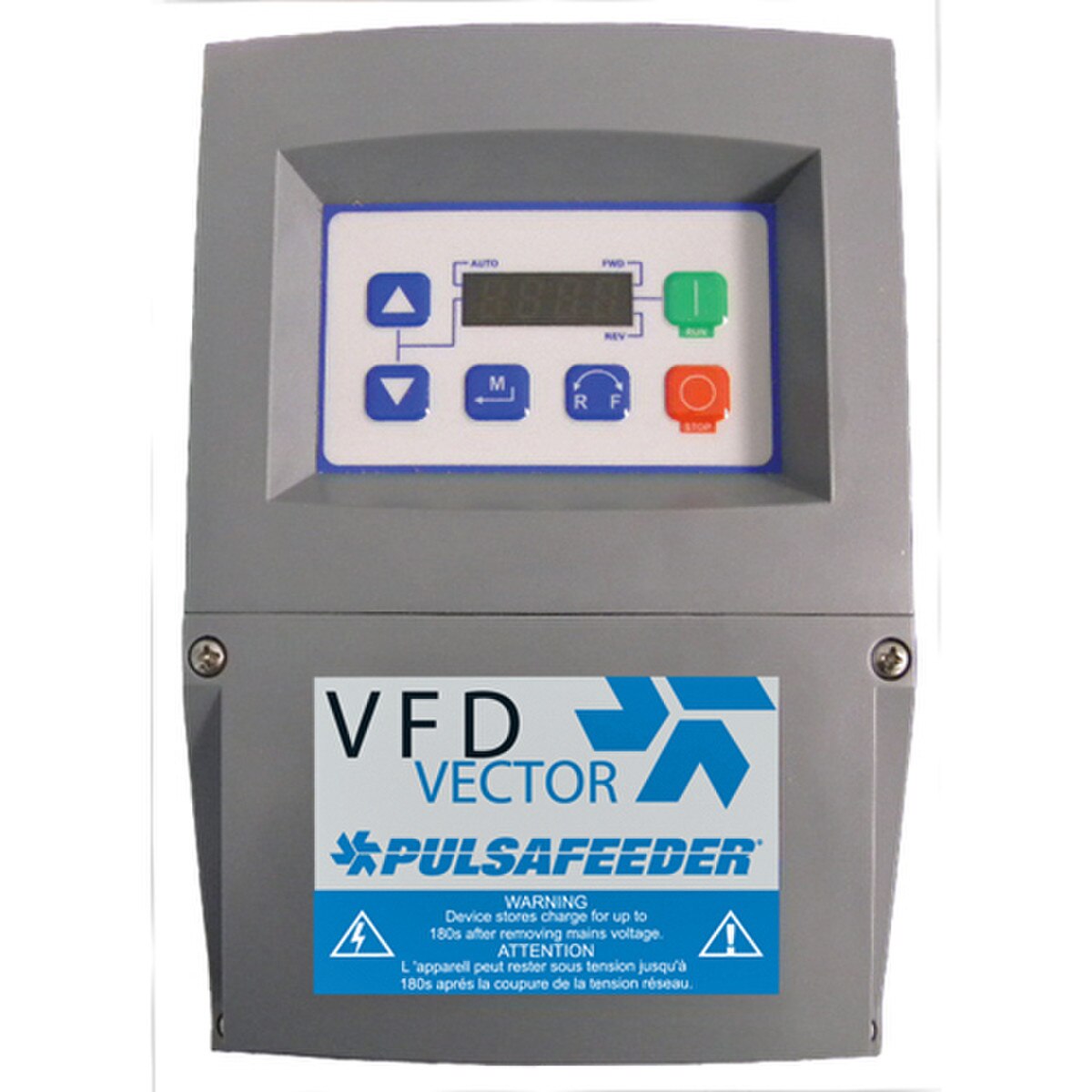

- Integrated VFD for dynamic flow control and automation
- Chemically resistant PVDF wet end for aggressive fluids
- Auto-locking stroke adjustment for drift-free dosing
- Toolless valve and connection options
- Multiple KOPkit® service options
- Epoxy paint and ETFE coatings for chemical resistance
- Oil sight glass and never-seize coupling for easy maintenance
Markets & Typical Applications
- Water treatment, power generation, petrochemical, mining, pharmaceutical
- Handling acids, caustics, pH control, catalysts, polymers, solvents
- Food & beverage dosing, wastewater treatment dosing
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | Pulsafeeder |
| Product Line: | GreenLine |
| Housing: | Epoxy Painted Aluminum |
| Max Flow (GPH): | 4.8 |
| Max Flow (GPD): | 115.2 |
| Max Pressure (PSI): | 174 |
| Max Viscosity (CPS): | 1000 |
| Max Strokes per Minute: | 140 |
| Flow Control: | 4-20mA or 0-10VDC signal input controls stroke frequency, Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 100:1 |
| Head/Fittings: | PVDF / PVDF |
| Valve Balls: | Ceramic |
| Diaphragm: | Composite PTFE |
| Valve / Seat / O-Ring: | PVDF / PTFE |
| Motor: | TEFC - NEMA 56C, 1/2 Hp, 230/460 VAC, 50/60 Hz, 3 Phase |
| Connections: | 1/2" FNPT |
| Power Supply: | 115/230 VAC, 50/60 Hz, 1 Phase |
| Operating Modes: | Manual, (VFD 10:1) |
| Warranty: | 2 Year Limited Warranty |
| Net Weight: | 63.5 lbs |
| Packaging: | Each |
| Includes: | Installation, Operation, and Maintenance Instruction Manual |
| Working Environment: | 32 to 113°F (0 to 45°C) |
