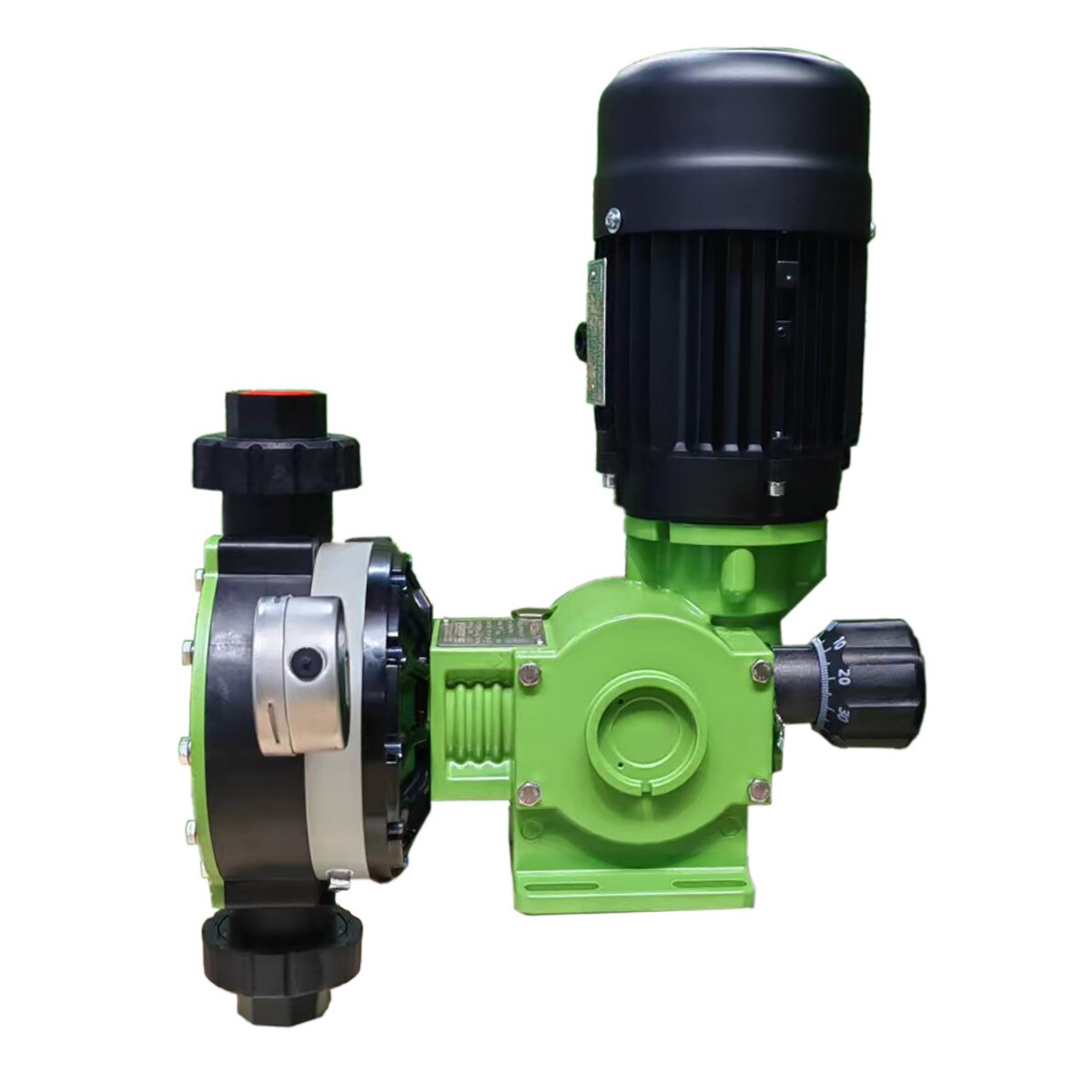

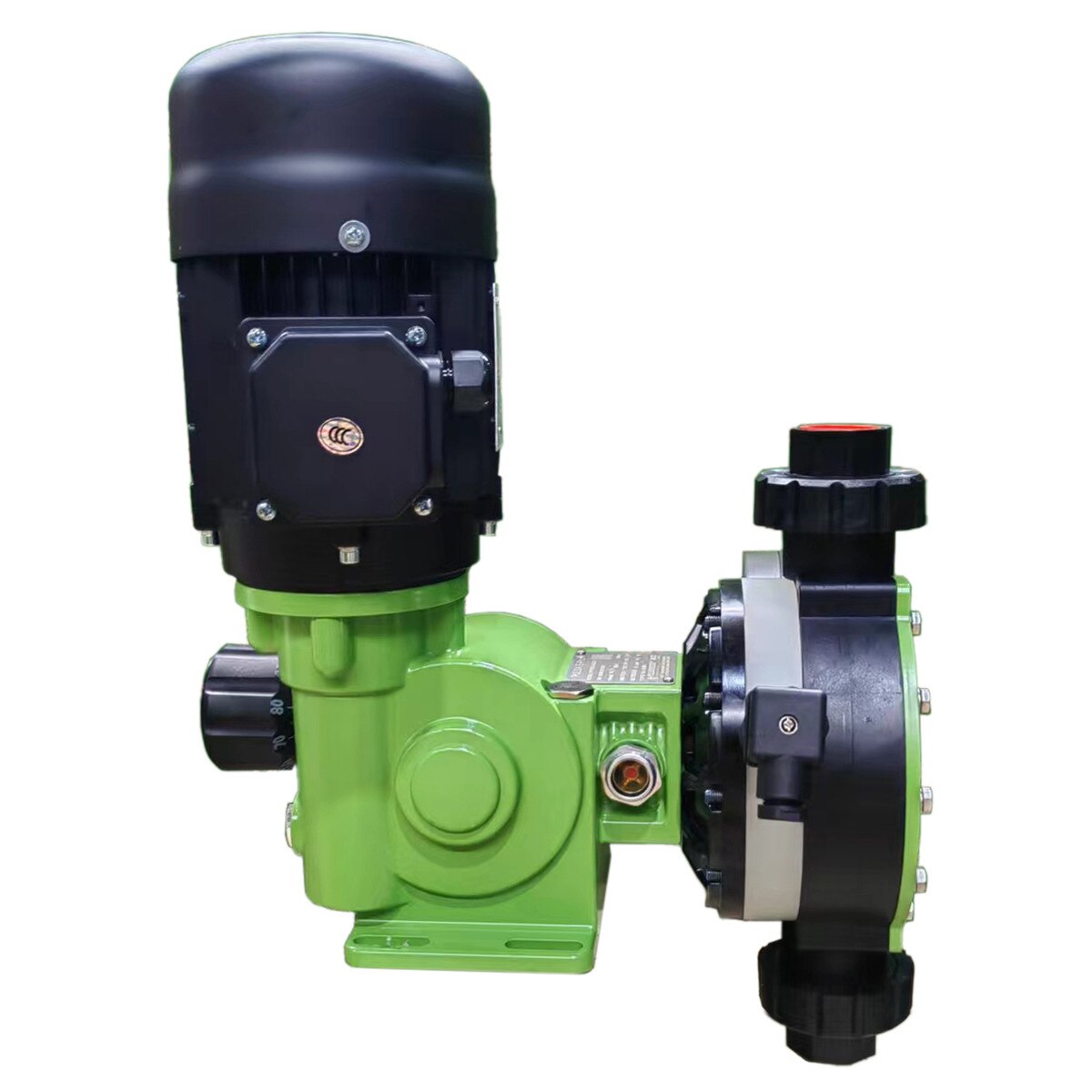

Pulsafeeder GreenLine Metering Pump, 20.6 GPH @ 145 PSI, 230/460 V, PVDF wet end with Leak Detection

Pulsafeeder GreenLine Metering Pump, 20.6 GPH @ 145 PSI, 230/460 V, PVDF wet end with Leak Detection

The GreenLine‑GLM DM2D3FC‑L is the highest‑capacity mechanically actuated diaphragm metering pump in the DM2 family, equipped with the full leak detection package for enhanced containment and safety. It delivers 20.6 gph (78 lph) at 145 psi (10 bar) with a stroke rate of 175 spm. This model features a corrosion‑resistant PVDF liquid end for excellent compatibility with acids, oxidizers, and aggressive chemical solutions. Paired with a TEFC 230/460 V three‑phase motor, it is designed for demanding industrial environments. The leak detection system—double diaphragm, pressure gauge, and 24 VDC leak switch—provides early warning of diaphragm failure, making it ideal for critical chemical feed applications requiring both high flow and corrosion resistance.

Specifications

• Max Flow: 20.6 gph (78 lph)
• Max Pressure: 145 psi (10 bar)
• SPM @ 60 Hz: 175 strokes/min
• Motor: 0.50 HP (0.37 kW), TEFC, 230/460 V, 60 Hz, 3‑phase

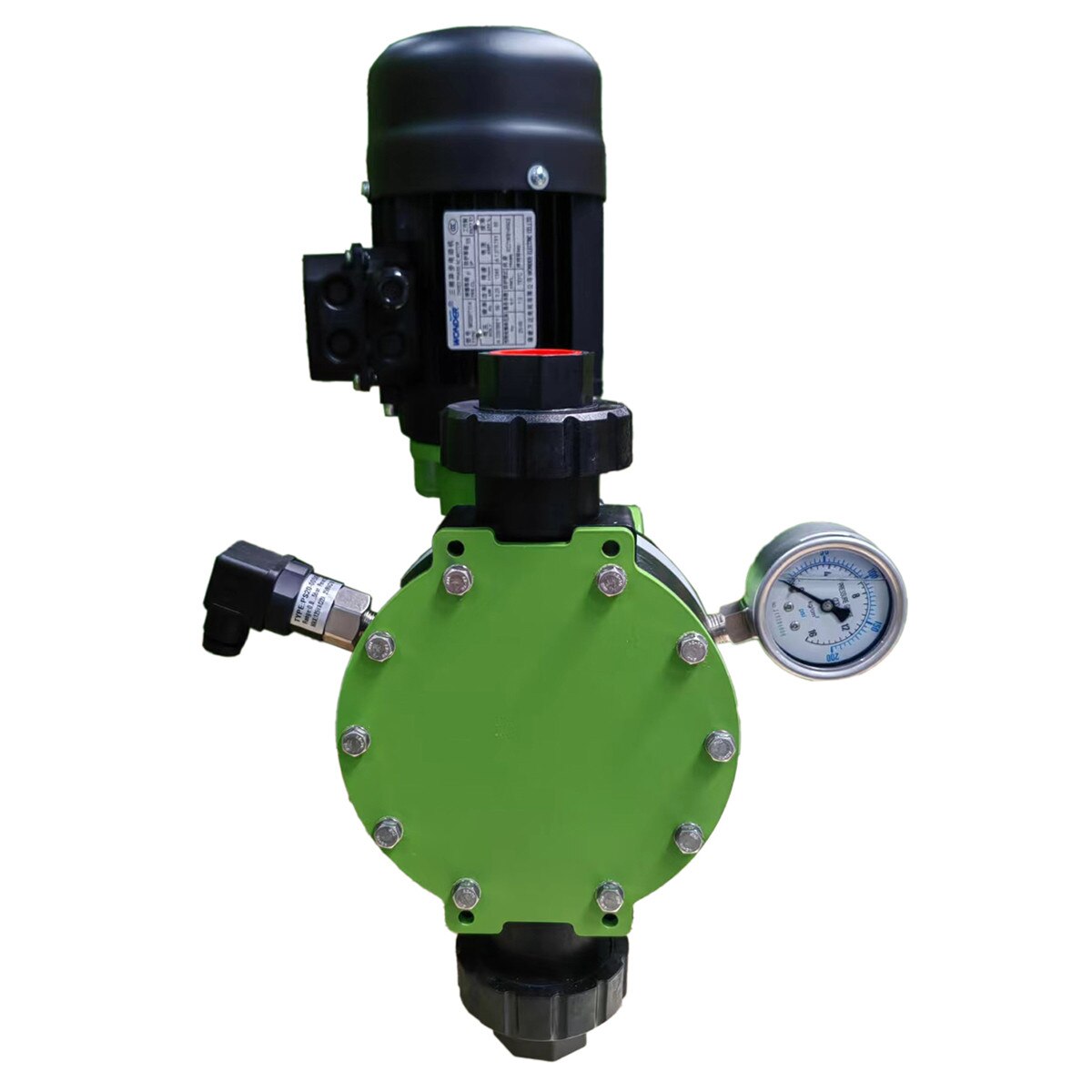

• Leak Detection: Double diaphragm, pressure gauge, 24 VDC / 0.5 A leak switch
• Suction Lift: 10 ft (3 m)
• Process Temperature: 32–113 °F (0–45 °C)
• Ambient Temperature: 32–113 °F (0–45 °C)
• Accuracy: ±2% of set point
• Stroke Adjustment: 0–100%, 1% resolution, auto‑locking
• Viscosity: up to 1,000 cPs
• Connections: 0.5″ FNPT suction / 0.5″ FNPT discharge
• Approximate Weight: 61 lb (pump with motor + leak detection)

Materials of Construction

• Wet End: PVDF (head, valve guides, valve seats, valve caps)
• Check Balls: Ceramic
• Valve O‑Rings: PTFE
• Diaphragm: Composite PTFE, double‑sided PTFE coating
• Housing: Epoxy‑painted aluminum
• Hardware: Stainless steel
• Lubrication: Oil bath gearbox with accessible fill and sight glass

Key Features & Benefits

• Highest‑capacity DM2 model with corrosion‑resistant PVDF liquid end
• Full leak detection package for enhanced safety and containment
• Excellent compatibility with acids, oxidizers, and aggressive chemical solutions
• TEFC three‑phase motor for harsh industrial environments
• Mechanically actuated diaphragm design ensures long service life
• Auto‑locking stroke adjustment for drift‑free accuracy
• Spherically uniform velocity check valves improve priming and reduce turbulence
• Compact, sealed gearbox reduces noise and protects internal components
• NSF/ANSI/CAN 61 and NSF/ANSI 372 certified for many water treatment applications

Markets & Typical Applications

• Critical municipal and industrial water treatment systems
• Handling aggressive chemicals, oxidizers, and corrosive solutions
• Power generation and boiler feed chemical dosing
• Chemical processing, refining, and petrochemical services
• Mining, metals, and mineral processing
• Applications requiring leak detection with high flow and corrosion resistance
