Pulsafeeder GreenLine Metering Pump, 38 GPH @ 102 PSI, TEFC 230/460 V 3‑phase, PVDF wet end with Leak Detection
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder GreenLine Metering Pump, 38 GPH @ 102 PSI, TEFC 230/460 V 3‑phase, PVDF wet end with Leak Detection

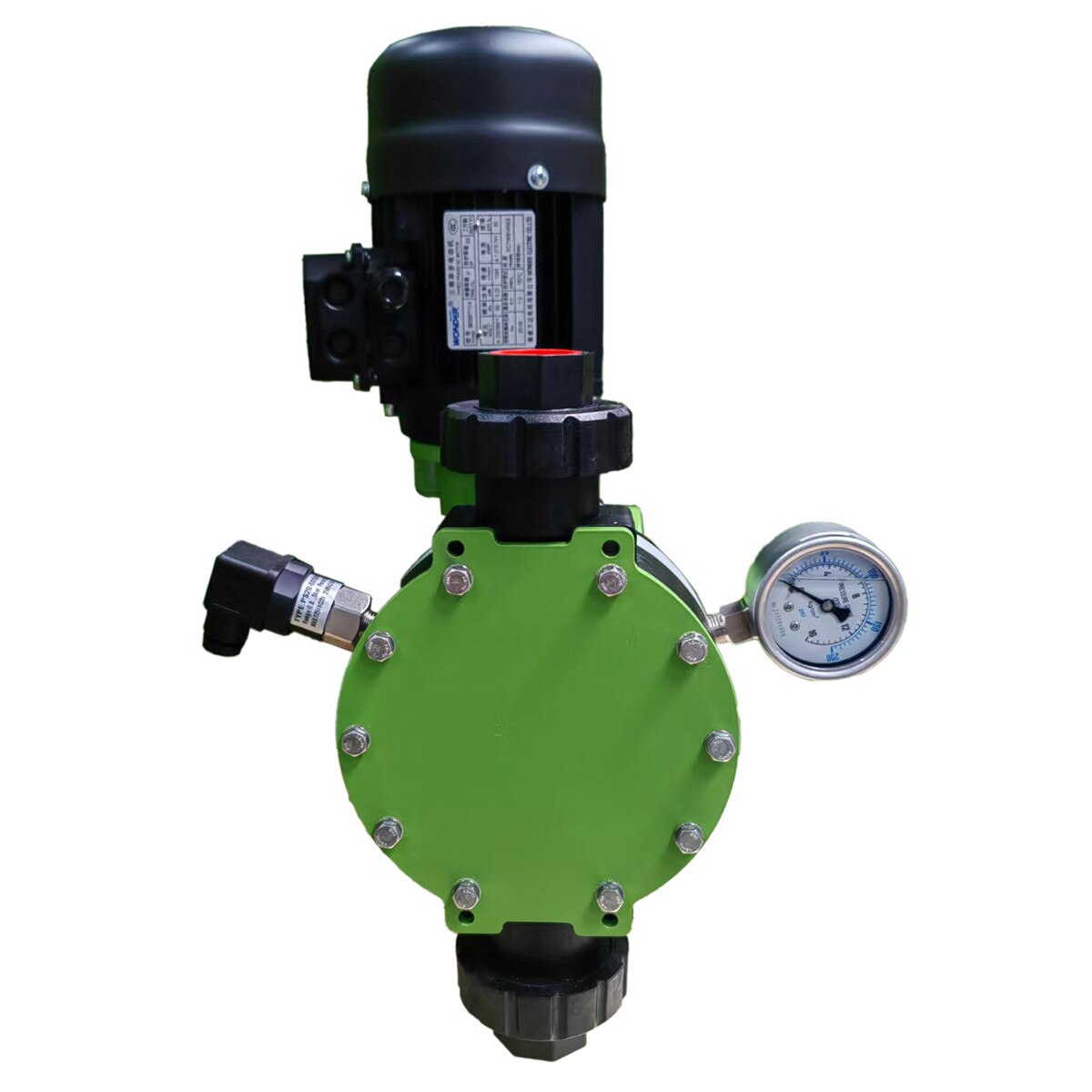

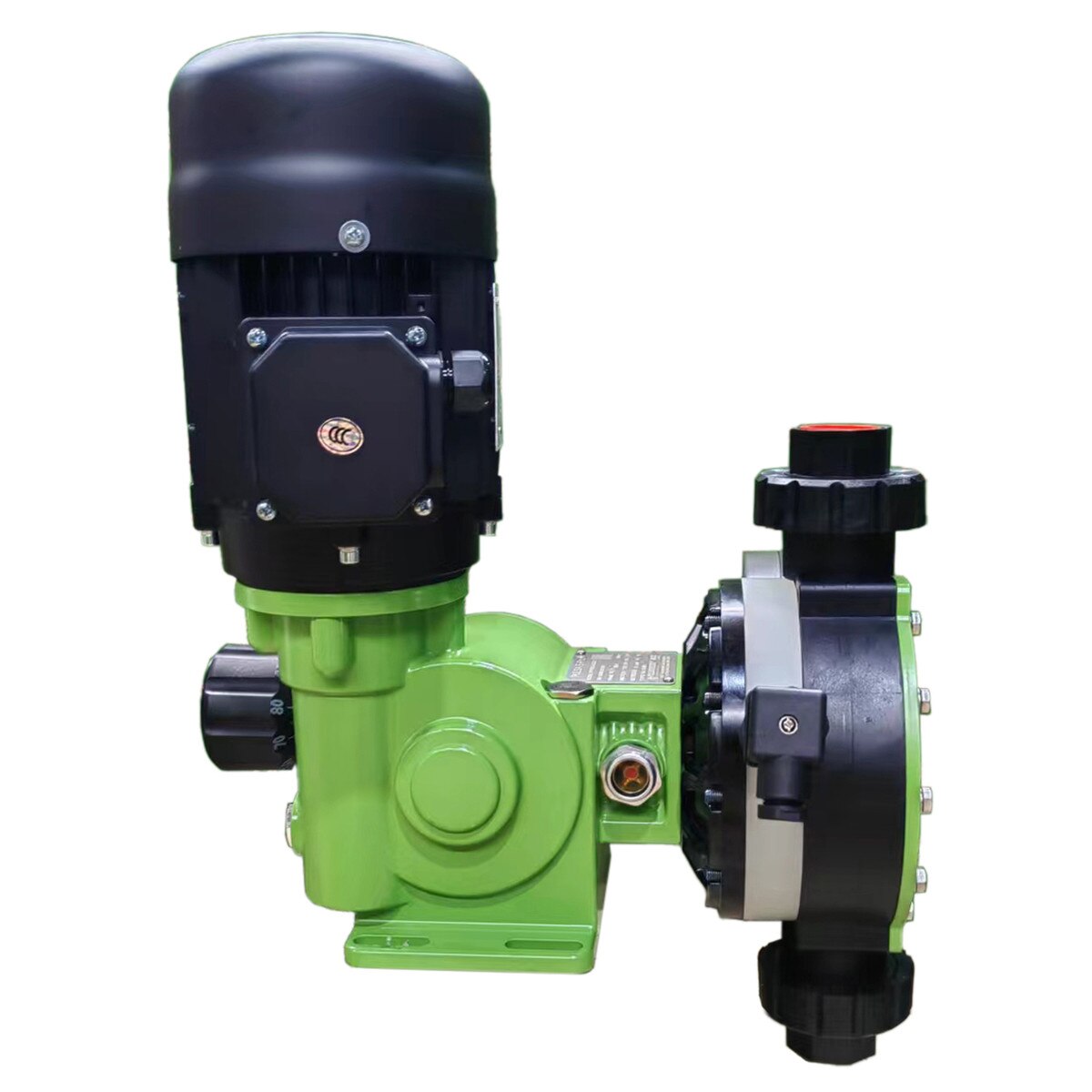

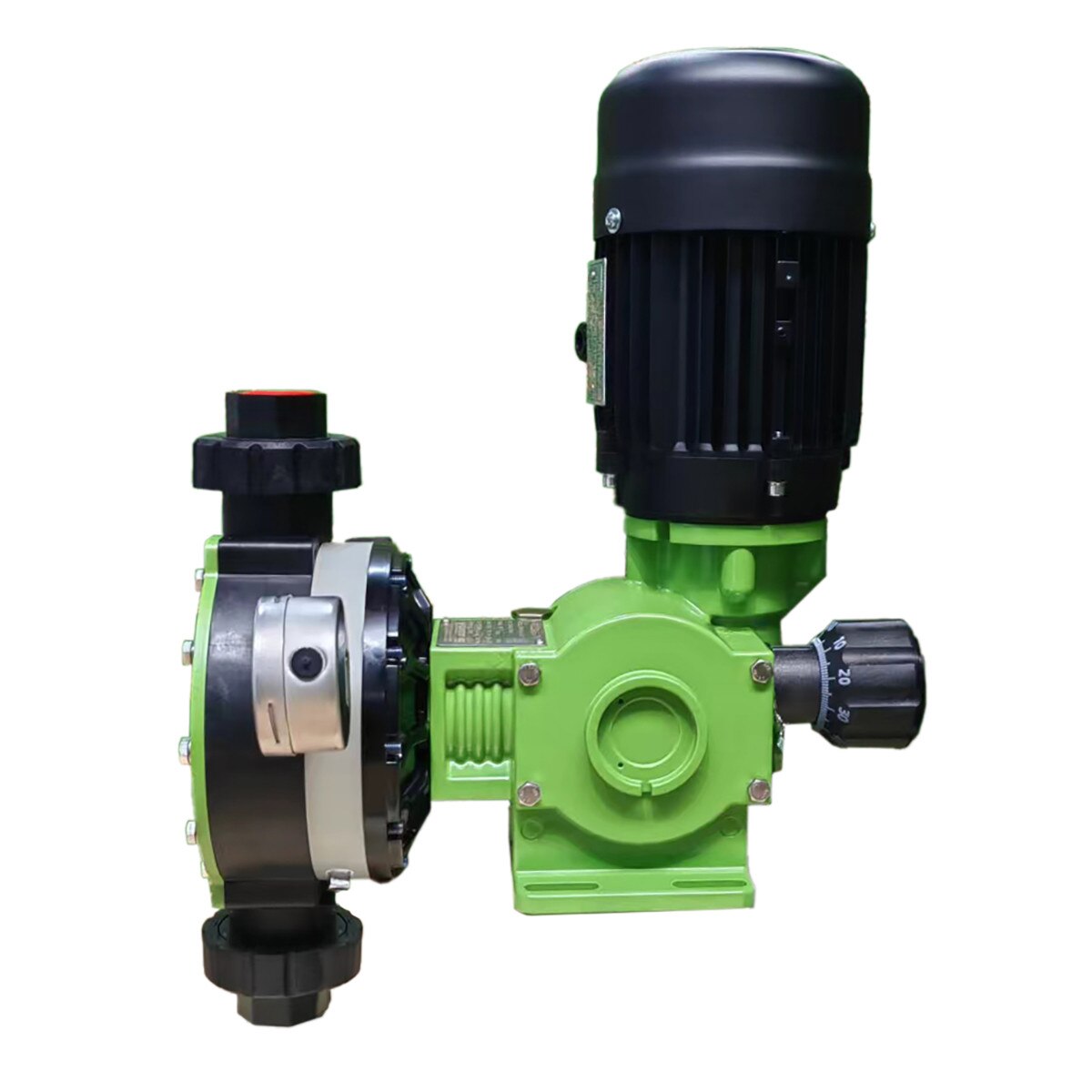

The GreenLine‑GLM DM3C3FG‑L is a mechanically actuated diaphragm metering pump in the DM3C hydraulic group, delivering 38 gph (144 lph) at 102 psi (7 bar) with a stroke rate of 140 spm. This model features a corrosion‑resistant PVDF liquid end with FKM seat O‑rings for superior compatibility with acids, oxidizers, and aggressive chemical solutions. It includes the full leak detection package—double diaphragm, pressure gauge, and 24 VDC leak switch—providing enhanced containment and early warning in critical chemical feed applications. Equipped with a TEFC 230/460 V three‑phase motor and 1″ FNPT suction/discharge connections, it is ideal for industrial environments requiring non‑metallic wetted materials and leak monitoring.
Specifications
- Max Flow: 38 gph (144 lph)
- Max Pressure: 102 psi (7 bar)
- SPM @ 60 Hz: 140 strokes/min
- Motor: TEFC, 230/460 V, 3‑phase, 0.50 HP (0.37 kW)
- Leak Detection: Double diaphragm, pressure gauge, 24 VDC / 0.5 A leak switch
- Suction Lift: 10 ft (3 m)
- Process Temperature: 32–113 °F (0–45 °C)
- Ambient Temperature: 32–113 °F (0–45 °C)
- Accuracy: ±2% of set point
- Stroke Adjustment: 0–100%, 1% resolution, auto‑locking
- Viscosity: up to 1,000 cPs
- Connections: 1″ FNPT suction / 1″ FNPT discharge
- Approximate Weight: 68 lb (pump with motor + leak detection)
Materials of Construction
- Wet End: PVDF (head, valve guides, valve seats, valve caps)
- Seat O‑Rings: FKM
- Check Balls: Ceramic
- Valve O‑Rings: PTFE
- Diaphragm: Composite PTFE, double‑sided PTFE coating
- Housing: Epoxy‑painted aluminum
- Hardware: Stainless steel
- Lubrication: Oil bath gearbox with sight glass and accessible fill port
Key Features & Benefits
- PVDF liquid end for excellent corrosion and chemical resistance
- Full leak detection package for enhanced safety and containment
- FKM seat O‑rings improve compatibility with aggressive solutions
- TEFC three‑phase motor suitable for demanding industrial environments
- Mechanically actuated diaphragm design ensures long service life
- Auto‑locking stroke adjustment prevents drift
- Spherically uniform velocity check valves improve priming and reduce turbulence
- Compact, sealed gearbox reduces noise and protects internal components
- NSF/ANSI/CAN 61 and 372 compliant for many water treatment applications
Markets & Typical Applications
- Municipal and industrial water treatment
- Handling aggressive chemicals, oxidizers, and corrosive solutions
- Chemical processing and general industrial feed systems
- Power generation and boiler chemical injection
- Applications requiring non‑metallic wetted materials with leak detection and 1″ FNPT flow path
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | Pulsafeeder |
| Product Line: | GreenLine |
| Housing: | Epoxy Painted Aluminum |
| Max Flow (GPH): | 38 |
| Max Flow (GPD): | 912 |
| Max Pressure (PSI): | 102 |
| Max Viscosity (CPS): | 1000 |
| Max Strokes per Minute: | 140 |
| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 10:1 |
| Head/Fittings: | PVDF / PVDF |
| Valve Balls: | Ceramic |
| Diaphragm: | Composite PTFE |
| Valve / Seat / O-Ring: | PVDF / PTFE / FKM |
| Motor: | TEFC - NEMA 56C, 3P, 1/2 Hp |
| Connections: | 1" FNPT |
| Power Supply: | 230/460 VAC, 50/60 Hz, 3 Phase |
| Warranty: | 2 Year Limited Warranty |
| Net Weight: | 68 lbs |
| Packaging: | Each |
| Includes: | Installation, Operation, and Maintenance Instruction Manual |
| Working Environment: | 32 to 113°F (0 to 45°C) |
