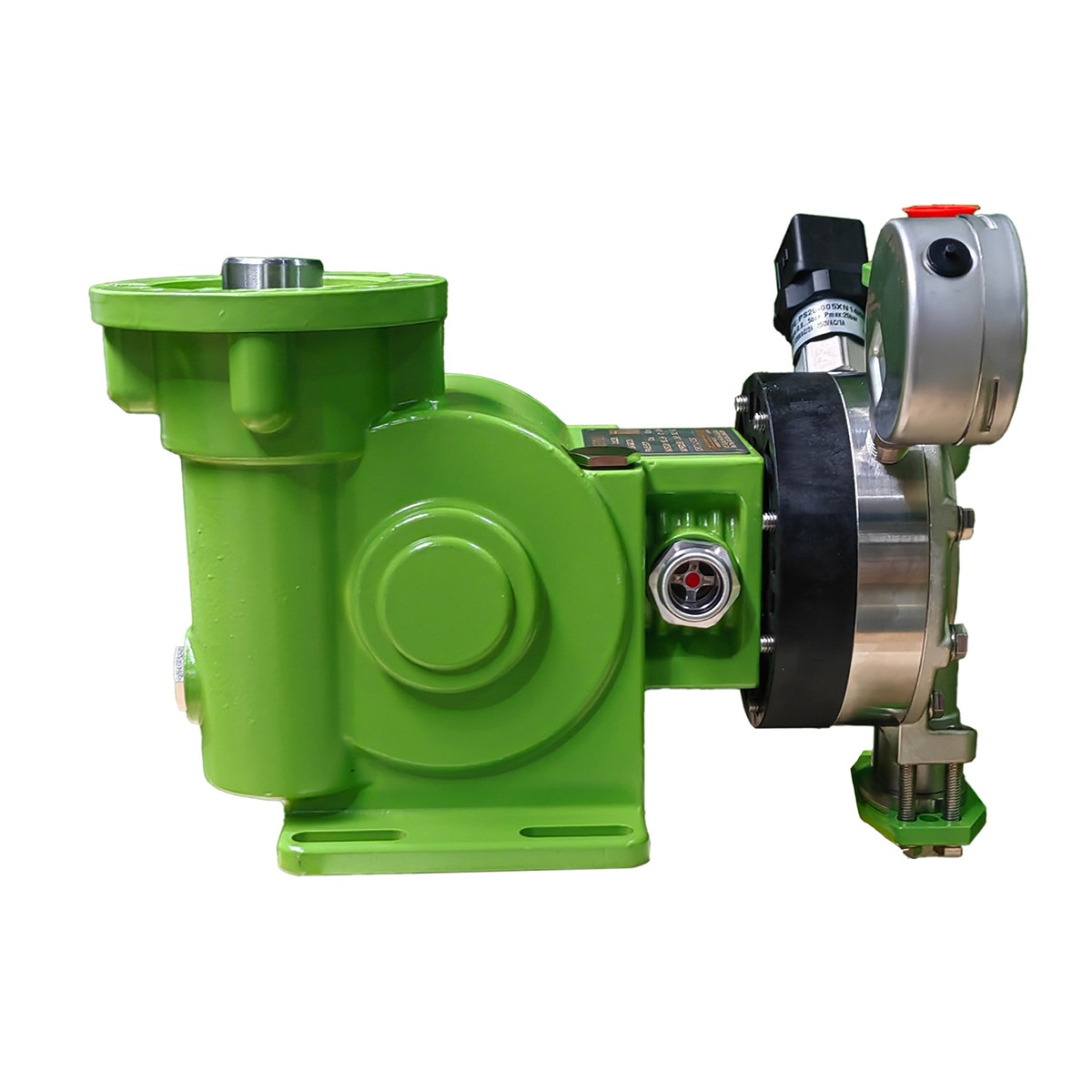

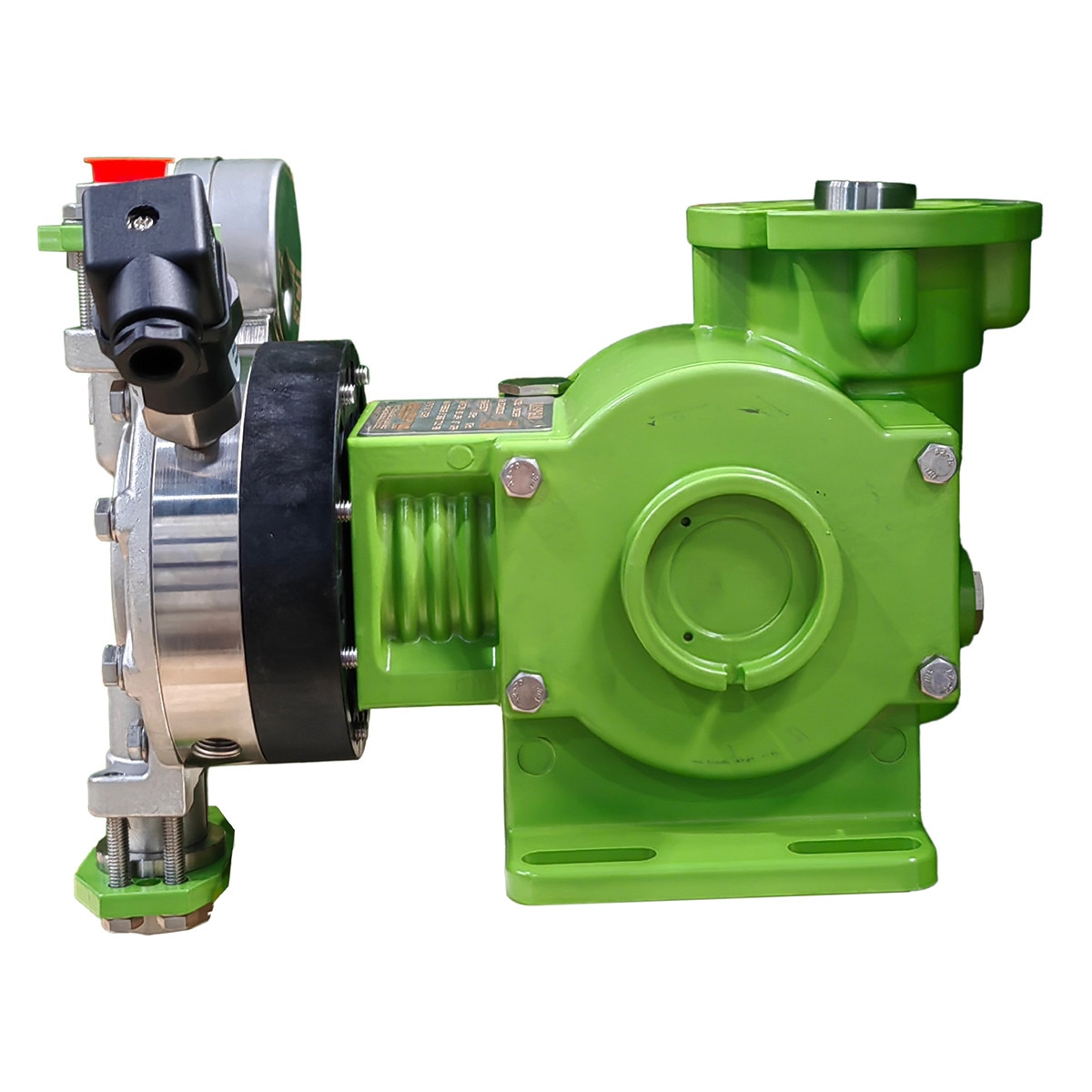

Pulsafeeder GreenLine Metering Pump, 38 GPH @ 102 PSI, 316 SS wet end, Leak Detection, No Motor (NEMA 56C)
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder GreenLine Metering Pump, 38 GPH @ 102 PSI, 316 SS wet end, Leak Detection, No Motor (NEMA 56C)
The GreenLine‑GLM DM3CYAG‑L‑NM is a mechanically actuated diaphragm metering pump in the DM3C hydraulic group, delivering 38 gph (144 lph) at 102 psi (7 bar) with a stroke rate of 140 spm. This model features a 316 stainless steel liquid end for maximum durability and chemical resistance. The “‑L” suffix adds the full leak detection package—double diaphragm, pressure gauge, and 24 VDC leak switch. The “‑NM” suffix indicates the pump is supplied without a motor and includes a NEMA 56C motor adapter for user‑supplied motor integration. With 1″ FNPT suction/discharge connections, this configuration is ideal for installations requiring stainless steel wetted materials, leak monitoring, and custom motor selection.
Specifications
- Max Flow: 38 gph (144 lph)
- Max Pressure: 102 psi (7 bar)
- SPM @ 60 Hz: 140 strokes/min
- Motor: Not included — NEMA 56C adapter provided

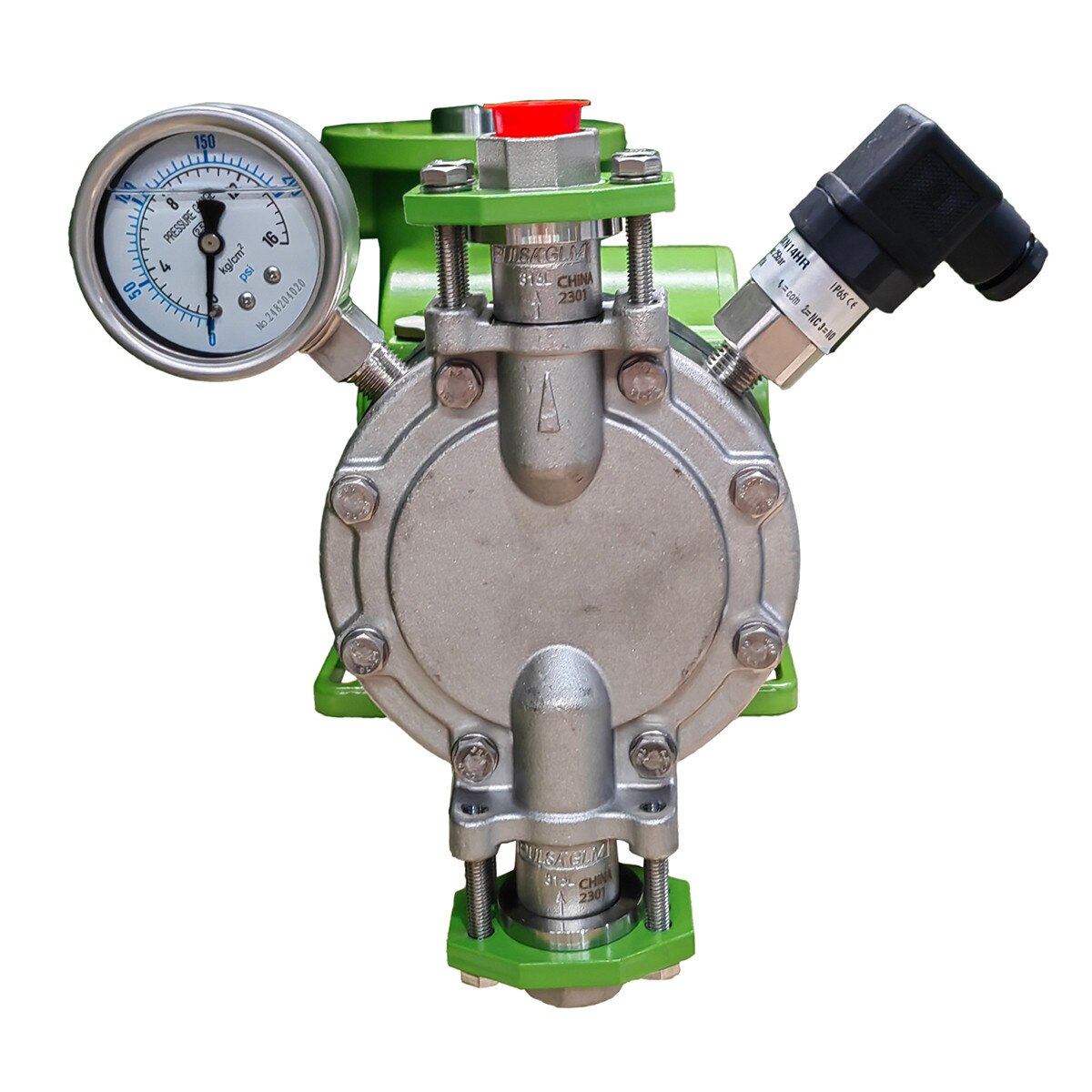

- Leak Detection: Double diaphragm, pressure gauge, 24 VDC leak switch
- Suction Lift: 10 ft (3 m)
- Process Temperature: 32–113 °F (0–45 °C)
- Ambient Temperature: 32–113 °F (0–45 °C)
- Accuracy: ±2% of set point
- Stroke Adjustment: 0–100%, 1% resolution, auto‑locking
- Viscosity: up to 1,000 cPs
- Connections: 1″ FNPT suction / 1″ FNPT discharge
- Approximate Weight: 51 lb (pump only with leak detection)
Materials of Construction
- Wet End: 316L Stainless Steel
- Valve O‑Rings: PTFE
- Check Balls: Stainless steel
- Diaphragm: Composite PTFE
- Housing: Epoxy‑painted aluminum
- Hardware: Stainless steel
Key Features & Benefits
- 316 SS liquid end for maximum durability and chemical compatibility
- Full leak detection package for enhanced containment
- Supplied without motor for custom motor selection
- NEMA 56C adapter included
- Mechanically actuated diaphragm design ensures long service life
- Auto‑locking stroke adjustment prevents drift
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | Pulsafeeder |
| Product Line: | GreenLine |
| Housing: | Epoxy Painted Aluminum |
| Max Flow (GPH): | 38 |
| Max Flow (GPD): | 912 |
| Max Pressure (PSI): | 102 |
| Max Viscosity (CPS): | 1000 |
| Max Strokes per Minute: | 140 |
| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 10:1 |
| Head/Fittings: | 316 SS / 316 SS |
| Valve Balls: | 316 SS |
| Diaphragm: | Composite PTFE |
| Valve / Seat / O-Ring: | 316 SS / PTFE |
| Motor: | No Motor - NEMA 56C Frame Ready |
| Connections: | 1" FNPT |
| Warranty: | 2 Year Limited Warranty |
| Net Weight: | 51 lbs |
| Packaging: | Each |
| Includes: | Installation, Operation, and Maintenance Instruction Manual |
| Working Environment: | 32 to 113°F (0 to 45°C) |
