Pulsafeeder GreenLine Metering Pump, 52.3 GPH @ 102 PSI, VFD Package (1‑phase in / 3‑phase out), PVDF wet end with Leak Detection

Pulsafeeder GreenLine Metering Pump, 52.3 GPH @ 102 PSI, VFD Package (1‑phase in / 3‑phase out), PVDF wet end with Leak Detection

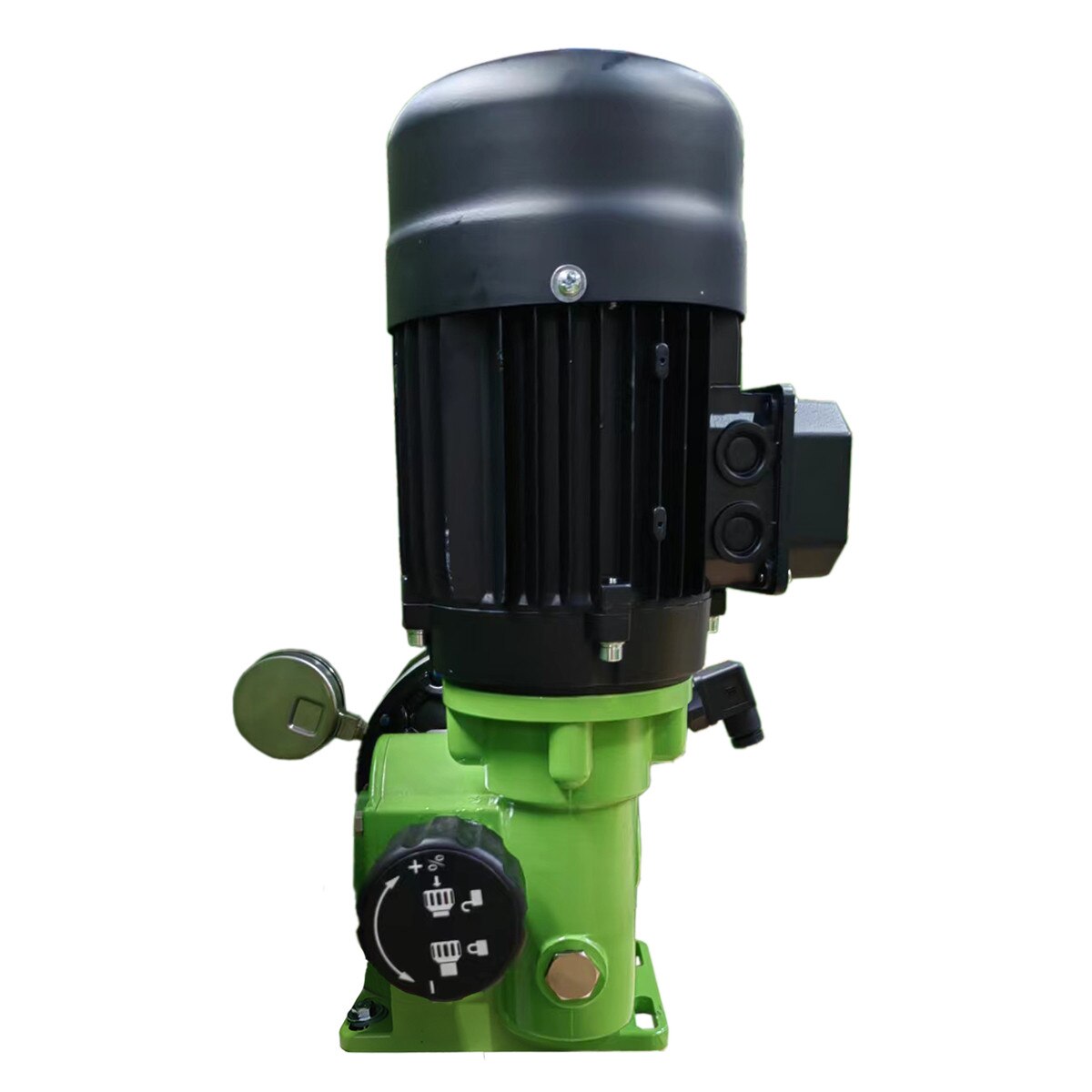

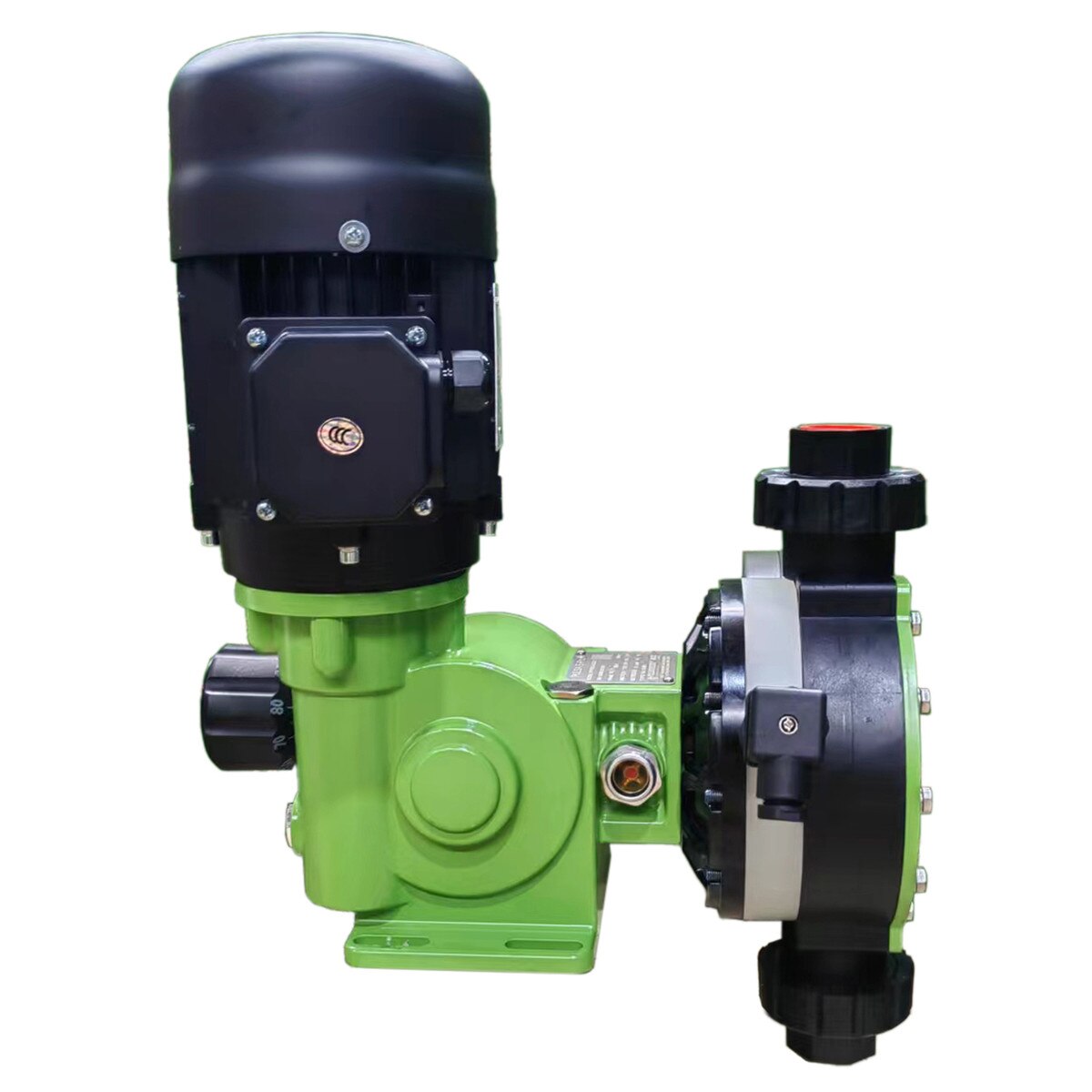

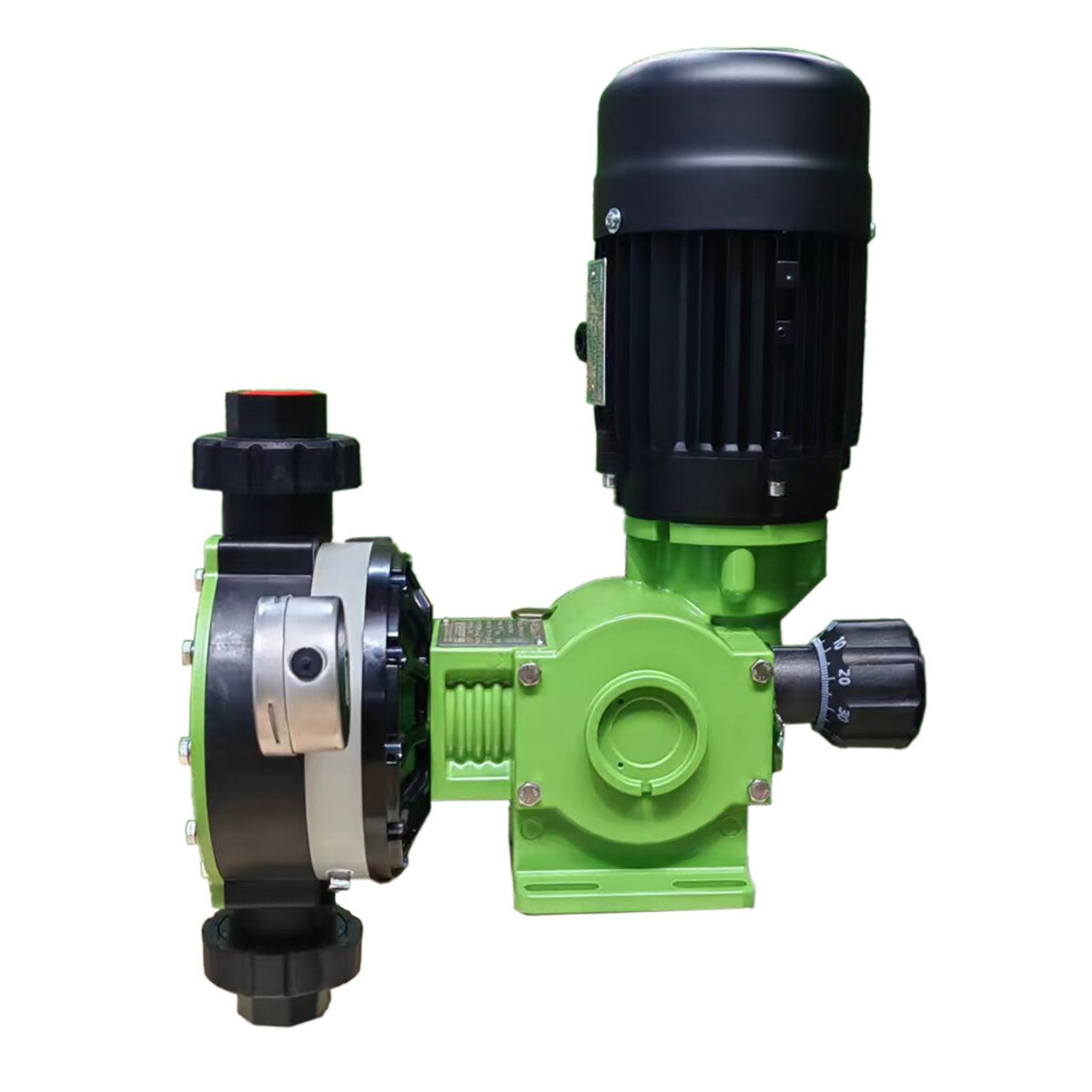

The GreenLine‑GLM DM3DVFG‑L is a mechanically actuated diaphragm metering pump in the DM3D hydraulic group, delivering 52.3 gph (198 lph) at 102 psi (7 bar) with a stroke rate of 175 spm. This model features a corrosion‑resistant PVDF liquid end with FKM seat O‑rings and includes the full leak detection package—double diaphragm, pressure gauge, and 24 VDC leak switch. The integrated VFD accepts 115/230 V single‑phase input and outputs 230/460 V three‑phase power to the TEFC motor, enabling variable‑speed control and improved process tuning. With 1″ FNPT suction/discharge connections, it is ideal for installations requiring non‑metallic wetted materials, leak monitoring, and VFD‑based flow control.

Specifications

• Max Flow: 52.3 gph (198 lph)
• Max Pressure: 102 psi (7 bar)
• SPM @ 60 Hz: 175 strokes/min

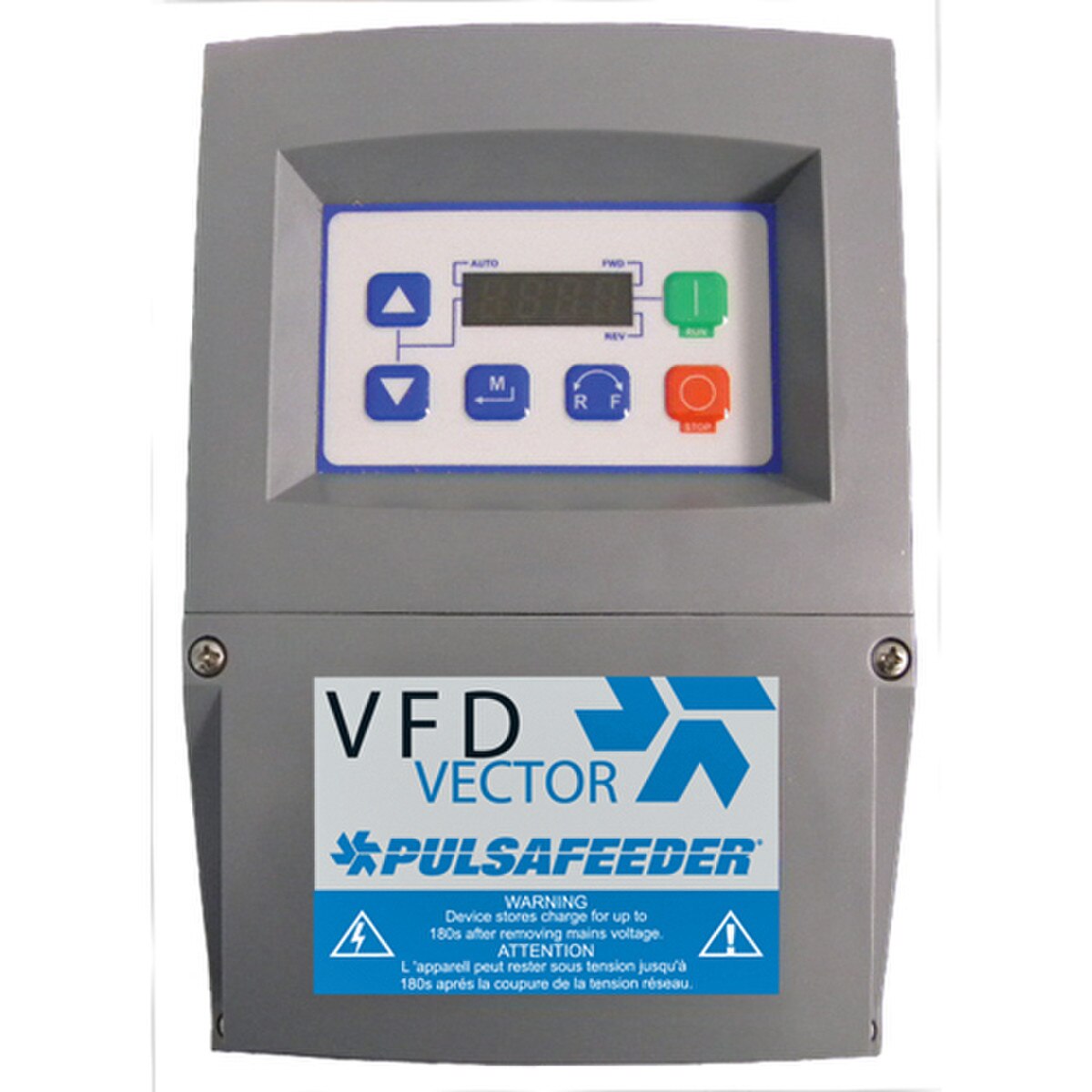

• Motor / Drive: VFD package — 115/230 V 1‑phase input, 230/460 V 3‑phase output
• Motor Enclosure: TEFC, 0.50 HP (0.37 kW)

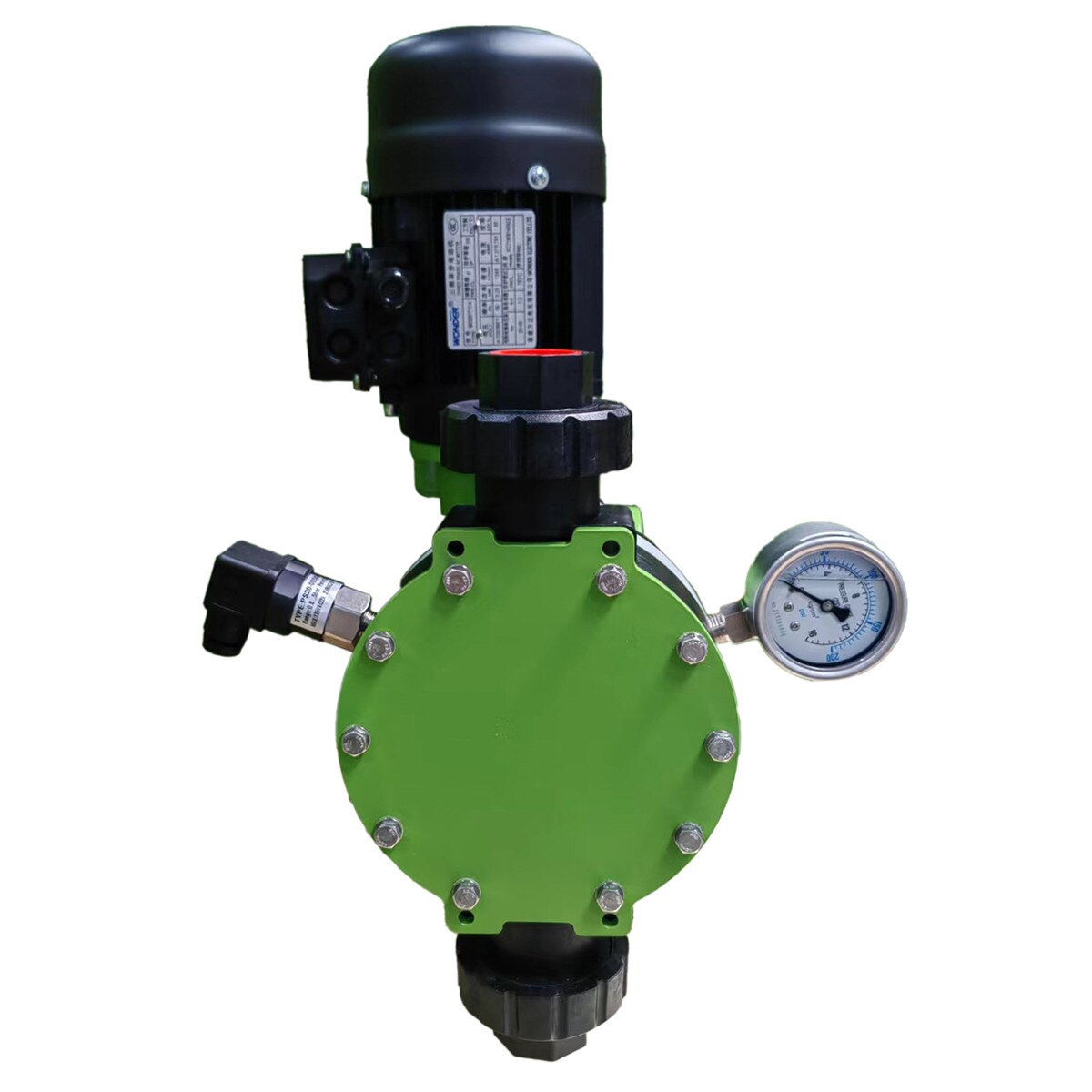

• Leak Detection: Double diaphragm, pressure gauge, 24 VDC leak switch
• Suction Lift: 10 ft (3 m)
• Process Temperature: 32–113 °F (0–45 °C)
• Ambient Temperature: 32–113 °F (0–45 °C)
• Accuracy: ±2% of set point
• Stroke Adjustment: 0–100%, 1% resolution, auto‑locking
• Viscosity: up to 1,000 cPs
• Connections: 1″ FNPT suction / 1″ FNPT discharge
• Approximate Weight: 72.5 lb (pump with VFD + motor + leak detection)

Materials of Construction

• Wet End: PVDF
• Seat O‑Rings: FKM
• Check Balls: Ceramic
• Valve O‑Rings: PTFE
• Diaphragm: Composite PTFE
• Housing: Epoxy‑painted aluminum
• Hardware: Stainless steel

Key Features & Benefits

• PVDF liquid end for excellent corrosion and chemical resistance
• Full leak detection package for enhanced containment
• Integrated VFD for variable‑speed control and process optimization
• Accepts 115/230 V single‑phase input; outputs 230/460 V 3‑phase
• High‑flow DM3D hydraulic group (52.3 GPH)
• FKM seat O‑rings improve compatibility with aggressive solutions
• SUV check valves improve priming and reduce turbulence
• Sealed gearbox reduces noise and protects internal components

Markets & Typical Applications

• Municipal and industrial water treatment
• Handling aggressive chemicals, oxidizers, and corrosive solutions
• Chemical processing and general industrial feed systems
• Power generation and boiler chemical injection
• Applications requiring non‑metallic wetted materials with leak detection and VFD control
