Pulsafeeder GreenLine Metering Pump, 41.2 GPH @ 145 PSI, VFD Package (1‑phase in / 3‑phase out), 316 SS wet end with Leak Detection
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder GreenLine Metering Pump, 41.2 GPH @ 145 PSI, VFD Package (1‑phase in / 3‑phase out), 316 SS wet end with Leak Detection

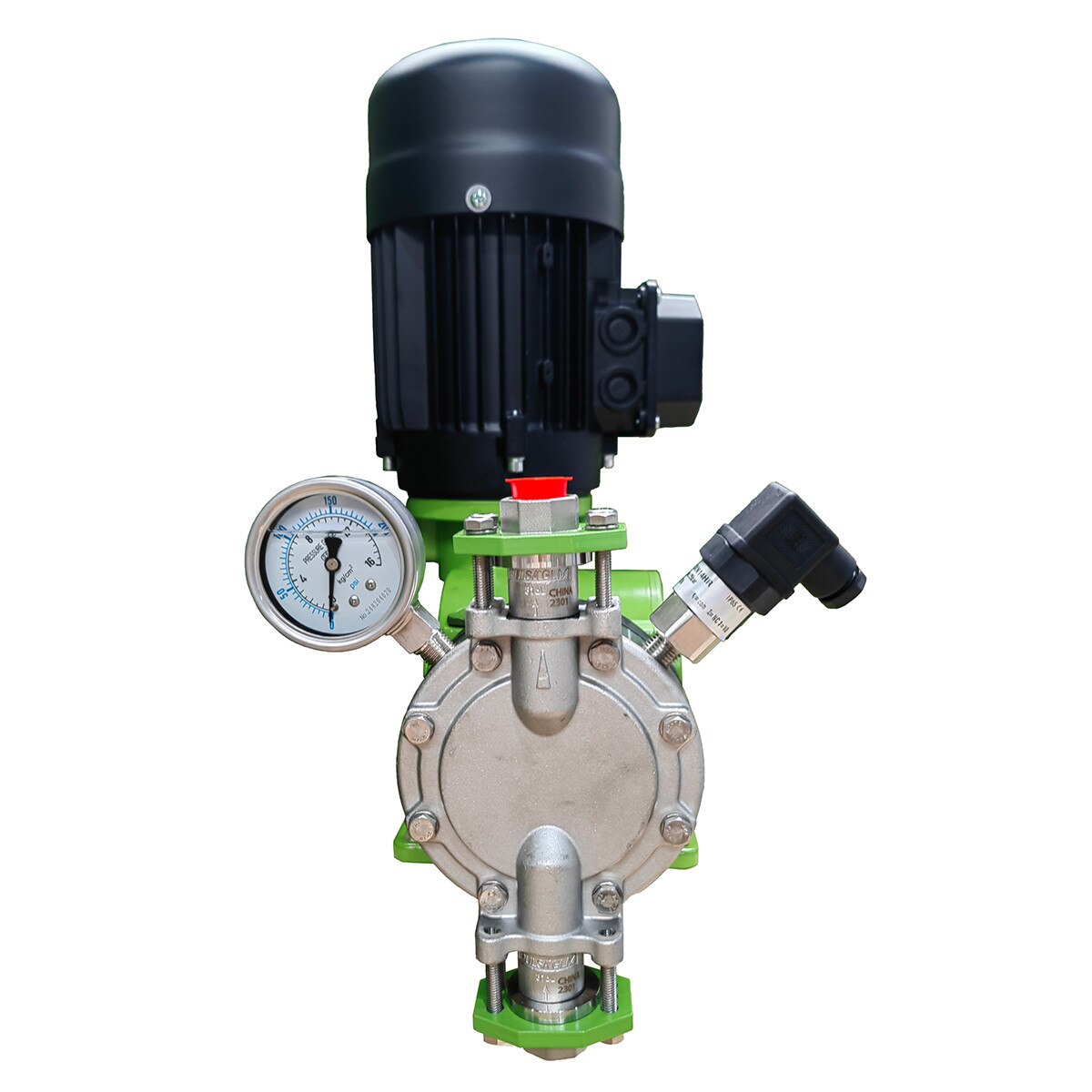

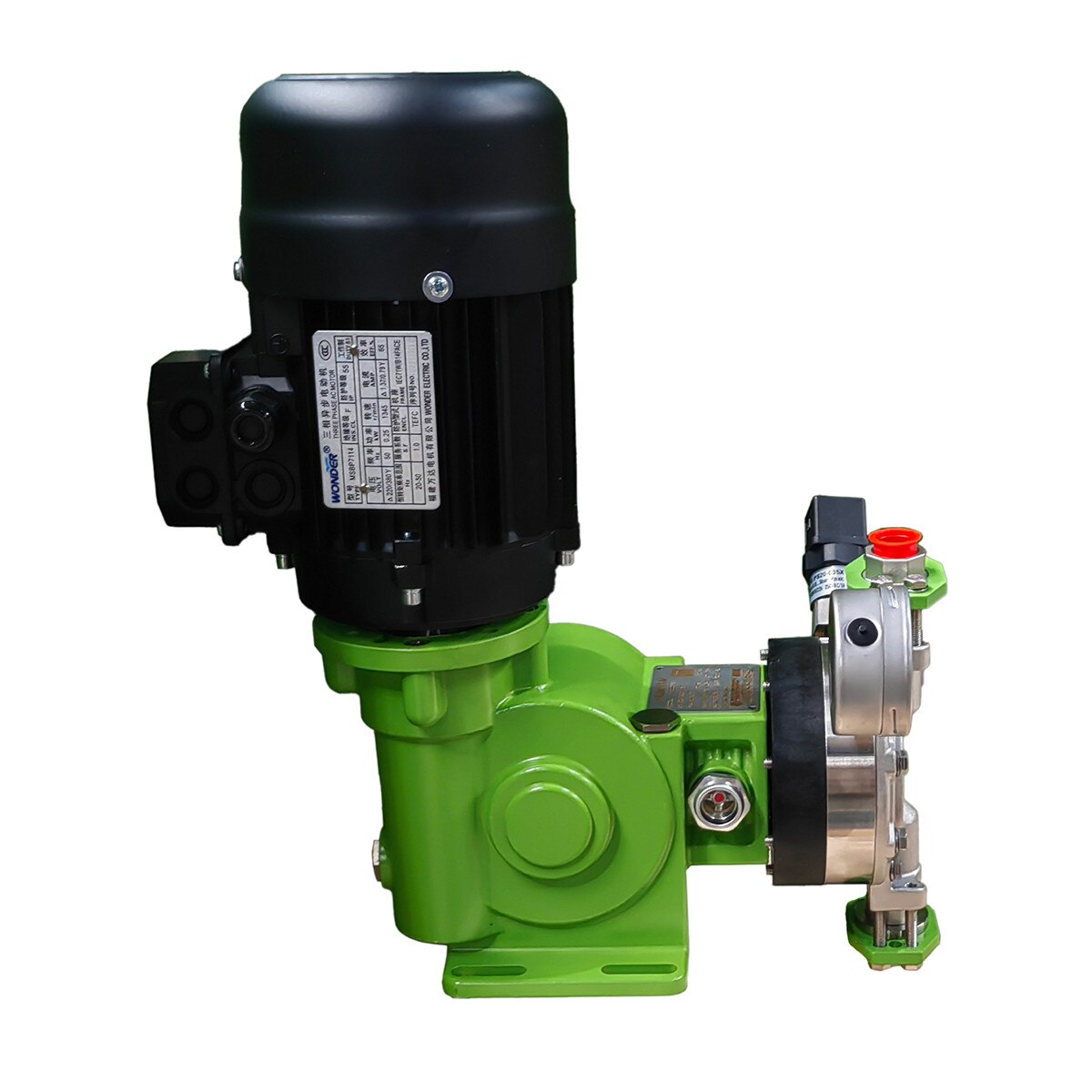

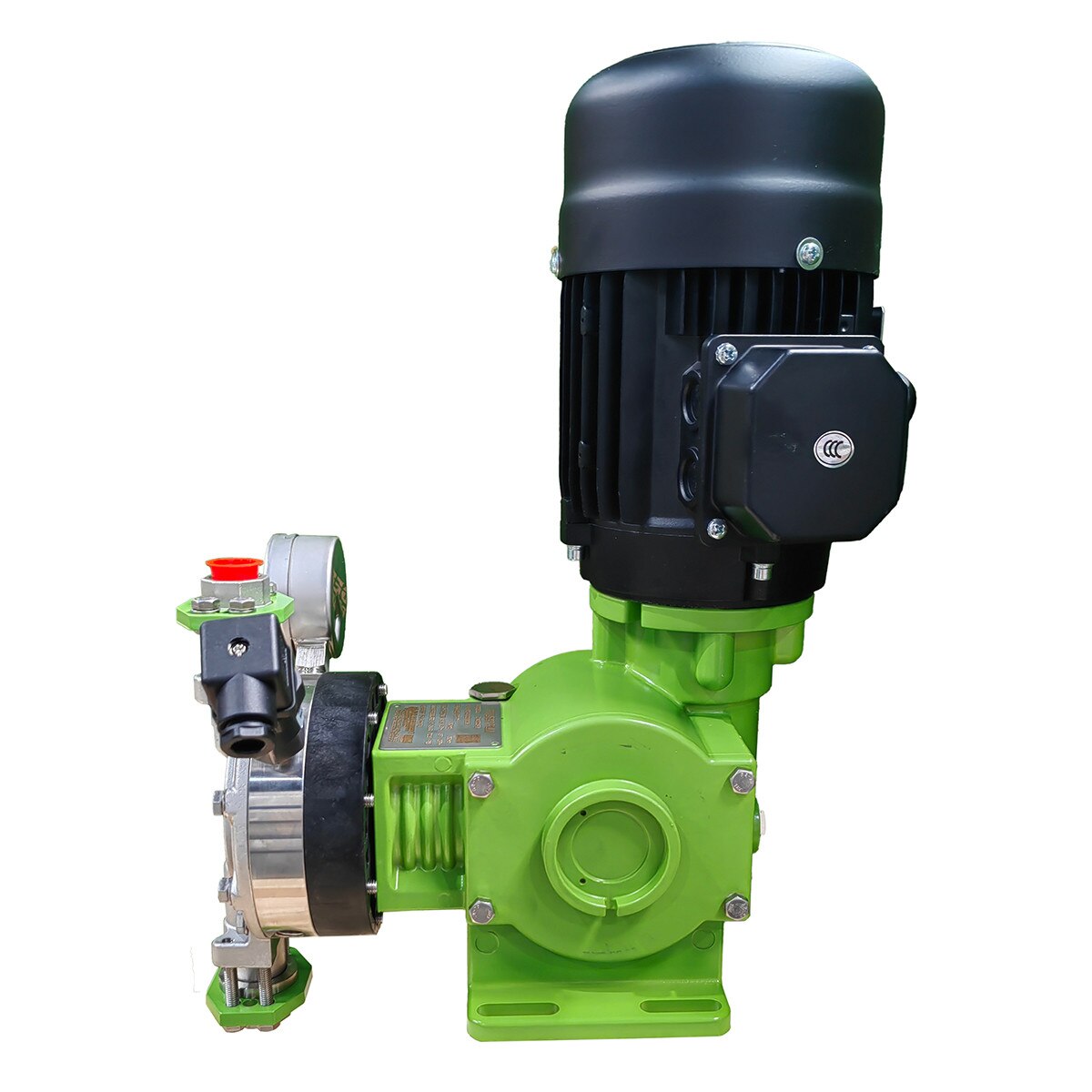

The GreenLine‑GLM DM4BVAG‑L is a mechanically actuated diaphragm metering pump in the DM4B hydraulic group, delivering 41.2 gph (156 lph) at 145 psi (10 bar) with a stroke rate of 116 spm. This model features a 316 stainless steel liquid end and includes the full leak detection package—double diaphragm, pressure gauge, and 24 VDC leak switch. The integrated VFD accepts 115/230 V single‑phase input and outputs 230/460 V three‑phase power to the TEFC motor, enabling variable‑speed control and improved process tuning.
Specifications
- Max Flow: 41.2 gph (156 lph)
- Max Pressure: 145 psi (10 bar)
- SPM @ 60 Hz: 116 strokes/min

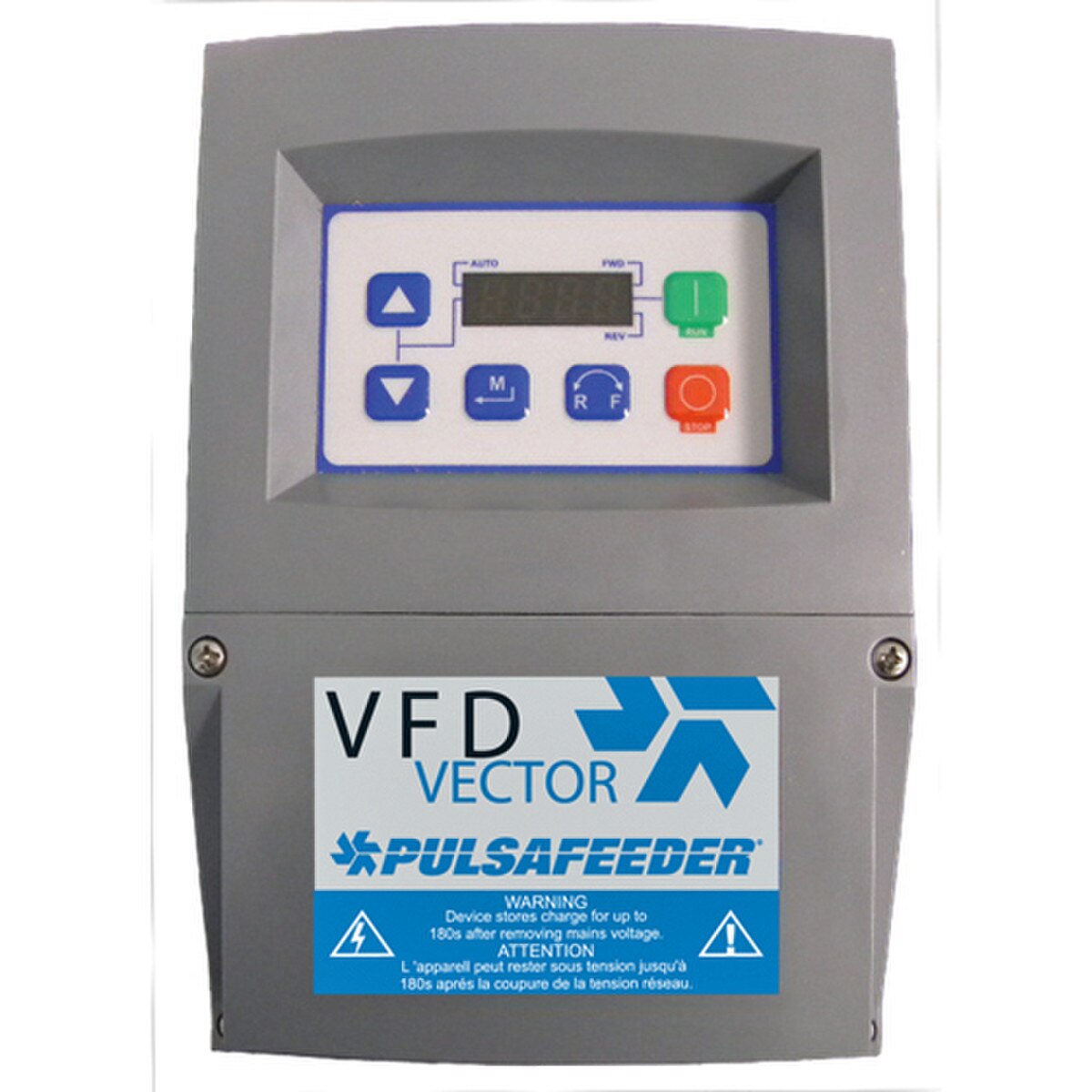

- Motor / Drive: VFD package — 115/230 V 1‑phase input, 230/460 V 3‑phase output
- Motor Enclosure: TEFC, 1.0 HP (0.75 kW)
- Leak Detection: Double diaphragm, pressure gauge, 24 VDC leak switch
- Suction Lift: 10 ft (3 m)
- Process Temperature: 32–113 °F (0–45 °C)
- Ambient Temperature: 32–113 °F (0–45 °C)
- Accuracy: ±2% of set point
- Stroke Adjustment: 0–100%, 1% resolution, auto‑locking
- Viscosity: up to 1,000 cPs
- Connections: 1″ FNPT suction / 1″ FNPT discharge
- Approximate Weight: 94.5 lb (pump with VFD + motor + leak detection)
Materials of Construction
- Wet End: 316L Stainless Steel
- Valve O‑Rings: PTFE
- Check Balls: Stainless steel
- Diaphragm: Composite PTFE
- Housing: Epoxy‑painted aluminum
- Hardware: Stainless steel
Key Features & Benefits
- 316 SS liquid end for maximum durability and chemical compatibility
- Full leak detection package for enhanced containment
- Integrated VFD for variable‑speed control and process optimization
- Accepts 115/230 V single‑phase input; outputs 230/460 V 3‑phase
- Higher‑capacity DM4 hydraulic group (41.2 GPH @ 145 PSI)
- SUV check valves improve priming and reduce turbulence
- Sealed gearbox reduces noise and protects internal components
Markets & Typical Applications
- Municipal and industrial water treatment
- Chemical processing and general industrial feed systems
- Power generation and boiler chemical injection
- Mining, metals, and mineral processing
- Applications requiring stainless steel wetted materials with leak detection and VFD control
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | Pulsafeeder |
| Product Line: | GreenLine |
| Housing: | Epoxy Painted Aluminum |
| Max Flow (GPH): | 41.2 |
| Max Flow (GPD): | 988.8 |
| Max Pressure (PSI): | 145 |
| Max Viscosity (CPS): | 1000 |
| Max Strokes per Minute: | 116 |
| Flow Control: | 4-20mA or 0-10VDC signal input controls stroke frequency, Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 100:1 |
| Head/Fittings: | 316 SS / 316 SS |
| Valve Balls: | 316 SS |
| Diaphragm: | Composite PTFE |
| Valve / Seat / O-Ring: | 316 SS / PTFE |
| Motor: | TEFC - NEMA 56C, 1 Hp, 230/460 VAC, 50/60 Hz, 3 Phase |
| Connections: | 1" FNPT |
| Power Supply: | 115/230 VAC, 50/60 Hz, 1 Phase |
| Operating Modes: | Manual, (VFD 10:1) |
| Warranty: | 2 Year Limited Warranty |
| Net Weight: | 94.5 lbs |
| Packaging: | Each |
| Includes: | Installation, Operation, and Maintenance Instruction Manual |
| Working Environment: | 32 to 113°F (0 to 45°C) |
