Pulsafeeder GreenLine Metering Pump, 57 GPH @ 145 PSI, TEFC 115/230 V 1‑phase, PVDF wet end with Leak Detection

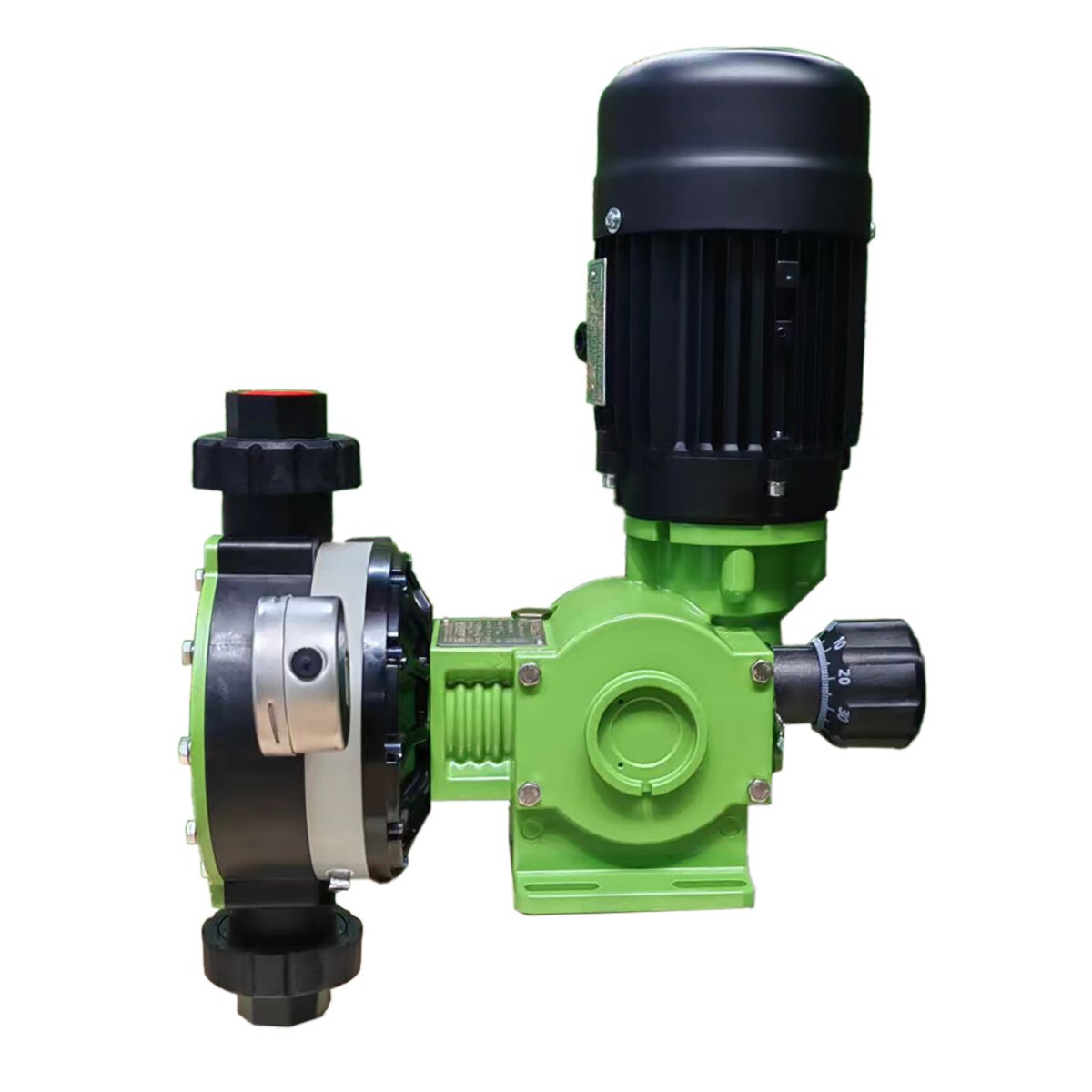

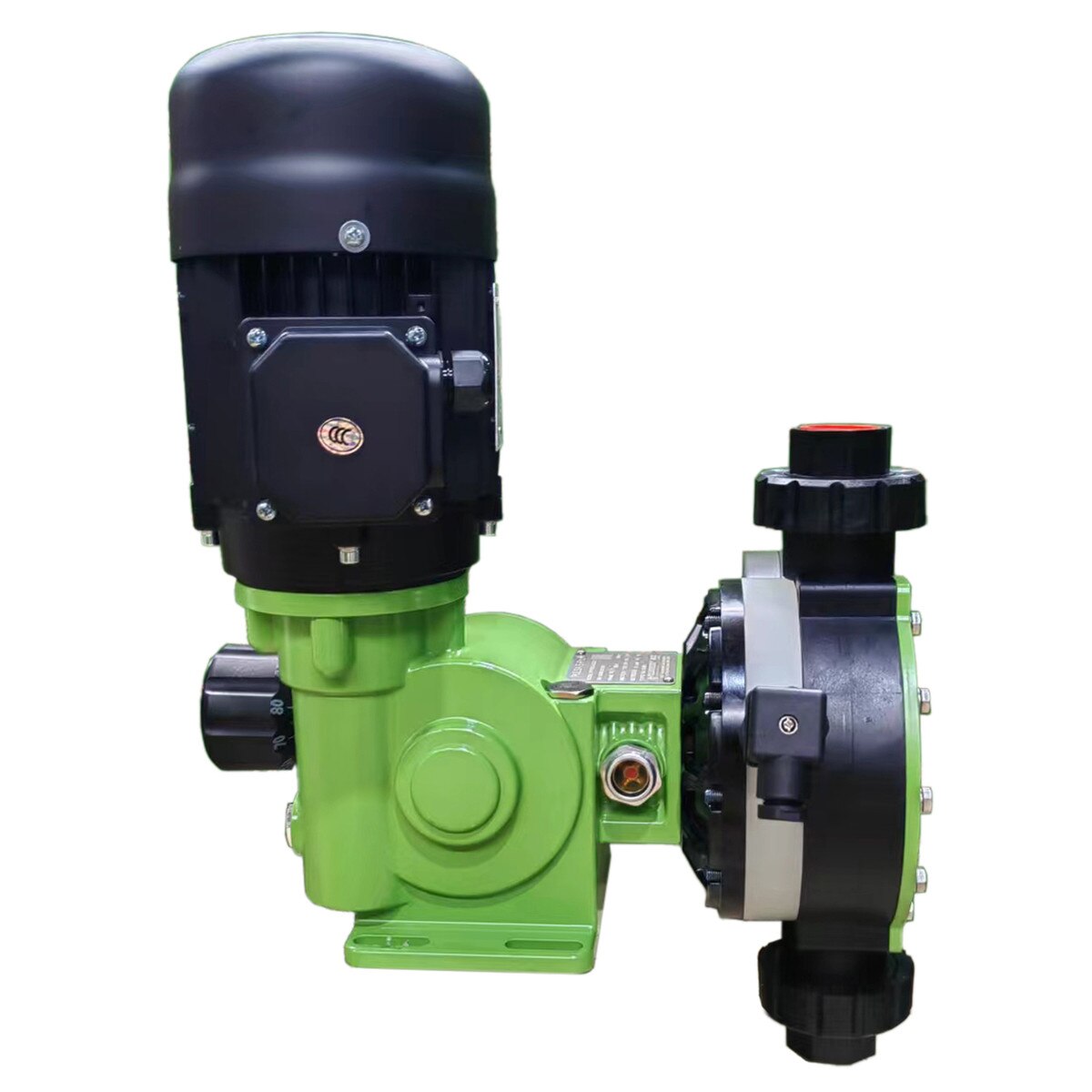

Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder GreenLine Metering Pump, 57 GPH @ 145 PSI, TEFC 115/230 V 1‑phase, PVDF wet end with Leak Detection
The GreenLine‑GLM DM4C1FG‑L is a mechanically actuated diaphragm metering pump in the DM4C hydraulic group, delivering 57 gph (216 lph) at 145 psi (10 bar) with a stroke rate of 140 spm. This model features a corrosion‑resistant PVDF liquid end with FKM seat O‑rings and includes the full leak detection package—double diaphragm, pressure gauge, and 24 VDC leak switch. With a TEFC 115/230 V single‑phase motor and 1″ FNPT suction/discharge connections, it is ideal for applications requiring non‑metallic wetted materials and leak monitoring.
Specifications
- Max Flow: 57 gph (216 lph)
- Max Pressure: 145 psi (10 bar)
- SPM @ 60 Hz: 140 strokes/min
- Motor: TEFC, 115/230 V, 1‑phase, 1.0 HP (0.75 kW)

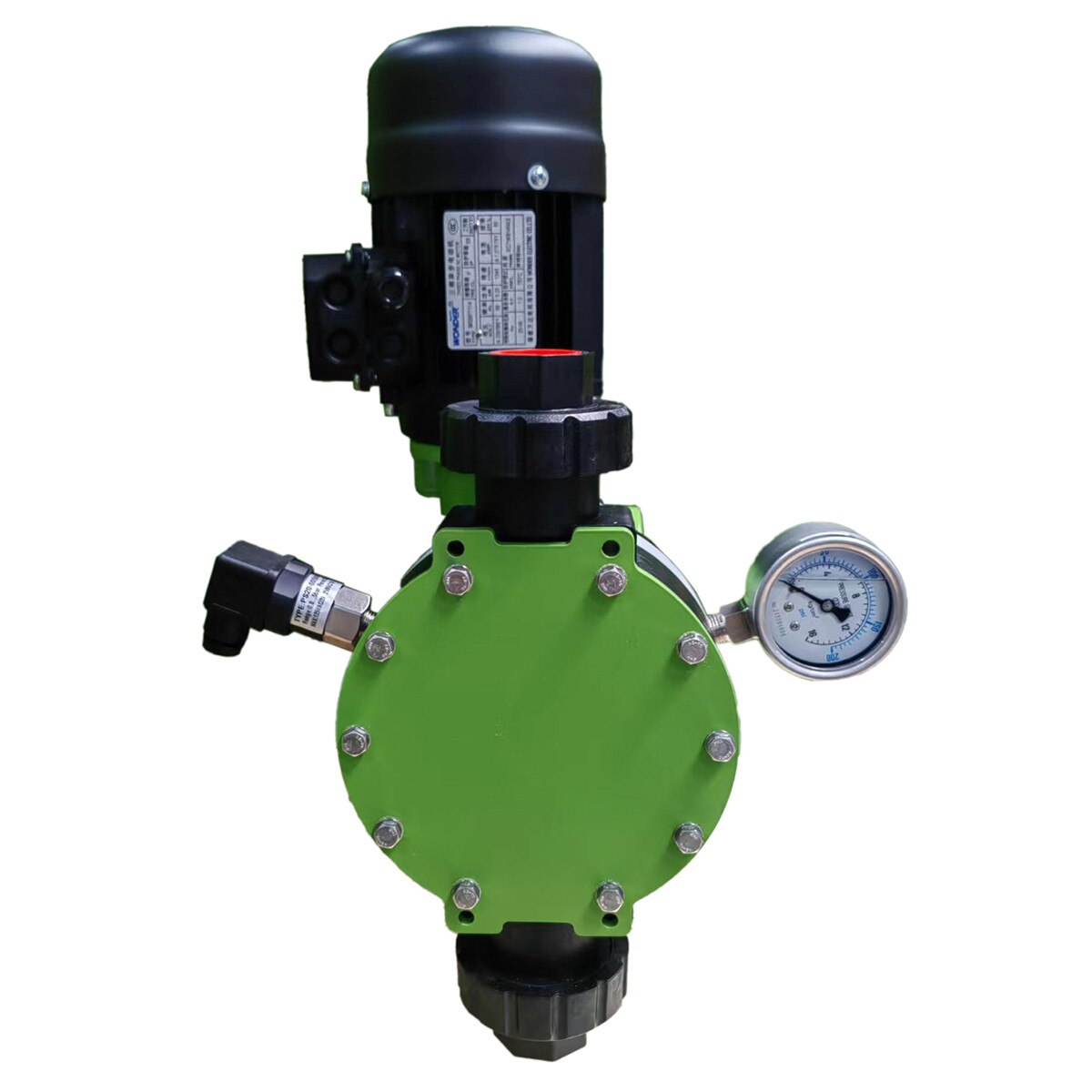

- Leak Detection: Double diaphragm, pressure gauge, 24 VDC leak switch
- Suction Lift: 10 ft (3 m)
- Process Temperature: 32–113 °F (0–45 °C)
- Ambient Temperature: 32–113 °F (0–45 °C)
- Accuracy: ±2% of set point
- Stroke Adjustment: 0–100%, 1% resolution, auto‑locking
- Viscosity: up to 1,000 cPs
- Connections: 1″ FNPT suction / 1″ FNPT discharge
- Approximate Weight: 88 lb (pump with motor + leak detection)
Materials of Construction
- Wet End: PVDF
- Seat O‑Rings: FKM
- Check Balls: Ceramic
- Valve O‑Rings: PTFE
- Diaphragm: Composite PTFE
- Housing: Epoxy‑painted aluminum
- Hardware: Stainless steel
Key Features & Benefits
- PVDF liquid end for excellent corrosion and chemical resistance
- Full leak detection package for enhanced containment
- DM4C hydraulic group delivers 57 GPH at 145 PSI
- FKM seat O‑rings improve compatibility with aggressive solutions
- 1.0 HP motor for industrial duty
- SUV check valves improve priming and reduce turbulence
- Sealed gearbox reduces noise and protects internal components
Markets & Typical Applications
- Municipal and industrial water treatment
- Handling aggressive chemicals, oxidizers, and corrosive solutions
- Chemical processing and general industrial feed systems
- Power generation and boiler chemical injection
- Applications requiring non‑metallic wetted materials with leak detection
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | Pulsafeeder |
| Product Line: | GreenLine |
| Housing: | Epoxy Painted Aluminum |
| Max Flow (GPH): | 57 |
| Max Flow (GPD): | 1368 |
| Max Pressure (PSI): | 145 |
| Max Viscosity (CPS): | 1000 |
| Max Strokes per Minute: | 140 |
| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 10:1 |
| Head/Fittings: | PVDF / PVDF |
| Valve Balls: | Ceramic |
| Diaphragm: | Composite PTFE |
| Valve / Seat / O-Ring: | PVDF / PTFE / FKM |
| Motor: | TEFC - NEMA 56C, 1P, 1 Hp |
| Connections: | 1" FNPT |
| Power Supply: | 115/230 VAC, 60 Hz, 1 Phase |
| Warranty: | 2 Year Limited Warranty |
| Net Weight: | 88 lbs |
| Packaging: | Each |
| Includes: | Installation, Operation, and Maintenance Instruction Manual |
| Working Environment: | 32 to 113°F (0 to 45°C) |
