Pulsafeeder GreenLine Metering Pump, 57 GPH @ 145 PSI, PVDF wet end, Leak Detection, No Motor (NEMA 56C)

Pulsafeeder GreenLine Metering Pump, 57 GPH @ 145 PSI, PVDF wet end, Leak Detection, No Motor (NEMA 56C)

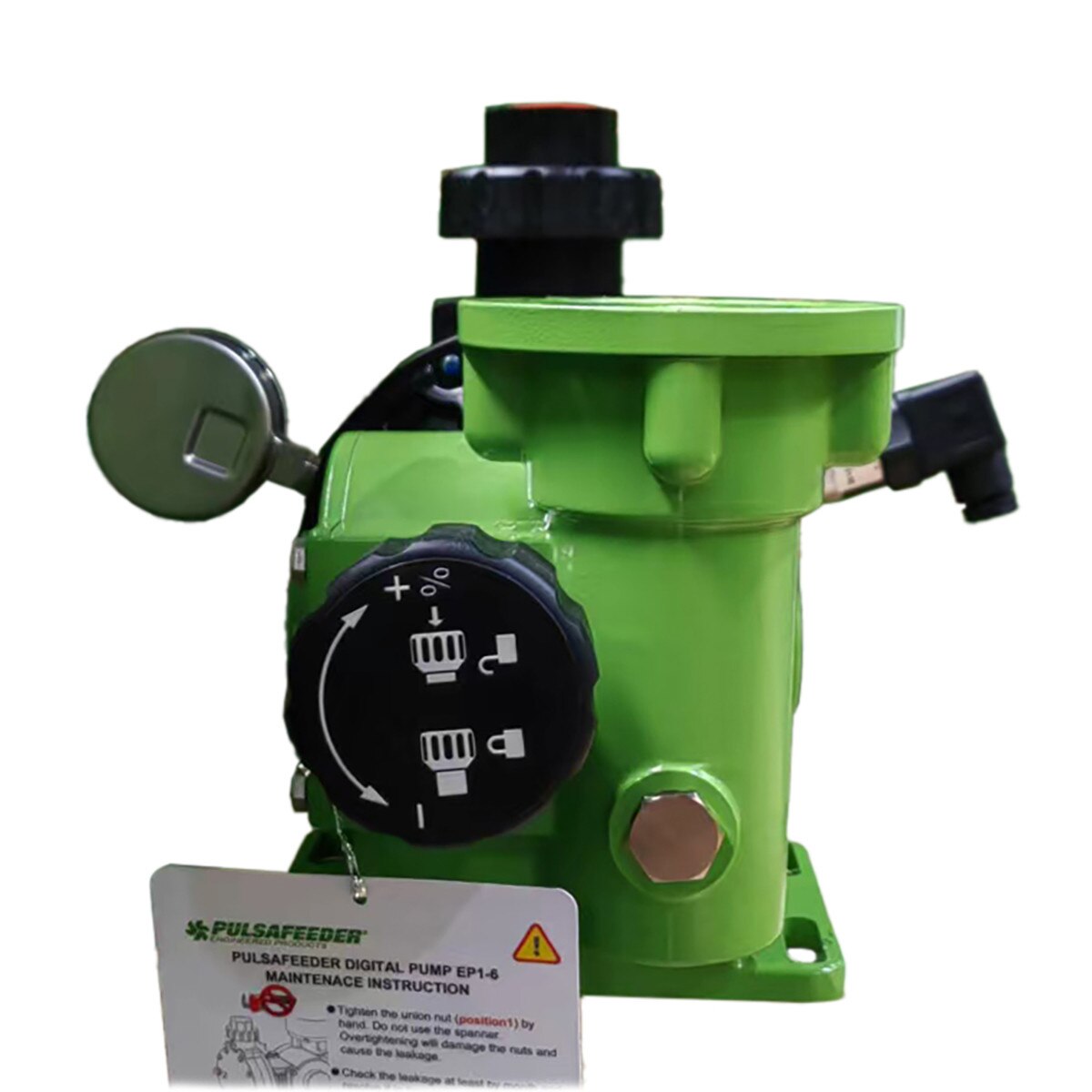

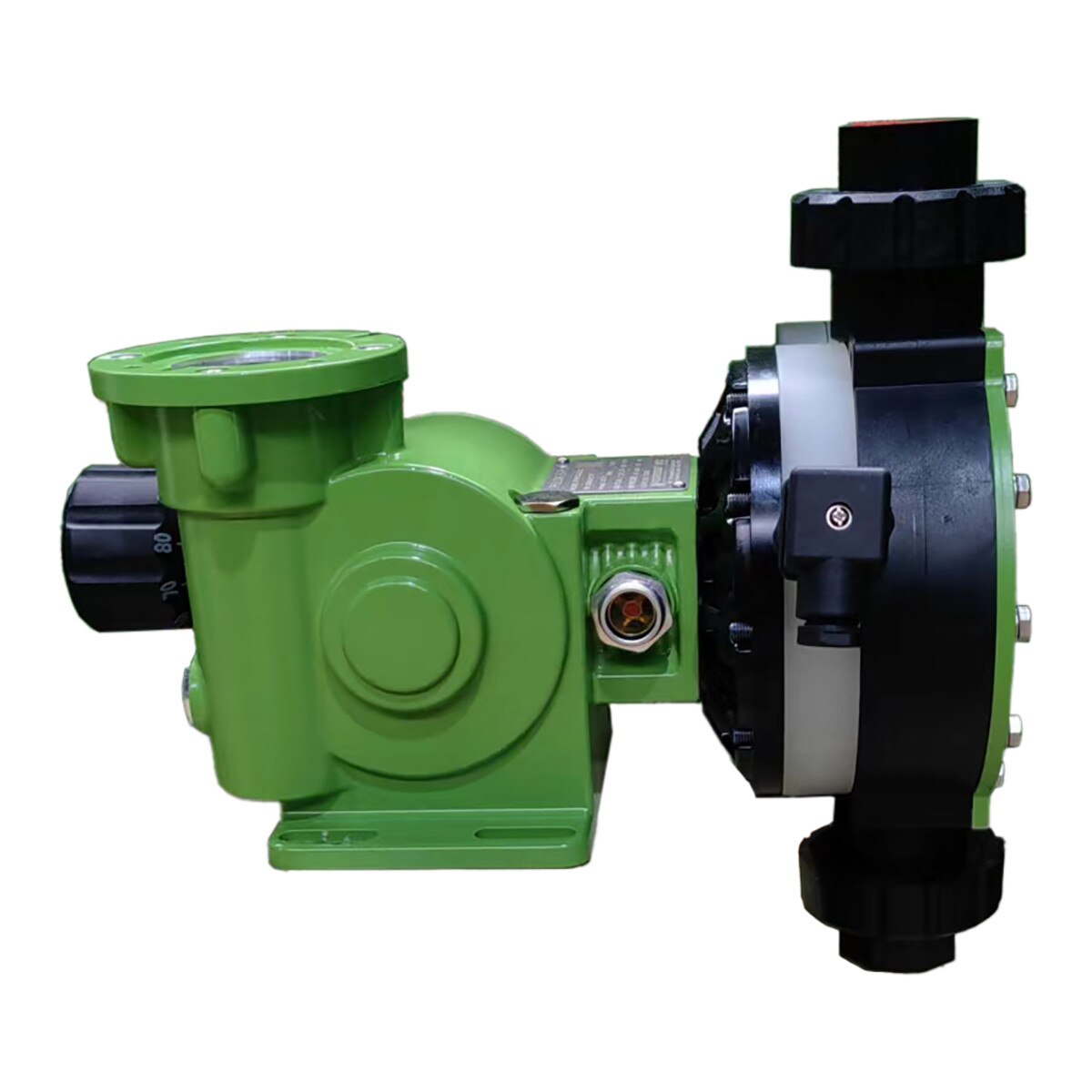

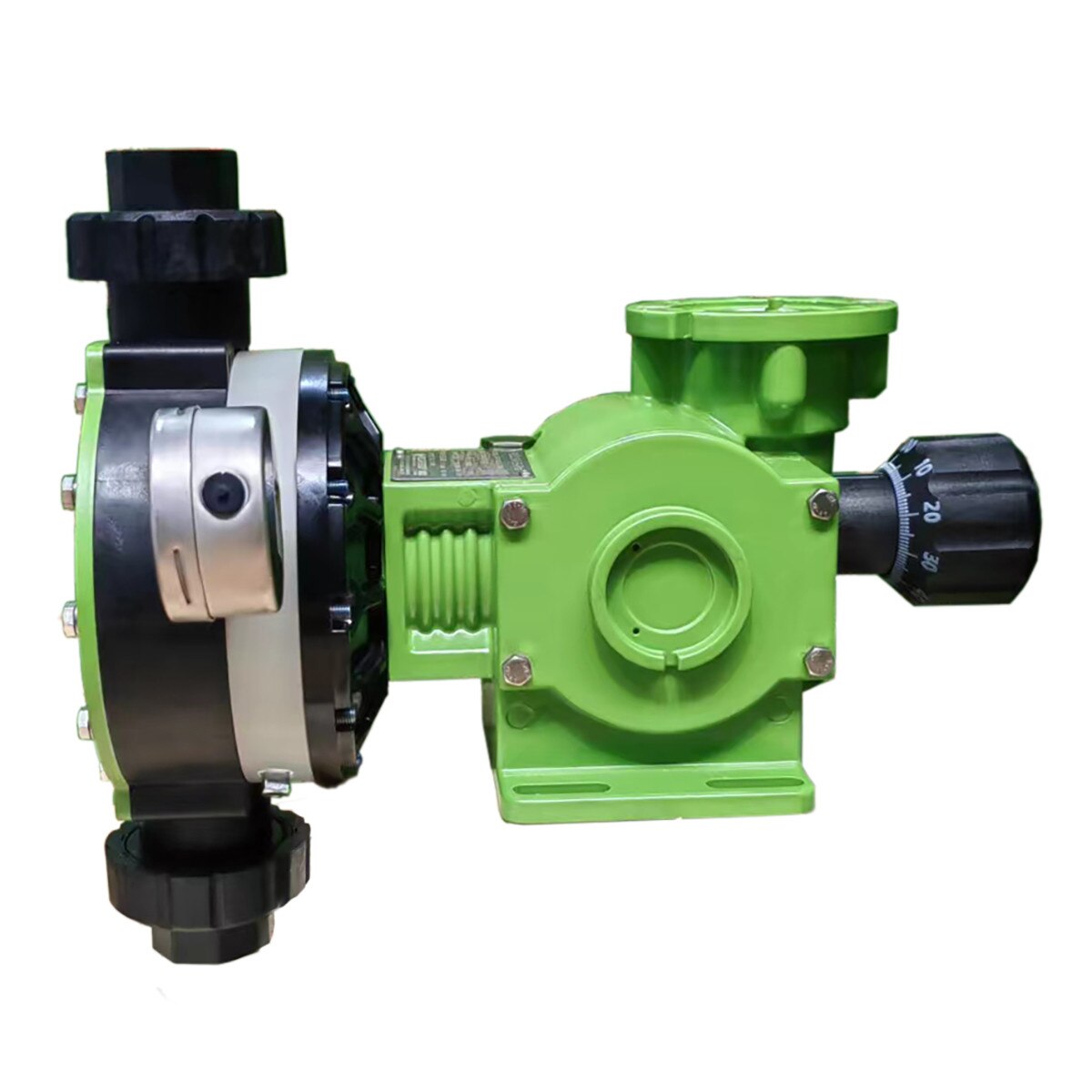

The GreenLine‑GLM DM4CYFG‑L‑NM is a mechanically actuated diaphragm metering pump in the DM4C hydraulic group, delivering 57 gph (216 lph) at 145 psi (10 bar) with a stroke rate of 140 spm. This model features a corrosion‑resistant PVDF liquid end with FKM seat O‑rings for excellent compatibility with acids, oxidizers, and aggressive chemical solutions. The “‑L” suffix adds the full leak detection package—double diaphragm, pressure gauge, and 24 VDC leak switch. The “‑NM” suffix indicates the pump is supplied without a motor and includes a NEMA 56C motor adapter for user‑supplied motor integration.

Specifications

• Max Flow: 57 gph (216 lph)
• Max Pressure: 145 psi (10 bar)
• SPM @ 60 Hz: 140 strokes/min
• Motor: Not included — NEMA 56C adapter provided

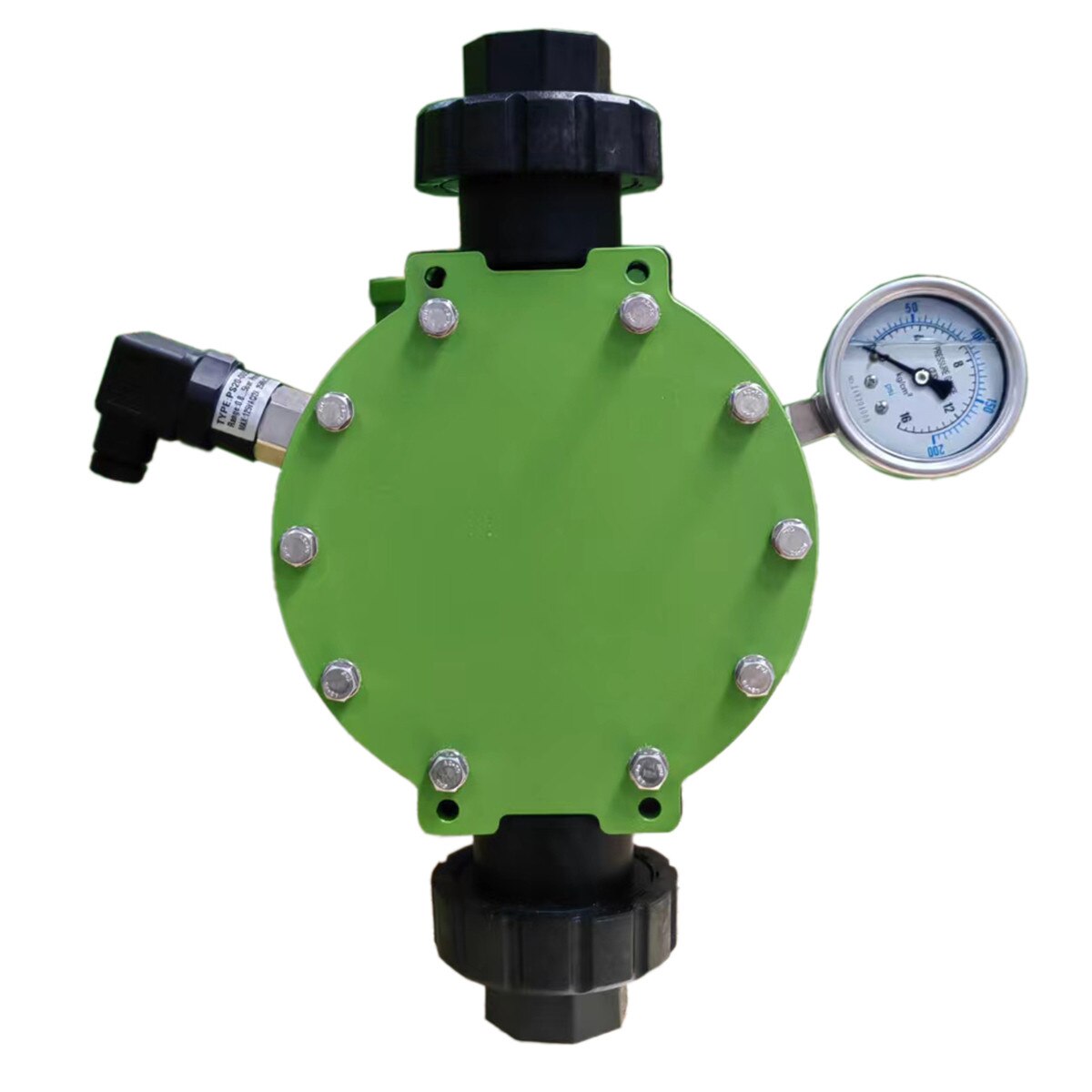

• Leak Detection: Double diaphragm, pressure gauge, 24 VDC leak switch
• Suction Lift: 10 ft (3 m)
• Process Temperature: 32–113 °F (0–45 °C)
• Ambient Temperature: 32–113 °F (0–45 °C)
• Accuracy: ±2% of set point
• Stroke Adjustment: 0–100%, 1% resolution, auto‑locking
• Viscosity: up to 1,000 cPs
• Connections: 1″ FNPT suction / 1″ FNPT discharge
• Approximate Weight: 47 lb (pump with leak detection)

Materials of Construction

• Wet End: PVDF
• Seat O‑Rings: FKM
• Check Balls: Ceramic
• Valve O‑Rings: PTFE
• Diaphragm: Composite PTFE
• Housing: Epoxy‑painted aluminum
• Hardware: Stainless steel

Key Features & Benefits

• PVDF liquid end for excellent corrosion and chemical resistance
• Full leak detection package for enhanced containment
• DM4C hydraulic group delivers 57 GPH at 145 PSI
• Supplied without motor for custom motor selection
• NEMA 56C motor adapter included
• SUV check valves improve priming and reduce turbulence
• Sealed gearbox reduces noise and protects internal components

Markets & Typical Applications

• Municipal and industrial water treatment
• Handling aggressive chemicals, oxidizers, and corrosive solutions
• Chemical processing and general industrial feed systems
• Power generation and boiler chemical injection
• Applications requiring non‑metallic wetted materials with leak detection and no motor
