Pulsafeeder GreenLine Metering Pump, 174 GPH @ 73 PSI, PVDF wet end, Leak Detection, No Motor (NEMA 56C), 1.5″ FNPT
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder GreenLine Metering Pump, 174 GPH @ 73 PSI, PVDF wet end, Leak Detection, No Motor (NEMA 56C), 1.5″ FNPT

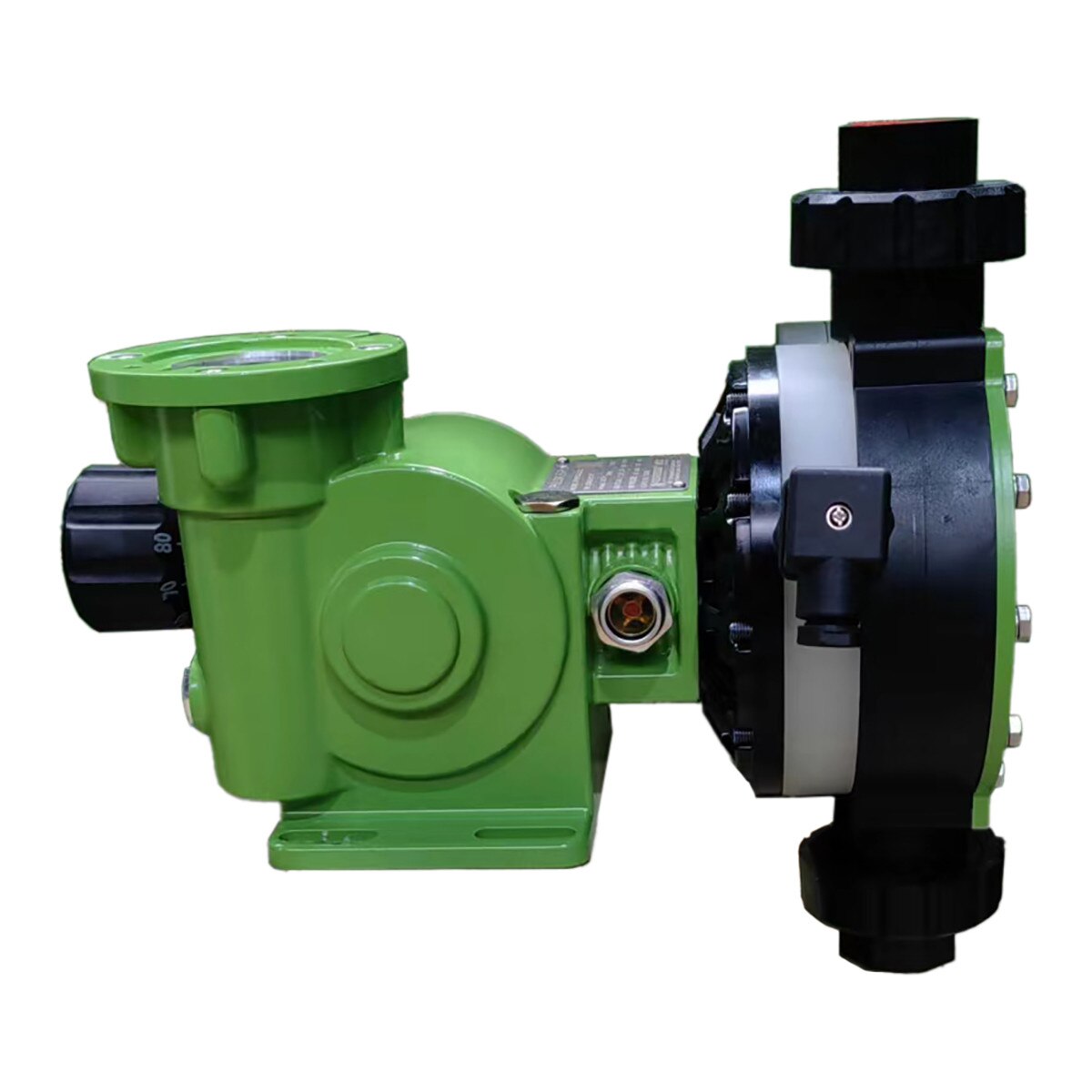

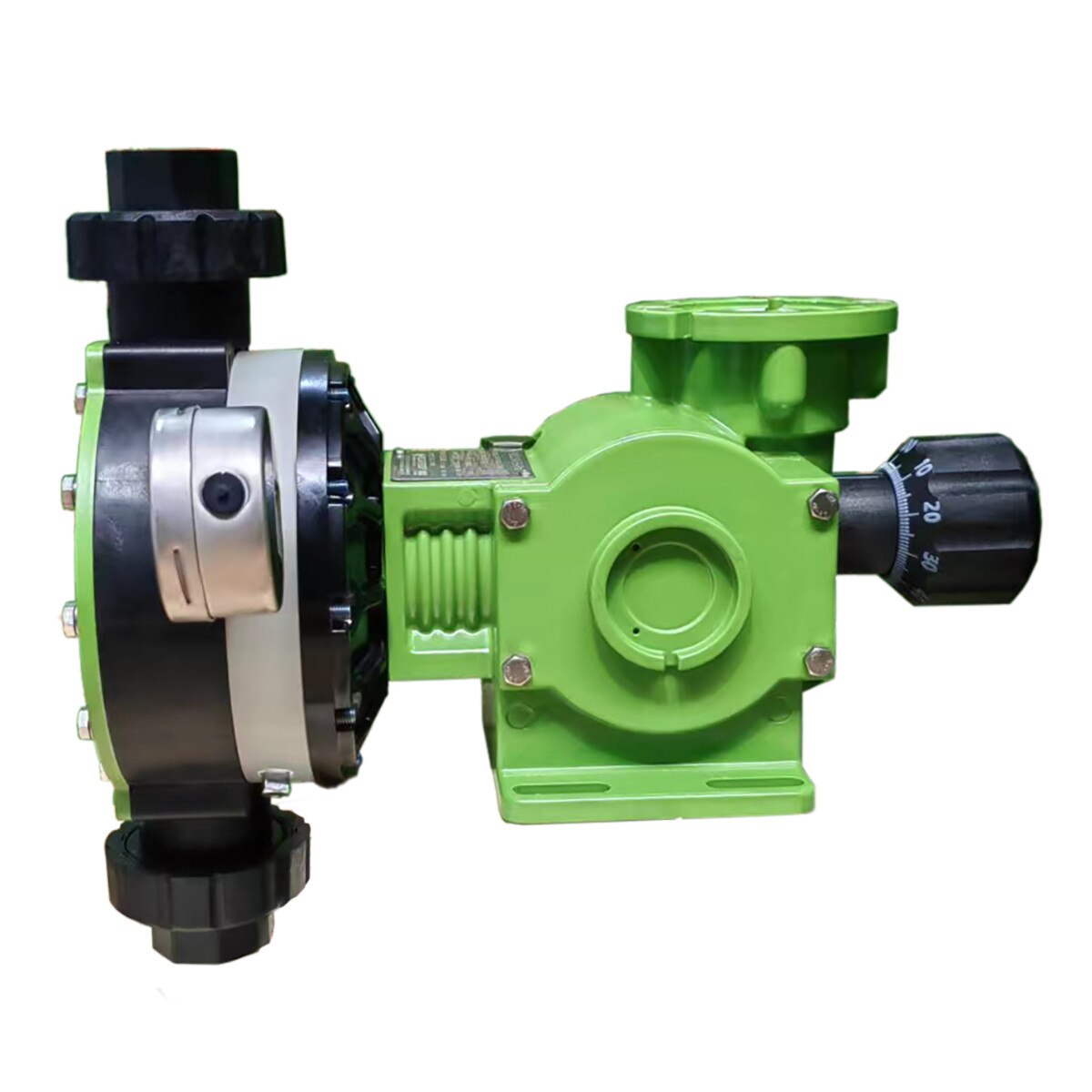

The GreenLine‑GLM DM6DYFH‑L‑NM is a mechanically actuated diaphragm metering pump in the DM6D hydraulic group, delivering 174 gph (660 lph) at 73 psi (5 bar) with a stroke rate of 175 spm. This model features a corrosion‑resistant PVDF liquid end with FKM seat O‑rings for excellent compatibility with aggressive chemical solutions. The “‑L” suffix adds the full leak detection package—double diaphragm, pressure gauge, and 24 VDC leak switch. The “‑NM” suffix indicates the pump is supplied without a motor and includes a NEMA 56C motor adapter for user‑supplied motor integration.
Specifications
- Max Flow: 174 gph (660 lph)
- Max Pressure: 73 psi (5 bar)
- SPM @ 60 Hz: 175 strokes/min
- Motor: Not included — NEMA 56C adapter provided

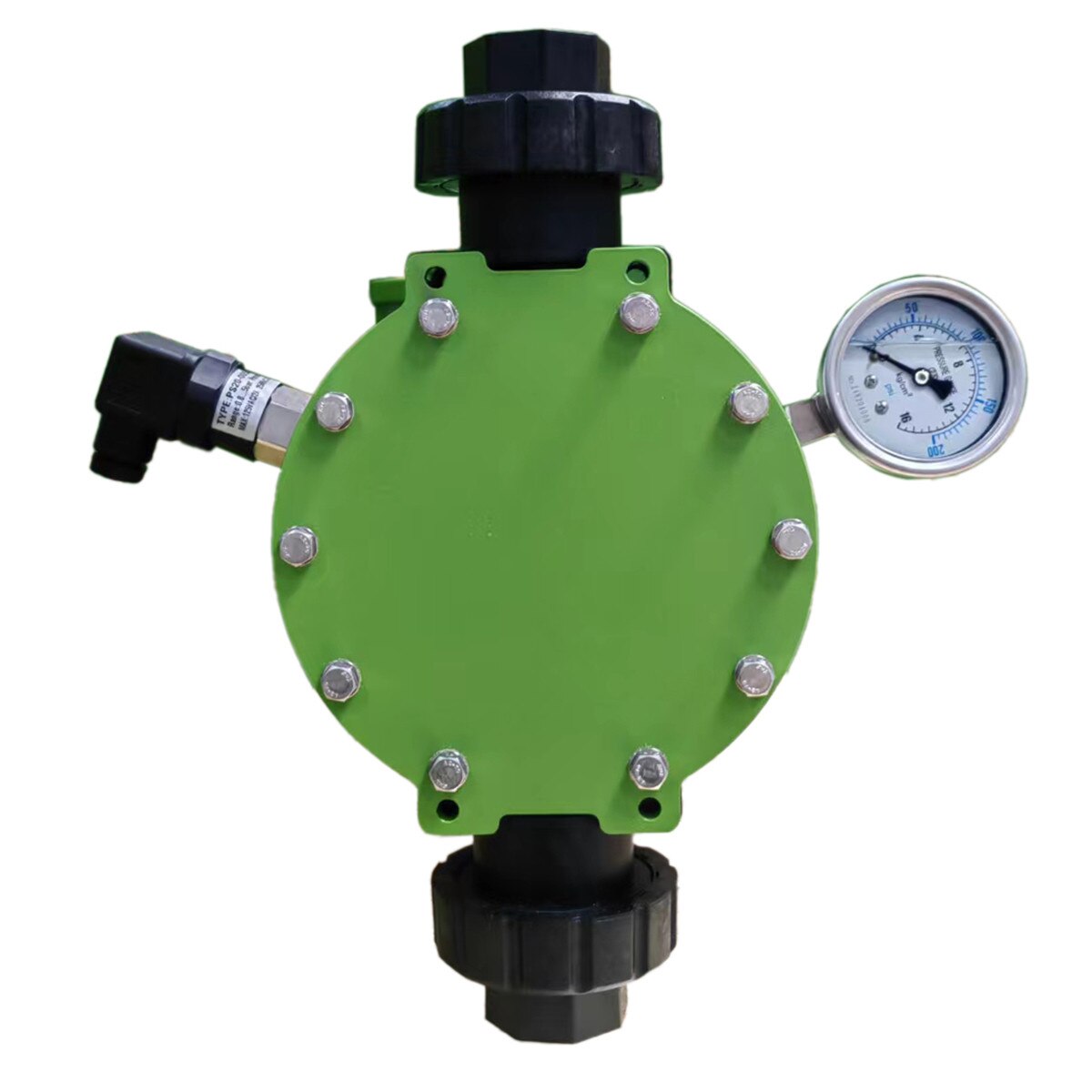

- Leak Detection: Double diaphragm, pressure gauge, 24 VDC leak switch
- Connections: 1.5″ FNPT suction / 1.5″ FNPT discharge
- Approximate Weight: 61 lb
Materials of Construction
- Wet End: PVDF
- Seat O‑Rings: FKM
- Check Balls: Ceramic
- Valve O‑Rings: PTFE
- Diaphragm: Composite PTFE
- Housing: Epoxy‑painted aluminum
- Hardware: Stainless steel
Key Features & Benefits
- PVDF liquid end for excellent corrosion and chemical resistance
- Full leak detection package for enhanced containment
- DM6D hydraulic group delivers 174 GPH at 73 PSI
- Supplied without motor for custom motor selection
- NEMA 56C motor adapter included
- SUV check valves improve priming and reduce turbulence
- Sealed gearbox reduces noise and protects internal components
Markets & Typical Applications
- Municipal and industrial water treatment
- Handling aggressive chemicals, oxidizers, and corrosive solutions
- Chemical processing and general industrial feed systems
- Power generation and boiler chemical injection
- Applications requiring non‑metallic wetted materials with leak detection and no motor
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | Pulsafeeder |
| Product Line: | GreenLine |
| Housing: | Epoxy Painted Aluminum |
| Max Flow (GPH): | 174 |
| Max Flow (GPD): | 4176 |
| Max Pressure (PSI): | 73 |
| Max Viscosity (CPS): | 1000 |
| Max Strokes per Minute: | 175 |

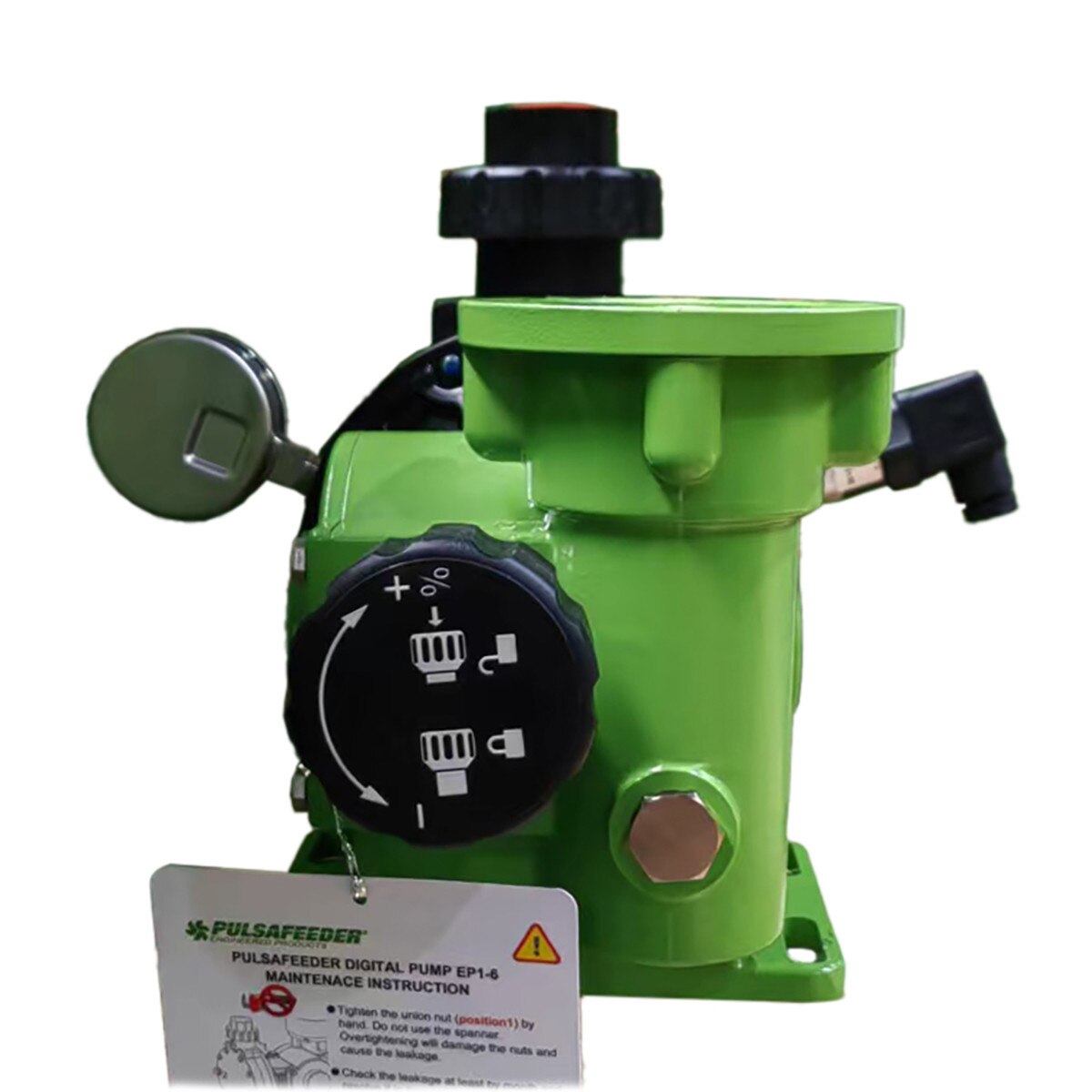

| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 10:1 |
| Head/Fittings: | PVDF / PVDF |
| Valve Balls: | Ceramic |
| Diaphragm: | Composite PTFE |
| Valve / Seat / O-Ring: | PVDF / PTFE / FKM |
| Motor: | No Motor - NEMA 56C Frame Ready |
| Connections: | 1.5" FNPT |
| Warranty: | 2 Year Limited Warranty |
| Net Weight: | 61 lbs |
| Packaging: | Each |
| Includes: | Installation, Operation, and Maintenance Instruction Manual |
| Working Environment: | 32 to 113°F (0 to 45°C) |
