Pulsafeeder NextStep KOPkit (NS1 Series, PVDF / EPDM / Ceramic)
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder NextStep KOPkit (NS1 Series, PVDF / EPDM / Ceramic)

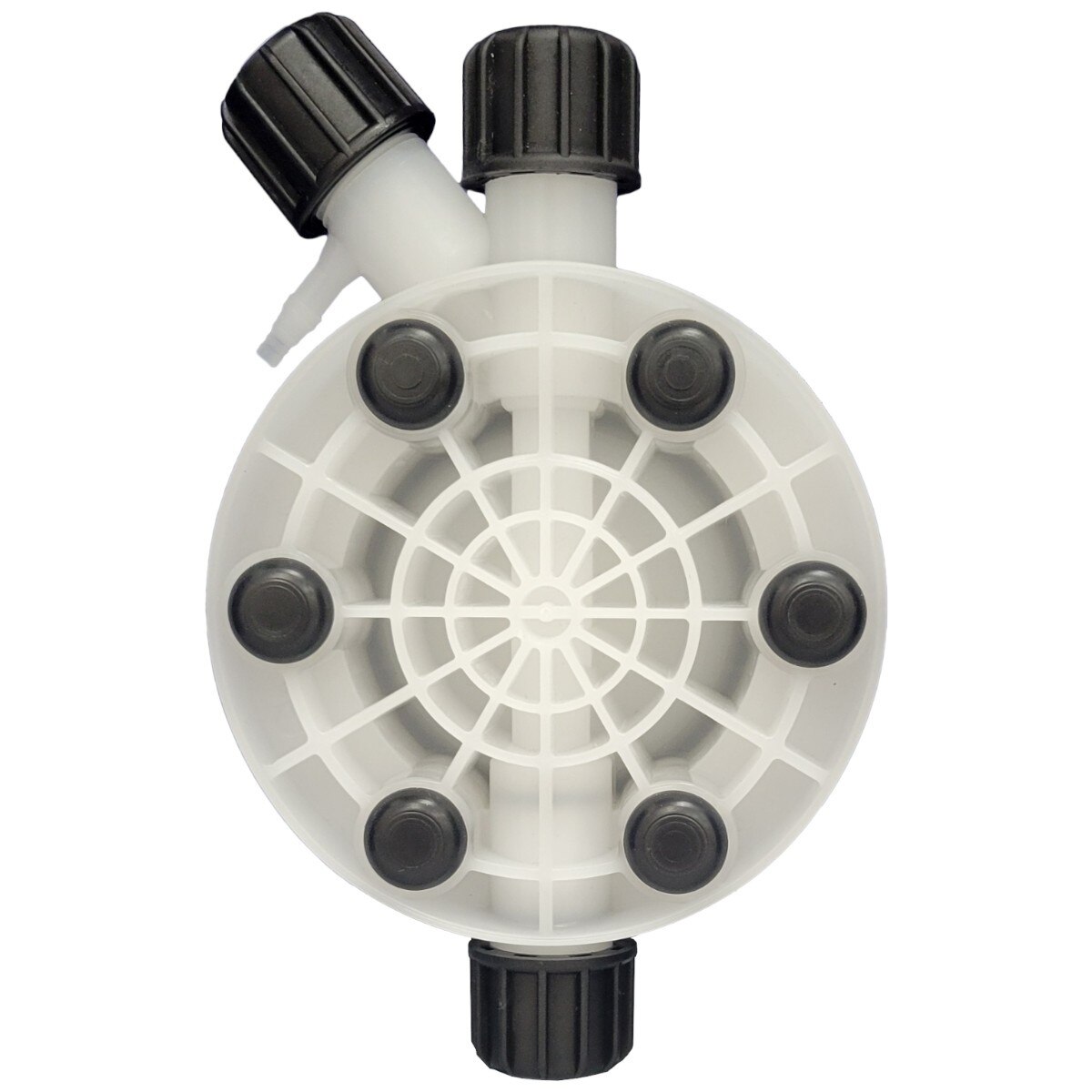

The K1KEEC1 KOPkit is a complete wet‑end service kit for NS1-series Pulsafeeder NextStep™ pumps configured with PVDF head, EPDM elastomers, and ceramic check balls. It includes the full head assembly with integrated suction, discharge, and venting valves, along with the head o‑ring, head bolts, bolt caps, and washers. Compatible with both Standard and Enhanced NS1 models. Diaphragm not included.
- Compatible with NS1ASAKEEC1XXX and NS1AMAKEEC1XXX
- Full head assembly with integrated suction, discharge, and venting valves
- Includes head o‑ring, head bolts, bolt caps, and washers
- Diaphragm not included
- Material Configuration: PVDF / EPDM / Ceramic
| Product Type: | Metering Pump Parts |
| Brand: | Pulsafeeder |
| Product Line: | NextStep |
| Class: | KOPkit |
| Head/Fittings: | PVDF |
| Valve Balls: | Ceramic |
| Valve / Seat / O-Ring: | EPDM |
| Connections: | Tubing 3/8" O.D. PVC (Suction, Venting), 3/8" O.D. PVDF (Discharge) |
