Pulsafeeder NextStep KOPkit (NS4 Series, PVDF / FKM / TFE)
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder NextStep KOPkit (NS4 Series, PVDF / FKM / TFE)

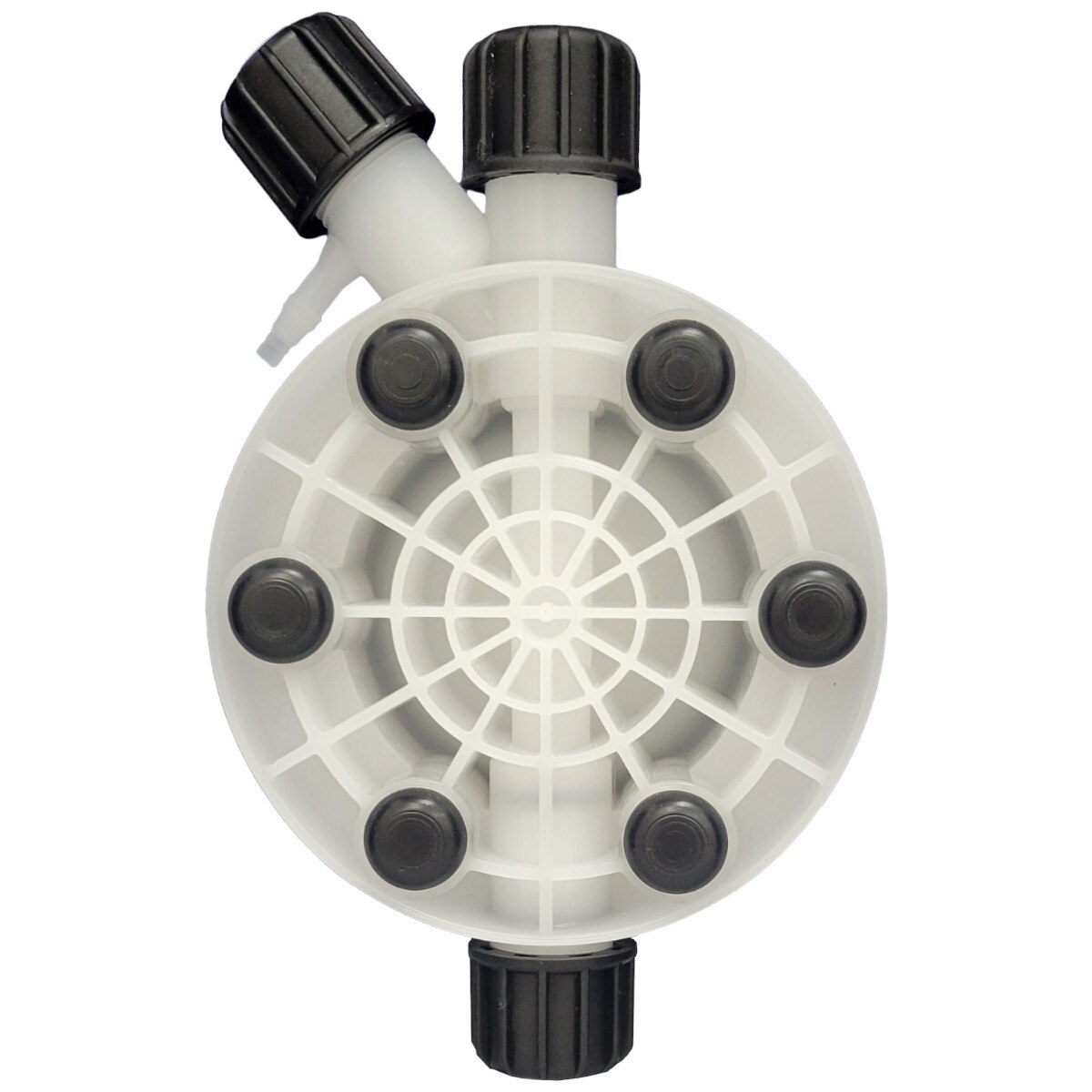

The K4KVVT1 KOPkit supports NS4-series Pulsafeeder NextStep™ pumps configured with PVDF head, FKM elastomers, and TFE check balls. It includes the full head assembly with integrated suction, discharge, and venting valves, plus the head o‑ring, head bolts, bolt caps, and washers. Compatible with both Standard and Enhanced NS4 models. Diaphragm not included.
- Compatible with NS4ASAKVVT1XXX and NS4AMAKVVT1XXX
- Full head assembly with integrated suction, discharge, and venting valves
- Includes head o‑ring, head bolts, bolt caps, and washers
- Diaphragm not included
- Material Configuration: PVDF / FKM / TFE
| Product Type: | Metering Pump Parts |
| Brand: | Pulsafeeder |
| Product Line: | NextStep |
| Class: | KOPkit |
| Head/Fittings: | PVDF |
| Valve Balls: | PTFE |
| Valve / Seat / O-Ring: | FKM B |
| Connections: | Tubing 3/8" O.D. PVC (Suction, Venting), 3/8" O.D. PVDF (Discharge) |
