Pulsafeeder NextStep KOPkit (NS6 Series, PVDF / FKM / Ceramic)
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder NextStep KOPkit (NS6 Series, PVDF / FKM / Ceramic)

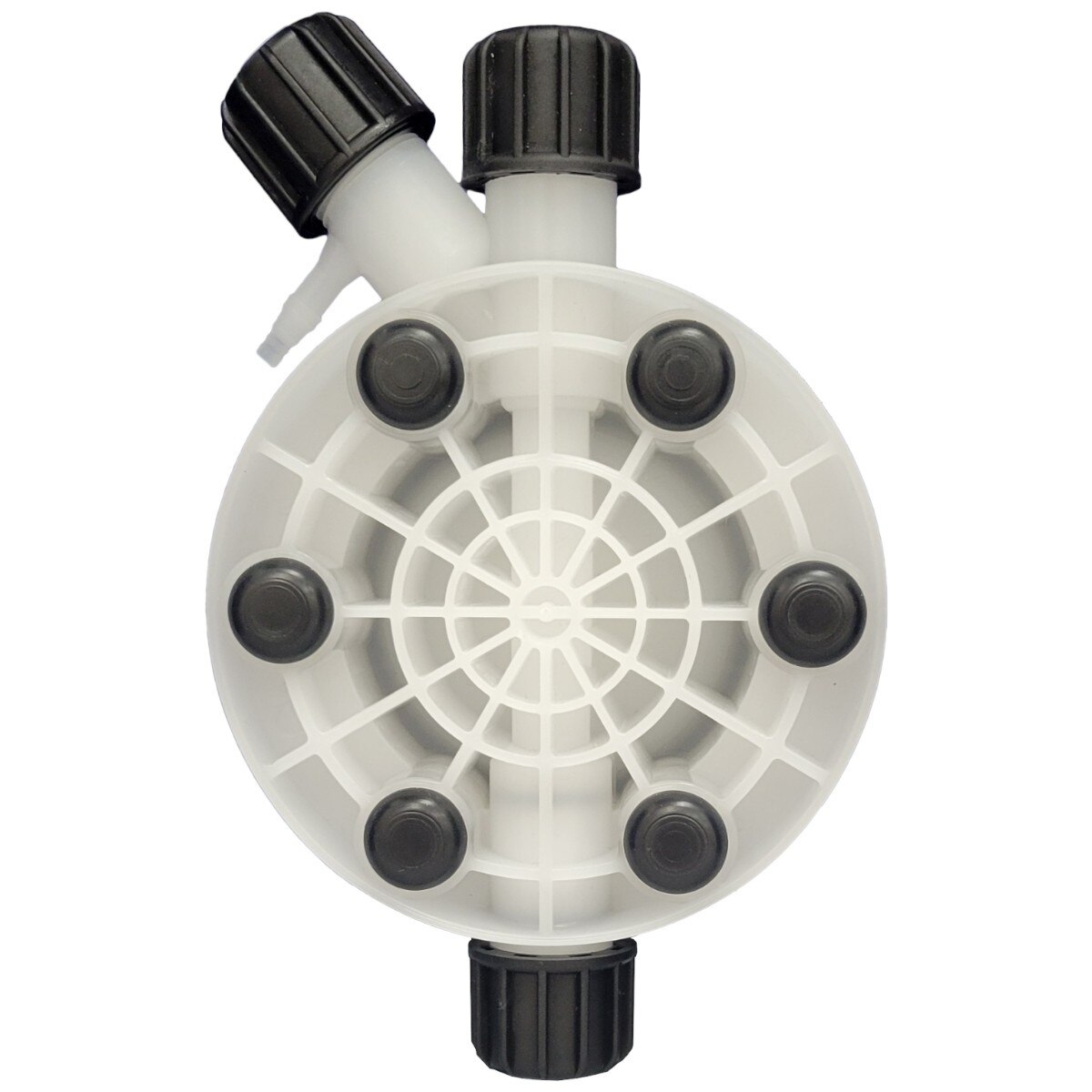

The K6KVVC3 KOPkit is a complete wet‑end maintenance kit for NS6‑series Pulsafeeder NextStep™ pumps configured with a PVDF head, FKM elastomers, and ceramic check balls. It includes the full head assembly with integrated suction, discharge, and venting valves, along with the head o‑ring, head bolts, bolt caps, and washers. Compatible with both Standard and Enhanced NS6 models. Diaphragm not included.
- Compatible with NS6ASAKVVC3XXX and NS6AMAKVVC3XXX
- Full head assembly with integrated suction, discharge, and venting valves
- Includes head o‑ring, head bolts, bolt caps, and washers
- Diaphragm not included
- Material Configuration: PVDF / FKM / Ceramic
| Product Type: | Metering Pump Parts |
| Brand: | Pulsafeeder |
| Product Line: | NextStep |
| Class: | KOPkit |
| Head/Fittings: | PVDF |
| Valve Balls: | Ceramic |
| Valve / Seat / O-Ring: | FKM B |
| Connections: | Tubing 1/2" O.D. PVC (Suction), 1/2" O.D. PVDF (Discharge), 3/8" O.D. PVC (Venting) |
