Pulsafeeder NextStep KOPkit (NS7 Series, PVDF / EPDM / Ceramic)
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder NextStep KOPkit (NS7 Series, PVDF / EPDM / Ceramic)

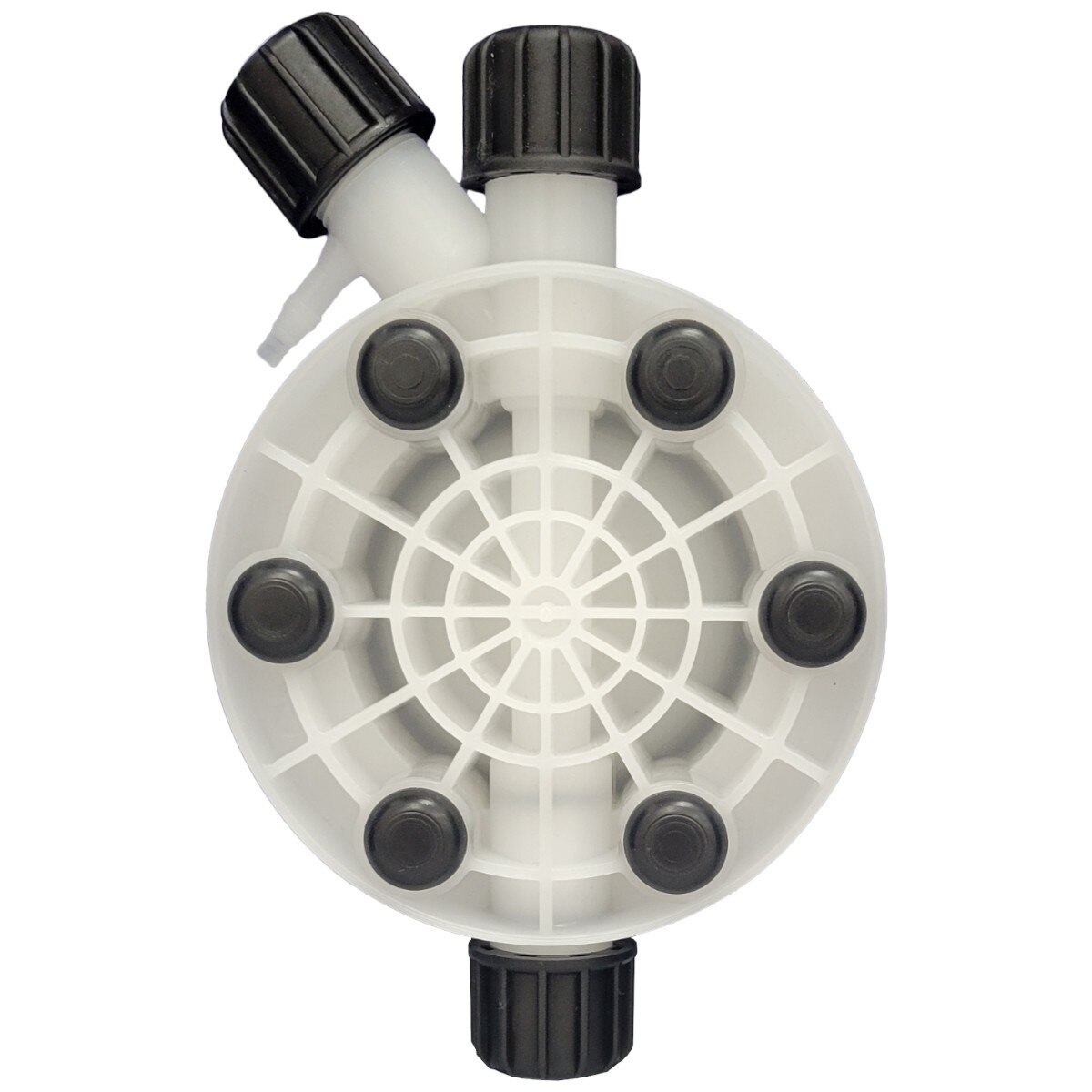

The K7KEEC3 KOPkit is a complete wet‑end service kit for NS7-series Pulsafeeder NextStep™ pumps configured with PVDF head, EPDM elastomers, and ceramic check balls. It includes the full head assembly with integrated suction, discharge, and venting valves, plus the head o‑ring, head bolts, bolt caps, and washers. Compatible with both Standard and Enhanced NS7 models. Diaphragm not included.
- Compatible with NS7ASAKEEC3XXX and NS7AMAKEEC3XXX
- Full head assembly with integrated suction, discharge, and venting valves
- Includes head o‑ring, head bolts, bolt caps, and washers
- Diaphragm not included
- Material Configuration: PVDF / EPDM / Ceramic
| Product Type: | Metering Pump Parts |
| Brand: | Pulsafeeder |
| Product Line: | NextStep |
| Class: | KOPkit |
| Head/Fittings: | PVDF |
| Valve Balls: | Ceramic |
| Valve / Seat / O-Ring: | EPDM |
| Connections: | Tubing 1/2" O.D. PVC (Suction), 1/2" O.D. PVDF (Discharge), 3/8" O.D. PVC (Venting) |
