Pulsafeeder NextStep KOPkit (NS7 Series, PVDF / FKM / TFE)
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder NextStep KOPkit (NS7 Series, PVDF / FKM / TFE)

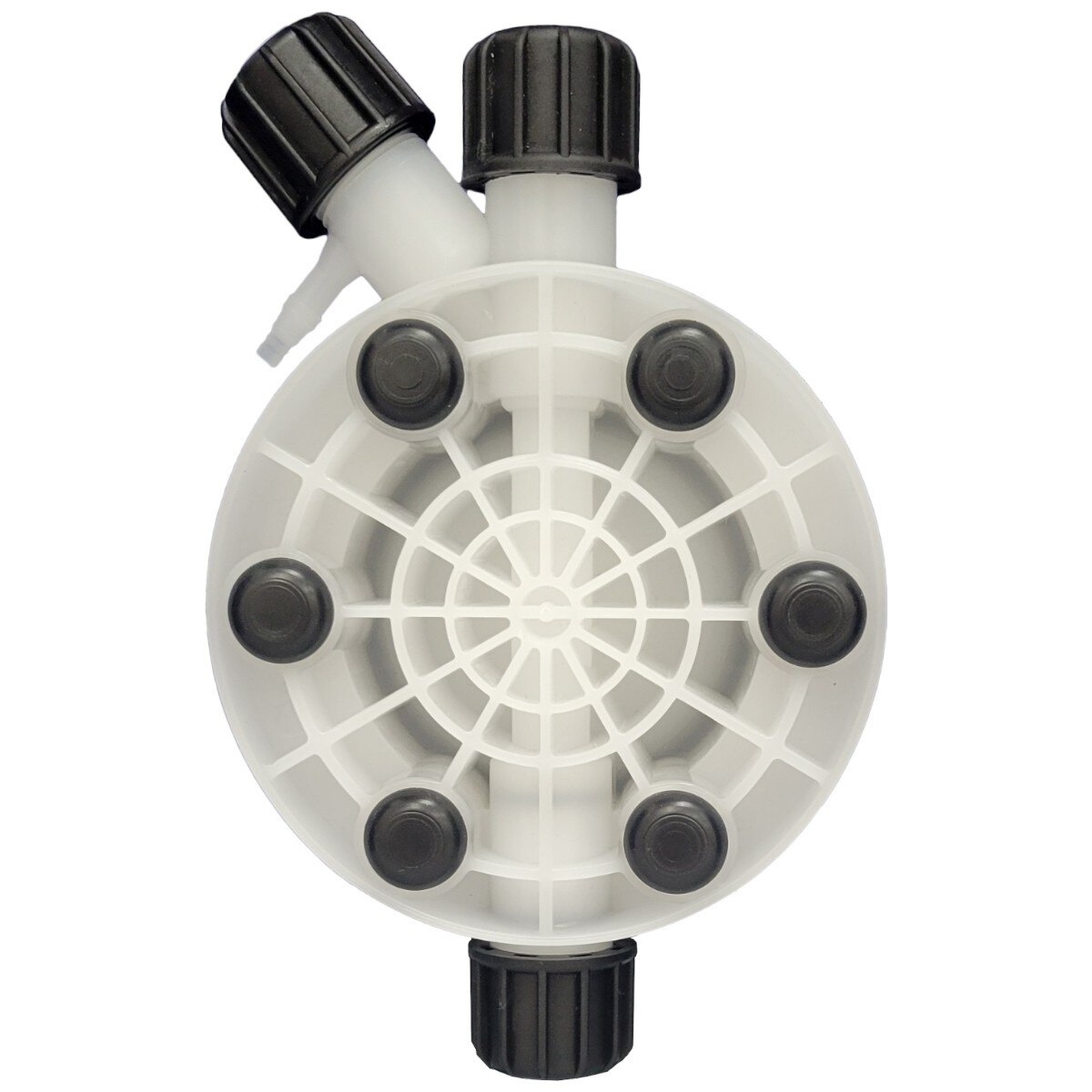

The K7KVVT3 KOPkit supports NS7-series Pulsafeeder NextStep™ pumps configured with PVDF head, FKM elastomers, and TFE check balls. It includes the full head assembly with integrated suction, discharge, and venting valves, along with the head o‑ring, head bolts, bolt caps, and washers. Compatible with both Standard and Enhanced NS7 pump models. Diaphragm not included.
- Compatible with NS7ASAKVVT3XXX and NS7AMAKVVT3XXX
- Full head assembly with integrated suction, discharge, and venting valves
- Includes head o‑ring, head bolts, bolt caps, and washers
- Diaphragm not included
- Material Configuration: PVDF / FKM / TFE
| Product Type: | Metering Pump Parts |
| Brand: | Pulsafeeder |
| Product Line: | NextStep |
| Class: | KOPkit |
| Head/Fittings: | PVDF |
| Valve Balls: | PTFE |
| Valve / Seat / O-Ring: | FKM B |
| Connections: | Tubing 1/2" O.D. PVC (Suction), 1/2" O.D. PVDF (Discharge), 3/8" O.D. PVC (Venting) |
