Pulsafeeder NextStep KOPkit (NS8 Series, PVDF / FKM / TFE)
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder NextStep KOPkit (NS8 Series, PVDF / FKM / TFE)

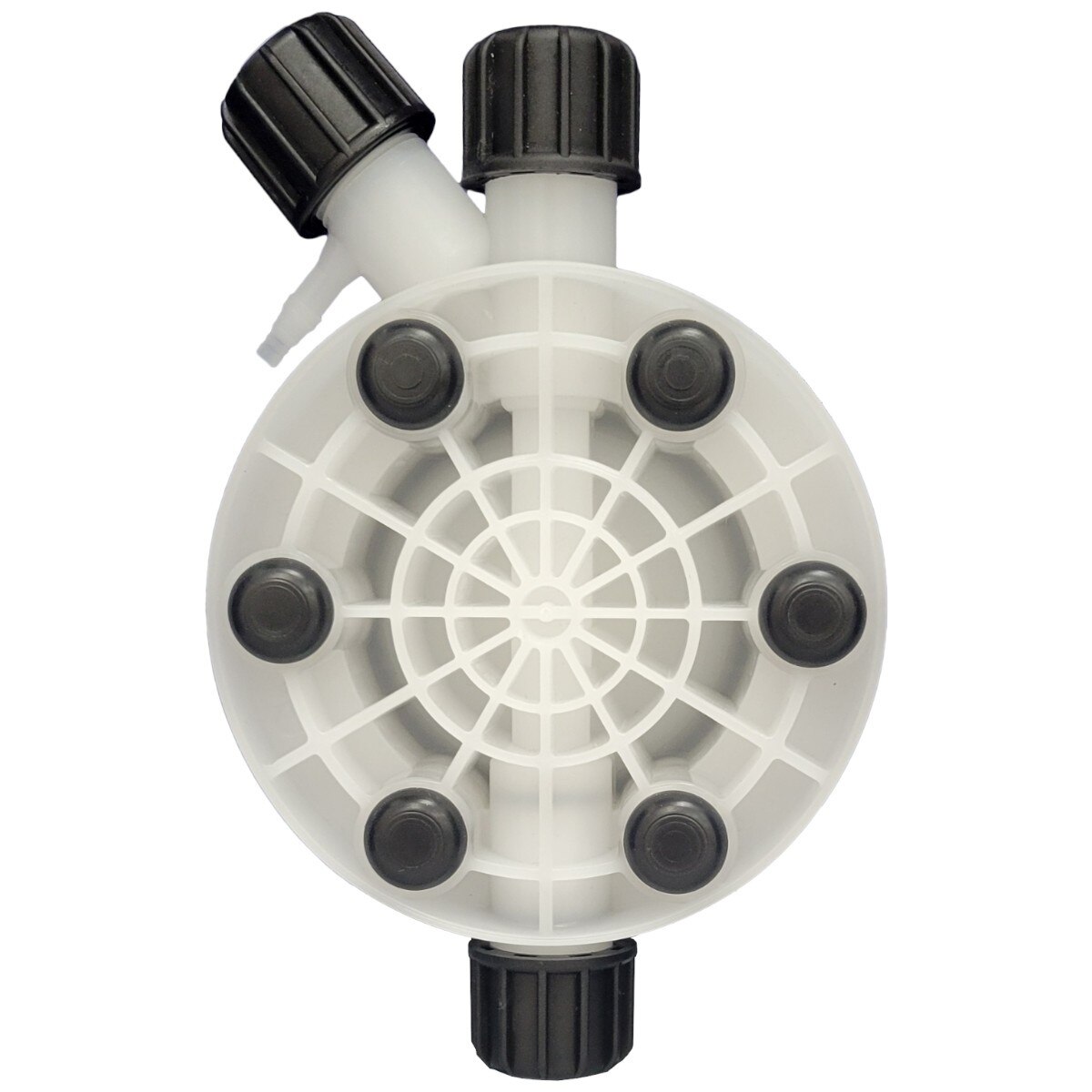

The K8KVVT3 KOPkit supports NS8-series Pulsafeeder NextStep™ pumps configured with PVDF head, FKM elastomers, and TFE check balls. It includes the full head assembly with integrated suction, discharge, and venting valves, plus the head o‑ring, head bolts, bolt caps, and washers. Compatible with both Standard and Enhanced NS8 models. Diaphragm not included.
- Compatible with NS8ASAKVVT3XXX and NS8AMAKVVT3XXX
- Full head assembly with integrated suction, discharge, and venting valves
- Includes head o‑ring, head bolts, bolt caps, and washers
- Diaphragm not included
- Material Configuration: PVDF / FKM / TFE
| Product Type: | Metering Pump Parts |
| Brand: | Pulsafeeder |
| Product Line: | NextStep |
| Class: | KOPkit |
| Head/Fittings: | PVDF |
| Valve Balls: | PTFE |
| Valve / Seat / O-Ring: | FKM B |
| Connections: | Tubing 1/2" O.D. PVC (Suction), 1/2" O.D. PVDF (Discharge), 3/8" O.D. PVC (Venting) |
