Pulsafeeder NextStep KOPkit (NS9 Series, PVDF / EPDM / Ceramic)
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder NextStep KOPkit (NS9 Series, PVDF / EPDM / Ceramic)

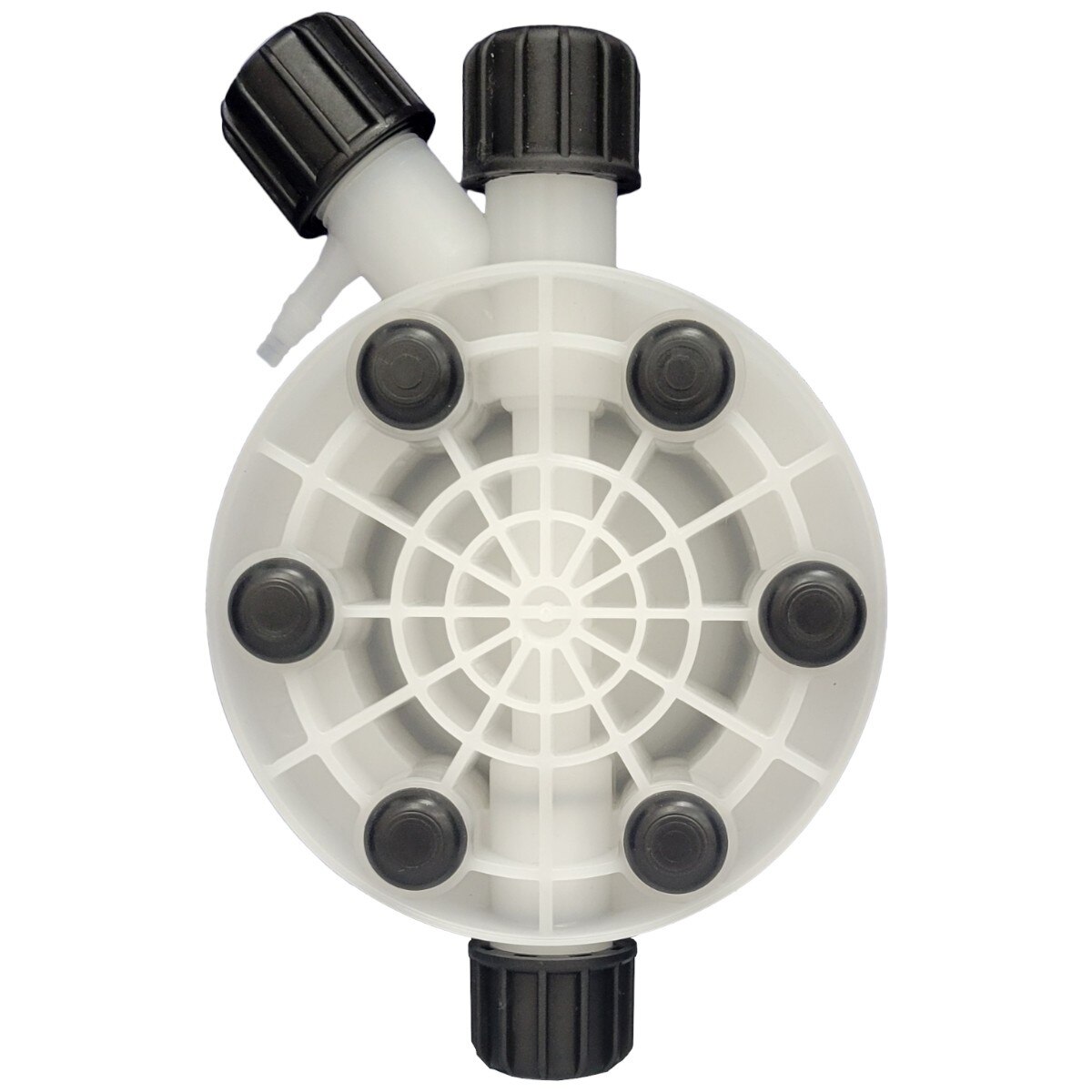

The K9KEEC3 KOPkit is a complete wet‑end service kit for NS9-series Pulsafeeder NextStep™ pumps configured with PVDF head, EPDM elastomers, and ceramic check balls. It includes the full head assembly with integrated suction, discharge, and venting valves, plus the head o‑ring, head bolts, bolt caps, and washers. Compatible with both Standard and Enhanced NS9 models. Diaphragm not included.
- Compatible with NS9ASAKEEC3XXX and NS9AMAKEEC3XXX
- Full head assembly with integrated suction, discharge, and venting valves
- Includes head o‑ring, head bolts, bolt caps, and washers
- Diaphragm not included
- Material Configuration: PVDF / EPDM / Ceramic
| Product Type: | Metering Pump Parts |
| Brand: | Pulsafeeder |
| Product Line: | NextStep |
| Class: | KOPkit |
| Head/Fittings: | PVDF |
| Valve Balls: | Ceramic |
| Valve / Seat / O-Ring: | EPDM |
| Connections: | Tubing 1/2" O.D. PVC (Suction), 1/2" O.D. PVDF (Discharge), 3/8" O.D. PVC (Venting) |
