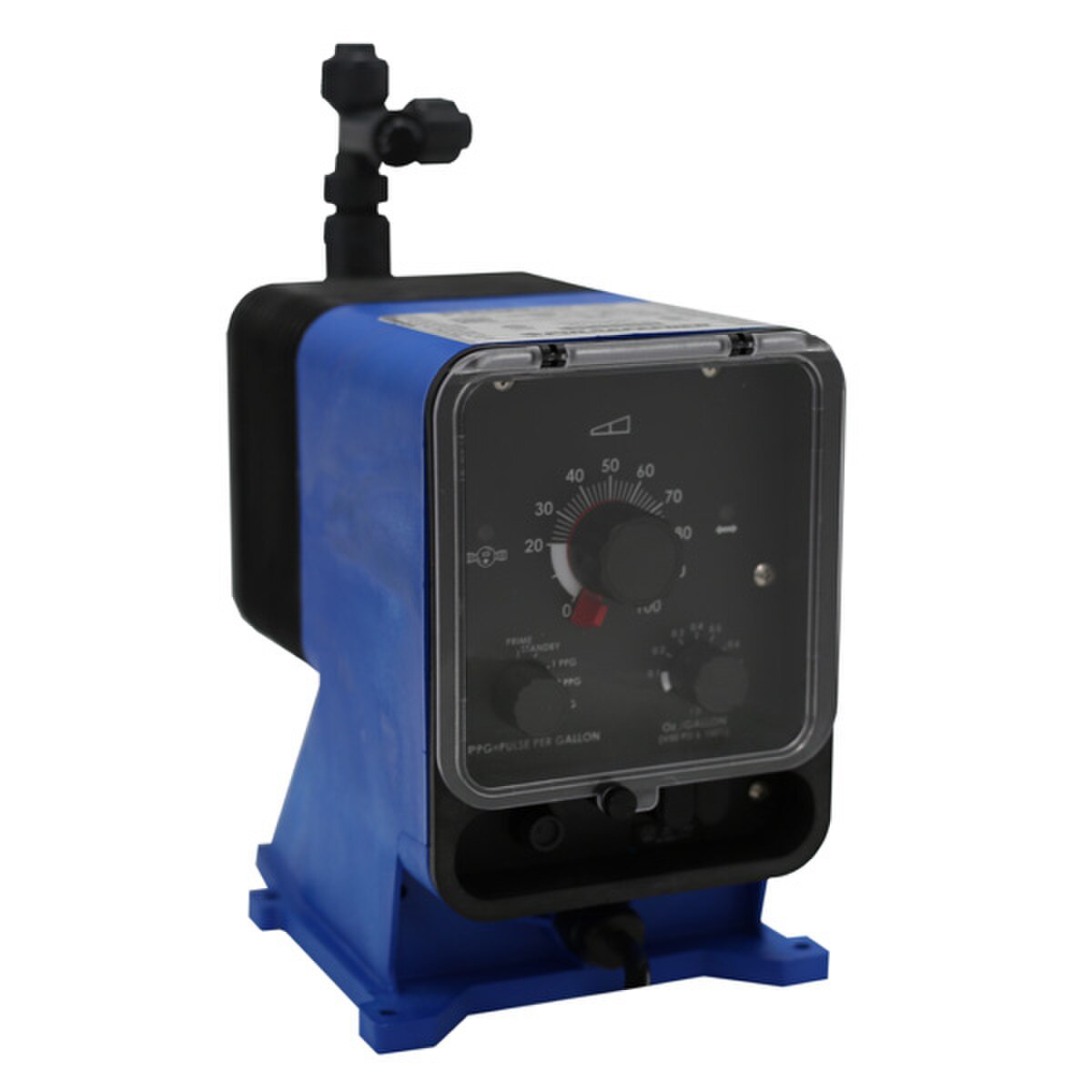

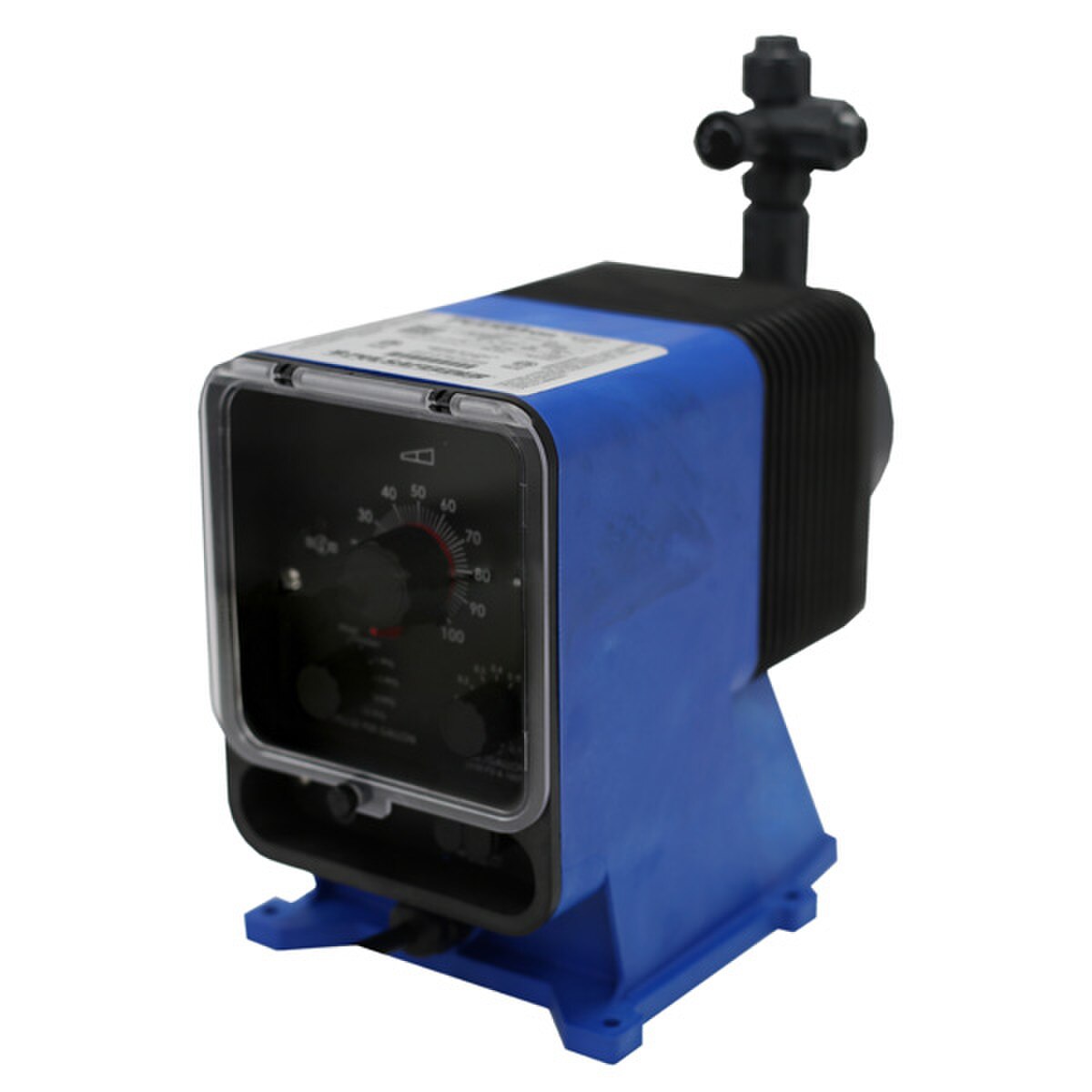

PULSAtron Series E+RC Metering Pump with Ratio Control, 44 GPD @ 100 PSI, 115 VAC (Water Meter Contact Input and Output)
Images are for representation only. Actual product may differ in size, color or options.
PULSAtron Series E+RC Metering Pump with Ratio Control
44 GPD @ 100 PSI, 115 VAC
Water Meter Contact Input and Output
Stroke frequency control via water meter pulse signal input, ratio adjusting knob, and manual stroke length control. Repeats pulse input signal to signal output connection.
General Description
Pulsafeeder PULSAtron Series E+RC chemical metering pumps are positive displacement, diaphragm type pumps. Output volume is adjustable while pumps are in operation from zero to maximum capacity. The PULSAtron Series E+RC contains a highly reliable timing circuit as well as circuit protection against voltage and current upsets. This pump features solenoid protection by thermal overload with auto-reset. The Series E+RC guided check valves, with their state-of-the-art seat and ball designs, provide precise seating, and excellent priming and suction lift characteristics. Our timing circuit is highly reliable and, by design, virtually unaffected by temperature, EMI and other electrical disturbances.
Pump Controls

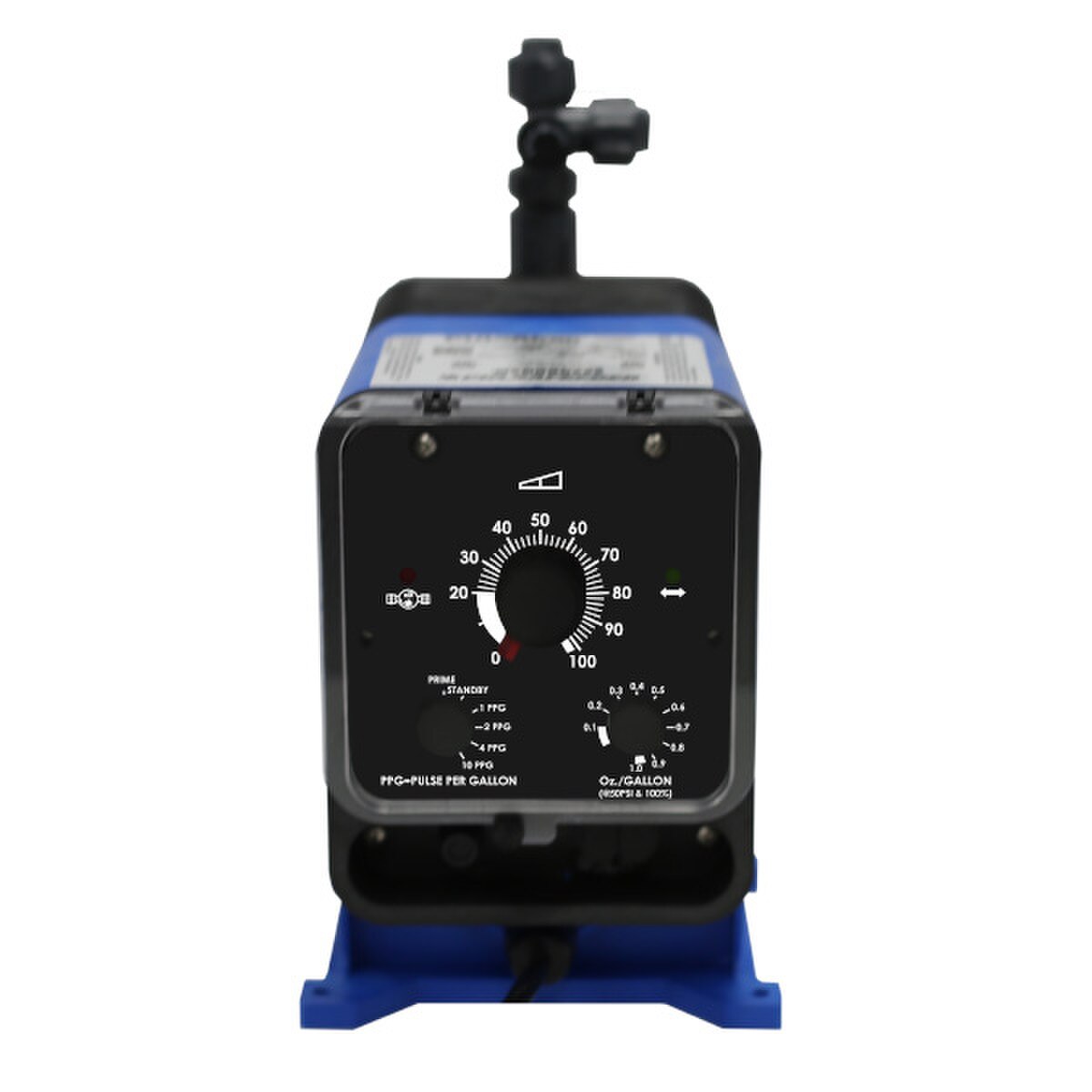

Ratio Control adjustment is by means of readily accessible dial knobs for changing stroke length, speed control based on a water meter input signal, and a selectable ratio control up to 1.0 Oz/ Gallon. Knobs are located opposite the liquid handling end. Prime, Standby, and PPG Pulse Per Gallon switch.
Drive Assembly
The pump drive is totally enclosed with no exposed moving parts. Electronics are housed in chemical resistant enclosure at the rear of the pump for maximum protection against chemical spillage. Average electrical power consumption is 130 Watts.
Materials of Construction
See Specifications tab. Chemical metering pump housing shall be of chemically resistant PBT thermoplastic. All exposed fasteners are stainless steel. Valve seat and seal ring are renewable by replacing the cartridge valve assembly.
Pulsafeeder PULSAtron Series E+RC Chemical Metering Pump - Key Features
44 GPD @ 100 PSI, 115 VAC
Water Meter Contact Input and Output
Stroke frequency control via water meter pulse signal input, ratio adjusting knob, and manual stroke length control. Repeats pulse input signal to signal output connection.
General Description
Pulsafeeder PULSAtron Series E+RC chemical metering pumps are positive displacement, diaphragm type pumps. Output volume is adjustable while pumps are in operation from zero to maximum capacity. The PULSAtron Series E+RC contains a highly reliable timing circuit as well as circuit protection against voltage and current upsets. This pump features solenoid protection by thermal overload with auto-reset. The Series E+RC guided check valves, with their state-of-the-art seat and ball designs, provide precise seating, and excellent priming and suction lift characteristics. Our timing circuit is highly reliable and, by design, virtually unaffected by temperature, EMI and other electrical disturbances.
Pump Controls
Ratio Control adjustment is by means of readily accessible dial knobs for changing stroke length, speed control based on a water meter input signal, and a selectable ratio control up to 1.0 Oz/ Gallon. Knobs are located opposite the liquid handling end. Prime, Standby, and PPG Pulse Per Gallon switch.
Drive Assembly
The pump drive is totally enclosed with no exposed moving parts. Electronics are housed in chemical resistant enclosure at the rear of the pump for maximum protection against chemical spillage. Average electrical power consumption is 130 Watts.
Materials of Construction
See Specifications tab. Chemical metering pump housing shall be of chemically resistant PBT thermoplastic. All exposed fasteners are stainless steel. Valve seat and seal ring are renewable by replacing the cartridge valve assembly.
Pulsafeeder PULSAtron Series E+RC Chemical Metering Pump - Key Features
- Automatic Control, pump speed is automatically adjusted to maintain the ratio that is set.
- Manual Control by on-line adjustable stroke length.
- Prime mode allows the pump to operate at 100% speed.
- Standby mode allows the pump to be stopped and act as a water meter signal repeater.
- Highly Reliable timing circuit.
- Circuit Protection against voltage and current upsets.
- Panel Mounted Fuse.
- Solenoid Protection by thermal overload with auto-reset.
- Water Resistant, for outdoor and indoor applications.
- Indicator Lights, panel mounted.
- Guided Ball Check Valve Systems, to reduce back flow and enhance outstanding priming characteristics.
- Few Moving Parts and Wall Mountable.
- Safe & Easy Priming with durable leak-free bleed valve assembly (standard).
- Reliable metering performance.
- Rated "hot" for continuous duty.
- Leak-free, sealless, liquid end.
| Product Type: | Diaphragm Metering Pump, Solenoid Driven |
| Brand: | Pulsafeeder |
| Product Line: | PULSAtron Series E+RC |
| Max Flow (GPH): | 1.83 |
| Max Flow (GPD): | 44 |
| Max Pressure (PSI): | 100 |
| Max Viscosity (CPS): | 1,000 |
| Max Strokes per Minute: | 125 |
| Flow Control: | Water Meter Contact Input and Output |
| Turn Down Ratio: | 10:1 |
| Head/Fittings: | GFPPL |
| Valve Balls: | Ceramic |
| Diaphragm: | PTFE faced CSPE |
| Valve / Seat / O-Ring: | TFE |
| Connections: | Tubing 3/8" O.D. |
| Power Supply: | 115 VAC 50/60 Hz, US Plug |
| Operating Modes: | Prime / Standby / Pulse Per Gallon |
| Net Weight: | 15 lbs |
| Includes: | A weighted foot valve/strainer assembly, a bleed valve assembly, a 1/2" NPT male injection fitting/back pressure check valve assembly, 4' suction tubing, 4' bleed/return tubing, 8' discharge tubing and Owners Manual. |
