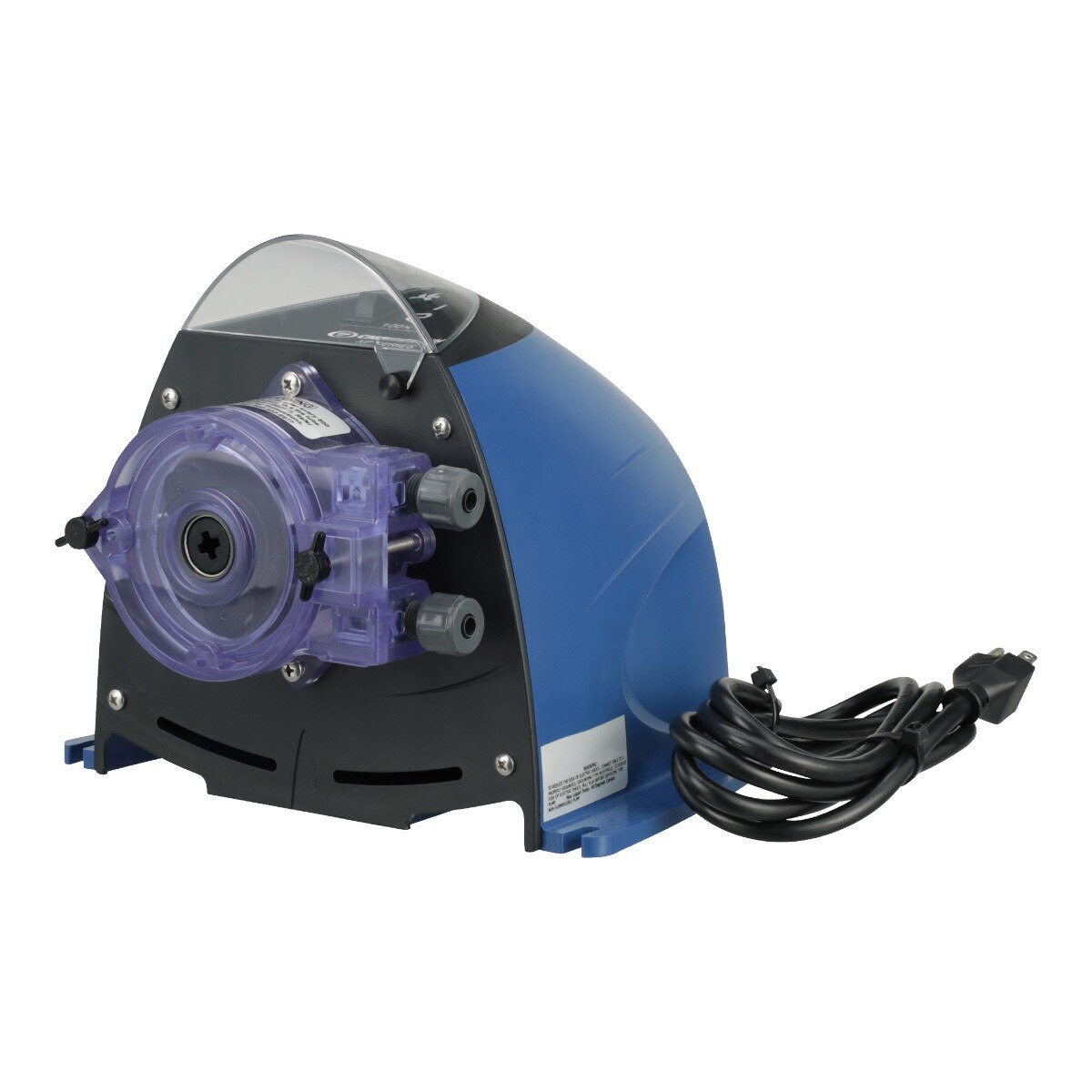

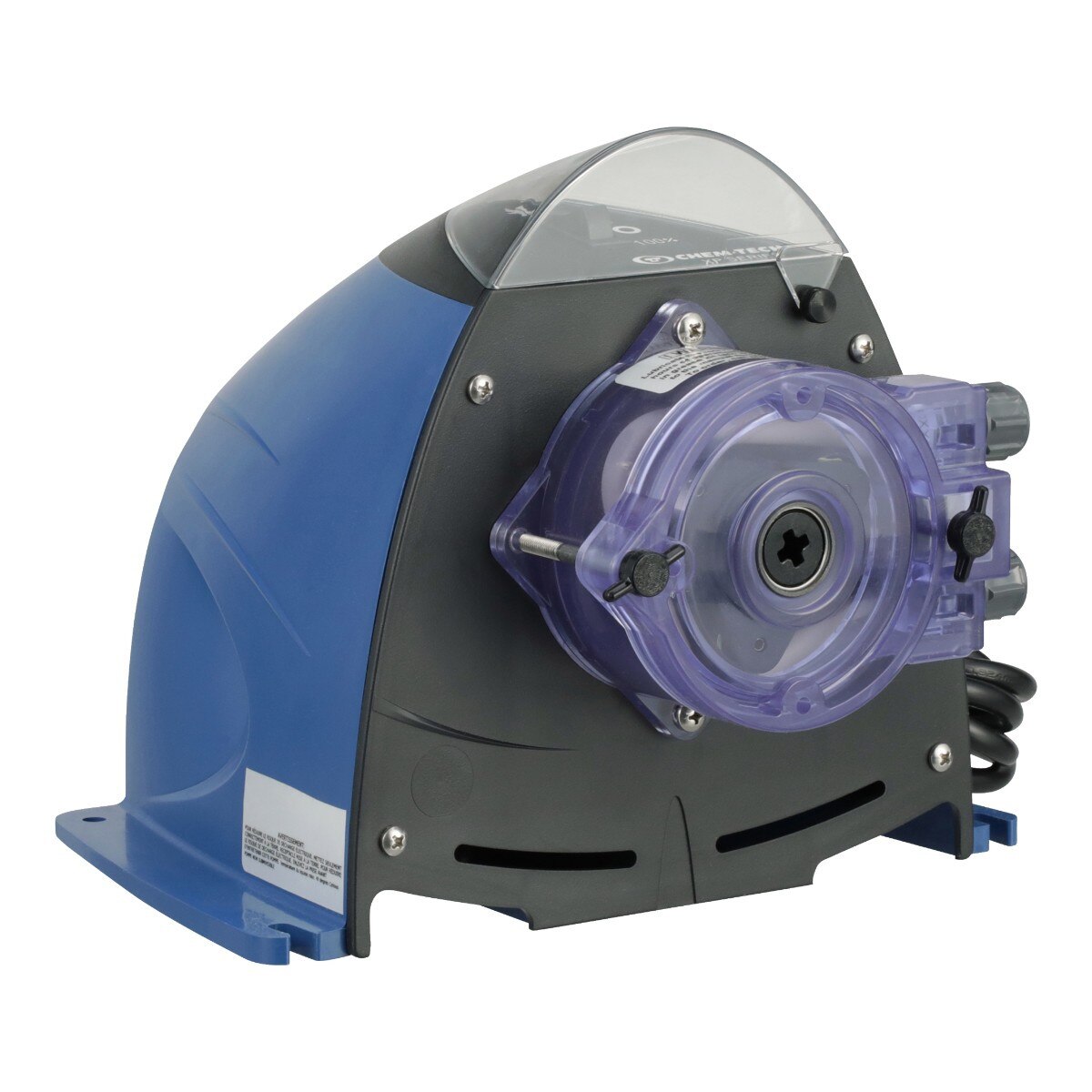

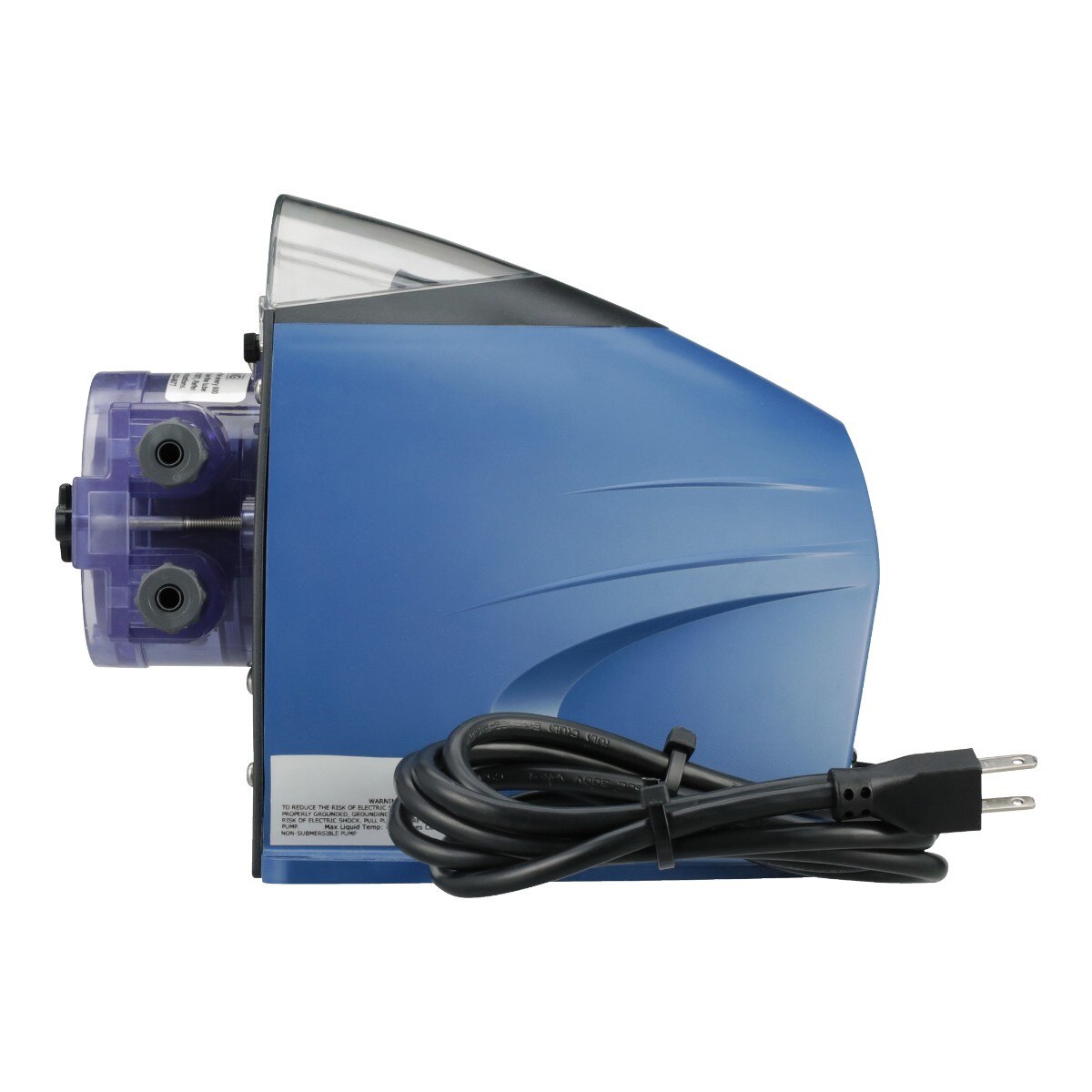

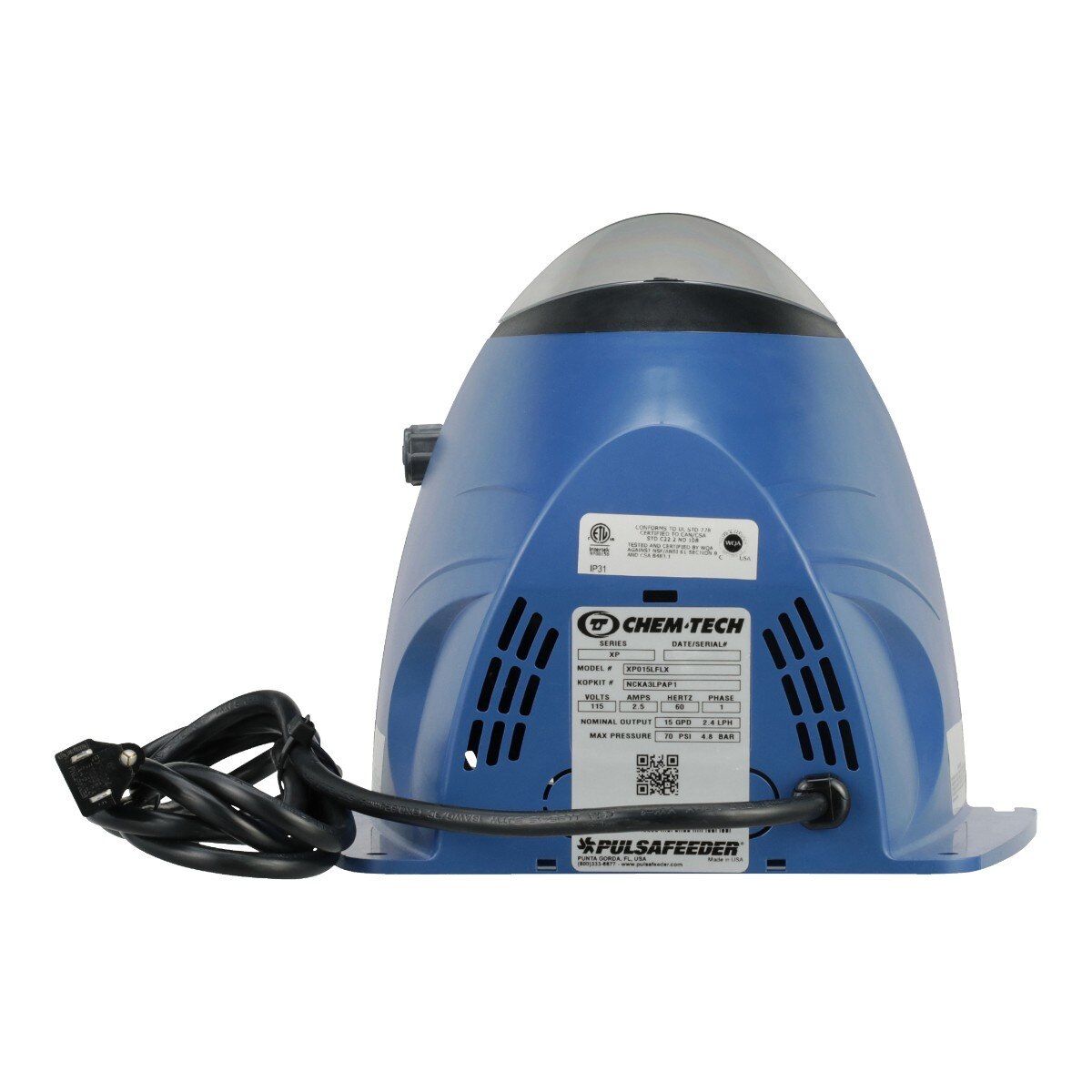

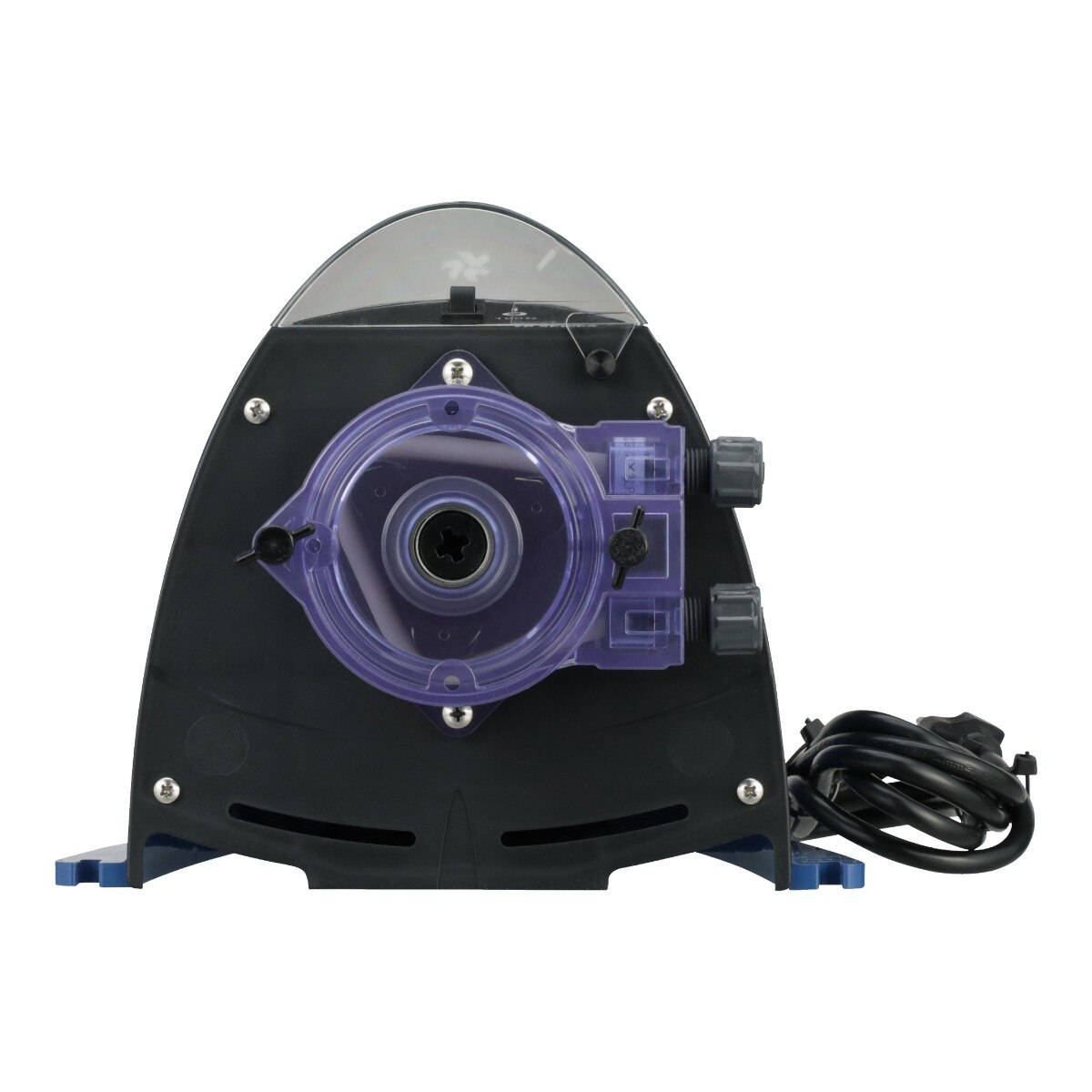

CHEM-TECH XP Series Peristaltic Metering Pump, 14 & 14 GPD @ 50 PSI, 115 VAC (Manual Control, Fixed Rate, DUPLEX)
Images are for representation only. Actual product may differ in size, color or options.
CHEM-TECH XP Series Peristaltic Metering Pump
14 & 14 GPD @ 50 PSI, 115 VAC
Manual Control, Fixed Rate, DUPLEX
The pump is equipped with a 3-position rocker switch with three positions (ON, OFF/Standby, and momentary-On).
General Description
Pulsafeeder CHEM-TECH XP Series DUPLEX peristaltic chemical metering pumps are peristaltic technology metering pumps. The CHEM-TECH Series XP with peristaltic technology delivers worry-free dosing in a modern design. Each and every component of the Series XP is designed and manufactured for optimum reliability and durability for REAL Performance. The intuitive interface and controls provide easy operation and the peristaltic design is virtually maintenance-free. Tailor-made for the water conditioning market, the Series XP offers affordable solutions in both initial cost and operation. A rugged gear train and computer-aided peristaltic design ensure long-lasting performance.
Pump Controls
The pump is equipped with a 3-position rocker switch mounted above the peristaltic head. The rocker switch has three positions (ON, OFF/Standby, and momentary-On).
Drive Assembly
The pump drive is totally enclosed with no exposed moving parts.
Materials of Construction
See Specifications tab. The compact, injection-molded housing and DUPLEX pump head offer both affordability and chemical resistance. All exposed fasteners are stainless steel. Peristaltic tubing is renewable by replacement.
Pulsafeeder CHEM-TECH XP Series peristaltic Chemical Metering Pump - Key Features
14 & 14 GPD @ 50 PSI, 115 VAC
Manual Control, Fixed Rate, DUPLEX
The pump is equipped with a 3-position rocker switch with three positions (ON, OFF/Standby, and momentary-On).
General Description
Pulsafeeder CHEM-TECH XP Series DUPLEX peristaltic chemical metering pumps are peristaltic technology metering pumps. The CHEM-TECH Series XP with peristaltic technology delivers worry-free dosing in a modern design. Each and every component of the Series XP is designed and manufactured for optimum reliability and durability for REAL Performance. The intuitive interface and controls provide easy operation and the peristaltic design is virtually maintenance-free. Tailor-made for the water conditioning market, the Series XP offers affordable solutions in both initial cost and operation. A rugged gear train and computer-aided peristaltic design ensure long-lasting performance.
Pump Controls
The pump is equipped with a 3-position rocker switch mounted above the peristaltic head. The rocker switch has three positions (ON, OFF/Standby, and momentary-On).
Drive Assembly
The pump drive is totally enclosed with no exposed moving parts.
Materials of Construction
See Specifications tab. The compact, injection-molded housing and DUPLEX pump head offer both affordability and chemical resistance. All exposed fasteners are stainless steel. Peristaltic tubing is renewable by replacement.
Pulsafeeder CHEM-TECH XP Series peristaltic Chemical Metering Pump - Key Features
- Simple and straight forward fixed rate pump for applications where economy and ease-of-use are required.
- DUPLEX. Two pump heads to deliver twice the flow, or the rated flow of two different chemicals simultaneously.
- Reliable metering performance.
- Mixed fluid capable. Inherently degassing.
- Extended tube life.
- Rugged, sealed gear train.
- Easy tube change-out.
- Self-priming.
- Chemical resistant materials.
- Simple installation.
| Product Type: | Peristaltic Metering Pump |
| Brand: | Pulsafeeder |
| Product Line: | Chem-Tech Series XP |
| Speed: | 30 RPM |
| Max Flow (GPH): | 0.58 & 0.58 |
| Max Flow (GPD): | 14 & 14 |
| Max Pressure (PSI): | 50 |
| Max Viscosity (CPS): | 300 |
| Flow Control: | Manual Control, Fixed Rate, DUPLEX |
| Turn Down Ratio: | N/A |
| Head/Fittings: | Clear PVC / PVC |
| Head Tubing: | Norprene, Tube Size: 4 |
| Connections: | 1/4" O.D. Tube Fittings (Suction, Discharge) |
| Power Supply: | 115 VAC 60 Hz, US Plug |
| Operating Modes: | Manual, DUPLEX |
| Net Weight: | 8.0 lbs |

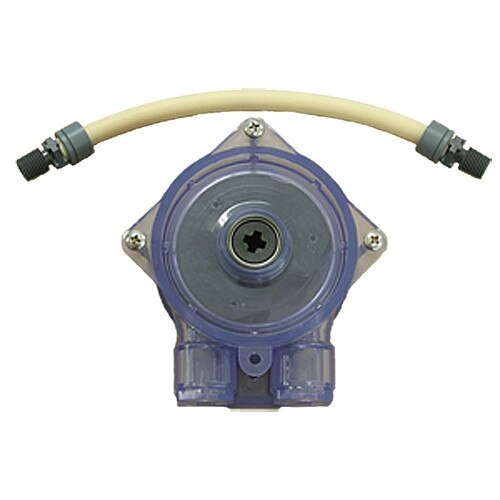

| Includes: | A spare peristaltic tube assembly, a weighted foot valve/strainer assembly, a 1/4" NPT male injection fitting/back pressure check valve assembly, a 1/4" NPT to 1/2" NPT adapter, 15' polyethylene suction/discharge tubing and Owners Manual. |
